Product Item: Novatec 291/482SL hub + Pillar 1420 spoke custom road bike carbon wheels
Rim:
Carbonal rim brake carbon rims tubular & clincher tubeless. Aerodynamics, lightweight, stiff and durable.
5 years warranty.
*Rim brake surface available: 3k twill brake track (recommended
) and basalt brake track.

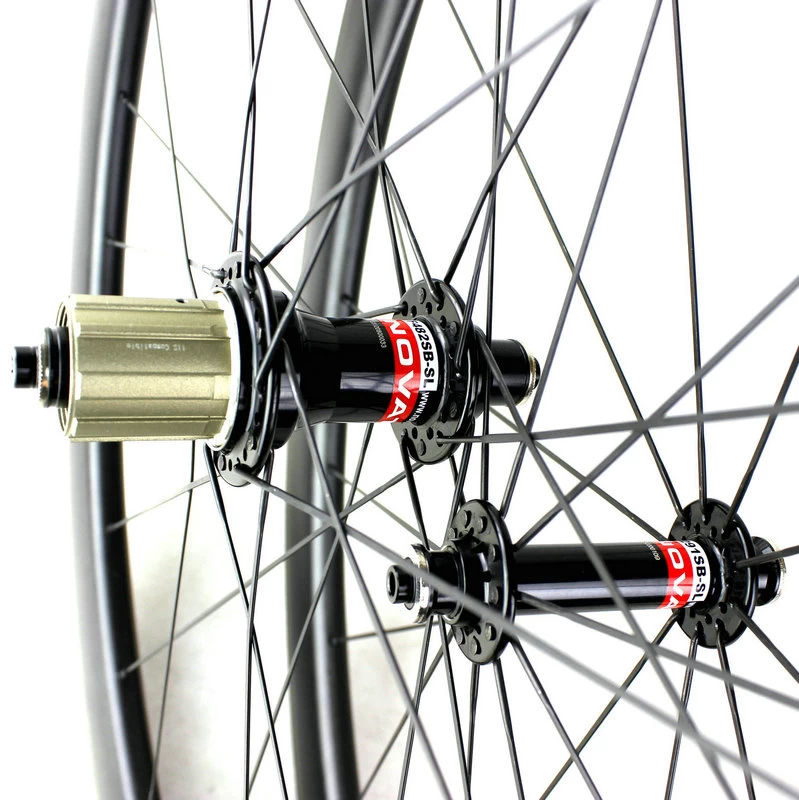

Hub:
Novatec A291SB-SL front & F482SB-SL rear hub;
Size-axle: Front - 100x9mm, Rear - 130x10mm;
Cassette body: Shimano Road 11S;
Brake system: non disc, rim brake;
Hole: Front - 20, Rear - 24;
Color: black.
Spoke:
Pillar aero 1420 spokes, J bend, black.
Nipple:
Pillar alloy nipples, black or red.
Lacing:
Front wheel - radial;
Rear wheel - 2 cross.
Weight:
Hub: 286g/set;
Spokes + nipples: 200g;
Weight without rims: 486g.
Rim model vs Complete wheel weight:
Model
|
Rim type
|
Rim weight / pc
|
Complete wheel weight (±5%) / set
|
Max weight limit
|
RX30SH
|
700c clincher 30x25mm
|
430g
|
1346g
|
115kgs
|
RX38SH
|
700c clincher 38x25mm
|
470g
|
1426g
|
120kgs
|
RX38DH
|
700c clincher 38x25mm- asymmetric
|
470g
|
1426g
|
120kgs
|
RX45SH
|
700c clincher 45x25mm
|
480g
|
1446g
|
125kgs
|
RX50SH
|
700c clincher 50x25mm
|
500g
|
1486g
|
125kgs
|
RX50DH
|
700c clincher 50x25mm - asymmetric
|
500g
|
1486g
|
125kgs
|
RX60SH
|
700c clincher 60x25mm
|
560g
|
1606g
|
130kgs
|
RX88SH
|
700c clincher 88x25mm
|
720g
|
1926g
|
135kgs
|
RX38L
|
700c clincher 38x28mm
|
480g
|
1446g
|
120kgs
|
RX50L
|
700c clincher 50x28mm
|
510g
|
1506g
|
125kgs
|
RT30S
|
700c tubular 30x25mm
|
310g
|
1106g
|
115kgs
|
RT38S
|
700c tubular 38x25mm
|
360g
|
1206g
|
120kgs
|
RT38D
|
700c tubular 38x25mm- asymmetric
|
360g
|
1206g
|
120kgs
|
RT50S
|
700c tubular 50x25mm
|
410g
|
1306g
|
125kgs
|
RT50D
|
700c tubular 50x25mm- asymmetric
|
410g
|
1306g
|
125kgs
|
RT60S
|
700c tubular 60x25mm
|
470g
|
1426g
|
130kgs
|
RT88S
|
700c tubular 88x25mm
|
530g
|
1546g
|
135kgs
|
* Complete wheel weights are subject to a ±5% variance.
* Each wheelset will ship with: spare spokes, nipples; pair of quick-release skewers; carbon-specific brake pads; freehub spacer for 10 speed cassettes.
* All clincher rims are tubeless ready.
* If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.
Choose your favorite carbon road rim model, leave a message below to get a best quote for your next carbon road bike wheelset!
