Product Item: Novatec D411 & D412 hub + Pillar 1420 spoke custom road disc carbon wheels
Rim:
Carbonal disc brake carbon rims tubular & clincher tubeless. With
the best blend of lightweight, aerodynamic, high stiffness and great
strength to deliver the highest possible efficiency.
Rim carbon weaves available in: UD, 3k, 3k twill, 6k and marble, see rims in different carbon weaves.
5 years warranty.
Hub:

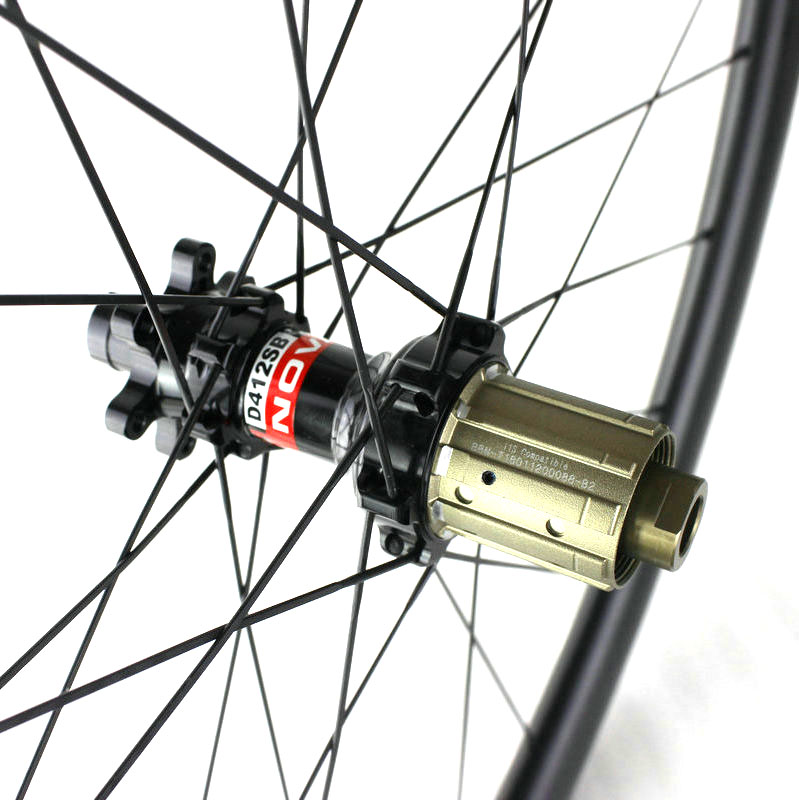

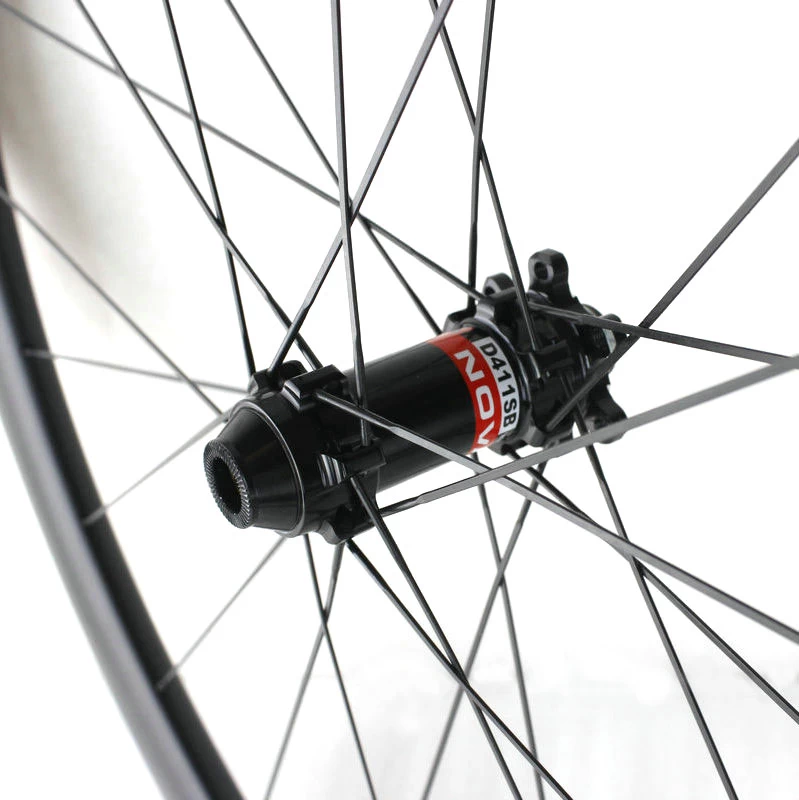

Novatec D411SB or D411SBCL front, D412SB or D412SBCL rear hub, straight pull;
Axle system: QR*100mm & QR*135mm / 12*100mm & 12*142mm;
Cassette body: Shimano Road 11S;
Brake system: Disc 6 bolts / Disc center lock;
Hole: Front- 24, Rear - 24;
Color: black.
Spoke:
Pillar Aero X-TRA 1420, straight pull, black;
Nipple:
Pillar alloy, black.
Lacing:
Front wheel - 2 cross;
Rear wheel - 2 cross.
Weight:
Hub: 322g/set;
Spokes + nipples: 218g;
Weight without rims: 540g.
Rim model vs Complete wheel weight:
Model
|
Rim type
|
Rim weight / pc
|
Complete wheel weight (±5%) / set
|
Max weight limit
|
DX30S
|
700c clincher 30x25mm
|
370g
|
1280g
|
115kgs
|
DX38S
|
700c clincher 38x25mm
|
400g
|
1340g
|
120kgs
|
DX38D
|
700c clincher 38x25mm- asymmetric
|
400g
|
1340g
|
120kgs
|
DX45S
|
700c clincher 45x25mm
|
430g
|
1400g
|
125kgs
|
DX50S
|
700c clincher 50x25mm
|
450g
|
1440g
|
125kgs
|
DX50D
|
700c clincher 50x25mm - asymmetric
|
450g
|
1440g
|
125kgs
|
DX60S
|
700c clincher 60x25mm
|
500g
|
1540g
|
130kgs
|
DX88S
|
700c clincher 88x25mm
|
680g
|
1900g
|
135kgs
|
DX38L
|
700c clincher 38x28mm
|
410g
|
1360g
|
120kgs
|
DX50L
|
700c clincher 50x28mm
|
460g
|
1460g
|
125kgs
|
DT30S
|
700c tubular 30x25mm
|
290g
|
1120g
|
115kgs
|
DT38S
|
700c tubular 38x25mm
|
330g
|
1200g
|
120kgs
|
DT38D
|
700c tubular 38x25mm- asymmetric
|
330g
|
1200g
|
120kgs
|
DT50S
|
700c tubular 50x25mm
|
360g
|
1260g
|
125kgs
|
DT50D
|
700c tubular 50x25mm- asymmetric
|
360g
|
1260g
|
125kgs
|
DT60S
|
700c tubular 60x25mm
|
430g
|
1400g
|
130kgs
|
DT88S
|
700c tubular 88x25mm
|
530g
|
1600g
|
135kgs
|
* Complete wheel weights are subject to a ±5% variance.
* Each wheelset will ship with: spare spokes, nipples; freehub spacer for 10 speed cassettes.
* All clincher rims are tubeless ready.
* If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.
Choose your favorite rim model, leave a message below with the rim model number to get a best quote for your next carbon road disc wheelset!
