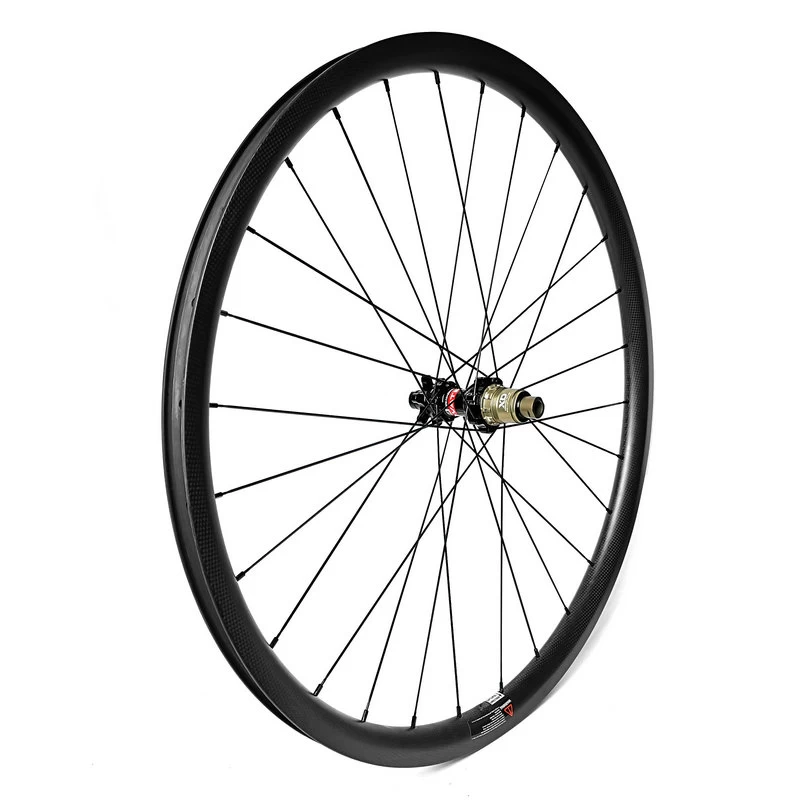

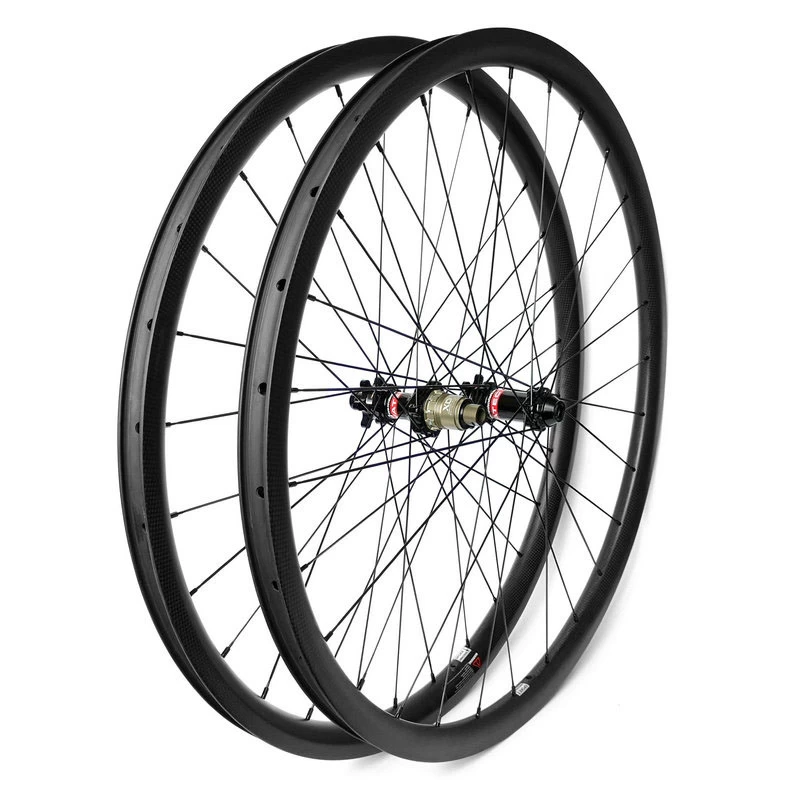

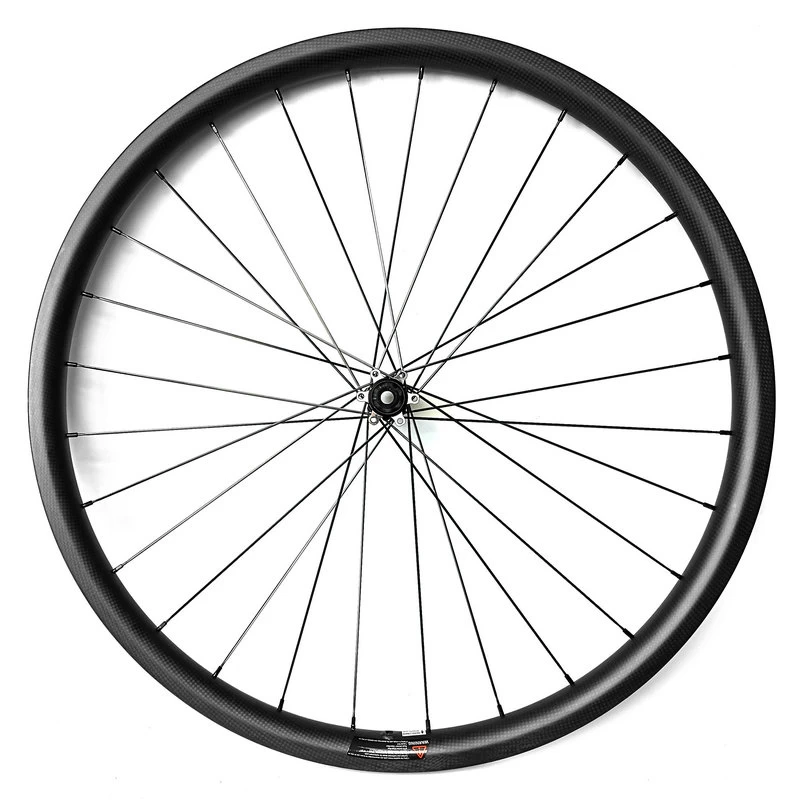

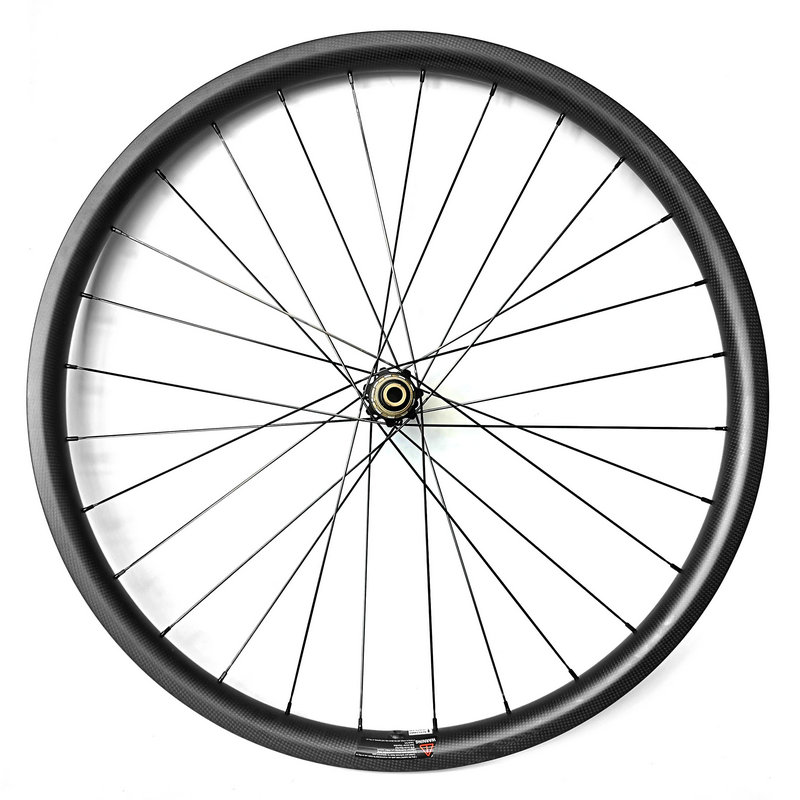

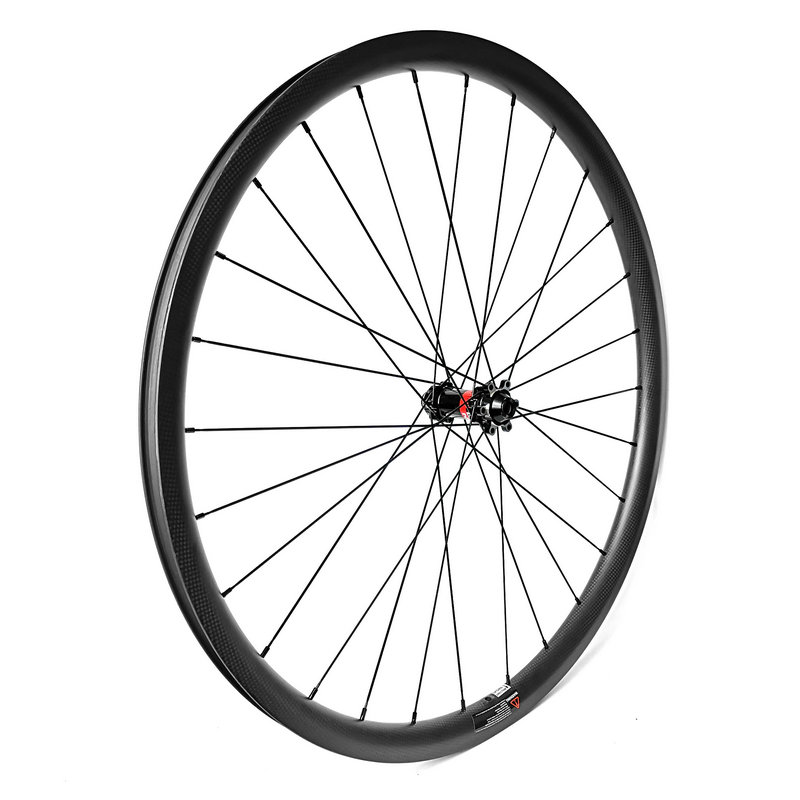

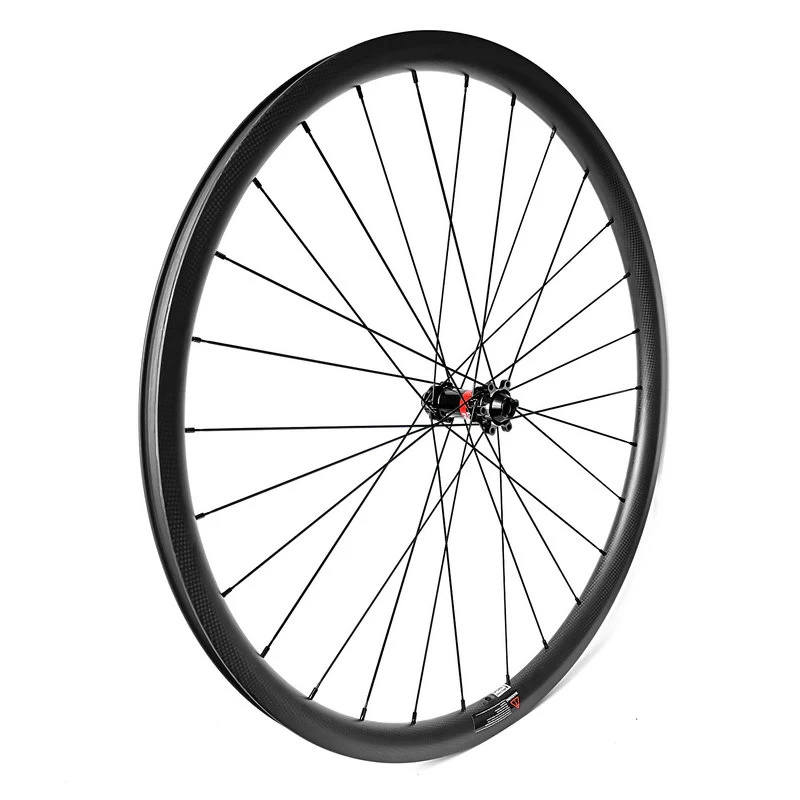

Product Item: Novatec D411 & D412 hub + Sapim CX-Ray spoke custom gravel bike wheelset
Rim:
High performance Carbonal CX & Gravel bike carbon rims, which can be ridden almost everywhere, on the road and off it.
Hub:

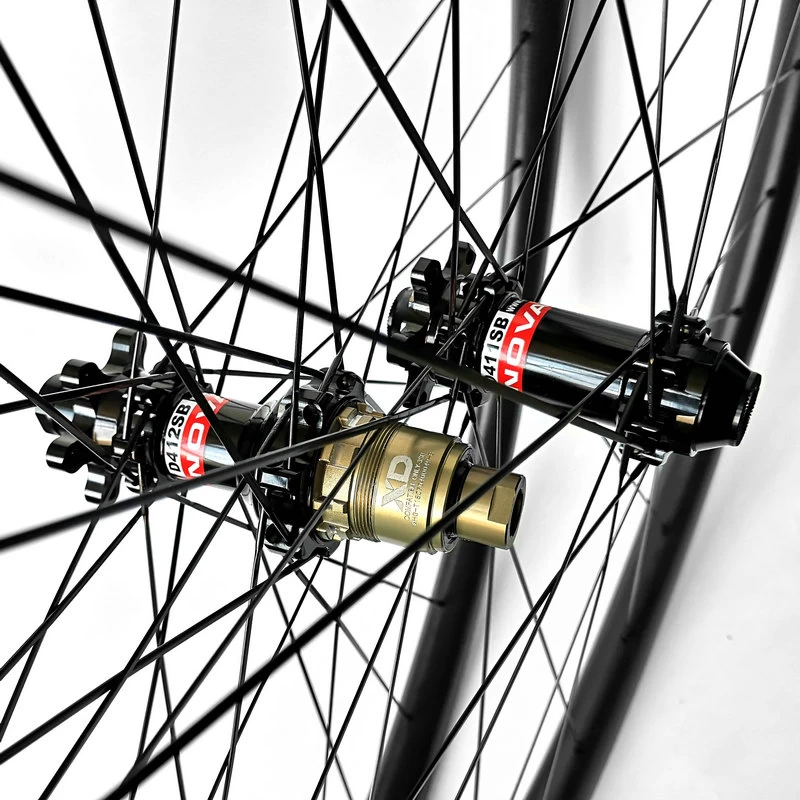

Novatec D411SB or D411SBCL front, D412SB or D412SBCL rear hub, straight pull;
Axle system: Front - 12*100mm or QR*100mm, Rear - 12*142mm or QR*135mm;
Cassette body: Shimano Road 11S / Sram 11s (XD);
Brake system: Disc 6 bolts / Disc center lock;
Hole: Front 28, Rear 28;
Color: black.
Spoke:
Sapim CX-Ray spoke, straight pull, black;
Nipple:
Sapim alloy nipple, black or red.
Lacing:
Front wheel - 2 cross;
Rear wheel - 2 cross.
Gravel Rim model vs Complete wheel weight:
Model
|
Rim type
|
Rim weight / pc
|
Complete wheel weight (±5%) / set
|
Max weight limit
|
GCX28
|
29" / 700c clincher 28x29mm
|
380g
|
1350g
|
120kgs
|
GCX35
|
27.5" / 650b clincher 35x32mm
|
360g
|
1300g
|
120kgs
|
DX38L
|
29" / 700c clincher 28x38mm
|
410g
|
1410g
|
120kgs
|
DX50L
|
29" / 700c clincher 28x50mm
|
460g
|
1510g
|
125kgs
|
*Complete wheel weights are subject to a ±5% variance.
Leave a message below with your favorite rim Model to get a best quote for your next gravel bike carbon wheelset.
