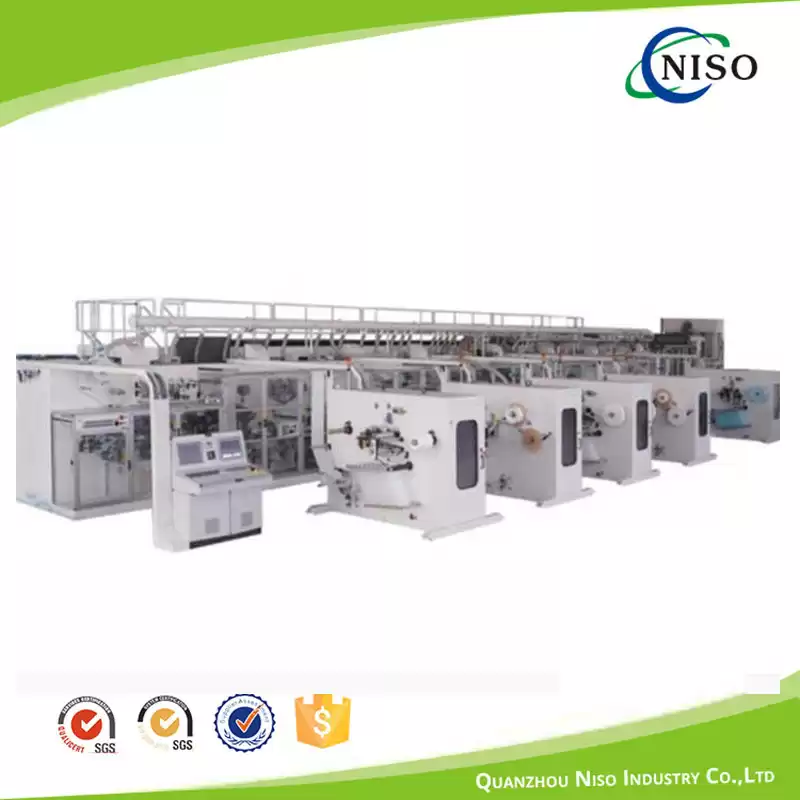

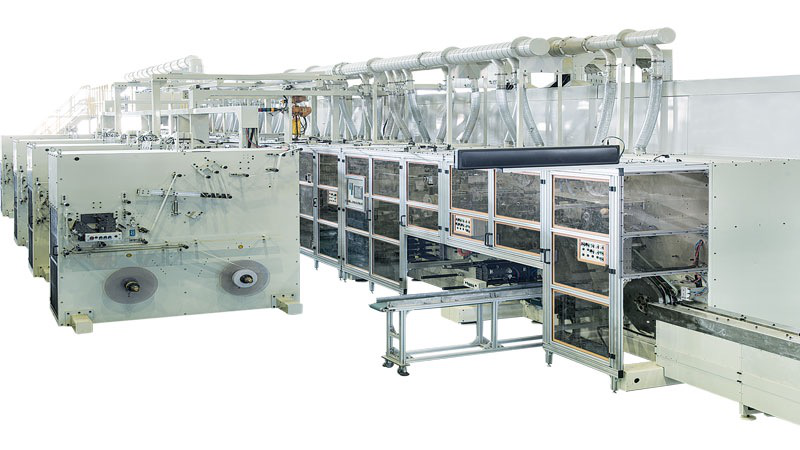

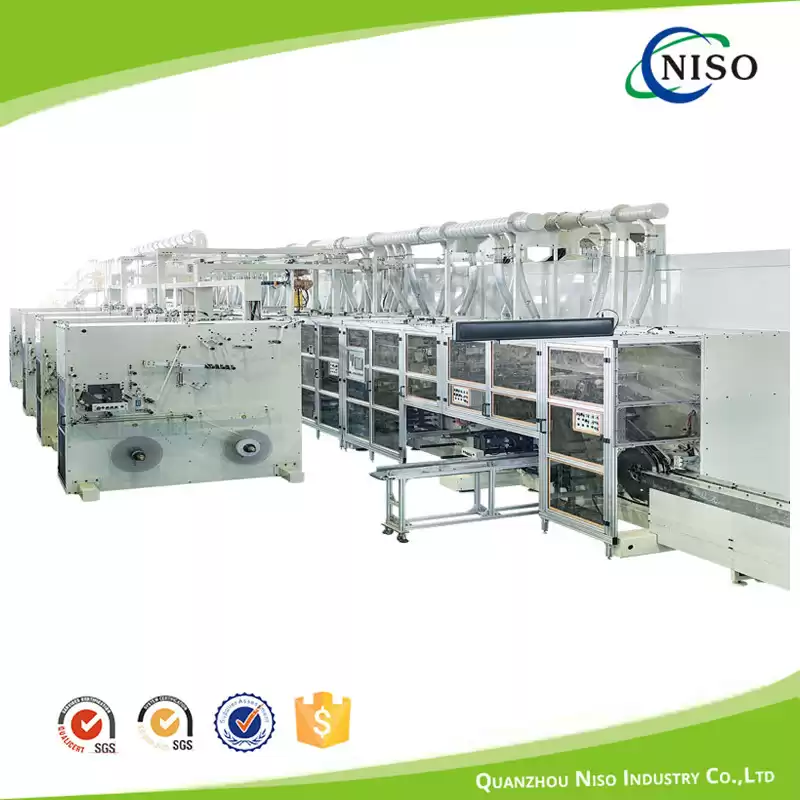

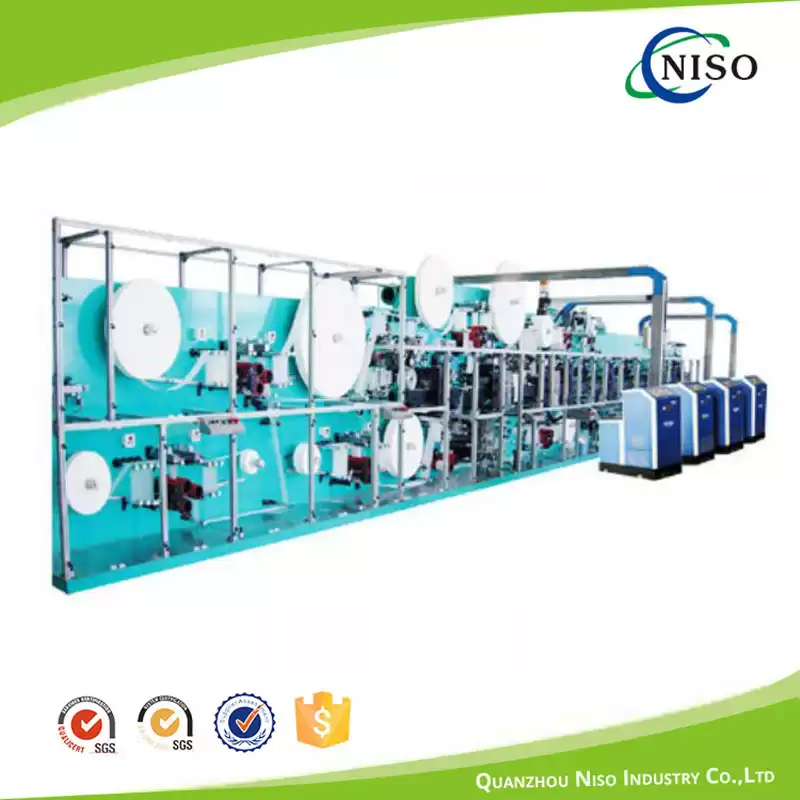

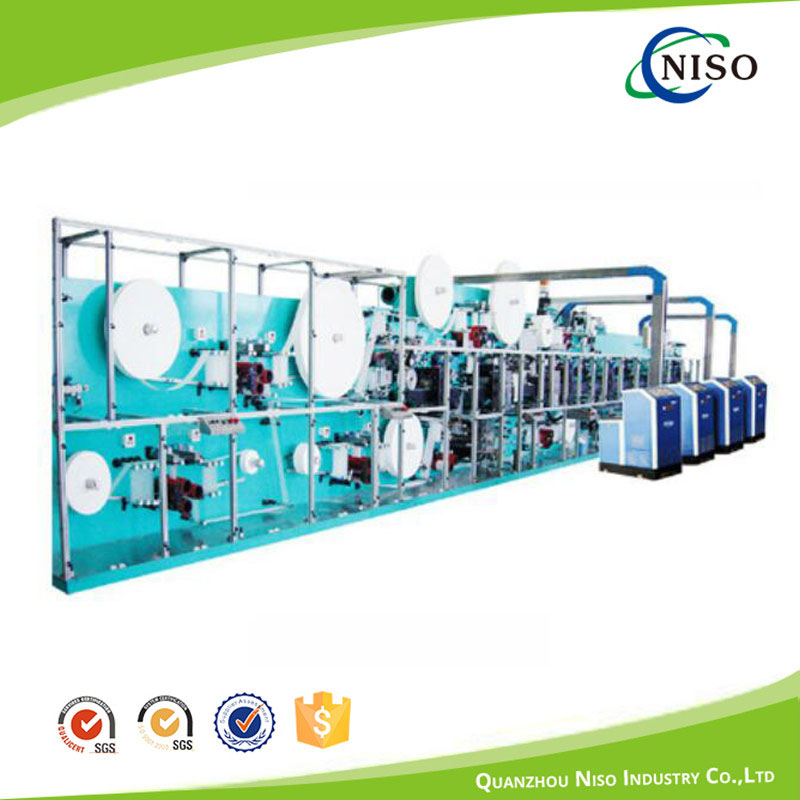

NS-HY600 Semi Servo Type Sanitary Napkin Machine
Machine description
Machine total system
Pulp crusher system
SAP feeding system
Drum forming system
Lower tissue paper feeding system
SAP paper feeding system
Core wrapping system
Compacting roller system
ADL feeding & cut system
Perfume feeding system
Mat cutting system
Hydrophobic non woven feeding system
Hydrophilic non woven feeding system
Flow cannel embossing system
Side sealing system
PE film feeding system
Back release paper feedig & cutting system
Outer cutting system
Edge scrap collecting system
180 degree transfer system
Wing release paper feeding & cutting system
90 degree transfer system
Packing film feeding system
Product seal cutting system
Easy tape feeding & cutting unit
Out put rejection system
Machine main parameters
|
Model
|
NS-HY600
|
|
Name
|
Semi-servo type
|
|
Design speed
|
600 pcs/min
|
|
Working speed
|
500 pcs/min
|
|
Qualified rate
|
98(calculate based on 7.5 hours, the rate between qualified products and total production quantity, except substandard products caused by glue applicator error)
|
|
Production efficiency
|
≥90( calculate based on 7.5 hours, the rate between real production quantity
and theory production quantity)
|
|
Capacity
|
180KW
|
|
Power
|
Three phases four wires 380V±5%/50Hz (ground wire)
|
|
Air pressure
|
≥0.6mpa, 1.8m3/min
|
|
Total weight
|
About 30 tons
|
|
Machine size
|
25×5×3M (L×W×H)
|
|
Working space
|
25-30×7×5M (L×W×H)
|
|
Machine color
|
Customized
|
|
Product size
|
Customized ( 4 sizes)
|
|
Machine direction
|
Customized
|
|
Container
|
4×40HQ
|
|
Finished product
|
2 sizes
|
Machine details
|
NS-HY600 Semi servo type sanitary napkin machine
|
1 set
|
|
Servo motor driving
|
1 set
|
|
High speed crusher
|
1 set
|
|
SAP feeding unit
|
1 set
|
|
Web guider
|
11 sets
|
|
Servo and Inverter motor Mitsubishi
|
1 set
|
|
Waste raw materials collect unit
|
1 set
|
|
Raw materials with auto unwinding, auto splicing,
auto tension control, auto detective and auto rejection
|
5 sets
|
|
Safety door
|
1 set
|
|
Simple push machine
|
2 sets
|
|
Simple sealing machine
|
2 sets
|
|
Glue applicators (Chinese brand)
|
3 sets
|
|
Free spare parts (attachment list)
|
1 set
|
About NISO
NISO is a professional raw materials and machine supplier for making baby diaper, adult diaper, feminine sanitary napkin,under pad and so on.
NISO covers an area of 5000 square meters, gets CE, ISO, SGS.
NISO exports more than1000 containers to Asia, Mid-east, Europe, South America, Africa countries.
NISO will be your consultancy and partner to reach win-win career together.
Quanzhou Niso Industry Co.,Ltd is your best choice for baby diaper machine, adult diaper machine, sanitary napkin machine and under pad machine in China.
