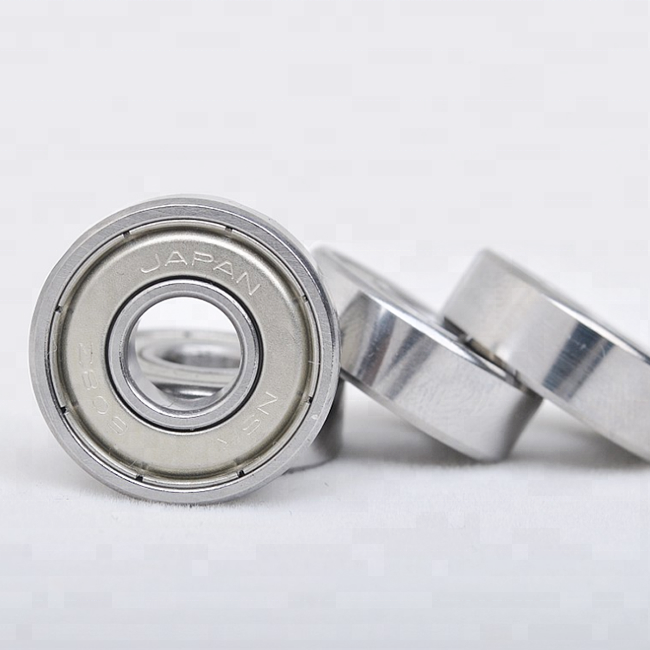

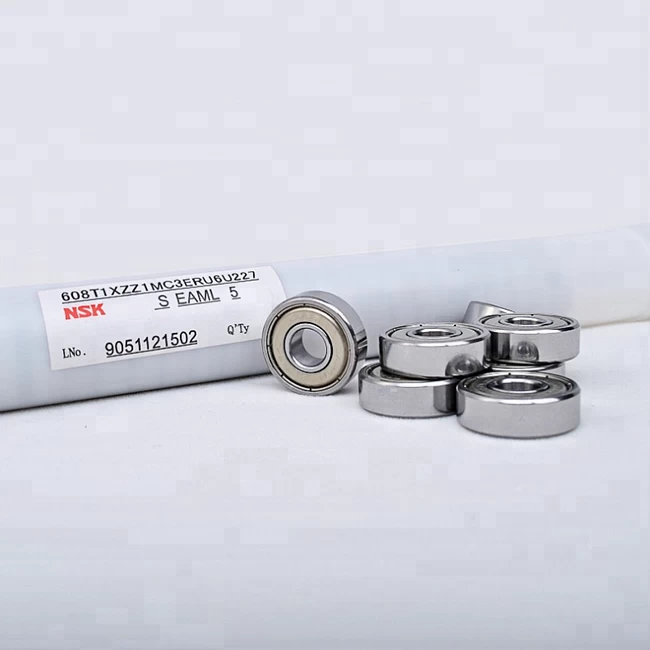

NSK Deep Groove Ball Bearing z809 ABEC-7
608 bearing ,the number 6 is represents the 6 series deep groove ball bearing, 0 is the size series, and 8 is the inner diameter of 8 mm,outer diameter is 22, 7mm is height and 8mm inner diameter. There are 7 steel balls and the diameter of the steel ball is 3.969mm.
The bearing is divided into 608 bearings with metal shield cover and rubber seals cover. The metal shield cover is indicated by the model suffix zz (608zz), and the rubber cover is indicated by the model suffix DDU (608DDU). Materials can be with carbon steel, bearing steel (GCr15), stainless steel, plastic, ceramics, etc. The cages are: nylon cages, iron cages, copper cages etc.
608 bearings are widely used in motors, motors, electronic accessories, trolleys, skates and other related fields.

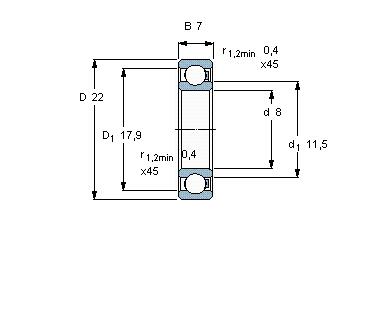

NSK 608 Bearing Specification:
Brand | NSK |
Bearing No.: | 608 |
Inside Diameter | 8mm |
Outside Diameter | 22mm |
Width | 7mm |
Material : | Chrome steel |
Closure Type | Open ,DDU,ZZ |
Speed | 34000rpm |
Static Load Rating | 1.37kN |
Dynamic Load Rating | 3.3kN |
608 Bearing Applications:
With less coefficient of friction, high limiting speed,NSK 608 bearing are widely for skateboard.longboard ,instruments and meters, electric motor, internal combustion engines, transportation vehicles, agricultural machinery Auto, machine tool, electric machine, water pump, machinery etc.
NSK Ball Bearing Features :
1. High running speed
2.Original NSK brand with long working life.
3. Bearing Factory with Large Stock with fast dispatch
5. OEM & ODM service available
6.Free sample for you all the time
We Can Provide Different NSK Bearings
Below here are some bearing number for your reference :
N0. | Bore | O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
mm | mm | mm | mm | Dynamic | Static | Grease | Oil | Kg/pcs | |
Cr | Cor | r/min | r/min | ||||||
604 | 4 | 12 | 4 | 0.2 | 0.97 | 0.36 | 36000 | 44000 | 0.0021 |
605 | 5 | 14 | 5 | 0.2 | 1.33 | 0.505 | 32000 | 40000 | 0.0035 |
606 | 6 | 17 | 6 | 0.3 | 2.19 | 0.865 | 30000 | 38000 | 0.006 |
607 | 7 | 19 | 6 | 0.3 | 2.24 | 0.91 | 28000 | 36000 | 0.008 |
608 | 8 | 22 | 7 | 0.3 | 3.35 | 1.4 | 26000 | 34000 | 0.012 |
609 | 9 | 24 | 7 | 0.3 | 3.4 | 1.45 | 24000 | 32000 | 0.014 |
6000 | 10 | 26 | 8 | 0.3 | 4.55 | 1.96 | 22000 | 30000 | 0.019 |
6001 | 12 | 28 | 8 | 0.3 | 5.1 | 2.39 | 19000 | 26000 | 0.021 |
6002 | 15 | 32 | 9 | 0.3 | 5.6 | 2.83 | 18000 | 24000 | 0.03 |
6003 | 17 | 35 | 10 | 0.3 | 6.8 | 3.35 | 17000 | 22000 | 0.039 |
6004 | 20 | 42 | 12 | 0.6 | 9.4 | 5.05 | 15000 | 19000 | 0.069 |
6005 | 25 | 47 | 12 | 0.6 | 10.1 | 5.85 | 14000 | 18000 | 0.08 |
6006 | 30 | 55 | 13 | 0.6 | 13.2 | 8.3 | 12000 | 15000 | 0.116 |
6007 | 35 | 62 | 14 | 1 | 16 | 10.3 | 10000 | 14000 | 0.115 |
6008 | 40 | 68 | 15 | 1 | 16.8 | 11.5 | 8000 | 11000 | 0.19 |
We can provide other brand bearings such as KOYO ,SKF,NTN,INA etc ,for more informations pls contact with me free .
Working With MKL Bearings Have Below Advantages:
1.Excellent quality and high quality control for you
2.With large stock ,we can provide prompt delivery
3.Provide small qualtiy with competitive price
4.Small order accepted for our trail order
5.OEM service provide ,you can send me drawing or your samples
