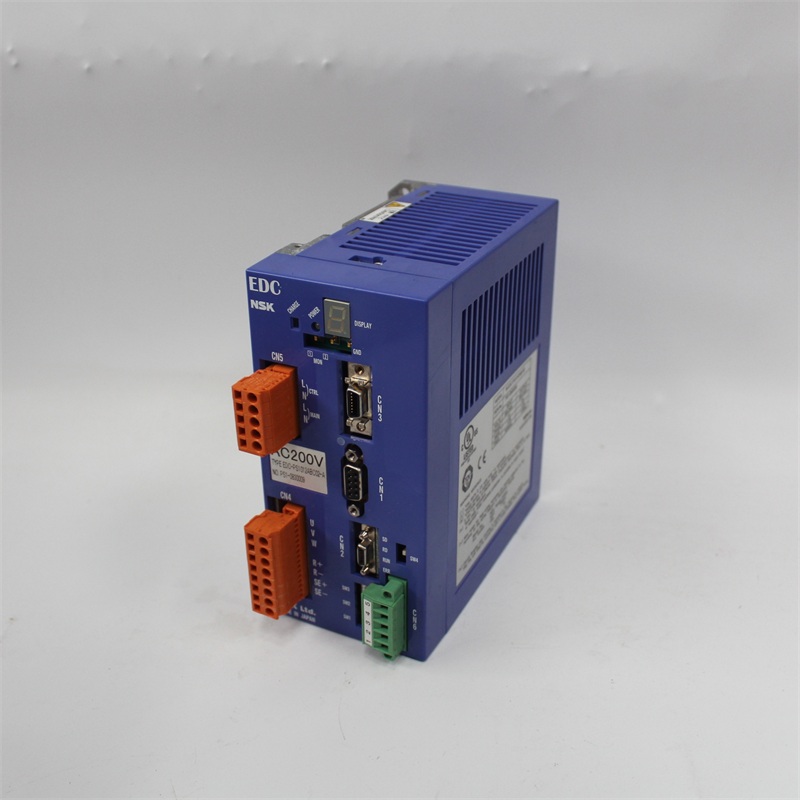

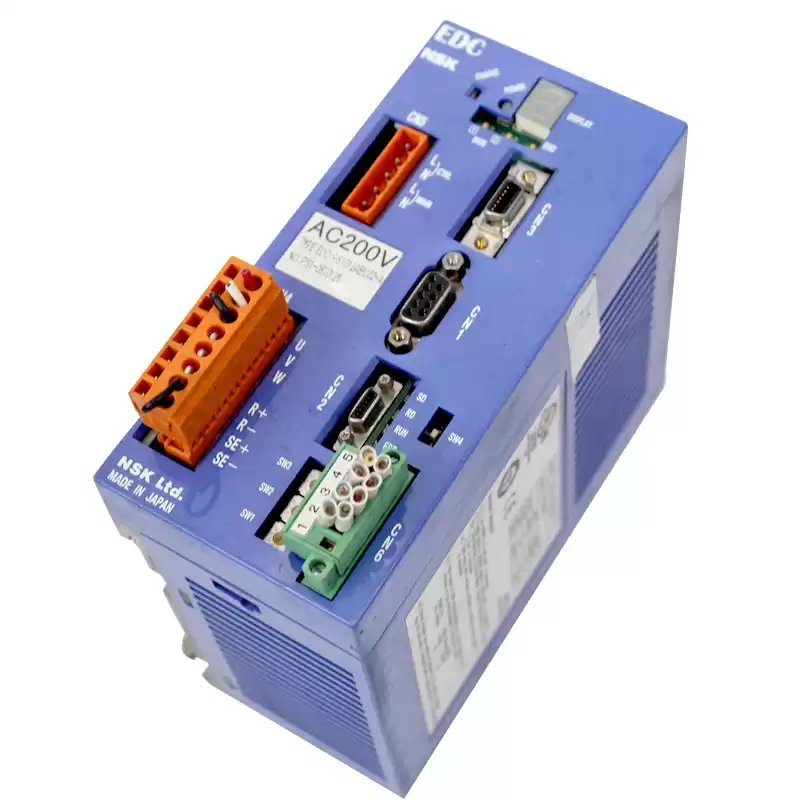

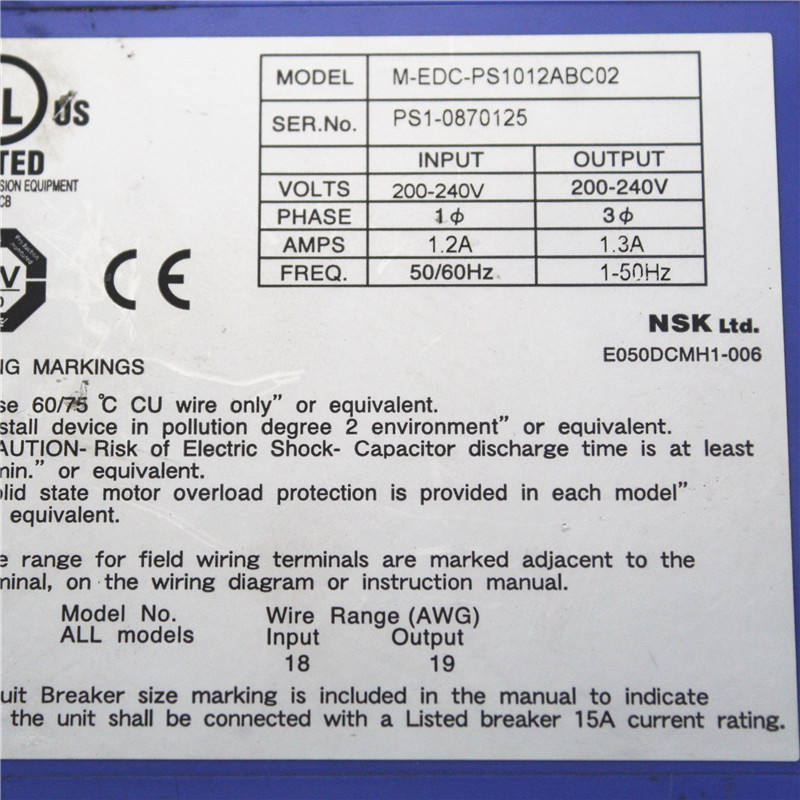

M-EDC-PS1012ABC02 Precautions for using NSK edc drive:
(1) Ambient temperature
Z Please use the product in 0~50 [℃] environment, and it cannot be used in high temperature conditions above 50 [℃]. In the electric cabinet, please install the upper and lower parts of the driver
Leave enough space above 100 [mm]. In addition, if the hot gas stops above the driver, please open the upper panel of the electric cabinet to the outside (in this case
In this case, dust prevention is required), or forced air cooling and other measures shall be taken to keep it in an environment that is easy to dissipate heat.
(2) Dustproof and waterproof
Z Please use it in the electric cabinet with IP54 or above. Please isolate and protect from oil mist, cutting fluid, chips, paint mist and other environments. If not protected,
Foreign matters mixed into the air window of the driver may cause circuit failure.
(IP is the degree of protection against the intrusion of solid foreign matters and water according to IEC standards.)
(3) Wiring and grounding
Z Please confirm whether the wiring is correct according to the instruction manual.
Z During wiring and installation, please prevent cutting debris and other foreign matters from mixing into the drive.
Z Please use it according to the power specification of the drive.
◊ If a 200 [V] power supply is added to a 100 [V] specification drive, the drive will fail.
◊ If the 200 [V] specification driver is applied with 100 [V] power supply, the performance of output torque will be significantly reduced or abnormal noise will be generated.
(4) Storage
Z Please do not store it in places where there is rain or water leakage or where there are harmful gases and liquids.
Z Please keep away from direct sunlight and store in the range of storage temperature and humidity.
(5) Number of parameter changes
Z Because the data of the driver is backed up through EEPROM, there is a limit on the number of overwrites of the data (up to 100000 overwrites are guaranteed)
