Product Description

Flexi RF Module Triple (FXDA)

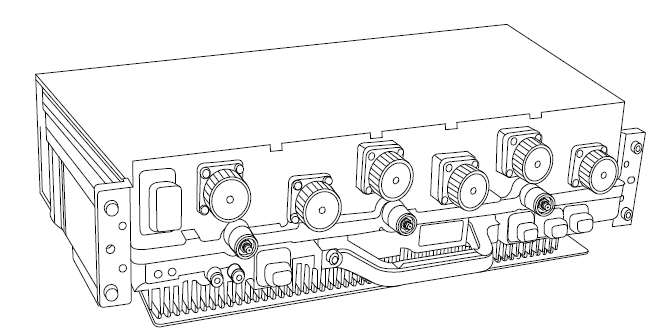

The Flexi Multiradio Radio Frequency Module (FXDA) or RF Module, is a 3-branch multicarrier,multi-standard radio transceiver module. The module consists of three independent branches, capable of transmitting and receiving signals of multiple radio technologies concurrently:

Up to 6 GSM carriers with 400 KHz minimum carrier separation

Up to 4 WCDMA carriers with 4.6 MHz minimum carrier separation

Multi-carrier LTE signal with 1.4 MHz, 3 MHz, 5 MHz, 10 MHz, 15 MHz, 20 MHz, and 35 MHz carrier bandwidth

Multi RAT operation with combination of GSM, WCDMA, and LTE

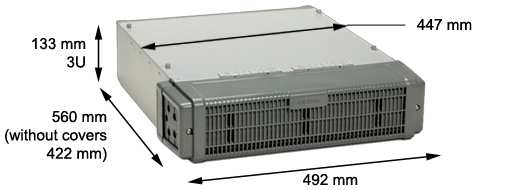

The RF Modules FXDA, FXDJ, FXEA, FXCA, and FXFA/ FXFB are referred to as 70W RF Module variants. RF Modules FXEB and FXDB are referred to as 90 W RF Module variants. Each branch consists of a transmitter and two receiver chains. FXxA and FXFB (70W) variants have front end software tunable filters (STuF). 90 W RF Module variants have fixed full band filters. FXxx is a 3U high module with an integrated, replaceable 3-fan assembly for module cooling. The supported functions are:

Chaining up to three RF Modules with OBSAI RP3_01

2-way receive diversity in the receiver chains

Integrated antenna line supervision

MHA, Antenna Hopping, EGPRS2, and VAMOS support

Digital and control circuitry, optical interface, DC/DC power conversion, and other necessary functionalities

Integrated DC line OVP, Class II rated to 5kA pulse (FXFB, FXDB/FXEB)

Remote Electrical Tilt (RET) support (FXFB, FXDB/FXEB)

Flexi Multiradio BTS GSM/EDGE modules are equipped with an integrated air guide plate providing full thermal compliance without casings. This allows installation of the modules without casings in Flexi cabinets and enclosed 19″ racks. Casings and covers are recommended in standalone 19″ racks (no cabinet) for safety reasons. Casings are not part of the FXxx delivery package. If the configuration requires casings, Flexi BTS Module Casing (EMHA) kits must be ordered.

The Flexi Multiradio RF Module variants are:
