Key Properties:
-
High permeability µi (200KHZ), high L and impedance Z in the high frequency range
-
High saturation flux density (1.2T)
-
High curie temperature (580 °C) and excellent temperature characteristics
-
Low remanent flux density Br with DC-tolerance
|
|
Nanocrystalline
|
Mn-Zn ferrite
|
|
Initial Permeability @ 100KHz µr'
|
20°C
|
16000
|
5300
|
|
100°C
|
16300
|
7000
|
|
Impedance permeability @ 100KHz µr'
|
20°C
|
25700
|
5300
|
|
100°C
|
26300
|
7000
|
|
Saturation magnetic flux density Bs* (T)
|
20°C
|
1.35
|
0.44
|
|
100°C
|
1.3
|
0.27
|
|
Residual magnetic flux density Br* (T)
|
20°C
|
0.81
|
0.1
|
|
100°C
|
0.73
|
0.06
|
|
Corrective Force Hc* (A/m)
|
20°C
|
1.3
|
8
|
|
100°C
|
1.4
|
4.9
|
|
Curie Temperature Tc (°C)
|
570
|
150
|
|
Saturation magnetostriction λs(x10-6)
|
2.3
|
-1.1
|
|
Electrical resistivity ρ (µΩcm)
|
1.1
|
10x106
|
|
Density d(kg/m3)
|
7.4x103
|
4.85x103
|
|
* DC magnetic properties @ 800A/m
|
Product Specification:

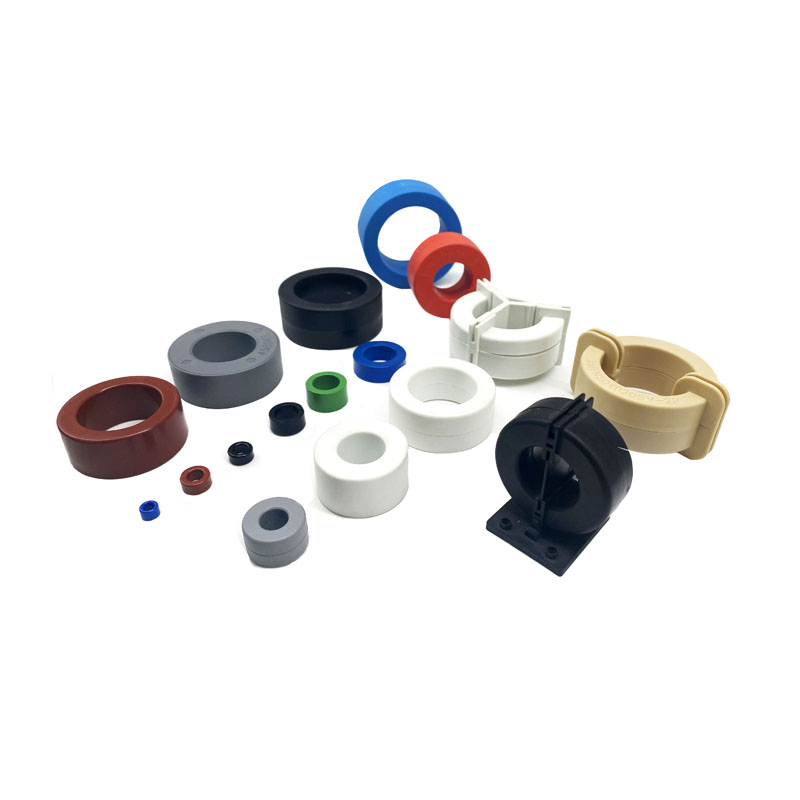

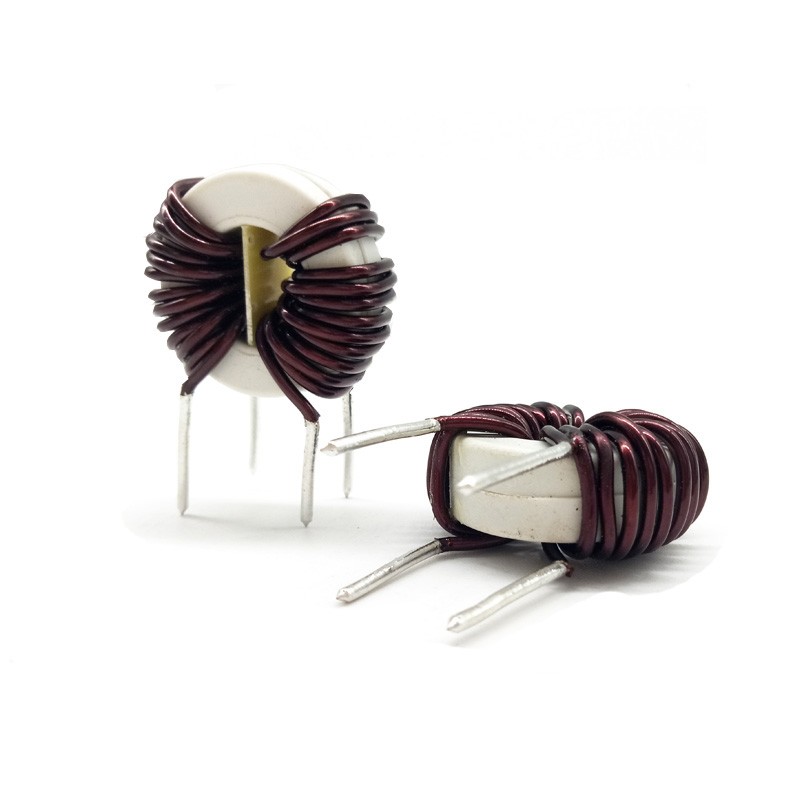

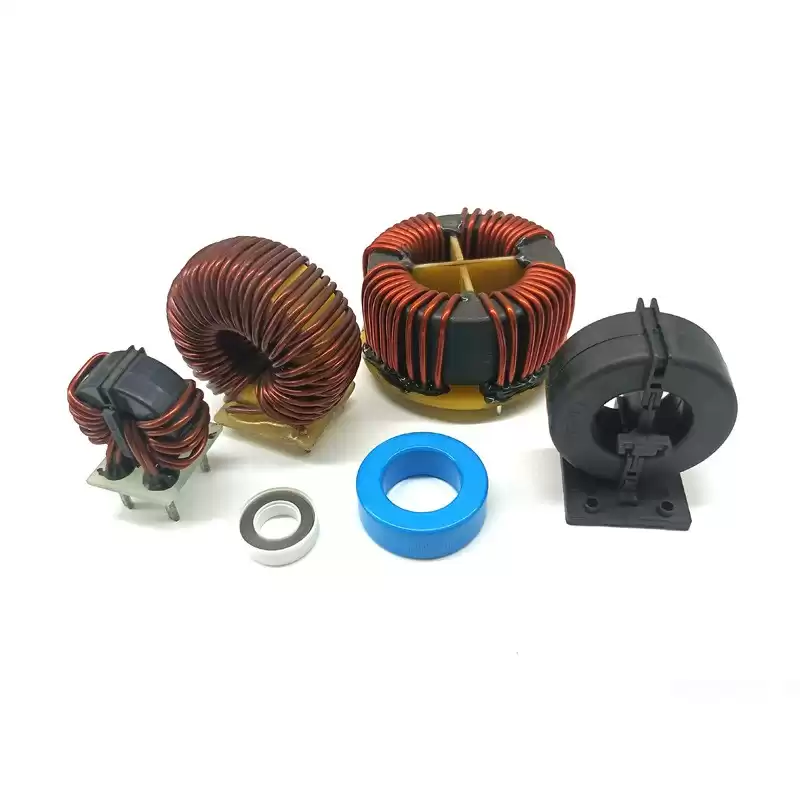

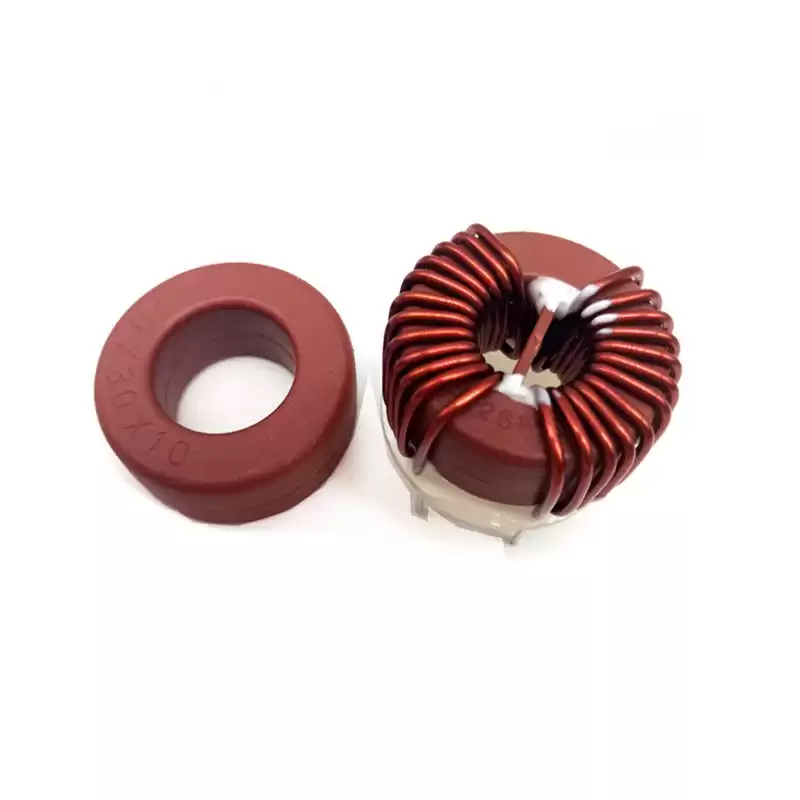

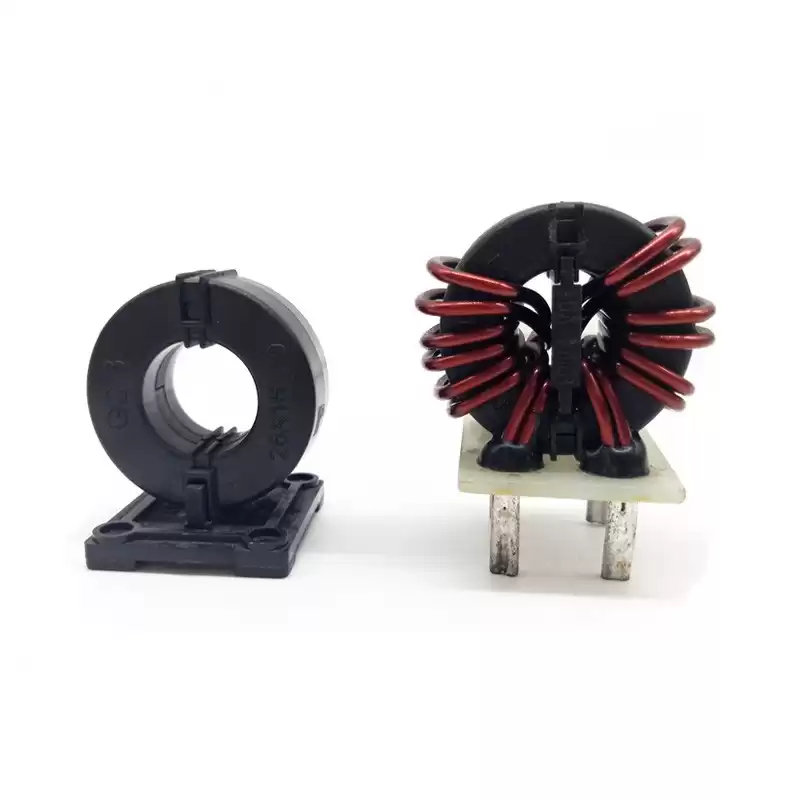

Nanocrystalline Common Mode Choke Core covering 1-phaseCMCs, 3-phase CMCs, 4 - Fold CMCs.
Common Standard Product list download.
OEM design is supported. We design & produce goods based on specifications & drawing, specification including:
1.Bare core size, Size finished
2.Al requirement @ different frequency
Main Application:
-
EMC filters
-
Home Application
-
Switched -mode power supplies (SMPS), Power supplies
-
Solar inverters
-
Uninterruptible power supplies (UPS)
-
Welding equipment
-
Wind generators
-
Frequency converters
As an leading manufacturer of amorphous and nanocrystalline core products, Coilcore provides quality services to customers with high-performance products and one-stop solutions. By leaving a message below to get more details about common mode choke core quickly!
