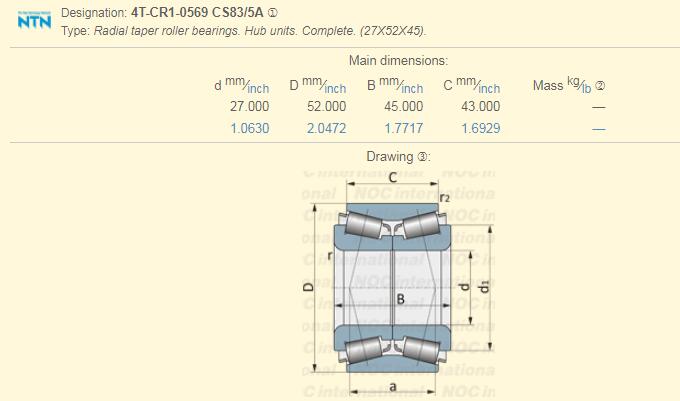

NTN Auto Wheel Bearing Dimensions And Specification:
d - 27 mm
D - 52 mm
B - 45 mm
C - 43 mm
rx - 3,5 mm
ry - 3,5 mm
Weight - 0,4 Kg
Basic dynamic load rating (C) - 32 kN
Basic static load rating (C0) - 38,5 kN

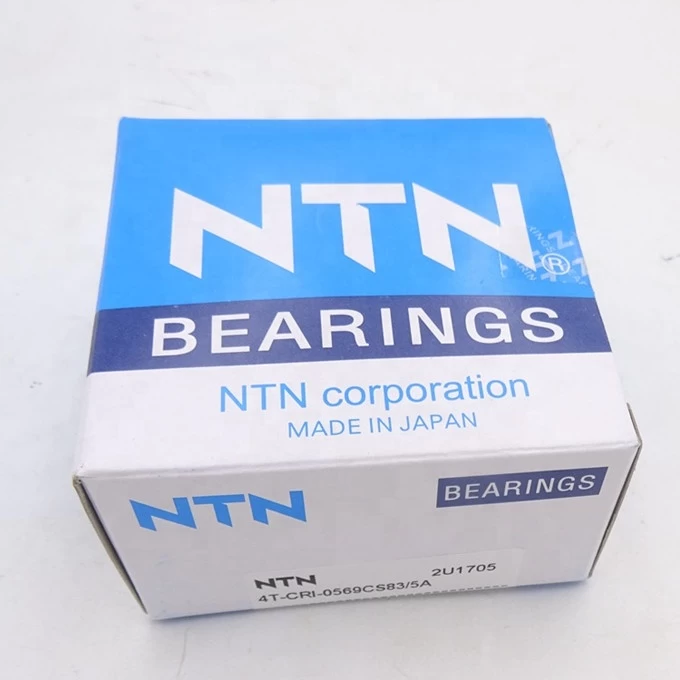

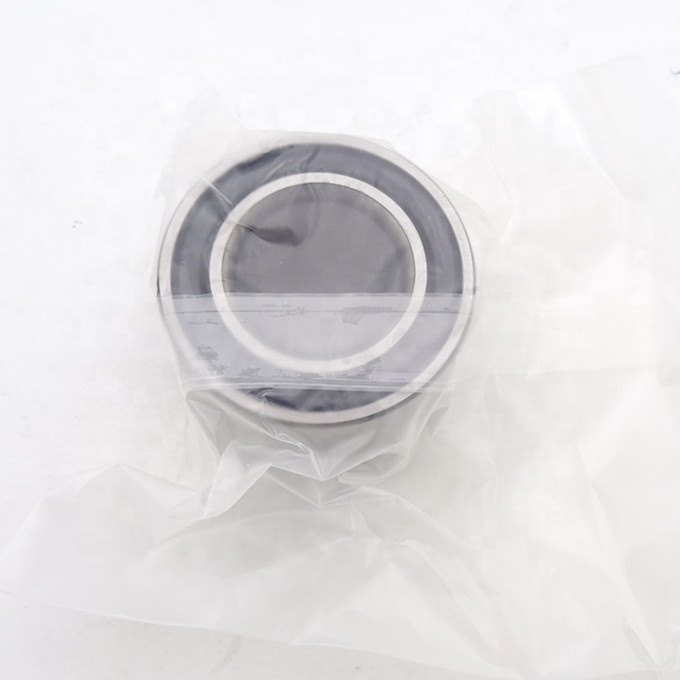

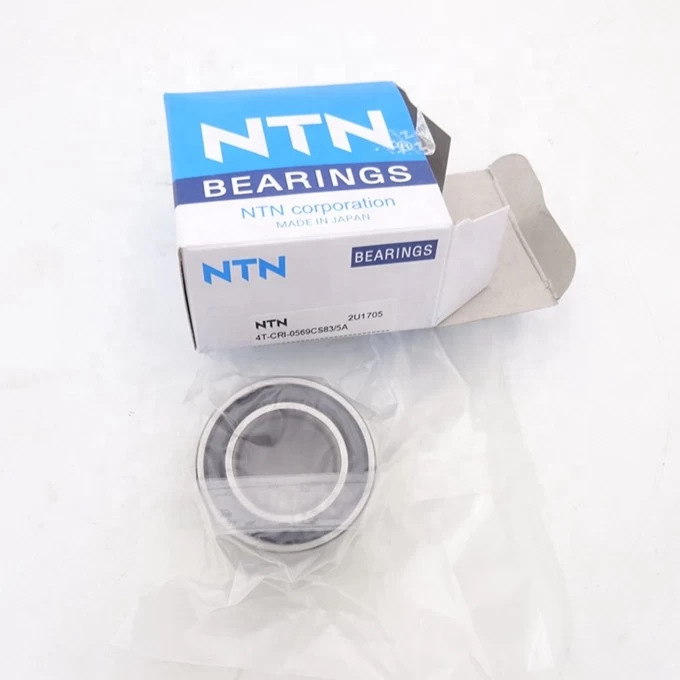

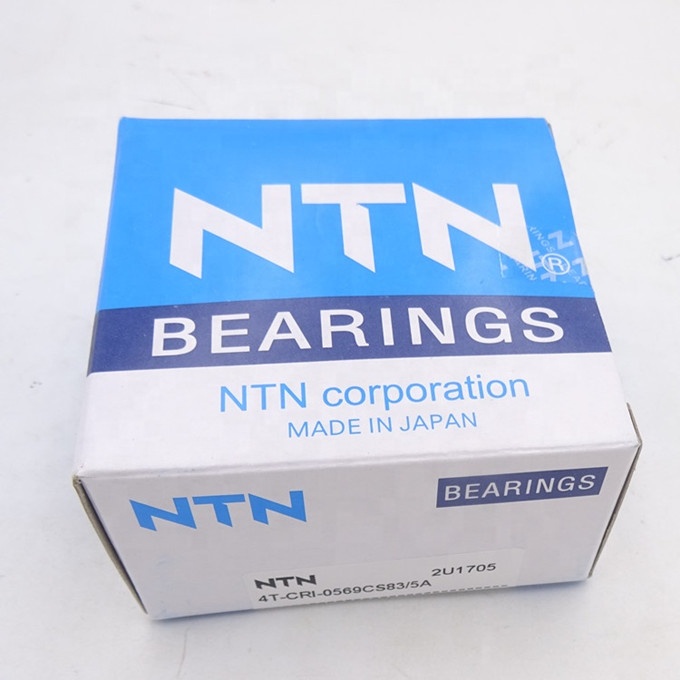

Front Wheel Bearing Pictures :
Front Wheel Bearings Application :
Auto front wheel bearing is a double row angular contact ball bearing incorporating an integral outer ring and two separable inner rings; which is available either with seals or without seals. Wheel bearings (hub bearing) main role is to load and for the rotation of the hub to provide accurate guidance, both axial load radial load again, is a very important component.
We have other NTN wheel bearings ,below here are some number for your reference :
