Nuvoton Microcontrollers ARM Cortex-M4 MCUs M452 USB Series

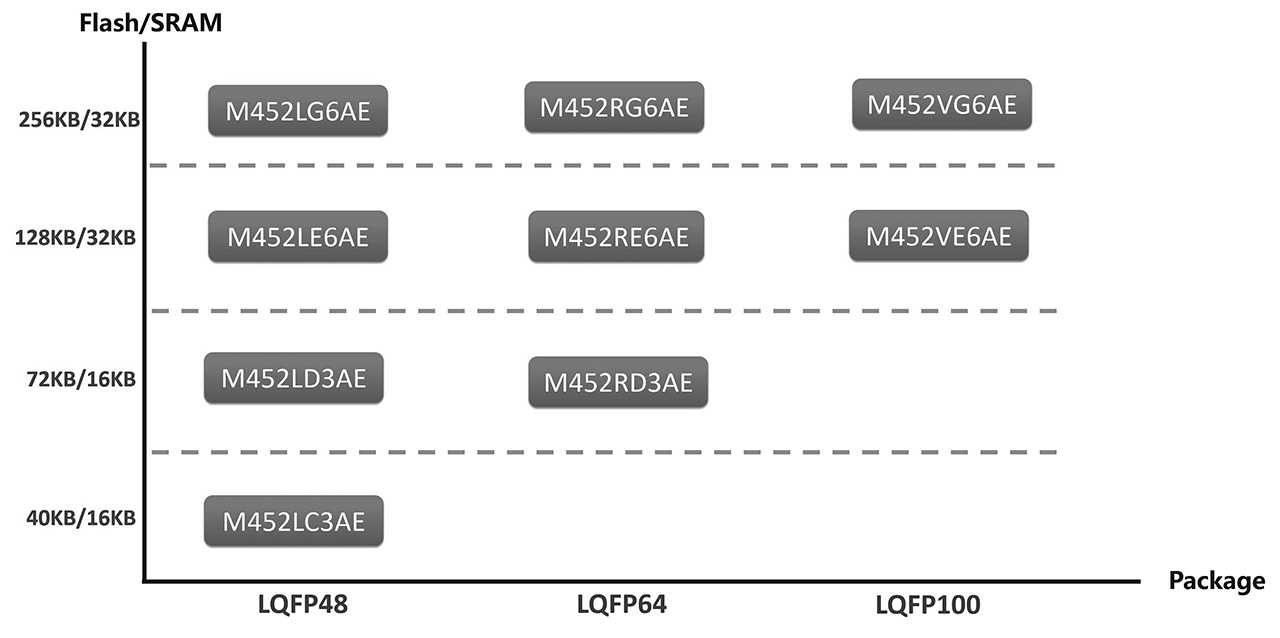

The NuMicro® M452 USB series 32-bit microcontroller (MCU) is embedded with the ARM® Cortex®-M4 core and operating at 2.5V ~ 5.5V and -40℃ ~ 105℃, and provides 22.1184 MHz internal oscillator (1% accuracy at 25℃, 5V) , Data Flash configurable and high immunity (8KV ESD, 4KV EFT) . Package types include LQFP48, LQFP64 and LQFP100.

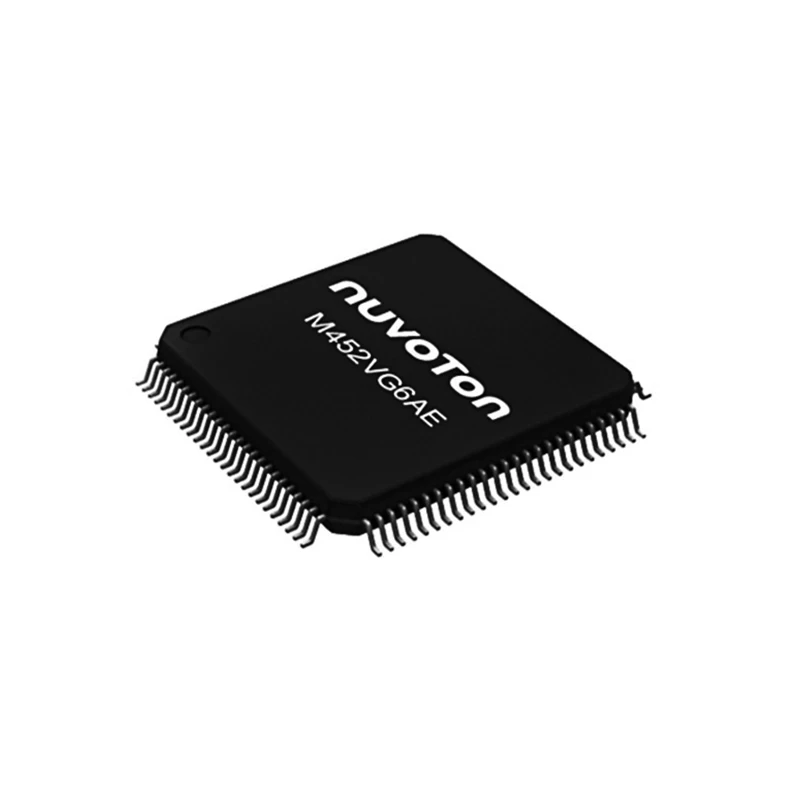

Model No.: M452VG6AE


Facebook Twitter Pinterest LinkedIn 分享

Products Overview:


Target Application:

Industrial Automation, PLCs, Inverters, Home Automation, Portable Data Collector, USB Accessories, Smart Card Reader, Motor Control, etc.

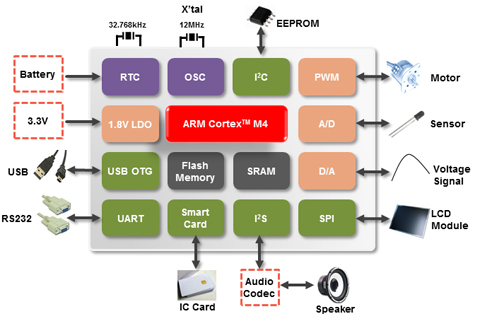

Key Features:

• Core
    - ARM® Cortex®-M4 with DSP and FPU
    - Max frequency of 72 MHz
    - Operating voltage: 2.5V to 5.5V
    - Temperature range: -40℃ ~ 105℃

• Memory
    - 256 KB of Flash Memory
    - 32 KB of SRAM
    - Data Flash configurable

• 12-bit ADC (up to 16 channels)

• 12-bit DAC

• 16-bit PWM (up to 12 channels)

• Timers
    - Four timers
    - RTC (optional) 		• Connectivity
    - USB 2.0 OTG (optional)
    - Up to 4 UARTs
    - Up to three SPIs
    - Up to two I²Cs (up to 1 MHz)
    - Smart card interfaces (optional)
    - Up to two I²S interfaces

• Security
    - CRC engine

• Clock Control
    - 4 to 24 MHz external crystal oscillator
    - 32.768 kHz crystal oscillator
    - 22.1184 MHz internal RC oscillator
    - 10 kHz internal RC oscillator
