Nylon Steel Releasable Zip Tie NFC RFID Cable Tie Tag

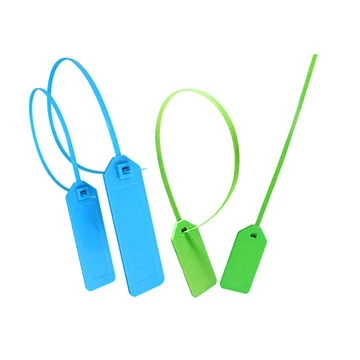

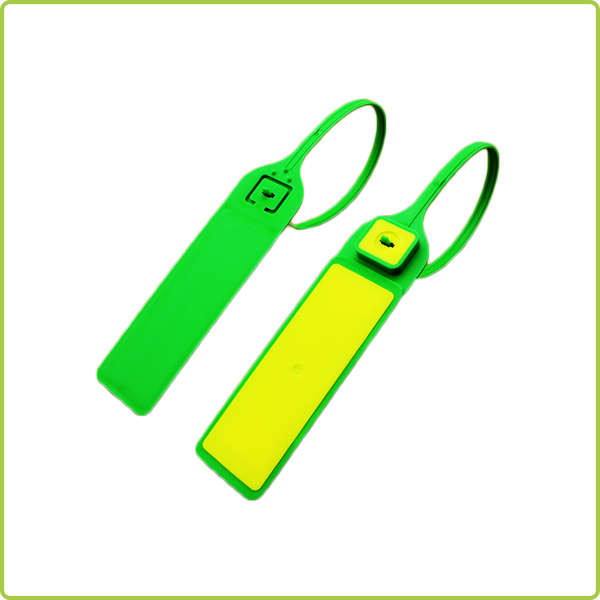

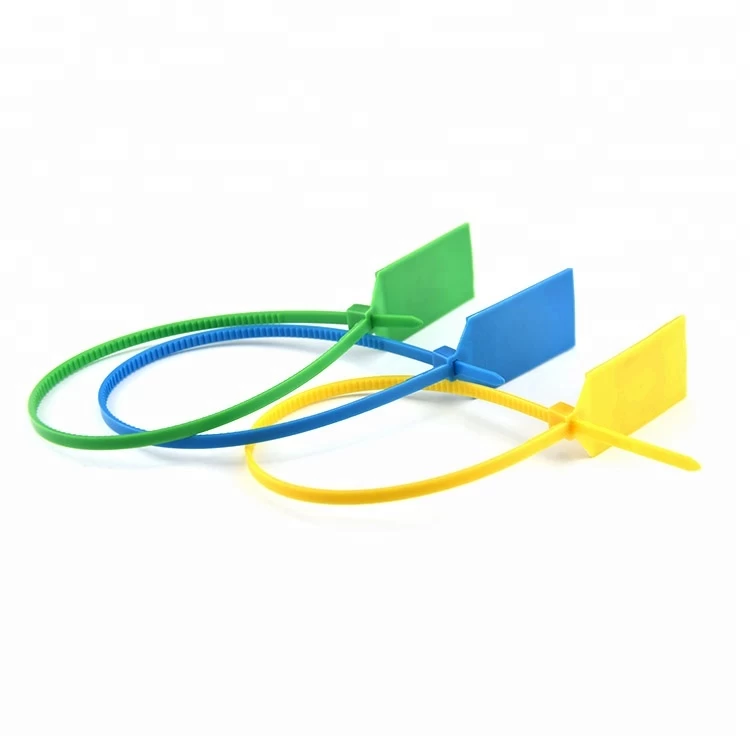

RFID Cable Tie Tag is made of nylon or PVC, optional with different colors like yellow/ red/ white/ blue. RFID Cable Tie Tag can be used in water and harsh outdoor environment. It is particularly designed for plants, flowers, cables tracking. With the band inserted, the tracking material can be fixed very reliable like straps.
RFID Cable Tie Tag is installed with cable tie. It can handle various applications. such as the inventory system, cable management system etc, The key advantage is: it is a wafer/dust proof tag, and can be straped to the object you want to identify in very harsh environment.
|
Material
|
PP, Nylon, Epoxy Resin etc
|
|
Outline dimension
|
Label: 53.5mm×30mm×3.1mm
label: 45mm*26mm*3.1mm
Stem: 320mm, 300mm, 380mm etc
Also various size for selection
|
|
Operating frequency
|
125Khz, 13.56MHz, 860-960MHz
|
|
Protocol
|
ISO14443A/15693, ISO18000-6C/6B
|
|
Chip
|
TK4100, EM4305, T5577
Slix, n213/215/216, MF 1K, F08 etc
H3, M4
|
|
Operating temperature
|
-30℃~85℃
|
|
Features
|
Suitable for indoor and outdoor
|
|
Available crafts
|
Laser printing, silkscreen printing
|
Applications
• Plants tracking
• Cable tracking
• Flowers tracking
• Tools tracking
Persons and crafts
• Ink-jet printing or laser process of Logos
• Ink-jet printing or Laser process of Serial Number, UID number
• Chip encoding
