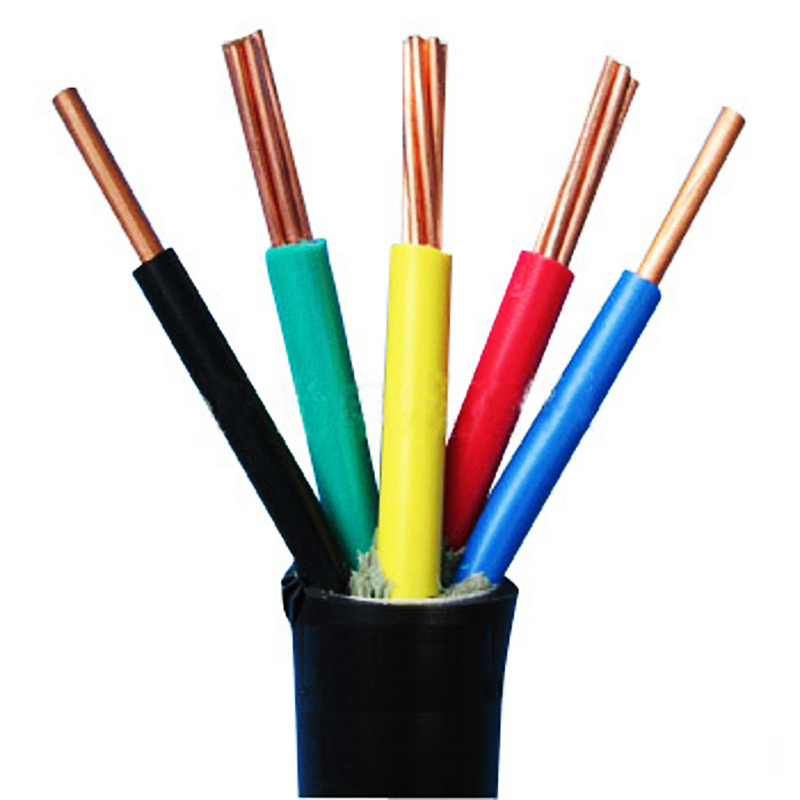

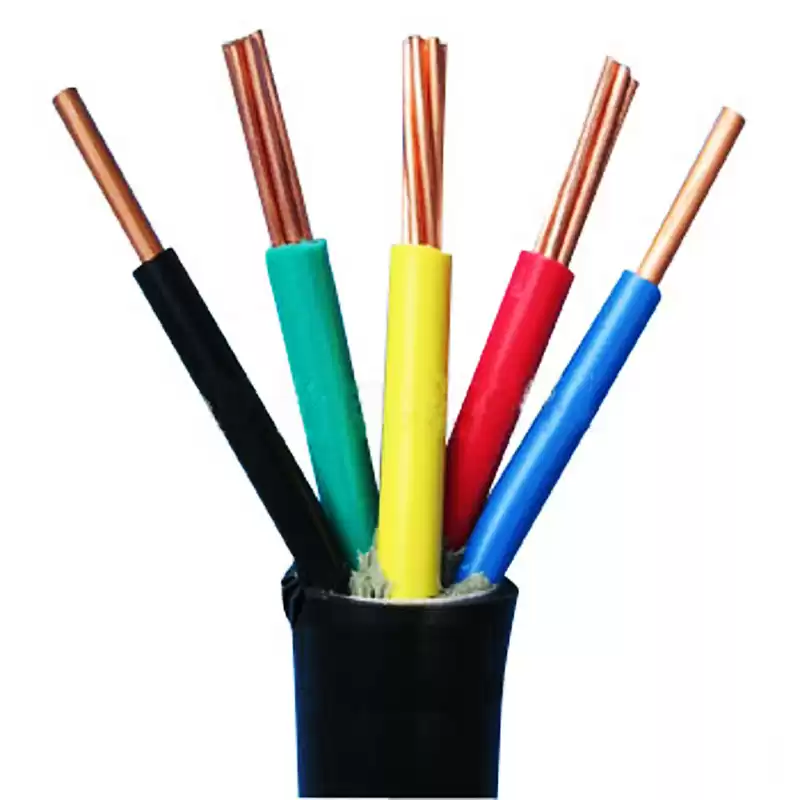

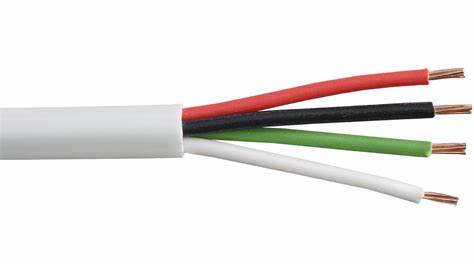

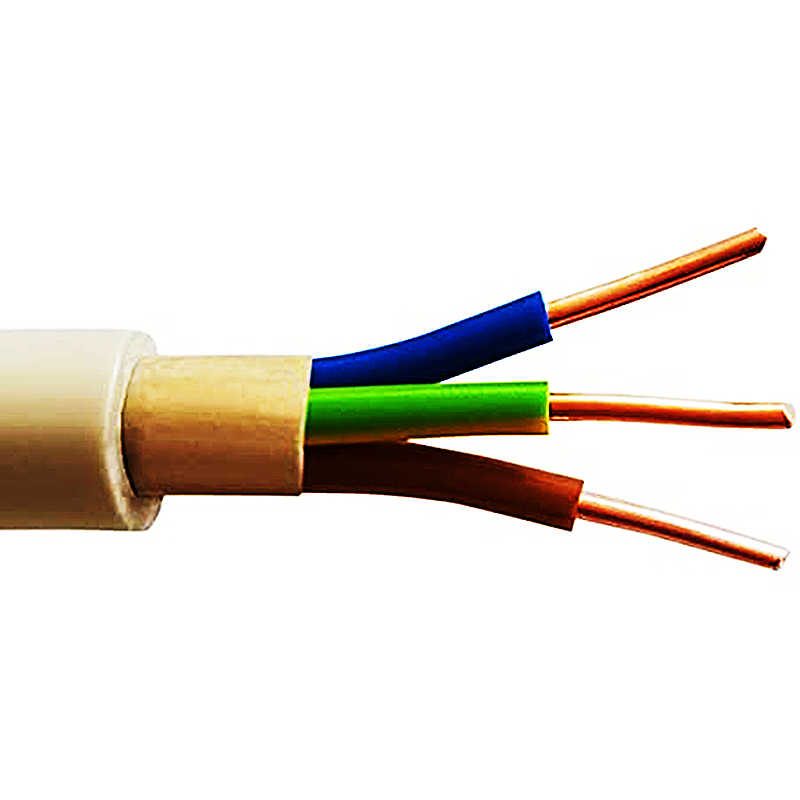

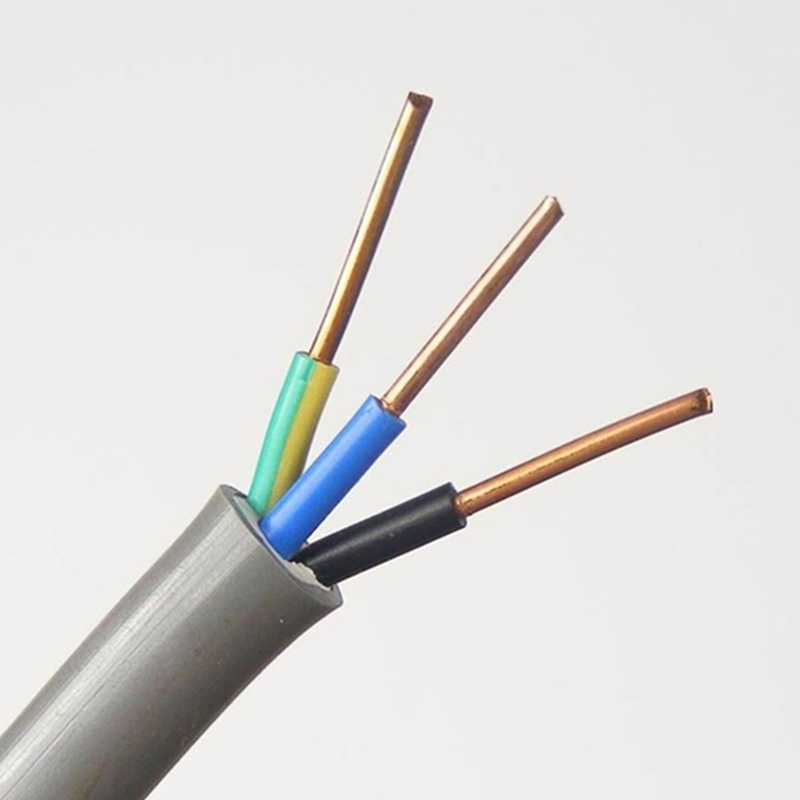

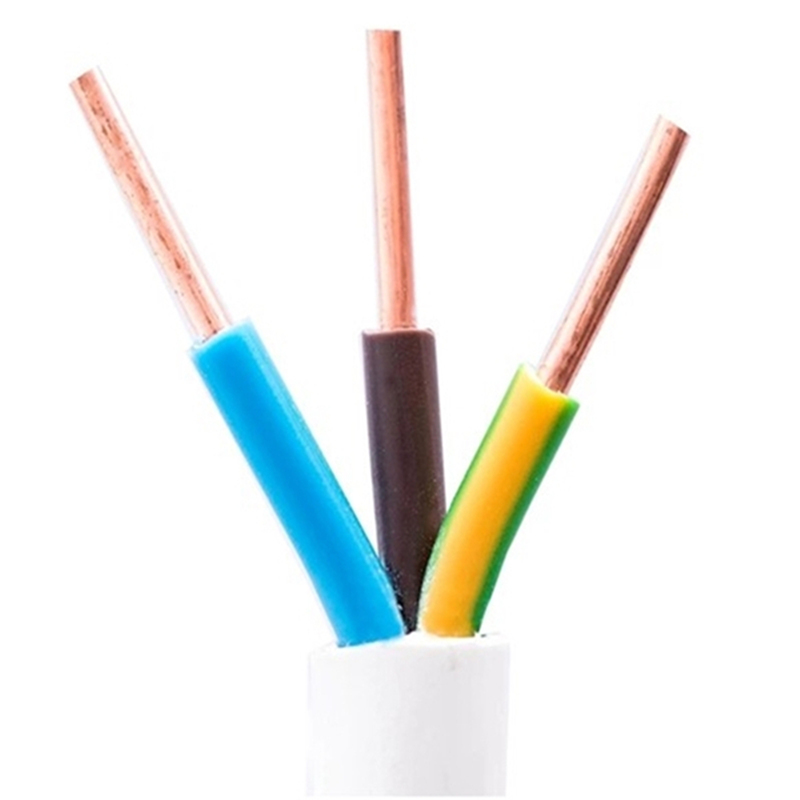

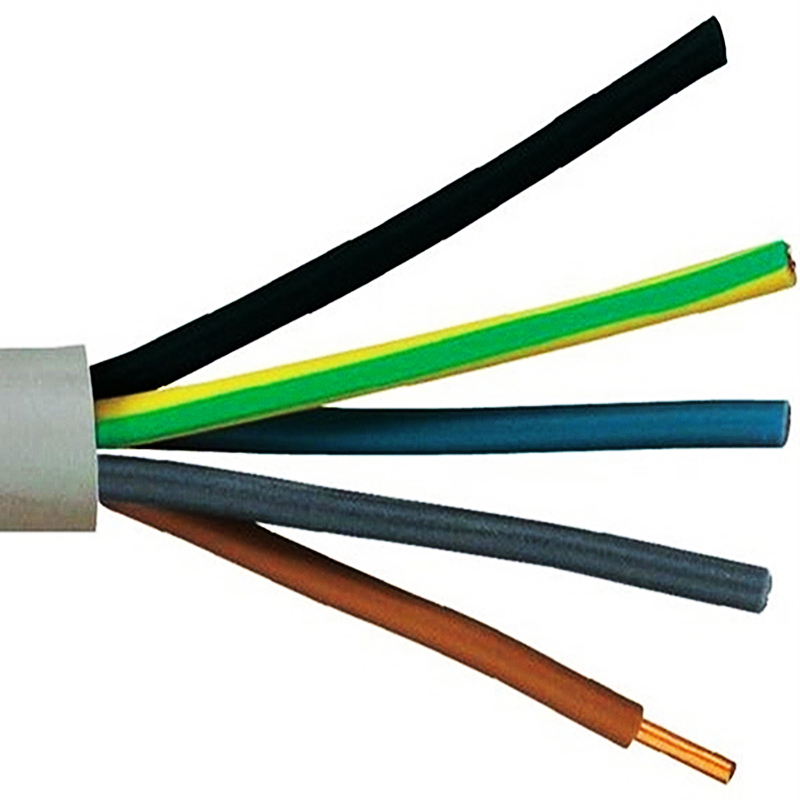

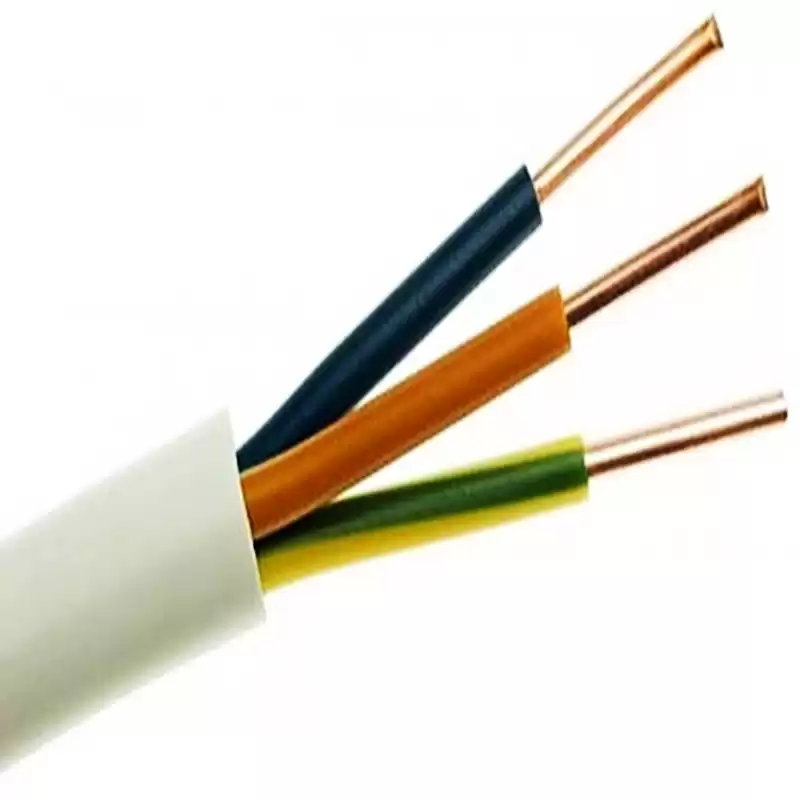

NYM-J & NYM-O BVV Multi-core Copper Wire PVC Insulated
PVC Sheath Electric Wire and Cables
PRODUCTS NAME
NYM-J & NYM-O BVV Multi-core Copper Wire PVC Insulated PVC Sheath Electric Wire and Cables.
PRODUCTS KEYWORDS
NYM-J, NYM-O, BVV, SDI electric cable, pvc insulated cable, electrical wire, electric cable, wire and cables.
PRODUCTS APPLICATION
NYM-J & NYM-O BVV Multi-core Copper Wire PVC Insulated PVC Sheath Electric Wire and Cables, for internal fixed installation in domestic, commercial or industrial settings, in dry, damp or wet environments and directly into concrete. Not suitable for installation in direct sunlight without additional protection.

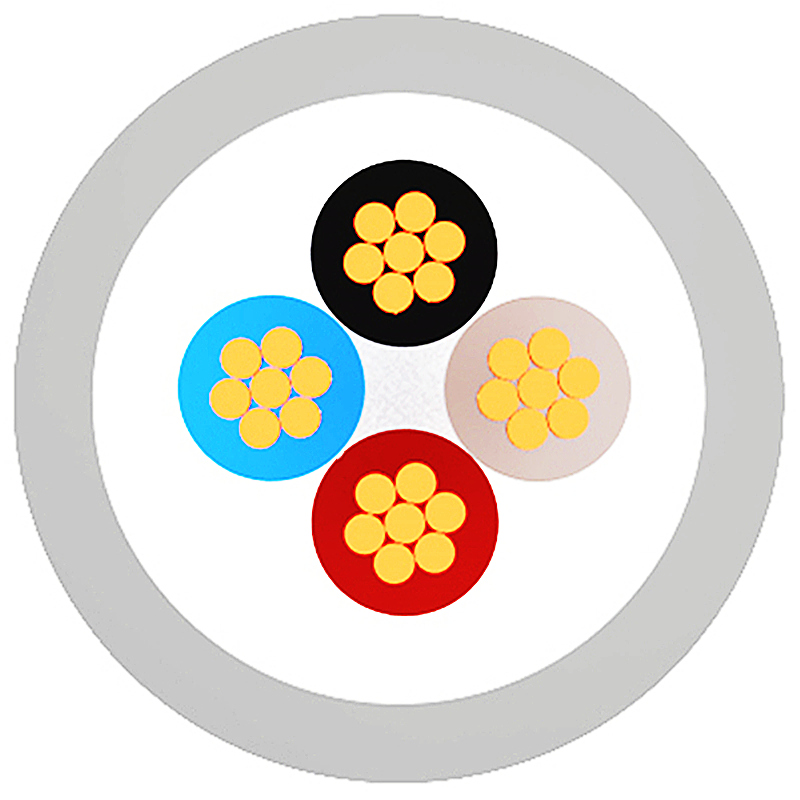

PRODUCTS STRUCTURE
NYM-J & NYM-O BVV Multi-core Copper Wire PVC Insulated PVC Sheath Electric Wire and Cables,
the structure as below:
---Conductor Material
Plain annealed copper wire, solid Class 1, or stranded Class 2.
---Insulation Material
PVC (polyvinyl chloride).
---Sheath Material
PVC (polyvinyl chloride).
---Core Number
Multi-cores, 2-5 cores.
aPRODUCTS DIMENTIONS
|
Description
of Cable
|
Products Main Technical Sheet
|
|
Products Name
|
NYM-J & NYM-O BVV Multi-core Copper Wire PVC Insulated PVC Sheath Electric Wire and Cables.
|
|
Conductor Material
|
Plain annealed copper wires, solid Class 1, or stranded Class 2.
|
|
Conductor Structure
|
3 x 1/1.78 mm.
|
|
Insulation Material
|
PVC (Polyvinyl Chloride).
|
|
Insulation Thickness
|
0.8 mm.
|
|
Insulation Colour
|
NYM-J: blue, brown; blue, brown, Y/G; blue, brown, grey, Y/G; blue, brown, grey, black, Y/G;
NYM-O: blue, brown; blue, brown, grey; blue, brown, grey, black; blue, brown, grey, black, white.
|
|
Sheath Material
|
PVC (Polyvinyl Chloride).
|
|
Sheath Thickness
|
1.2 mm.
|
|
Sheath Colour
|
Black, grey, white, or others.
|
|
Conductor Cross-section
|
3 x 2.5 mm2.
|
|
Core Number
|
3 cores, 3C.
|
|
Out Diameter
|
Max. 12.0 mm.
|
|
Voltage Rate
|
300/500V (U0/U).
|
|
About Net Weight
|
175 kg/km.
|
|
Production Standard
|
GB/T 5023-2008, IEC 60227, DIN VDE 0281, DIN VDE 0295,
DIN VDE 0250.
|
|
Production Packing
|
100 meters per roll, or according to the customers requirement.
|
|
Max. Conductor DC Resistance
at 20℃ in Air
|
7.41 Ω/km.
|
|
Min. Insulated
Resistance at 70℃
|
0.010 MΩ.km.
|
|
Max. Ampacity
at 40 ℃ in air
|
21A.
|
