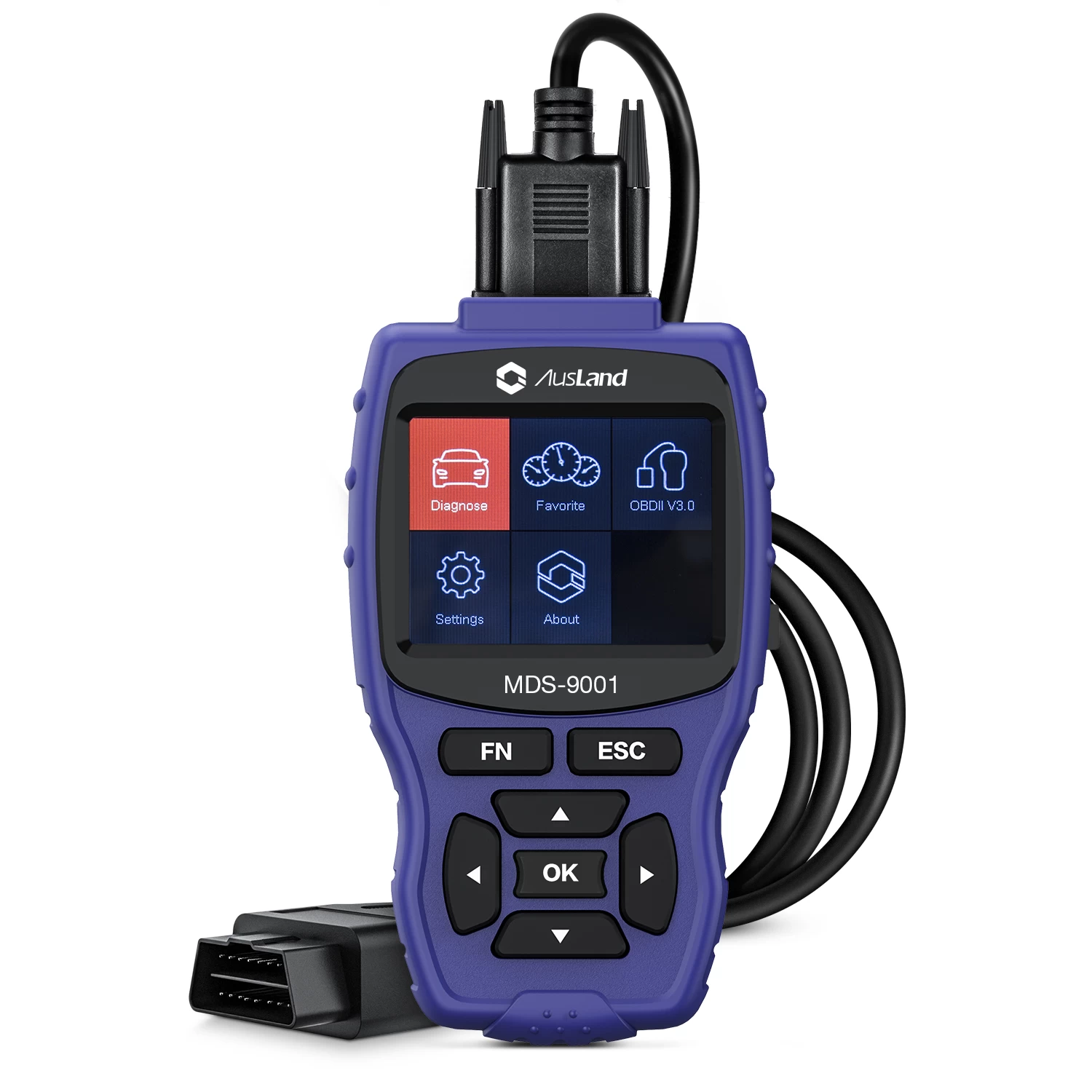

MDS-9001 Multi-diag specialist is professional handheld scan tool, not only for small garages, independent repairs, enthusiasts, but also for technicians by delivering OE-level diagnosis on all the electronic systems. It has basic functions such as codes and live data, and capable of advanced functions too, such as actuation, adaptation and programming. In addition, it can lets you to access oil service light reset, throttle body adjustment, DPF regeneration and much more commonly required service features.

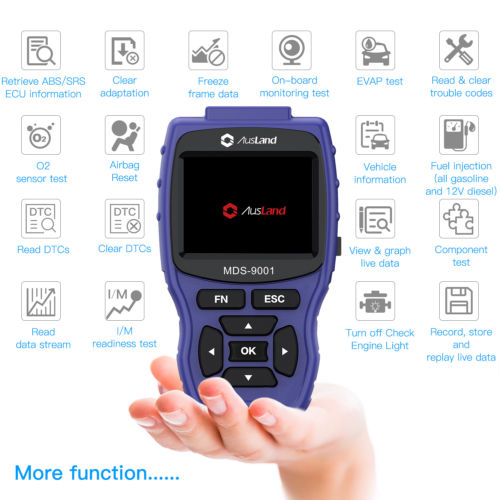

Features
Works on most systems
Reads & Clear trouble code (generic & manufacturer specific DTC’s) on all the systems such as engine, transmission, abs and airbag
On-board readiness monitoring- to read the results of on-board diagnostic monitoring tests for specific components systems
Requests and records live sensor data
Provides live data graphing, Merges graphs for easy and intuitive diagnosis
Displays freeze frame data, providing freeze frame data as snapshot of the operating conditions at the time of an emission-related fault
Performs most adaptations, Does active tests on systems and components
Performs special functions, coding, security access
Retrieve ECU information
EVAP test – initiating a leak test for the vehicle’s EVAP system with necessary
procedures available
Fuel injection (all gasoline & 12 V diesel)
Resets oil service light, Oil light/service reset – supporting service lamp reset, brake pad reset service mileage, check engine light, and service interval
Turn off the ECU warning light, diagnoses EPB/SBC functionality
View & graph live data for real time graphing/live data reading
Component for bi-directional tests such as cycling abs solenoids
Re-calibration of brake control module after changing the brake pads Replacement
Sets inspection 1, 2 service interval
Sets (non) long life oil service
Sets inspection mileage
Deactivates and re-activates brake control system
Retracts calipers for brake pad replacement
Returns calipers to the original position
Initializes the wear indicator if new pads installed
Diagnoses EPB caliper functionality
Code troubleshooters for faster and easier diagnosis
Multilingual menu options and code definitions
Memory card for data backup and software update by internet
Large TFT color screen and menu-driven operation
Multi System Platform capable
OBDII Features
Read fault codes
Clear fault codes
Retrieve data stream
EVAP test
Vehicle information
I/M Readiness
Special Funciton
ADD KEYS
ADD ONE KEY
AF SENSOR 1 LEARNING CLEAR
ALL KEYS LOST
ALL SENSOR CALIBRATION
DELETE KEYS
DPF DIFFERENTIAL PRESSURE SENSOR INITIAL LEARN
DPF REGENERATION
ECM RESET
FRONT PANEL CHECK
GAUGE CONTROL MODULE REPLACEMENT
ISV FORCED LEARNING
KEYLESS CHECK
MAF SENSOR LEARNING CLEAR
OPDS INIT
PASSCODE CLEAR
POWER WINDOW RESET FOR DRIVER SIDE
POWER WINDOW RESET FOR LEFT SIDE
POWER WINDOW RESET FOR PASSENGER SIDE
POWER WINDOW RESET FOR RIGHT SIDE
REPLACE ECM/PCM
RESET 'CALCULATED PM VALUE'
REWRITE KEYS
TP SENSOR RESET
Specification
Display: 3.5’’ TFT LCD
Operating temperature: 0 ～ +50℃
Storage temperature: -20 ～ +70℃
Operating current: 150mA 12V(Typical)
Power consumption:1.8W(Typical)
Packing dimension: 176*102*33mm(L×W×H)
Weight: 270g

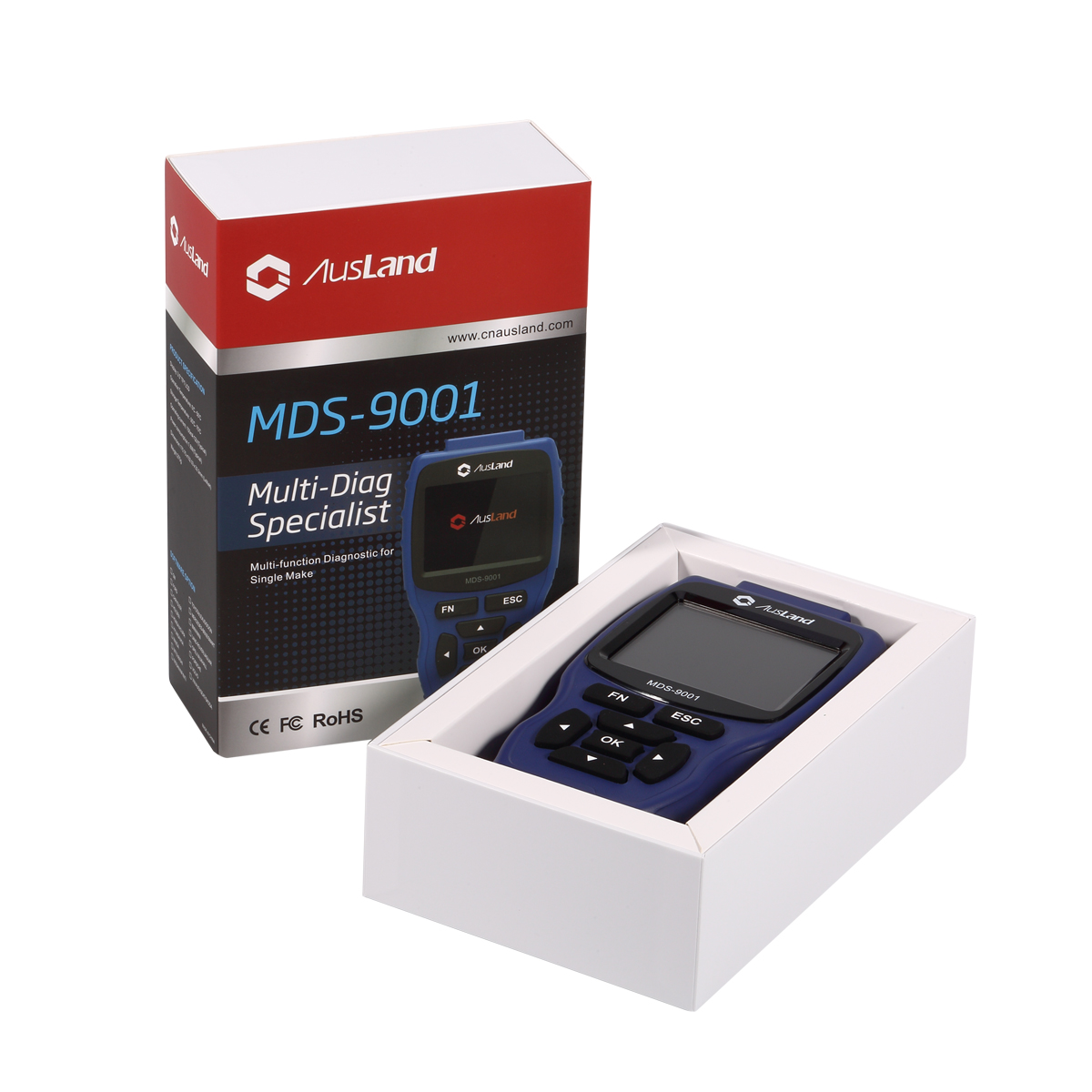

Packing list:
Main unit 1pc
Main Cable 1pc
OBDII-16 Connector 1pc
USB Cable 1pc
User Manual 1pc
