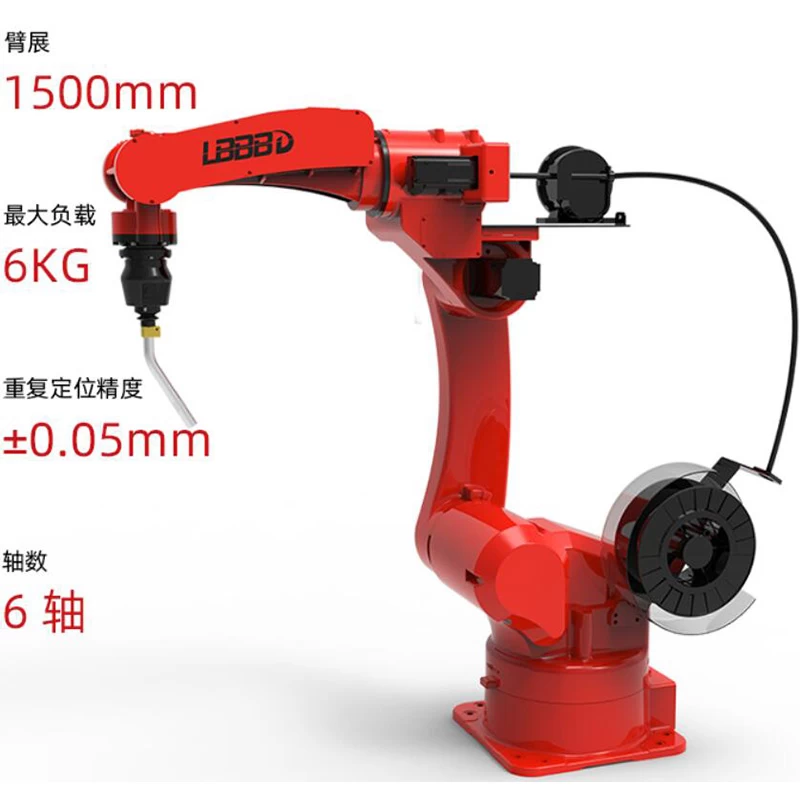

OEM MIG welding Robot TR1006A-15M
Product introduction:
TR series welding industrial robots are compact in size, small in size and light in weight. They are dedicated arc welding robots that can achieve stable welding, obtain high-precision welding paths, shorten welding cycles, and extend the life of pipe fittings and cables. At the same time, the TR series welding robot can flexibly perform welding operations in a narrow space, and can easily choose floor installation, hanging installation, and inverted installation.
Robot characteristics: wrist load is 6Kg, maximum radius is 1500mm.
Features:
small volume
Light weight
Fast running speed
High repeat positioning accuracy
Strong welding stability
-
|
Name
|
MIG-Welding robot
|
|
Type
|
6 axis
|
|
Mode
|
TR1006A-15M
|
|
Use
|
Welding
|
|
Max payload
|
6kg
|
|
Repeat accuracy
|
±0.05mm
|
|
Power capacity
|
1.7KVA
|
|
Body weight
|
120kg
|
|
Working range
|

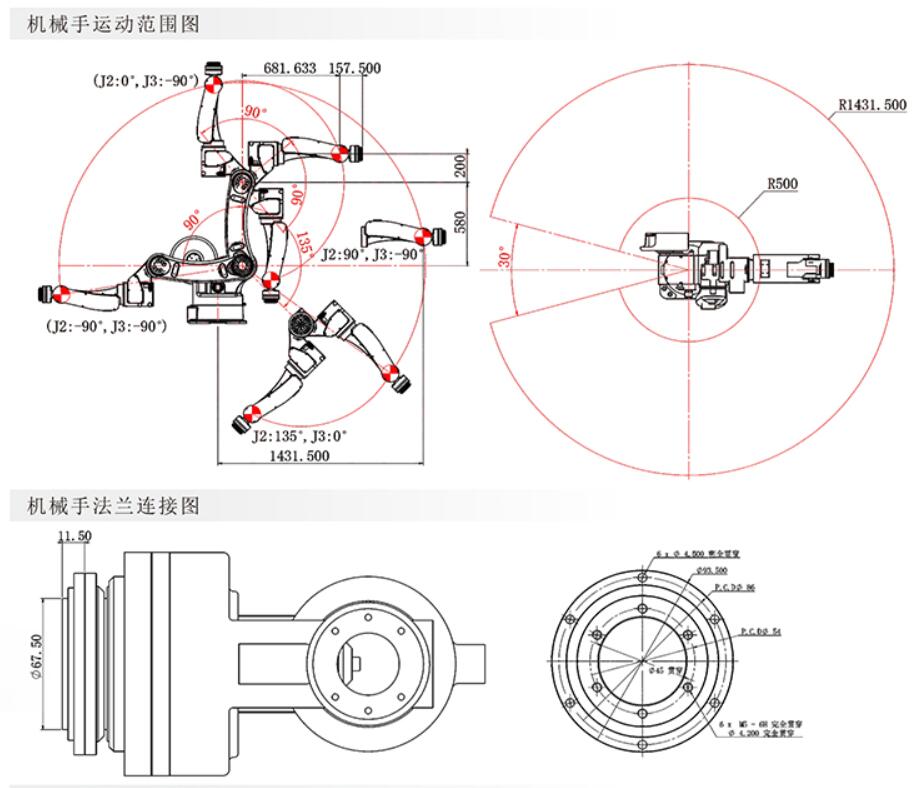

See the diagram below
|
|

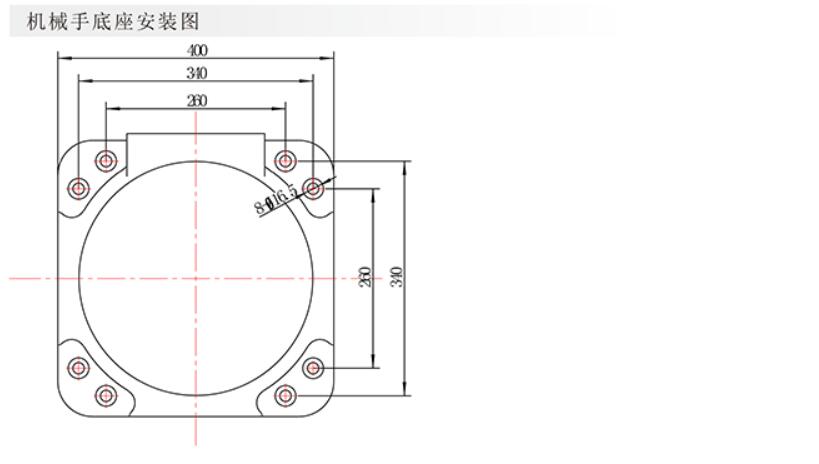

Installation
|
Ground or Side mount
|
|
Use of environmental
temperature
|
-20~80℃，
|
|
IP class
|
IP65
|
|
Working range
|
|
Base axis - J1
|
±165°
|
|
Base axis - J2
|
+135° -90°
|
|
Base axis - J3
|
±90°
|
|
Arm axis - J4
|
±360°
|
|
Arm axis - J5
|
+115° -140°
|
|
Arm axis - J6
|
±450°
|
|
Maximum Speed
|
|
Base axis - J1
|
148°/s
|
|
Base axis - J2
|
148°/s
|
|
Base axis - J3
|
150°/s
|
|
Arm axis - J4
|
222°/s
|
|
Arrn axis - J5
|
222°/s
|
|
Arm axis - J6
|
360°/s
|
