OEM accepted PSU 200W 12V 16.7A switching power supply meet medical standard
KAIHUI 200W 12V 16.7A switching power supply is 88-264V input voltage and offers various output voltage between 12V and 48V.Used in industrial automation machinery and medical equipment etc.
OEM accepted PSU 200W 12V 16.7A switching power supply meet medical standard
Description:
K31A-UP200S series 12V 16.7A switching power supply cooling by free air convection for 140W and 200W with 10CFM froced air;200W 12Vdc power supply have short circuit and overload protection functions;As a high price-to performance power supply solution for various industrial applications.
Features:
1, High efficiency 200W power supply,small size;
2, 200W 12VDC power supply built-in PFC function;
3, Wide range of AC input voltage;
4, 12V 16.7A smps have short circuit, overload, overvoltage and over temp., protection;
5, Single output power supply,used in stage lighting and sound equipment.
| Parameter | ||||||
|
Item NO |
K31A-UP200S12 | K31A-UP200S24 | K31A-UP200S28 | K31A-UP200S36 | K31A-UP200S48 | |
|
Output |
DC Output Voltage |
+12V | +24V | +28V | +36V | +48V |
| Output Rated Current | 16.7A | 8.4A | 7.2A | 5.6A | 4.2A | |
| Current Range (Natural cooling) | --- | |||||
| Current Range（10CFM Fan） | 0-16.7A | 0-8.4A | 0-7.2A | 0-5.6A | 0-4.2A | |
| Rated Power（Natural Cooling） | 140W | 140W | 150W | 150W | 150W | |
|
Rated Power（10CFM Fan） |
200.4W |
201.6W | 201.6W | 201.6W | 201.6W | |
| Ripple & Niose | 150mVp-p |
200mVp-p |
250mVp-p |
300mVp-p |
300mVp-p |
|
| DC Adjustable range | 11.4~12.6V | 22.8~25.2V | 26.6~29.4V | 34.2~37.8V | 45.6~50.4V | |
| Voltage Tolerance | ±1% | |||||
| Line Regulation | ±0.5% | |||||
|
Load Regulation |
±0.5% | |||||
|
Set up,Rise,Keep up time |
1000ms,20ms,12ms |
|||||
| Input | Voltage Range |
100-240V AC |
||||
| AC Current |
1A@230V AC,1.9A@115V AV |
|||||
| Input Frequency |
50-60Hz |
|||||
| Efficiency | 92% | 93% | 93% | 94% | 94% | |
| Power Factor |
＞0.98@115V;＞0.95@230V |
|||||
| Inrush Current |
Cold Start 60A/230V |
|||||
|
Leakage Current |
＜0.5mA@240V AC |
|||||
|
Protection |
Over Load Protection | 110~150% Hiccup protection，automatic recovery。 | ||||
| Over Voltage Protection | ＞120% Shut down，Locked protection | |||||
| Over Temp. Protection |
TS1 position＞105℃ it will be protection, then automatic recovery |
|||||
| Function | Fan Supply |
12V/0.5A for driving a fan ，tolerance±15% |
||||
|
Environment |
Working Temp., Humidity | -20~70℃，10~90% RH，No condensation | ||||
|
Storage Temp.,Humidity |
-20~85℃，10~95% RH | |||||
| Temp.,Drift | ±0.03%/℃(0~50℃) | |||||
|
Vibration |
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES | |||||
| Safety & EMC | Safety Standards | GB4943 EN60950 | ||||
|
Withstand Voltage |
I/P-O/P:3KV AC; I/P-FG:1.8KV AC;O/P-FG:500V AC | |||||
| Insulation resistance |
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms |
|||||
| EMC Standards | ---- | |||||
|
Others |
Dimension |
101.6*54*35mm(L*W*H) |
||||
| Weight |
0.2KG |
|||||
| Notes |
1.All parameters 230V AC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity; 6.The load is more than 150W, need to add at least 10CFM to heat dissipation. |
|||||

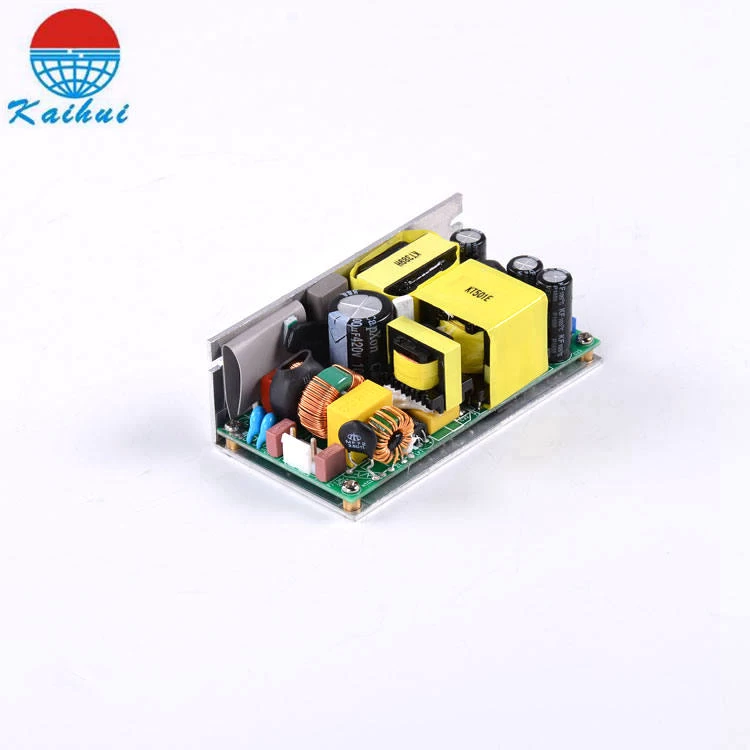

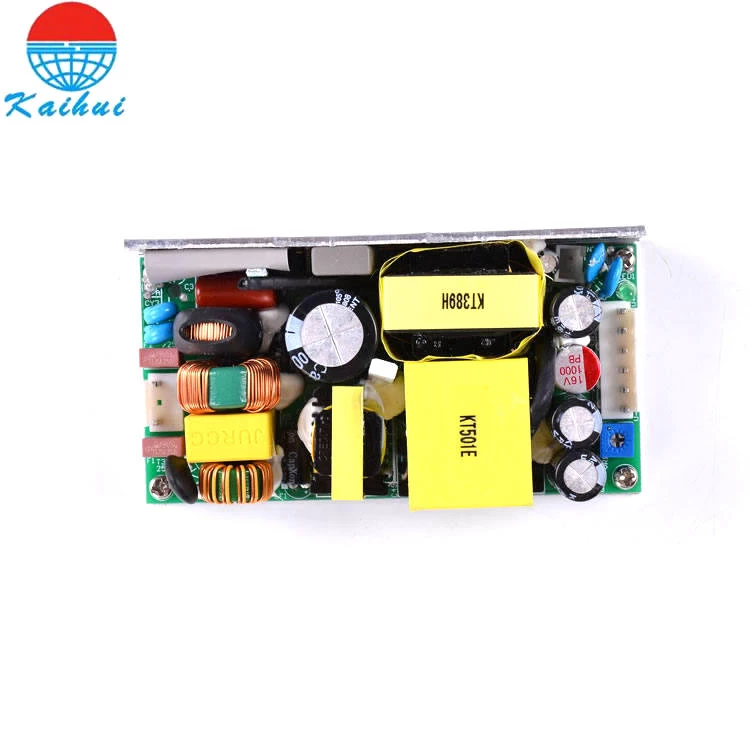

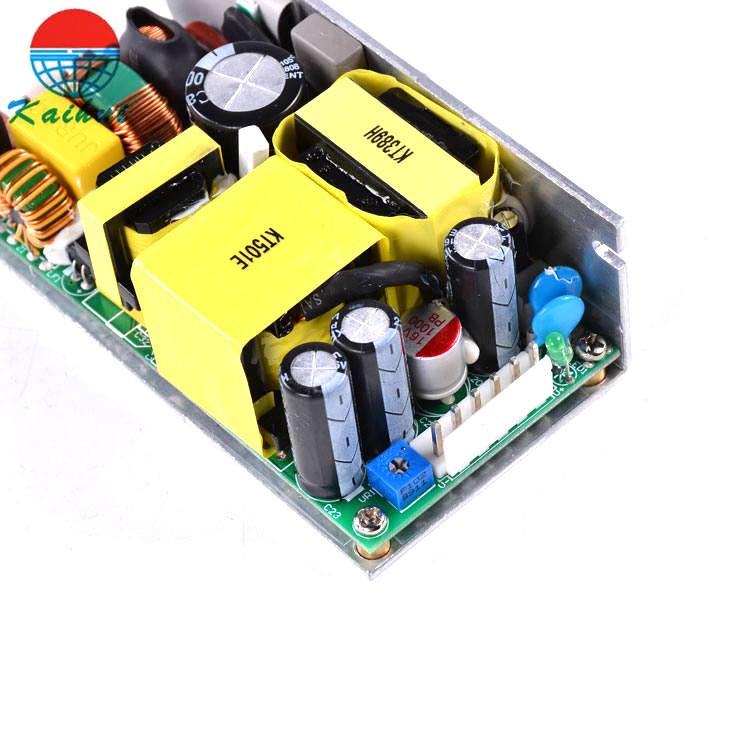

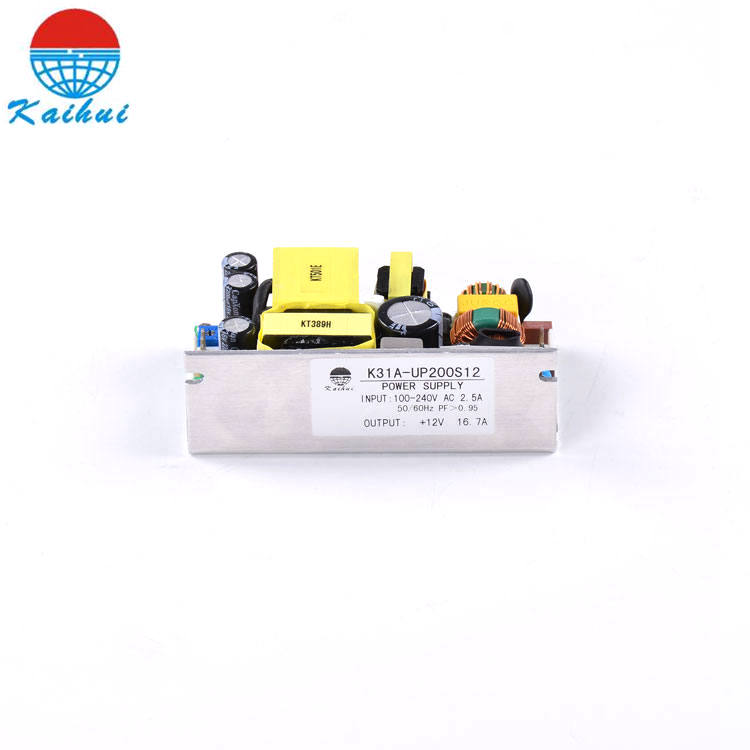

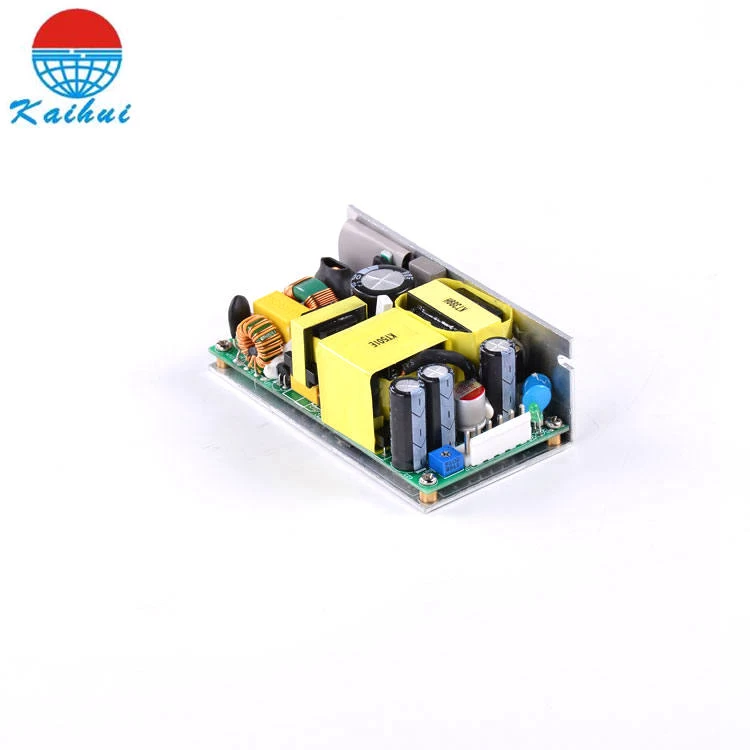

Product picture:
