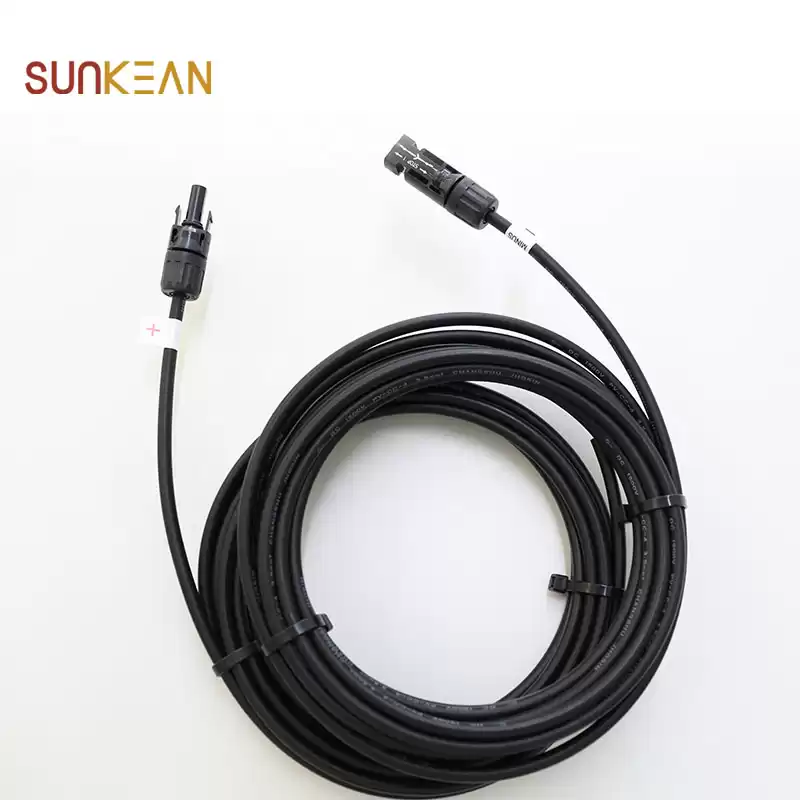

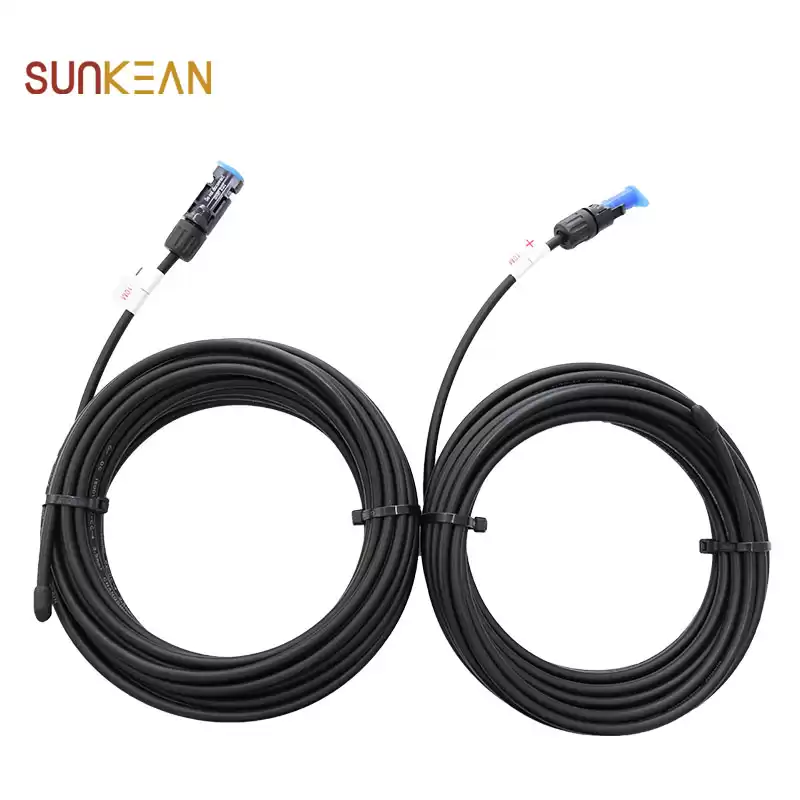

OEM Customized PVCC Solar Extension Cable with DC Waterproof Connector Male Female

OEM Customized Solar Extension Cable with DC Waterproof Connector Male Female is used in Solar PV system between the solar panel and Inverter or controller box.


  • IP LevelIP68
  • Applicable Cable O.D.3.5mm² or 5.5mm²

OEM Customized PVCC Solar Extension Cable with DC Waterproof Connector Male Female

This extension cable offers a wide range of lengths, as well as two different gauge sizes to choose from. The different sizes allow for customization based on a customer’s unique needs between the solar panel and charge controller.


Product Characteristics:

CONNECTOR
No. MC4

Rate Voltage

IEC 1500V &UL 1500V

Rated Current

39A

Safe Degree

Class II

Flammability Class

UL 94-V0

Contact Resistance

≤0.25mΩ

Degree of Protection

IP68


Solar Cable Cross Section(mm2) 3.5mm25.5mm2
Construction(No./mm) 7/0.8、7/1.00
Cable O.D.(mm) 6.3mm、7.00mm
Voltage Rating DC:1500V
Test Voltage 3000V AC
Temperature Rating

Rated: -40°C to +90°C

Conductor Material

Stranded bare copper

Testing Standard

Cold Bending Test : JIS C3660-1-4

Flame Test : JIS C 3665-1-2


Product Processing:



Product Features:

------Connector is set up at  SINGLE end of cable;

------Appointed  length is acceptable;

------No need for terminal processing;

------Tinned copper contact is pre-assembled , no need for crush tool;

------If O.D. of two ends are different can also be connected;

------Application : used in solar system , module, junction box and so on.


Packing & Delivery:


Application Scenario:


Global Exhibitions:


Company Profile:

SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover PV modules,PV1-F solar cable, solar connectors for PV system , PV connectors, pvc coated wire mesh fence, inverters etc solar products .

SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.


FAQ:

Q: How could i get the sample ?

A: We have different kinds of XLPE insulation pv solar cable,photovoltaic cable,xlpe solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.

Q: How long is the delivery time?

A1)For Sample: 1-3 Days;

A2)For small Orders: 3-10 Days;

A3)For mass Orders:15-20 Days;

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.


If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
