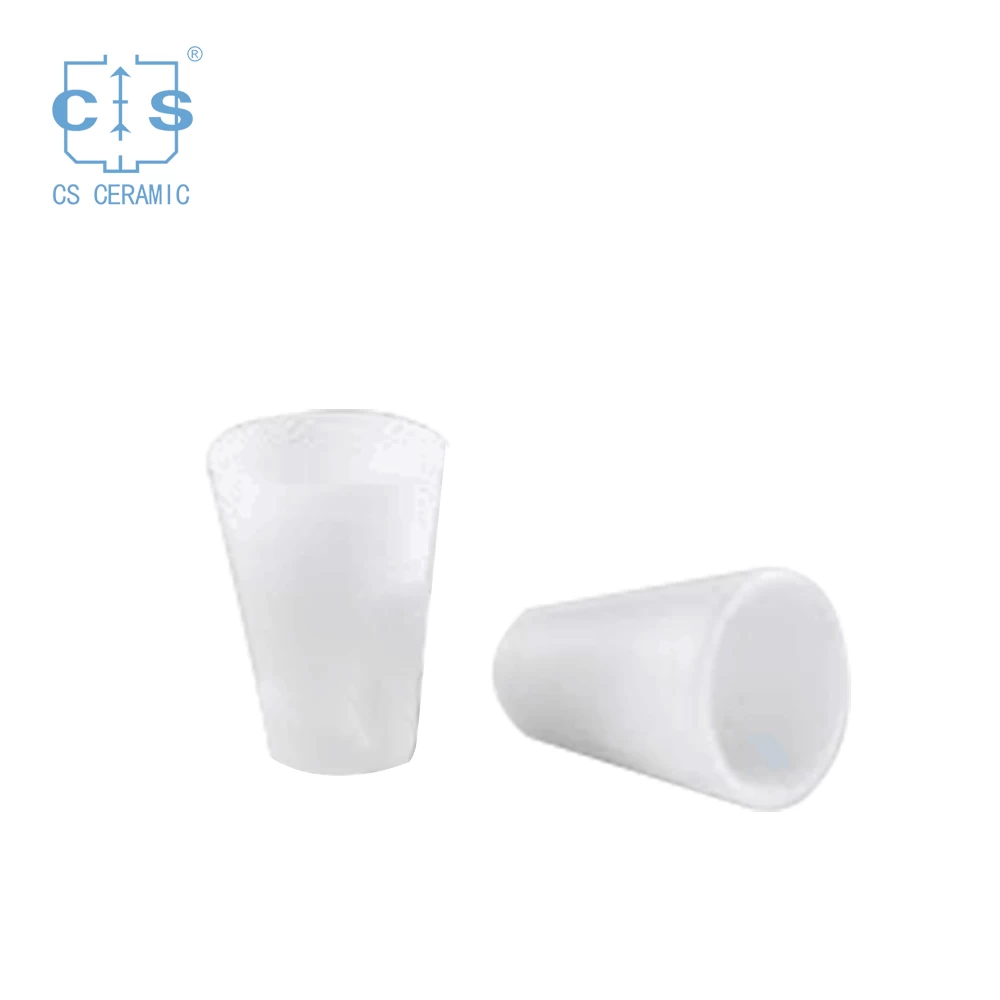

OEM Tapered Alumina crucible DSC TDA STA sample pan from Al2O3

Good alternative DSC sample pans.thermal analysis consumables for Thermal Analyzers .Al2O3 sample pan for dsc machine.




  • Materialceramic
  • Suitable forOEM
  • Part NOCS CERAMIC

Product Item: OEM Tapered  Alumina crucible  DSC TDA STA sample pan from Al2O3


Item info :

Type Sample pan /crucible
Suitable for OEM SIZE
Part NO OEM ITEM
Volume μL See list
Llid  Without
Material Alumina Ceramic
Temperature range Room temperature to 1600℃
QTY/PKG 20PCS/BOX ;     100PCS/BOX (Both available)
Brand CS CERAMIC
Original MADE IN CHINA


Size list:

CS-OA-184 Tapered Alumina crucible  TOD6.4*BOD3.6*H8.7mm CS CERAMIC OEM
CS-OA-185 Tapered Alumina crucible  D6*3*0.3mm CS CERAMIC OEM
CS-OA-186 Tapered Alumina crucible  D6*1.5*0.3mm CS CERAMIC OEM
CS-OA-187 Tapered Alumina crucible  D6*8*0.3mm CS CERAMIC OEM

Cleaning :

There sample pans (crucibles )can be reused .After mechanical cleaning ,store them ,if need be ,in water(or possibly even in 10% hydrochloric acid ) because many salts are soluble in water.Oxides form chlorides in hydrochloric acid,which can then be removed by rinsing.After drying,heat the crucibles to red heat to ensure that no weight loss occurs when they are used .


Shipping:    We do international shipping for clients.


Special offer:  Most of our crucibles are produced to OEM order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
