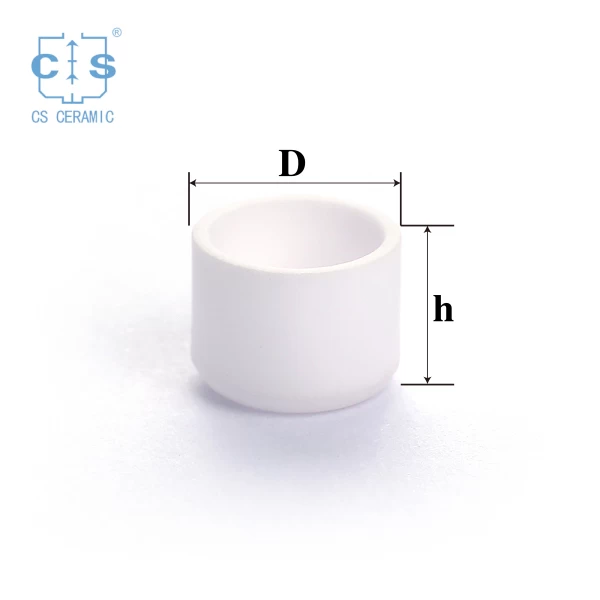

OEM Thermal analysis crucibles/Thermal Analyzer Ceramic Alumina Sample Pan

OEM Thermal Analyzer Ceramic Alumina Sample Pan for dsc differential scanning calorimetry ,dta thermal analysis,tga instrument,dsc instrument,pan instrument



  • Part NOCS-OEM
  • MaterialCeramic
  • Suitable forOEM

Product Item:OEM Thermal analysis crucibles/Thermal Analyzer Ceramic Alumina Sample Pan


OEM size details :

Item NO. Item name CAPACITY Size
CS-OA-165 Alumina crucible  15μl D2.9*4.5*0.5mm
CS-OA-166 Alumina crucible  25μl D6.5*1.9mm
CS-OA-167 Alumina crucible  25μl D6.5*2mm
CS-OA-168 Alumina crucible  30μl D4*4*0.4mm
CS-OA-169 Alumina crucible  30μl D4*5*0.4mm
CS-OA-170 Alumina crucible  60μl D5.5*4*0.3mm
CS-OA-170-1 Alumina crucible  60uL D6*4
CS-OA-172 Alumina crucible  85μl D6.5*4.5mm
CS-OA-172-1 Alumina crucible  150uL D9*4
CS-OA-173 Alumina crucible  450μl D12*5mm
CS-OA-173-1 Alumina crucible  500 µL D7*22mm
CS-OA-173-2 Alumina crucible  800μl D12*8mm
CS-OA-174 Alumina crucible  850μl D10*14mm
CS-OA-175 Alumina crucible  850μl D11.8*3.5mm
CS-OA-175-1 Alumina crucible  900uL D20*5
CS-OA-175-2 Alumina crucible  1ml D15×5mm
CS-OA-175-3 Alumina crucible  1.5ml D10*25
CS-OA-176 Alumina crucible  1.5ml D12*25*1.3mm
CS-OA-176-1 Alumina crucible  3.0ml  D18*18mm
CS-OA-176-4 Alumina crucible  3.0ml  D20*20mm
CS-OA-176-2 Alumina crucible  3ml D8*40mm
CS-OA-176-5 Alumina crucible  5ml D20*30mm
CS-OA-176-3 Alumina crucible  20mL D16*40mm
CS-OA-177 Alumina crucible  D6.5*6mm
CS-OA-178 Alumina crucible  D5.8*13mm
CS-OA-179 Alumina crucible  D6*7mm
CS-OA-179-1 Alumina crucible  D7.5*2.4mm
CS-OA-180 Alumina crucible  D8*5.5mm
CS-OA-181 Alumina crucible  D10.8*15mm
CS-OA-182 Alumina crucible  D12.8*60mm

As a professional factory, most of our crucibles are produced to OEM order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.



Shipping:    We do international shipping for clients.
