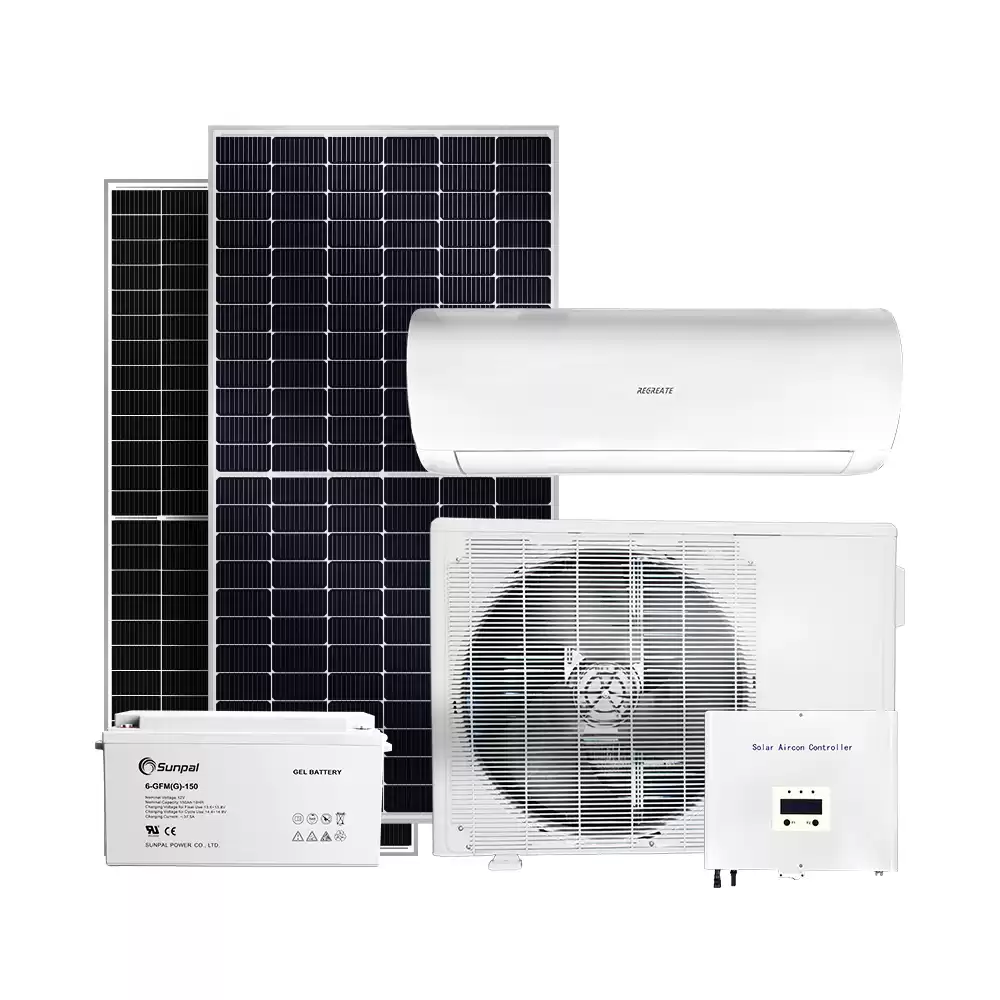

What is the off-grid solar air conditioning
Off-grid solar air conditioner system is a product developed from the existing ACDC Hybrid solar powered air conditioner according to market demands and customer feedback. ACDC air conditioners can only use solar energy during the day and must use grid electricity at night, when the air conditioners are not used during the day, the solar energy is wasted. Off-grid air conditioners perfectly solve these shortcomings and can customize a system with specific working hours according to the actual needs of customers.

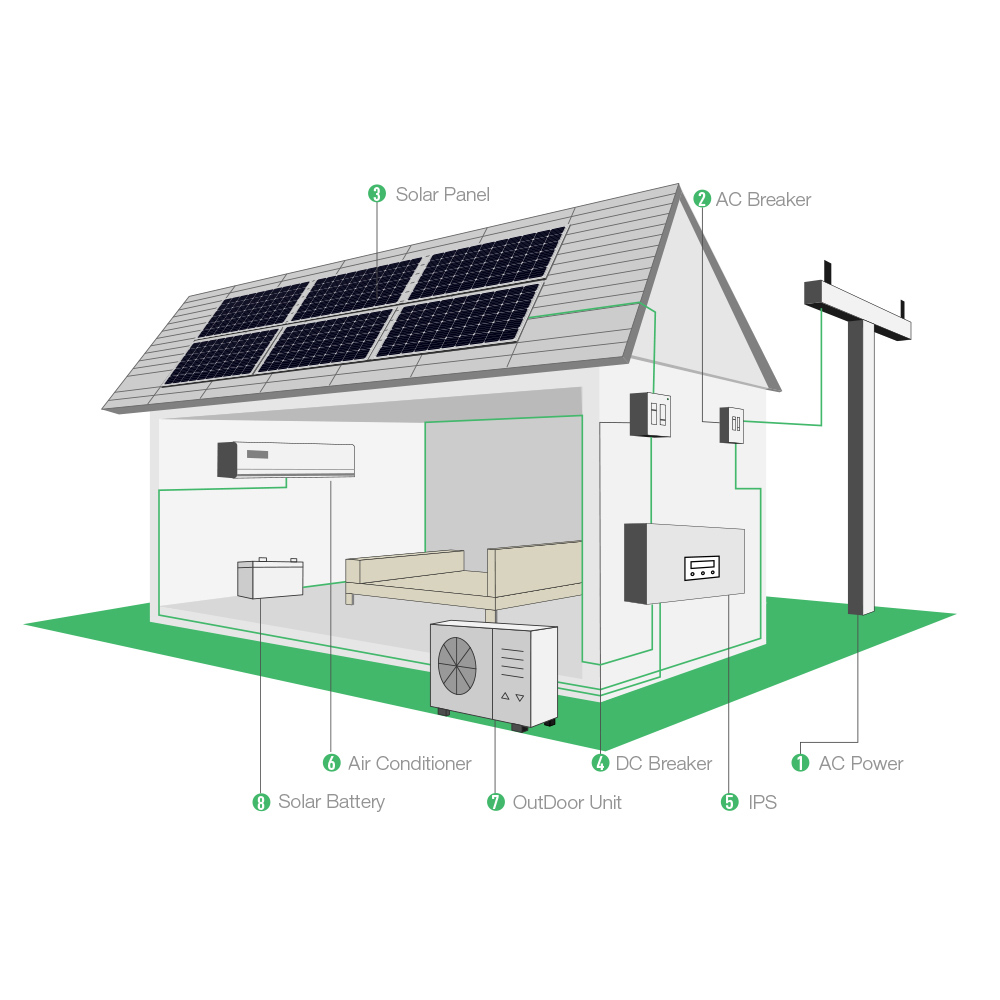

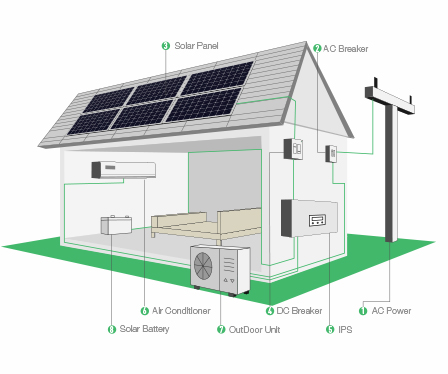

The working principle of off grid solar air conditioning.
Sunpal off-grid solar aircon supports solar energy, grid power, and battery.
When solar energy = aircon consumption，the solar energy will be used for aircon running directly，it will not charged to the battery or through the battery to run the A/C unit.
When solar energy > aircon consumption, some solar energy will be used for the A/C unit running, some solar energy will be charged to the battery automatically.
When solar energy < aircon consumption, It will use solar energy as the priority choice， the insufficient energy will takes from the battery automatically.
When solar energy & Battery < aircon consumption, you can connect the Grid for 24H working.
Solar panel:
|
Capacity
|
9000Btu
|
12000Btu
|
18000Btu
|
24000Btu
|
|
Solar Panel Quantities
|
6Pcs 400W
|
6Pcs 400W
|
9Pcs 400W
|
12Pcs 400W
|
|
IPS
|
|
50A
|
60A
|
60A
|
|
Battery (12V GEL * 4Pcs)
|
4Pcs 80Ah
|
4Pcs 100Ah
|
4Pcs 200Ah
|
4Pcs 250Ah
|
|
Peak Sunshine Hours
|
5h
|
5h
|
5h
|
5h
|
|
Working Time
|
14h
|
15h
|
17h
|
16h
|

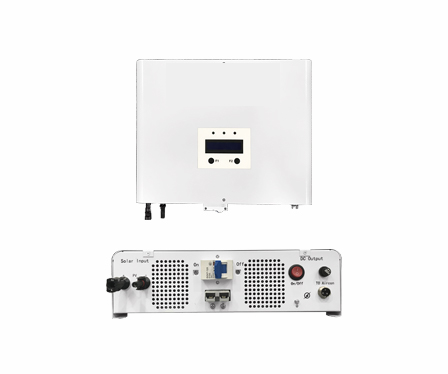

IPS:
-
High effificiency MPPT control algorithm, MPPT effificiency ≥99.5%;
-
Recommended battery types: Flooded, Sealed lead acid, Gel battery.
-
Charge mode: three stages (fast charge, constant charge, flfloating charge).
-
Most information could be provide by LCD customer's information
Battery:
-
Type: Solar GEL Battery;
-
Batte Voltage: 12V 2V is available；
-
Design Life: 12 Years;
-
Capacity: 50~250Ah is available.
Solar Rack:
-
Installation site: color steel tile roof
-
Mounting angle deviation of bracket system: ±2°
-
Installation angle range: 5°～45°
-
Surface treatment: anodic oxidation
-
Applicable solar panels: framed or without frame
-
Tripod and rail material: AI6005-T5
