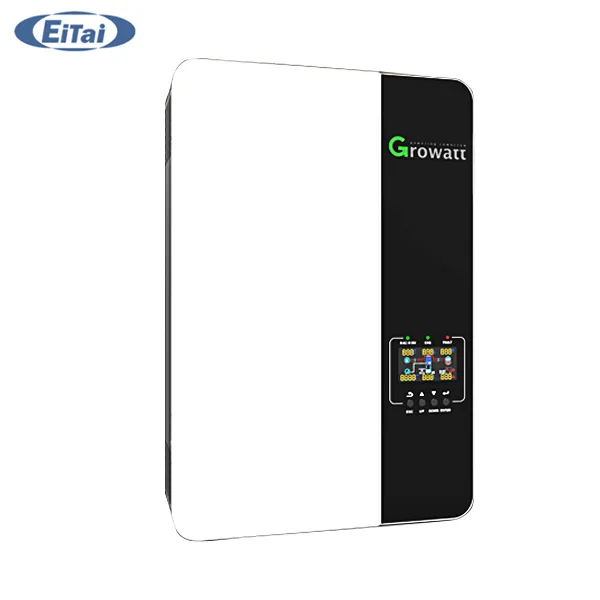

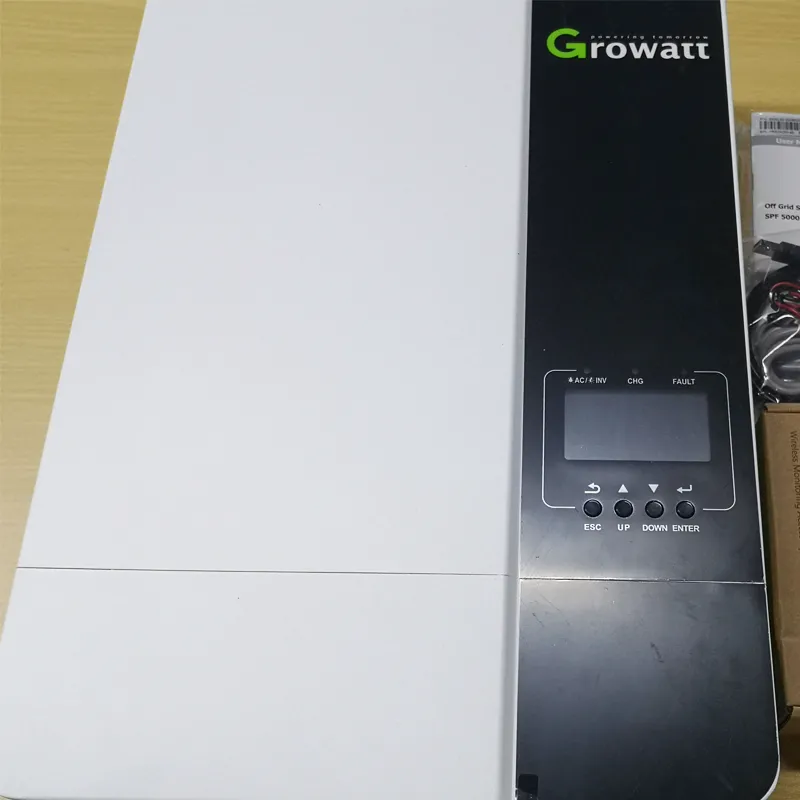

Growatt Off Grid 5kw Inverter Pure Sine Wave DC AC Solar Single Phase Inverter
Integrated MPPT charge controller
It can work with battery or without battery
Maximun PV input voltage up to 450VDC
Configurable grid or solar input priority
Optional WIFI/ GPRS remote monitoring
Parallel for scalability
Product Information:
|
|
|
Battery voltage
|
48VDC
|
|
|
|
RATED POWER
|
5000VA/ 5000W
|
|
Parallel Capability
|
Yes, 6 units
|
|
AC Voltage Regulation (Battery Mode)
|
230VAC ± 5% @ 50/60Hz
|
|
Surge Power
|
10000VA
|
|
Efficiency (Peak)
|
93%
|
|
Waveform
|
Pure sine wave
|
|
Transfer Time
|
10 ms (For Personal Computers); 20 ms (For Home Appliances)
|
|
|
|
Maximum PV Array Power
|
5500W
|
|
MPPT Range @ Operating Voltage
|
120VDC ~ 430VDC
|
|
Maximum PV Array Open Circuit Voltage
|
450VDC
|
|
Maximum Solar Charge Current
|
100A
|
|
Maximum Efficiency
|
97%
|
|
|
|
Charge Current
|
80A
|
|
AC Input Voltage
|
230 VAC
|
|
Selectable Voltage Range
|
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
|
|
|
|
Dimension (D/W/H) in mm
|
485/330/135
|
|
Net Weight (kgs)
|
12
|
|
|
|
Humidity
|
5% to 95% Relative Humidity(Non-condensing)
|
|
Operating Temperature
|
0°C - 55°C
|
|
Storage Temperature
|
‘-15°C - 60°C
|

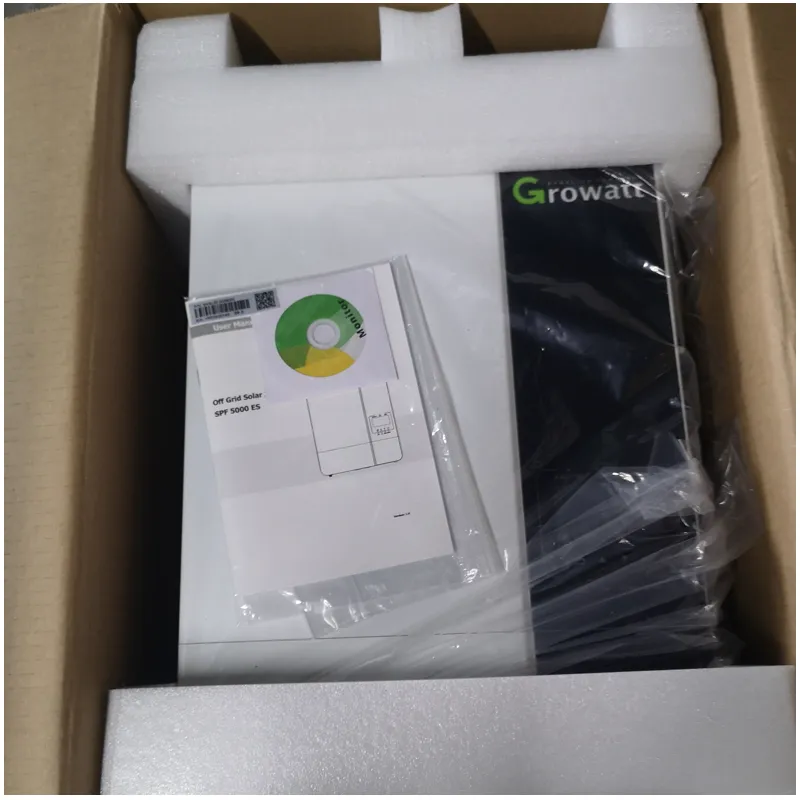

Packaging & Protection :
Safety Carton Box packing with wooden pallet
32pcs per pallet as standard or as per order
Delivery by Express to door/ Air to airport/ Sea to port/ Railroad to door or railsation
