The product description

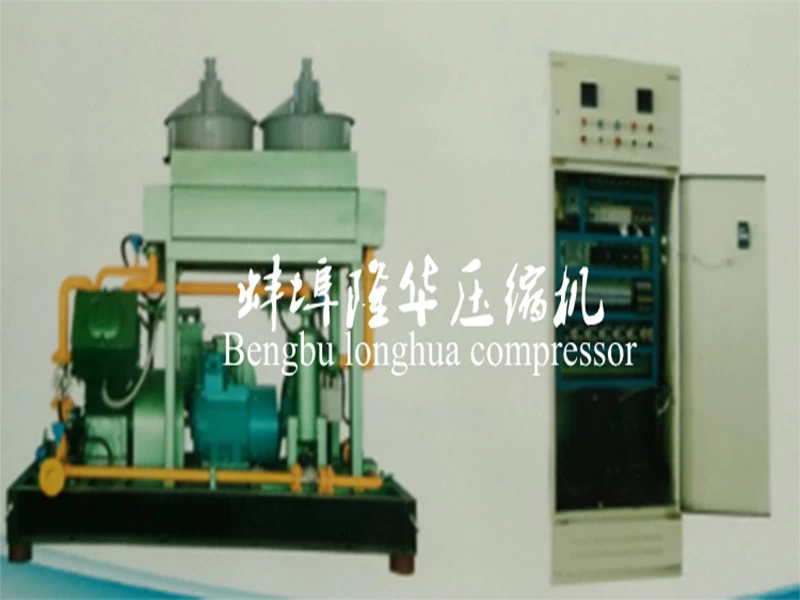

Oil field tank recovery compressor unit consists of compressor host, motor, coupling, flywheel, piping system, cooling system, electrical equipment, and auxiliary equipment.With compressor oil pressure, water pressure, high temperature, low intake pressure, high exhaust pressure alarm stop function, make the compressor run more reliable.
Product parameters
Product technical parameters
|
The serial number
|
Model
|
Displacement（Nm3/h）
|
Operating pressure（Mpa）
|
Exhaust pressure（Mpa）
|
Electric power（kw）
|
Overall dimension（mm）
|
|
1
|
ZW-0.8/(0.2~1)-6
|
96
|
0.02~0.1
|
0.8
|
7.5
|
1400*1200*1400
|
|
2
|
DW-3.8/ (0.2-0.5)-3.5
|
260
|
0.02~0.05
|
0.35
|
22
|
2500*1300*1800
|
|
3
|
VW-3.5/4
|
210
|
Ordinary Pressure
|
0.4
|
18.5
|
2500*1800*1600
|
|
4
|
DW-3.5/0.2-5
|
210
|
0.02
|
0.5
|
22
|
2500*1300*1700
|
|
5
|
DW-4.5/(0.2~3)-6
|
600
|
0.02~0.3
|
0.6
|
37
|
2800*2200*1300
|
|
6
|
DW-5.8/0.5-5
|
400~500
|
0.05
|
0.5
|
37
|
2800*2200*1300
|
|
7
|
DW-6.0/5
|
300
|
Ordinary Pressure
|
0.5
|
37
|
2800*2200*1300
|
|
8
|
VW-6.9/0.8-4.5
|
640
|
0.08
|
0.45
|
45
|
2800*2200*1500
|
|
9
|
DW-7.5/3
|
390
|
Ordinary Pressure
|
0.3
|
45
|
2800*2000*1700
|
|
10
|
DW-7.5/(0.1~0.4)-4.5
|
480
|
0.01~0.04
|
0.45
|
45
|
3200*2100*1920
|
|
11
|
DW-10.5/4.5
|
540
|
Ordinary Pressure
|
0.45
|
55
|
4000*2150*2210
|
Oil field large tank recovery compressor use
Oil and gas gathering and transportation system used in oil field.After pressurization, the natural gas is recovered to the pipeline, so as to improve the safety of oil and gas gathering and transportation, reduce oil and gas loss, avoid environmental pollution caused by blow-out and risk in transportation and storage, and the economic benefits of natural gas recovery are very significant.In order to achieve safety, economic, environmental protection.
Company information
Our products are widely used in petrochemical, clean energy, food, medicine, metallurgy and other industries.Since its establishment, the company has provided reliable professionalcompressor solutions and high quality and convenient after-sales service for enterprise customers in China and surrounding countries, and is a qualified supplier and partner of many famous enterprises at home and abroad.We always abide by the professional quality, customer first business philosophy, adhere to the quality first, customer first, reputation first purpose, with the best price, the best quality products and the most perfect service to meet the needs of the majority of users.
After-sales service
1. Provide free technical services and provide free training for technical, maintenance and operation personnel of the demander.
2.The company's technicians are responsible for guiding the installation of compressor and other equipment, and debugging the equipment provided by the company free of charge until the equipment is put into normal operation.
3.Lifelong after-sales service is provided for the products, and sufficient spare parts and accessories are provided all year round to ensure the timeliness of service and customer satisfaction
