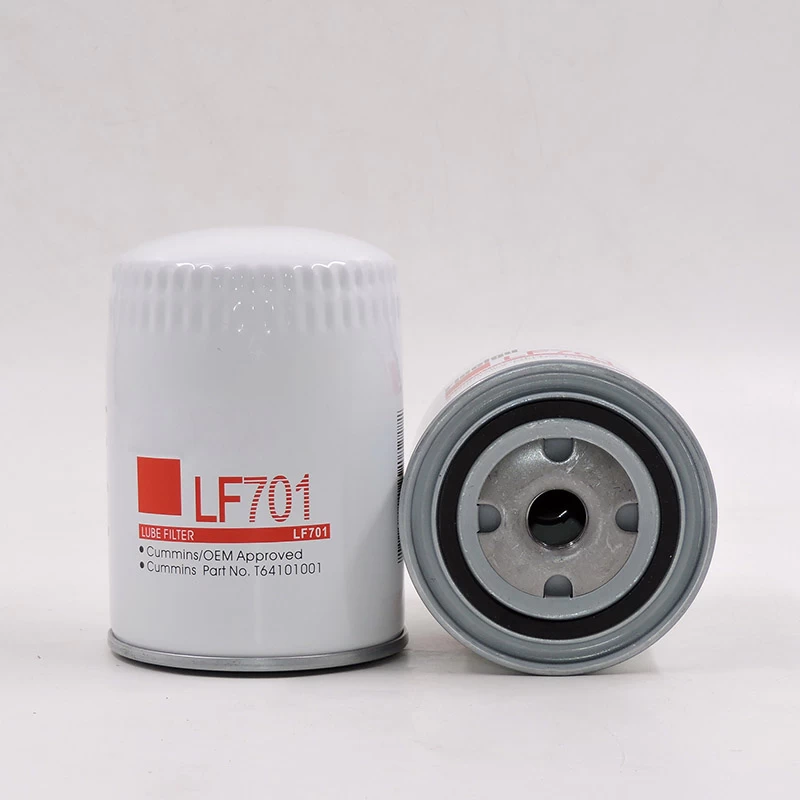

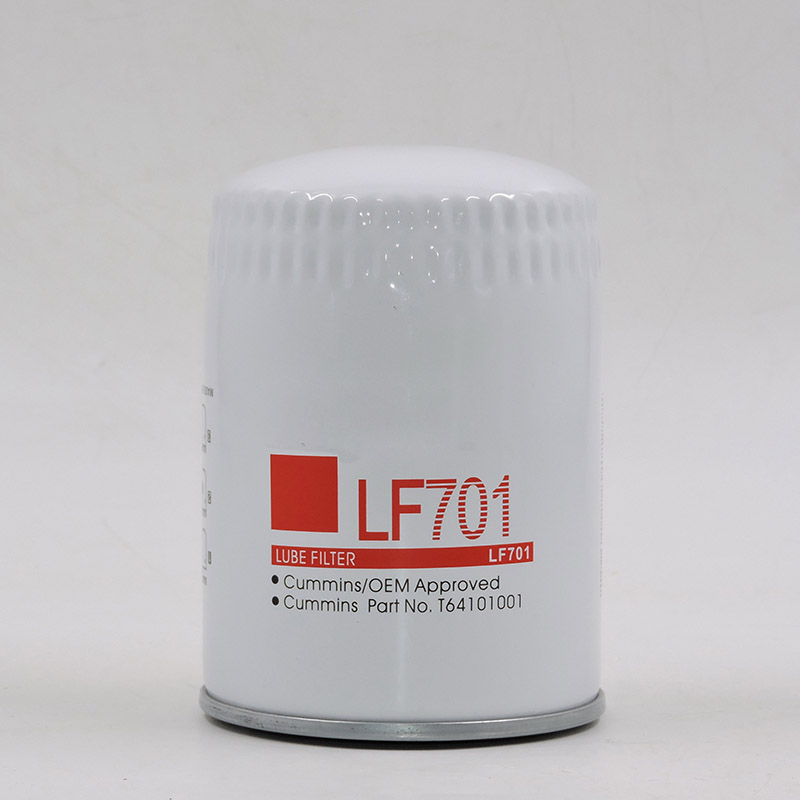

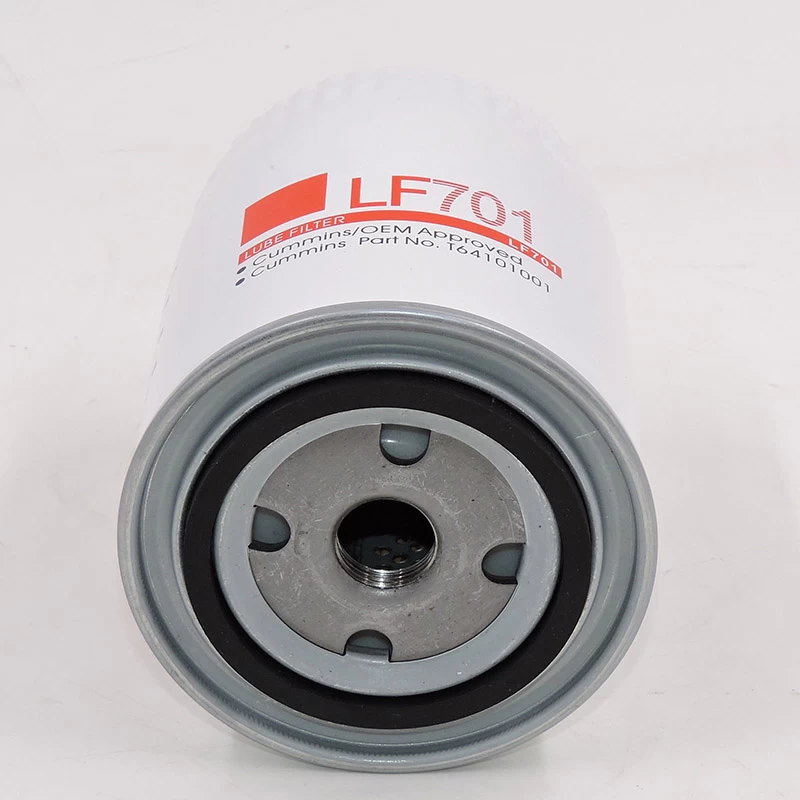

Oil Filter OEM Fleetguard LF701 Donaldson P554003 Baldwin BT216 Perkins 2654403 Eagle Picher 57247 MANN W940/24 FG Wilson 901-102 Cross Reference
Cross Reference:
Donaldson P554003, Baldwin BT216, Perkins 2654403, Eagle Picher 57247, MANN W940/24, FG Wilson 901-102
The LF701 Parameter:
Part Number
|
LF701
|
Parts Name
|
Oil Filter
|
Brand
|
Fleetguard
|
Overall Height
|
145.50 mm
|
Largest OD
|
93.22 mm
|
Seam OD
|
93.22 mm
|
Gasket OD
|
71.90 mm
|
Gasket ID
|
62.50 mm
|
Thread Size
|
3/4-16 UNF-2B
|
The LF701 has three attributes:
1.Protects against harmful contaminants
2.Superior engine protection for the entire service interval
3.Efficient separation and high dirt holding capacity with minimal pressure drop

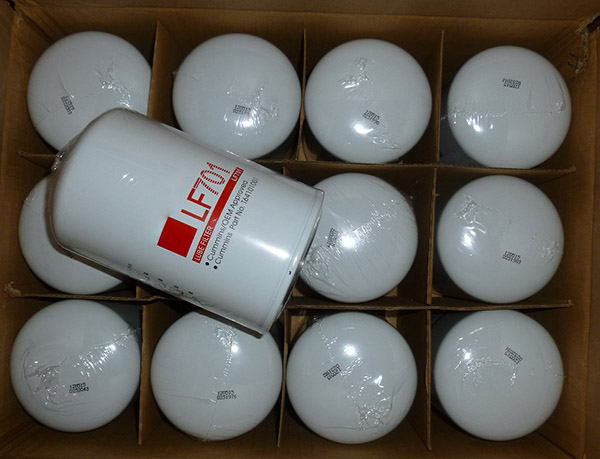

The LF701 Packing:
Collide during transportation. Use adhesive tape at each corner. Avoid box not uncracking during carrying. We can customize packing cases and labels according to customer requirements, but we need the packing design drawings or samples.
