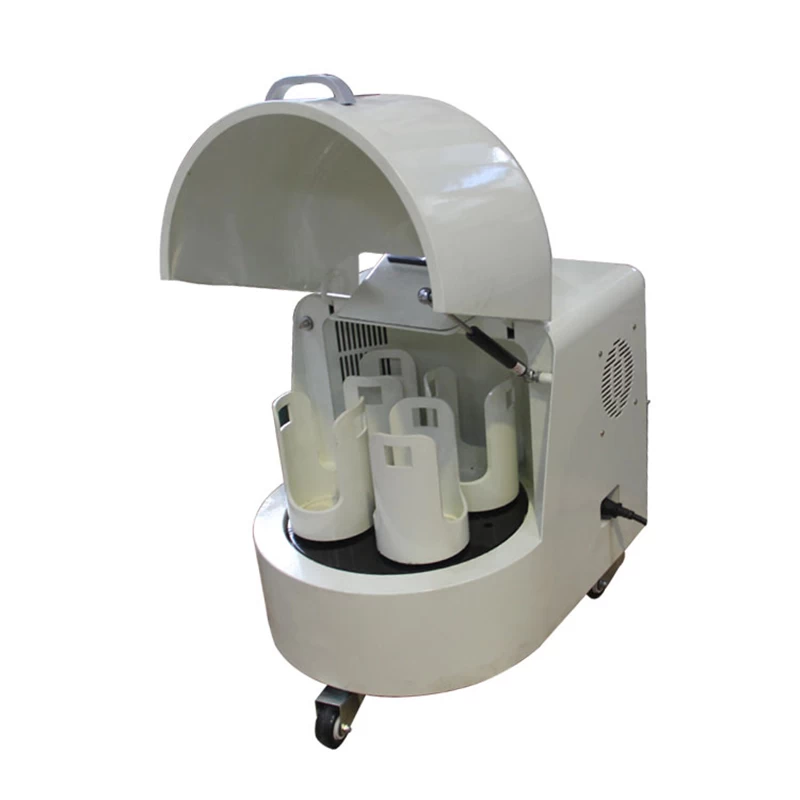

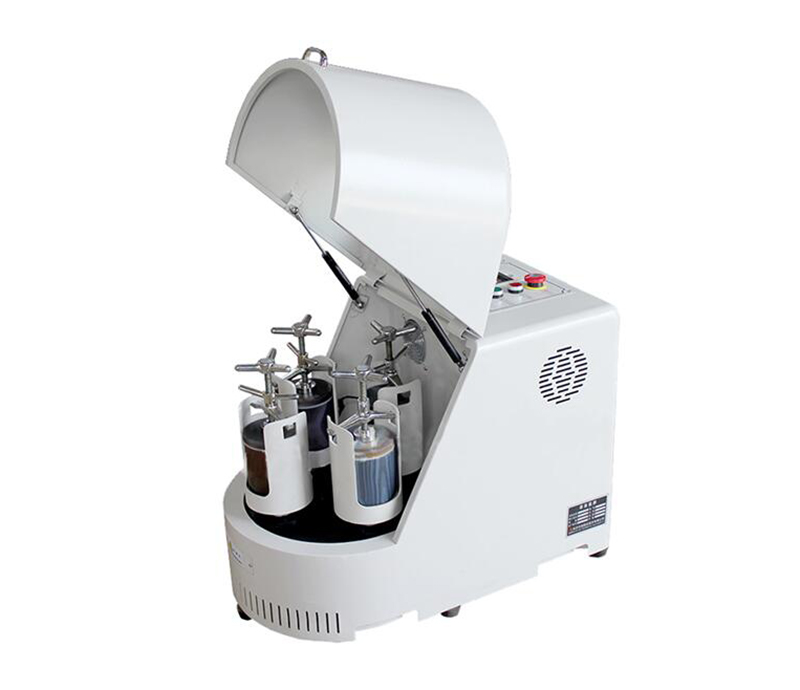

0.4L Laboratory Planetary Ball Miller Machine for Battery Powder Material Grinding
Brief introduction
The Oil seal mute planetary ball mill with small volume, comprehensive function, high efficiency, low noise which is the ideal device of obtaining micro-particle research samples used forR&D institute, collages and universities, entire laboratory.
The samples could be ground under vacuum state with using the vacuum ball mill jars. It is widely used in geology, mineral, metallurgy, electronic, building material, ceramic, chemical, light industry, medicine, beauty, environment production, tea and so on.
Featureof oil seal mute planetary ball mill:
Factory direct selling and certified products.---High cost performance and quality assurance.
Our machine running noise low 50db. Prolonging gear life.---Planetary ball mill grinder machine
Arc sleeve and safety lock ball mill jar device.---Planetary ball miller machine
PLC frequency conversion control
Acrylic transparent glove box with vacuum to -0.1Mpa.
Stainless steel glove box with vacuum to -0.1Mpa
Working principle:
Oil seal mute planetary Ball Mill has four ball grinding tanks installed on one turntable.When the turntable rotates, the tank axis makes planetary movements,The balls and samples inside the jars are impacted strongly in high speed movement, and samples are eventually ground into powder. The ball mill can use for dry and wet grinding and also can mix products of different granularity and materials.
Working mode: Two or four ball milling jars working at the same time and the maximum sample loading amount: Volume of ball milling jar 2/3, feeding granularity: soil materialless than10mm other materialless than3mm discharge granularity: the minimum can up to 0.1um (i.e. 1.0 *10mm-4).
Specifications
|
Model
|
Oil Seal Mute Planetary Ball Mill AOT-PBM-0.4L
|
|
Source voltage
|
AC110V/220V 50/60HZ
|
|
Total power
|
0.55KW
|
|
Voice processing
|
Oil seal mute processing technology
|
|
Ball milling tank volume
|
100ml*4sets
|
|
Milling tank materials
|
Metal material: 304 stainless steel, cemented carbide (YG8)
|
|
Nonmetallic material : ceramic/corundum/alumina, zirconia, agate
|
|
High polymer material : nylon, polyurethane, ptfe
|
|
Ball mill medium
|
Stainless steel, ceramic/corundum/alumina, zirconia, agate, cemented carbide
|
|
Max charge of tank
|
No more 1/3 of the volume
|
|
Filling materials size
|
Crispy material is less than 10 mm, other less than 3 mm
|
|
Single tank fill quantity
|
100ml tank with 33ml material
|
|
Output material size
|
Min 0.1um
|
|
Grinding mode
|
Dry/wet/high-energy alloying grinding/vacuum/cryogenic grinding,
last two model need customized
|
|
Max continuous working time
|
72 hours
|
|
Rotation speed
|
0-900r/min
|
|
Revolution speed
|
0-450r/min
|
|
Speed ratio
|
2:1
|
|
Dimension
|
600*400*500mm
|
|
Weight
|
60kg
|
|
Warranty
|
One year with life time support
|

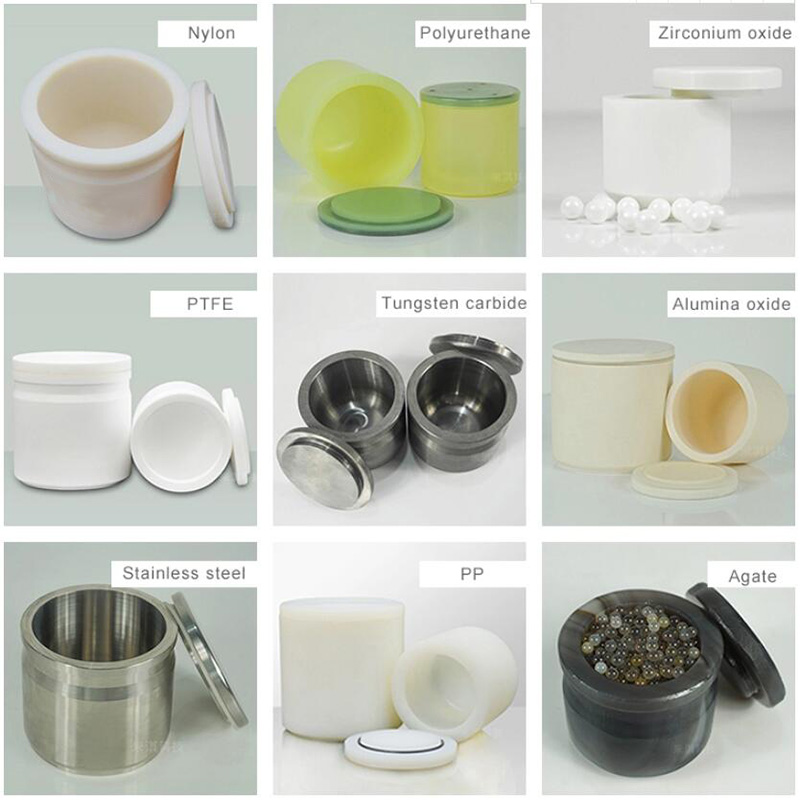

Optional Grinder Jar Material

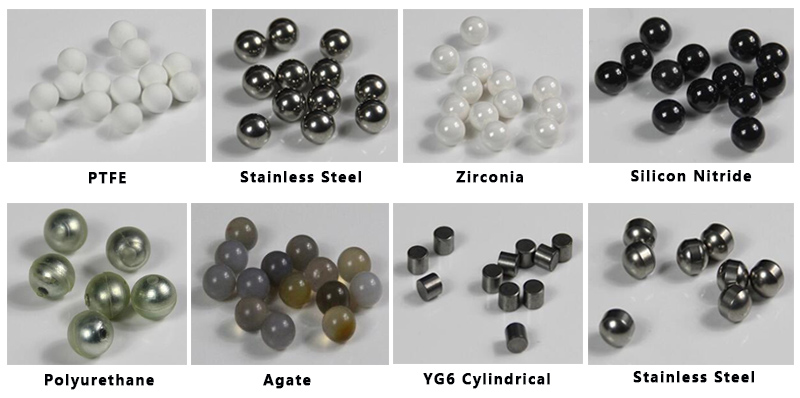

Optional Ball Material
