(Oil Seal Mute) Planetary Laboratory Ball Mill

The laboratory planetary ball milling machine is Used in college, university, scientific research units and enterprises laboratory for rapid batch study sample grinding to the colloidal fineness (sample diameter usually is less than 1 mm , solid particles is generally not more than 3 mm, soil allows 10 mm, Grinding min size up to 0.1um), it is can also be used in the mechanical alloying, and blending, homogenization and scattered.
Adopt gear oil seal, Increase service life and reduce noise.
Suitable for dry, wet and vacuum grinding mill.



(Oil Seal Mute) Small Planetary Laboratory Ball Mill Grinder Machine


1 The laboratory planetary ball milling machine is Used in college, university, scientific research units and enterprises laboratory for rapid batch study sample grinding to the colloidal fineness (sample diameter usually is less than 1 mm , solid particles is generally not more than 3 mm, soil allows 10 mm, Grinding min size up to 0.1um), it is can also be used in the mechanical alloying, and blending, homogenization and scattered.

2 Adopt gear oil seal, Increase service life and reduce noise.

3 Suitable for dry, wet and vacuum grinding mill.


SPECIFICATIONS



Model

(Oil Seal Mute) Planetary Ball Mill  TOB-YXQM-0.4L

Source voltage

AC110V/220V 50/60HZ

Total power

0.55KW

Warranty

One year limited with lifetime support

Voice processing

Oil seal mute processing technology

Ball milling tank volume

50-100ml

Milling tank materials

Metal material: 304 stainless steel, cemented carbide (YG8)

Nonmetallic material : ceramic/corundum/alumina, zirconia, agate

High polymer material : nylon, polyurethane, ptfe

Ball mill medium

Stainless steel, ceramic/corundum/alumina, zirconia, agate, cemented carbide

Max charge of tank

No more 1/3 of the volume

Filling materials size

Crispy material is less than 10 mm, other less than 3 mm

Single tank fill quantity

50ml tank with 16ml material

100ml tank with 33ml material

Output material size

Min 0.1um

Grinding mode

Dry/wet/high-energy alloying grinding/vacuum/cryogenic grinding,

last two model need customized

Max continuous working time

72 hours

Revolution speed

Revolution : 0-450r/min

Rotation : 0-900r/min

Speed ratio : 1:2

Dimension

600*400*500mm

Weight

60kg


PRODUCT DISPLAY



lab-ball-mill


planetary Ball mill


ball-and-tank


Ball mill for lab

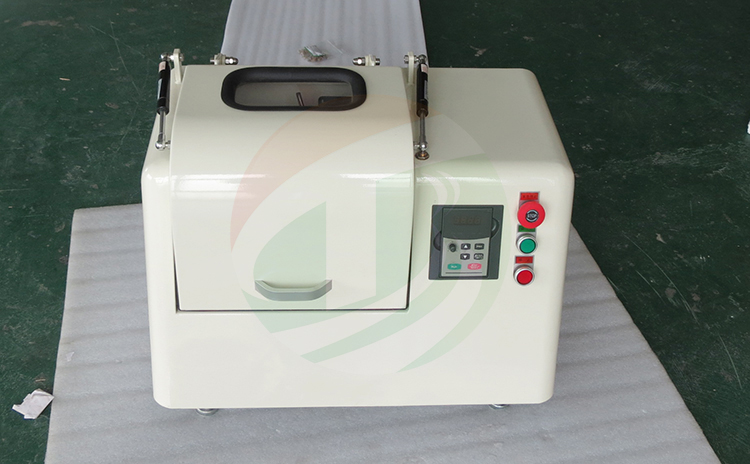

PACKAGE



BALL MILL
