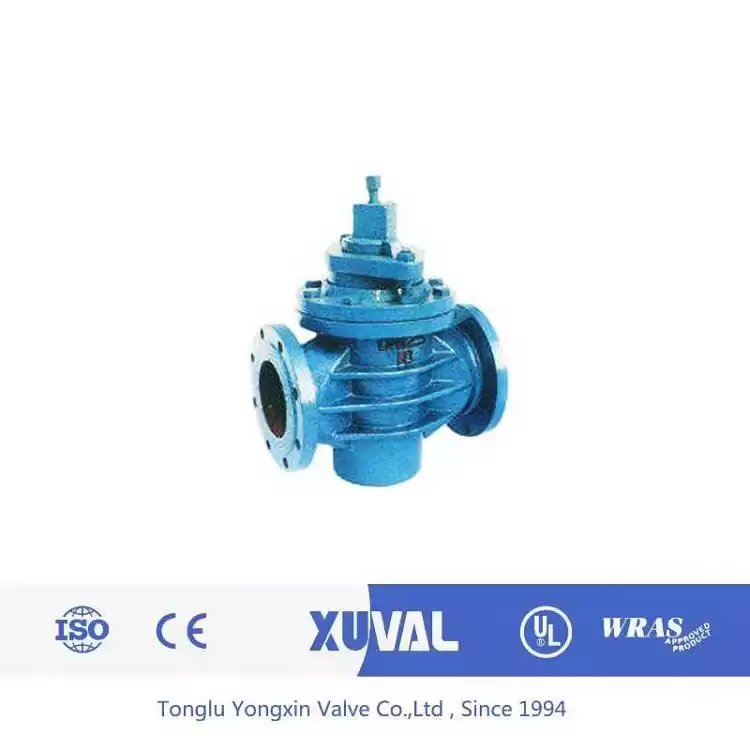

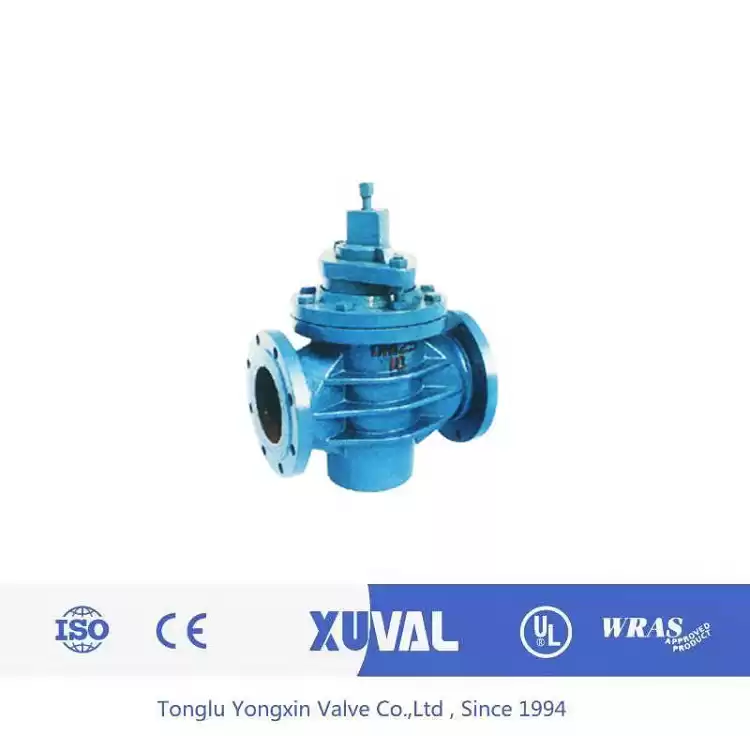

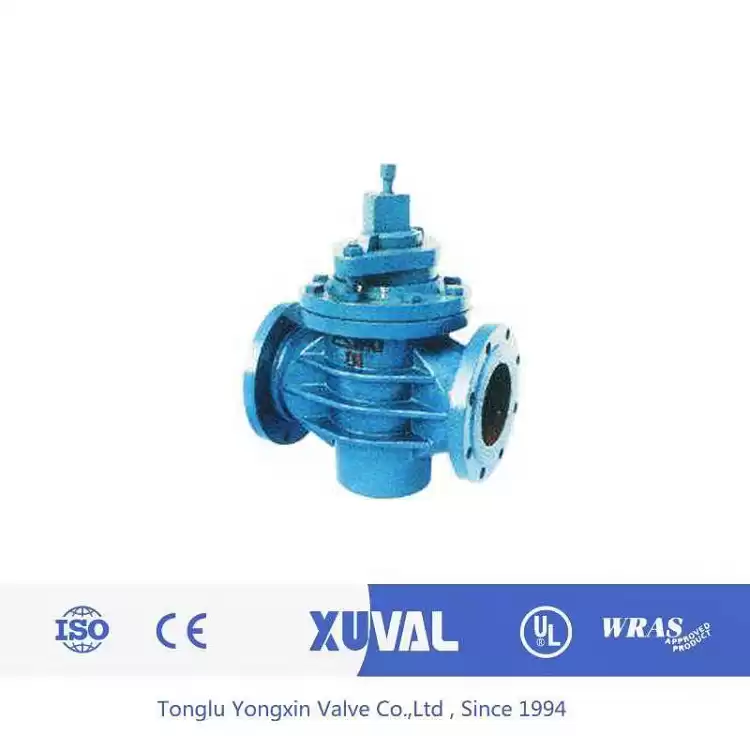

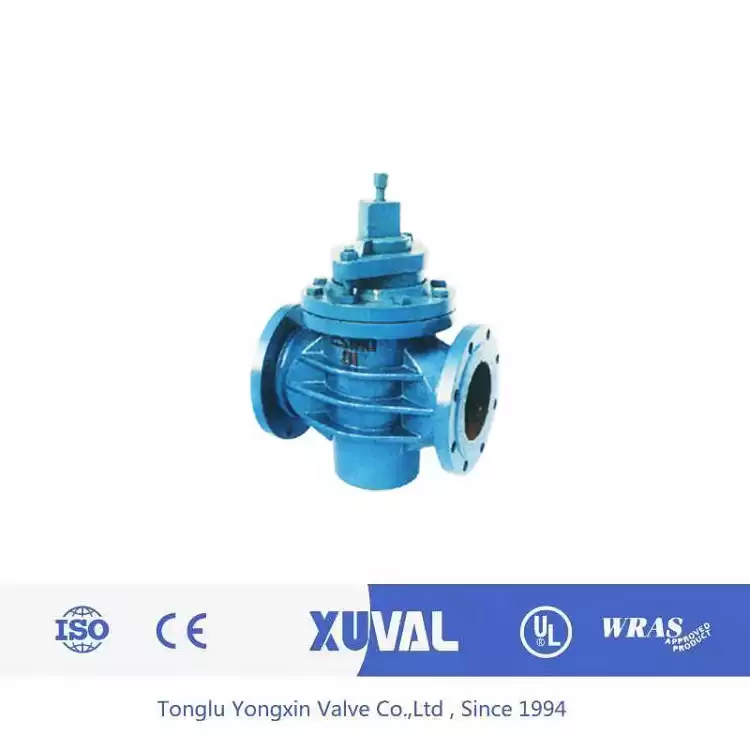

Oil-sealed plug valve is suitable for cutting off or connecting the pipeline medium under nominal pressure PN10, working temperature -29 ~ 100℃ in urban construction, chemical industry, metallurgy, petroleum, pharmaceutical industry, food, beverage, environmental protection industry and other working conditions.
The opening and closing part of the oil-sealed plug valve (X47W) is a perforated cylinder that rotates with the stem about an axis perpendicular to the passage for the purpose of opening and closing the passage.Oil-sealed plug valves are mainly used for opening and closing pipes and equipment media.
Main performance specification:
|
Nominal pressure
PN (Mpa)
|
Test pressure PS (Mpa)
|
Working pressure
P (Mpa)
|
Applicable medium
|
Working temperature
(℃)
|
|
1.0
|
1.5
|
1.1
|
1.0
|
Gas,Oil
|
≤100
|
Main dimensions:
DN(mm)
|
Size(mm)
|
|
L
|
D
|
D1
|
D2
|
□S
|
Z-φd
|
H1
|
|
50
|
170
|
160
|
125
|
100
|
32
|
4-18
|
350
|
|
65
|
220
|
180
|
145
|
120
|
36
|
4-18
|
360
|
|
80
|
250
|
195
|
160
|
135
|
46
|
4-18
|
455
|
|
100
|
300
|
215
|
180
|
155
|
50
|
8-18
|
500
|
|
125
|
350
|
245
|
210
|
185
|
55
|
8-18
|
510
|
|
150
|
400
|
280
|
240
|
210
|
60
|
8-23
|
605
|
|
200
|
450
|
335
|
295
|
265
|
60
|
8-23
|
760
|
|
250
|
530
|
390
|
350
|
320
|
85
|
12-23
|
800
|
|
300
|
580
|
440
|
400
|
368
|
100
|
12-23
|
820
|
Main parts and materials:
|
Part Name
|
Body,Plug
|
Packing
|
Gasket
|
|
Material
|
Cast iron
|
Rubber asbestos packing
|
Rubber asbestos sheet
|
