Oil Tanker Vehicle SINOTRUK HOWO (5,000L)

HOWO SINOTRUK 4X2 8000liters Diesel Engine Oil Fuel Tank Truck,Myanmar 1000 Gallon ISUZU Light Oil Tank Truck with Fuel Dispenser
China HOWO truck with Aluminium Alloy Mobile Fuel Tanks



Fuel Delivery Tanker Truck HOWO (5,000 Liters)

Basic Description

Liquid fuel tank trucks HOWO (also called as HOWO tank truck for fuel delivery, oil transportation tank truck, fuel tankers, oil tanker vehicle, refuelling truck,diesel tank truck) .Our range of fuel tank truck is designed for the transport and storage of gasoline, light diesel oil, kerosene and other fuels which boast no corrosive action on the tank body, oil pump and oiling machine, etc. It has found a wide range of applications.


For instance, it can be used for refueling of itself and other vehicles as well, and it can serve as a pump to transfer fuels to other containers. Hence, our refueling tank truck is commonly seen in filling stations and transport companies.


The refueling tank truck manufactured by POWERSTAR TRUCK is designed based on latest technologies and production techniques, and it comes with rational structure, reliable performance, esthetical appearance and simple operation, etc.

Key Features

Key Features of road sweeper truck ISUZU    Foton original Chassis, Durable & Performance Benz quality.

Key Features of road sweeper truck ISUZU    Light weight, high load capacity, strong power, high reliability, strong climbing ability and high speed.

Key Features of road sweeper truck ISUZU    Tanker material: Carbon steel, Stainless steel and Aluminum alloy

Key Features of road sweeper truck ISUZU     Fuel Dispenser, Flow meter, Level gauage can be optional

Key Features of road sweeper truck ISUZU     Tanker capacity: 3000L~5000L~10000L~15000L~20000L~30000L






Main specifications

Model

PT5070GJY

Driving Type

4x2   (Left hand drive Or Right hand drive)

Wheelbase

3360mm

Engine

88 kw (120hp)

Tyre

7.00-16

Tank

Material:

Carbon steel(Q345)

Shell Body

5 mm nominal thickness

Head

6 mm nominal thickness

Baffles

3mm nominal thick, wave shape, four pieces with Ø 500mm service port

Tank shape

Ellipse

Capacity

Full capacity5,000L

Compartment

No

Shell Finish

Shot blasted with 1anti-rust, 1 base coat and 1 finishing coat, the color of tank is according to customer requirement.

Testing Pressure

36kPa, Water pressure test

Tank Fittings

Top inlet port

2pieces

Manhole Cover

Aluminum alloy, 20” self-latching manhole cover, with air-van.

Outlet port:

One pneumatic sea valve which at the front of tank, the size of outlet port is 3 inches, fix all connector.

Pipe box:

It made of PVC material, round shape which on the both sides of tank, one plastic pipe (5m)

Anti –Static System:

Static electricity plate , copper plate and earth cable reel

Tank Accessories

Ladder:

Stainless Steel ladder fixed at rear of tank

Walkway Platform:

It fixed on the top of tank with anti – skid surface treatment.

Handrail:

No

Fire Extinguisher Housing:

2 units, suitable for 4 kg’s fire extinguisher

Pump Device

Yes

Flow meter

Yes

Tool box

Small box

Color

As option

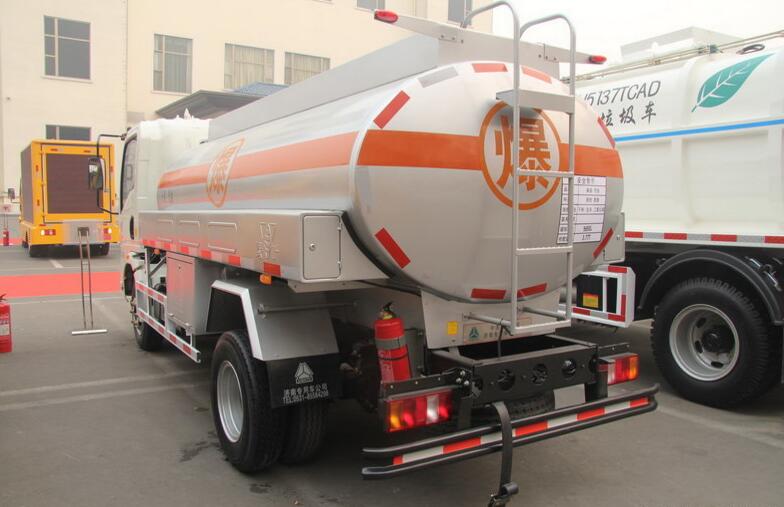

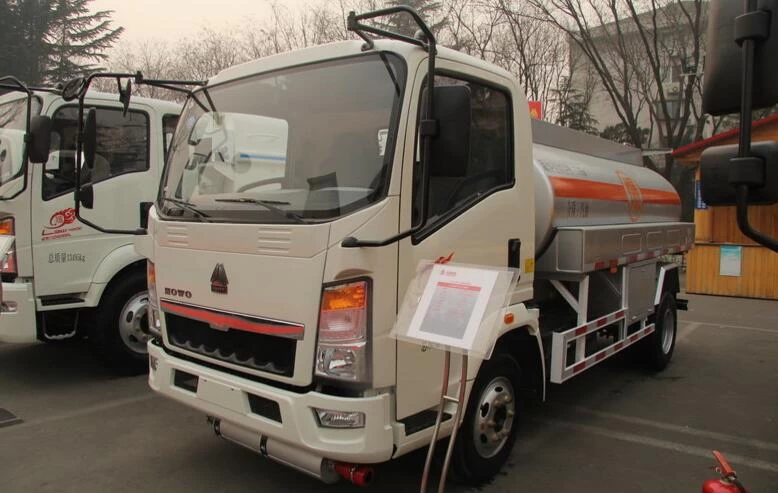

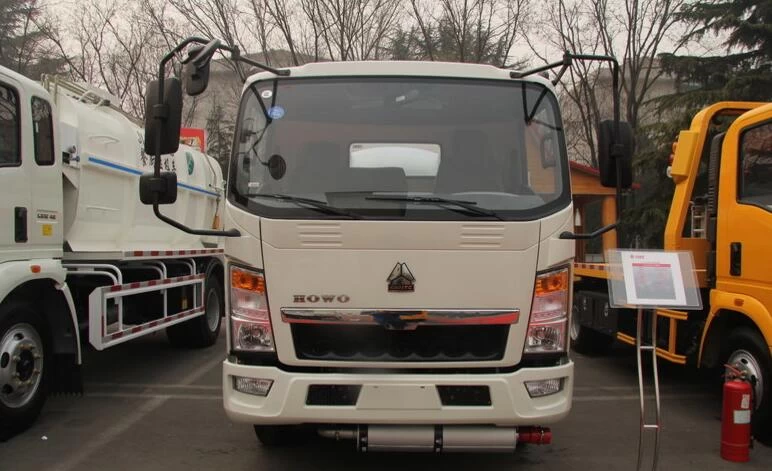

Detail Images

Africa Sinotruk HOWO Fuel Tank Trailer Truck for Oil Delivery


Africa Sinotruk HOWO Fuel Tank Trailer Truck for Oil Delivery


Africa Sinotruk HOWO Fuel Tank Trailer Truck for Oil Delivery

Fuel tanker Truck workshop:

Optional Equipment:



 5 cubic meter Fuel tank truck Isuzu    5 cubic meter Fuel tank truck Isuzu    5 cubic meter Fuel tank truck Isuzu   5 cubic meter Fuel tank truck Isuzu
 Computer Fuel Dispenser    API Adaptor Valve    Bottom Valve    Manhole Cover
 ISUZU FUEL TANK TRUCKS ELF    ISUZU FUEL TANK TRUCKS ELF    FUEL TANK TRUCK ISUZU    ISUZU FUEL TANK TRUCKS ELF
 Ball Valve    Three Ways Set Ball Valve    Level Gauge    Oil and Gas Recovery Valve
