Description

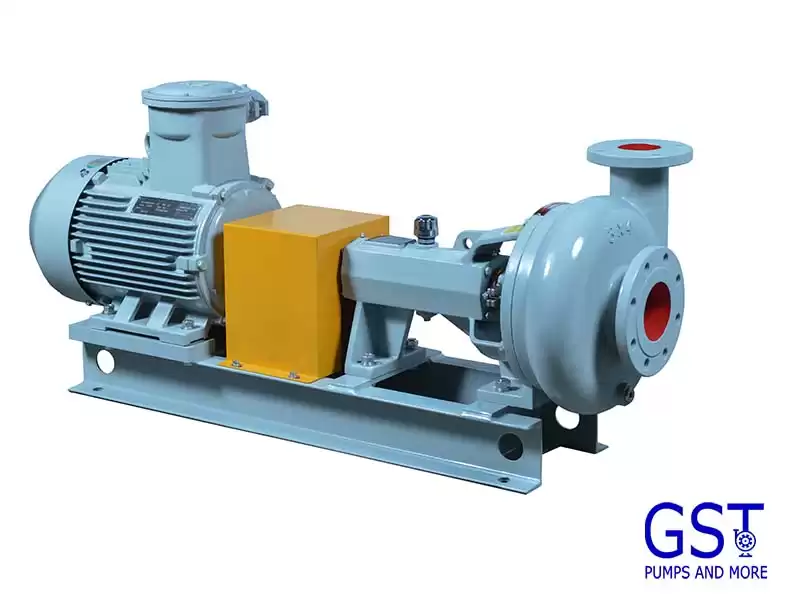

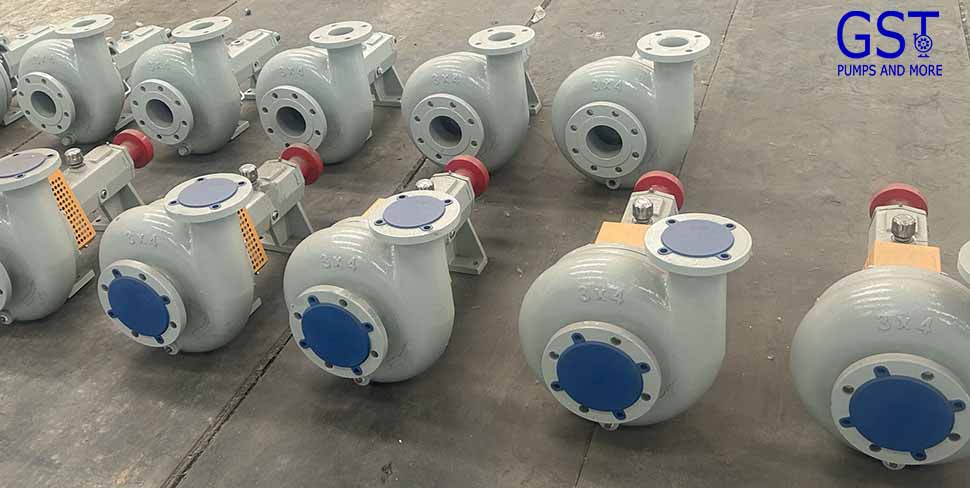

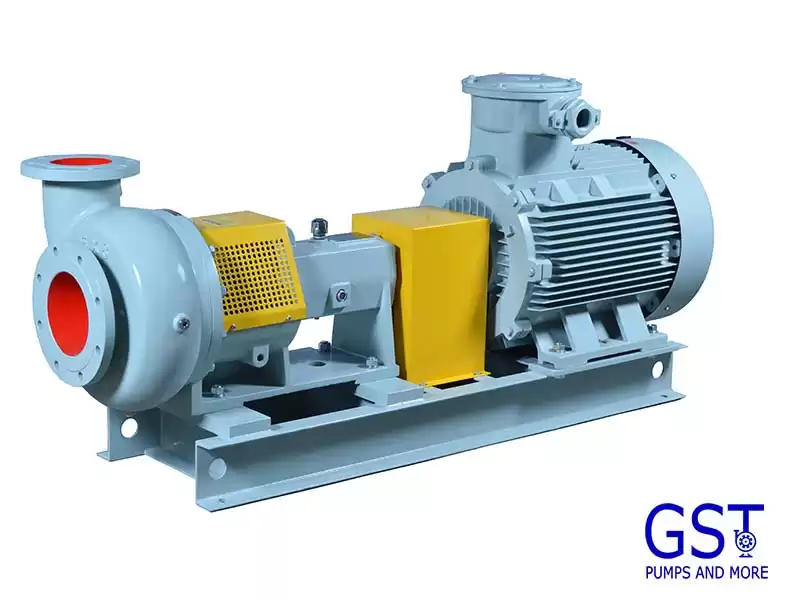

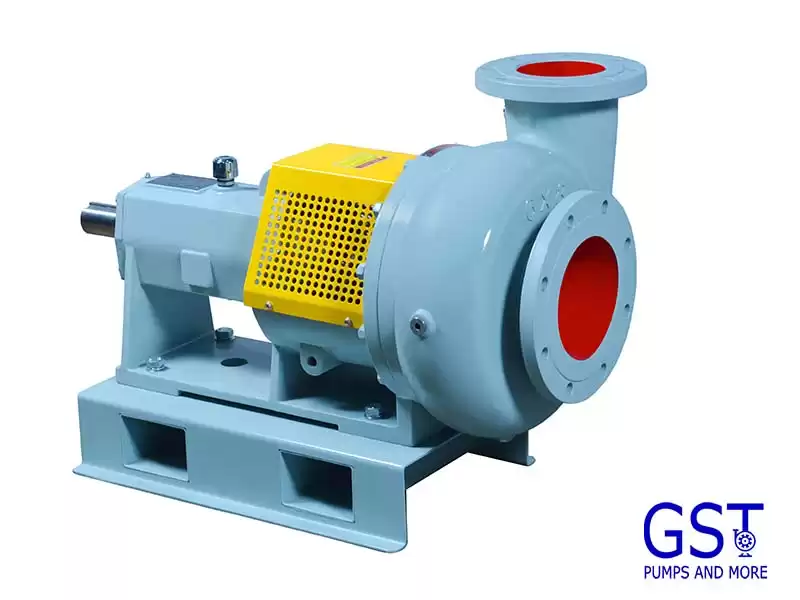

SBW series centrifugal sand pumps are closed impeller design and with oil lubrication configuration. SBW series sand pumps are specialized pumps designed for oil and gas drilling industry. By adopting axial suction structure and wear resistant ductile iron for flow passing parts, SBW sand pumps are capable to deliver corrosive drilling mud (with suspended particulates) and other slurry under similar working condition.
SBW sand pumps take our patented mechanical seal as main sealing, which is made of highly wear resistant hard alloy. Auxiliary seal is graphite packing seal which could prevent accidents happening. This type of combined main and auxiliary seal structure has been proved reliable and ease of maintenance by site long term application. Shaft seals are grease lubricated type, while bearings are oil lubricated type.
Features
- Highly wear resistant ductile iron for fluid end parts.
- Closed type impeller reduces the amounts of solids that enters the stuffing box.
- Extended life of mechanical seal, packing and stuffing box.
- Oil lubrication for bearings.
- Parts are highly versatile and interchangeable among different models.
Application
- Feed pump for desander, desilter and mud centrifuge.
- Mix pump for jet mud mixer.
- Weighting pump for solid control system
- Trip or metering pump
Specifications (based upon 20℃ clear water)
|
Model
|
Impeller
Diameter
|
Capacity,
m³/h(gpm)
|
Head,
m(feet)
|
Speed, rpm
|
Efficiency
|
Power, kW
|
NPSHR
m(feet)
|
|
50HZ
|
60HZ
|
%
|
Shaft power
|
Motor power
|
|
SBW6×8
|
13”
|
240 (1057)
|
37 (121)
|
1480
|
1780
|
67
|
36
|
75
|
2.5 (8.2)
|
|
12-1/2”
|
200 (880)
|
36 (118)
|
1480
|
1780
|
66
|
29.7
|
55
|
2.5 (8.2)
|
|
12”
|
200 (880)
|
33 (108)
|
1480
|
1780
|
64
|
28
|
45
|
3.0 (9.8)
|
|
SBW5×6
|
12-1/2”
|
200 (880)
|
33 (108)
|
1480
|
1780
|
64
|
28
|
45
|
3.0 (9.8)
|
|
12”
|
180 (792)
|
31 (98.4)
|
1480
|
1780
|
63
|
24.1
|
37
|
2.5 (8.2)
|
|
11-1/2”
|
160 (704)
|
28 (91.8)
|
1470
|
1780
|
62
|
19.7
|
30
|
2.5 (8.2)
|
|
11”
|
140 (616)
|
22 (72.2)
|
1470
|
1780
|
62
|
13.5
|
22
|
2.5 (8.2)
|
|
SBW4×5
|
10-1/2”
|
150 (660)
|
26 (85.3)
|
1470
|
1780
|
61
|
17.4
|
30
|
2.8 (9.2)
|
|
10”
|
150 (660)
|
25 (82)
|
1470
|
1780
|
61
|
16.8
|
22
|
2.8 (9.2)
|
|
9”
|
93 (410)
|
20 (65.6)
|
1460
|
1760
|
58
|
8.8
|
15
|
2.8 (9.2)
|
|
SBW3×4
|
10”
|
85 (374)
|
26 (85.3)
|
1460
|
1760
|
61
|
9.9
|
15
|
2.8 (9.2)
|
|
9-1/2”
|
80 (352)
|
23 (75.4)
|
1460
|
1760
|
61
|
8.2
|
11
|
2.8 (9.2)
|
|
9”
|
54 (238)
|
18 (59)
|
1440
|
1750
|
60
|
4.4
|
7.5
|
2.8 (9.2)
|
|
SBW2×3
|
10”
|
55 (242)
|
22 (72.2)
|
1460
|
1760
|
60
|
5.5
|
11
|
2.5 (8.2)
|
|
9”
|
50 (220)
|
18 (59)
|
1440
|
1750
|
56
|
4.4
|
7.5
|
2.5 (8.2)
|
|
8”
|
40 (176)
|
16 (52.5)
|
1440
|
1750
|
54
|
3.2
|
5.5
|
2.5 (8.2)
|
|
7-1/2”
|
25 (110)
|
11 (36)
|
1440
|
1750
|
50
|
1.5
|
4
|
2.5 (8.2)
|

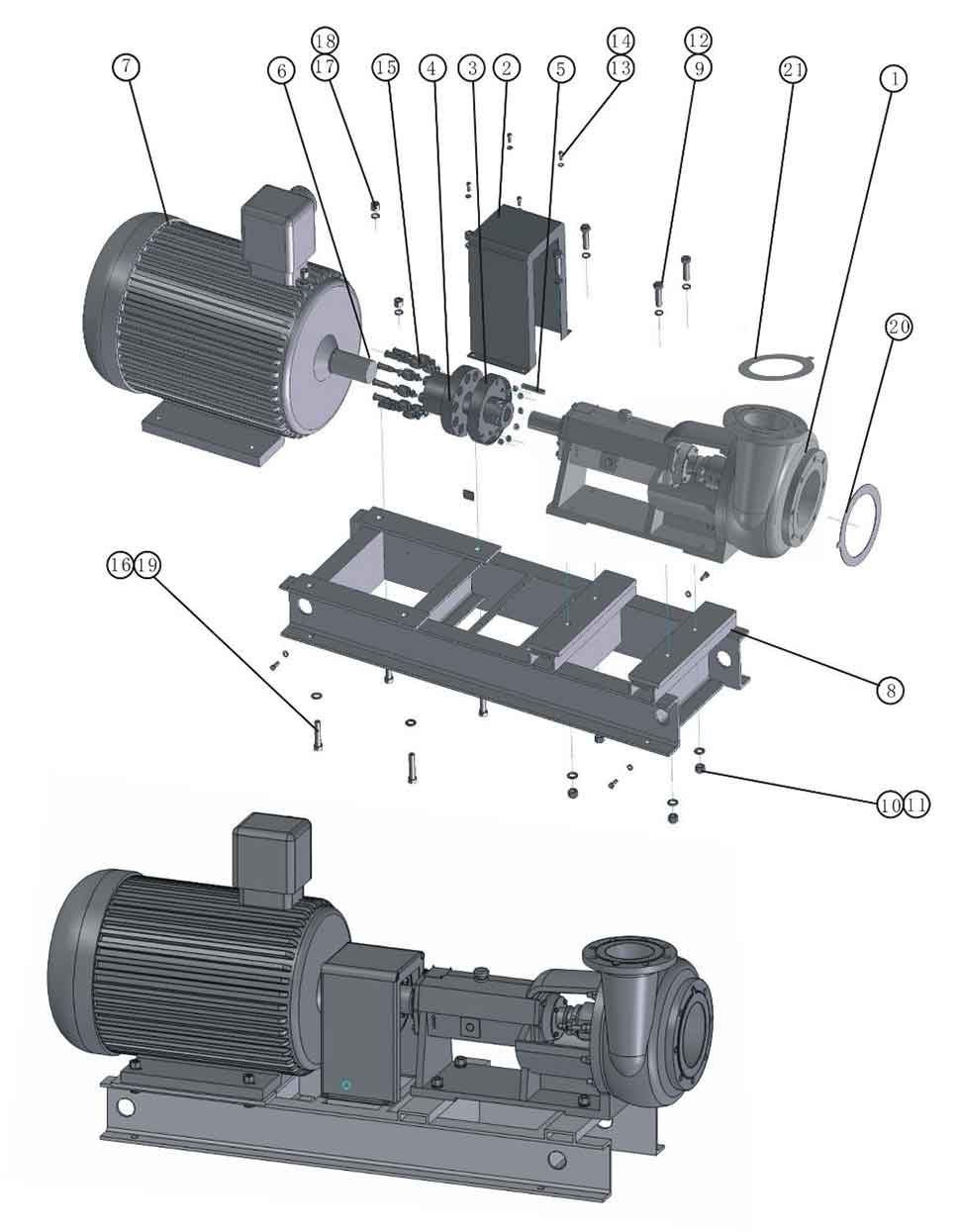

Exploded view for SB6×8-13” Sand Pump Set
Parts List for SB6×8-13” Sand Pump Set
|
Item
|
Description
|
Part No.
|
Qty.
|
Item
|
Description
|
Part No.
|
Qty.
|
|
1
|
Pump head
|
SB68ZJ0001S
|
1
|
12
|
Flat washer
|
SB68ZJ0012S
|
4
|
|
2
|
Coupling guard
|
SB68ZJ0002S
|
1
|
13
|
Guard bolt
|
SB68ZJ0013S
|
4
|
|
3
|
Pump coupling
|
SB68ZJ0003S
|
1
|
14
|
Flat washer
|
SB68ZJ0014S
|
4
|
|
4
|
Motor coupling
|
SB68ZJ0004S
|
1
|
15
|
Coupling pin set
|
SB68ZJ0015S
|
10
|
|
5
|
Pump head key
|
SB68ZJ0005S
|
1
|
16
|
Motor bolt
|
SB68ZJ0016S
|
4
|
|
6
|
Motor key
|
SB68ZJ0006S
|
1
|
17
|
Nut
|
SB68ZJ0017S
|
4
|
|
7
|
Motor
|
SB68ZJ0007S
|
1
|
18
|
Spring washer
|
SB68ZJ0018S
|
4
|
|
8
|
Skid
|
SB68ZJ0008S
|
1
|
19
|
Flat washer
|
SB68ZJ0019S
|
4
|
|
9
|
Pump head bolt
|
SB68ZJ0009S
|
4
|
20
|
Suction gasket
|
SB68ZJ0020S
|
1
|
|
10
|
Nut
|
SB68ZJ0010S
|
4
|
21
|
Discharge gasket
|
SB68ZJ0021S
|
1
|
|
11
|
Spring washer
|
SB68ZJ0011S
|
4
|
|
|
|
|
Performance curve (SBW6×8-13”)

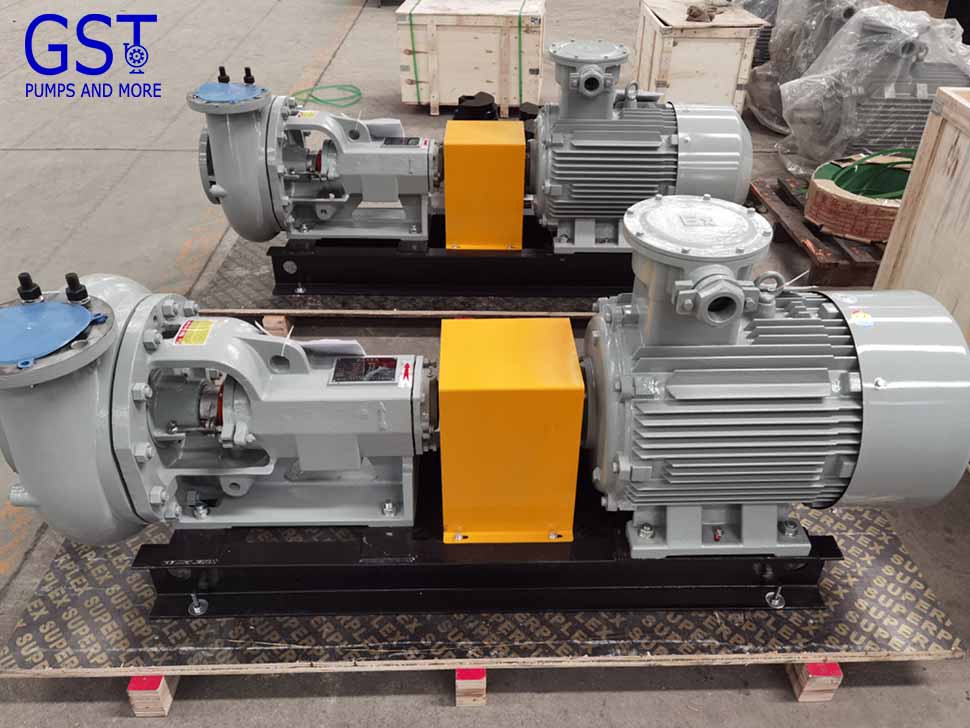

Packaging & Shipment
Packaging type: Export plywood box
Exporting port: Tianjin, Shanghai
FAQ
1. Who are you?
Tianjin Geostar Petroleum Equipment Co., Ltd. are integrated oilfield pump solution provider. We produce GST brand centrifugal pump and supply RG brand F series drilling mud pump, parts, plunger pump etc.
2. Why should we buy from you?
a. Competitive price
b. Quick delivery
c. Worry free after-sales service. Refund or sending new goods if quality issues can't be resolved by after-sales service.
3. Is after-sale service available to your products?
Yes, we have professional after-sale service team which will offer you the site commissioning service. Engineers are available to be abroad for service.
4. What is your warranty policy?
We offer 12 months limited warranty for complete set of equipment or machinery.
5. What is the delivery time for your product?
Generally, ready stock for commonly used parts, mud pump unit and complete equipment depends upon technical configuration.
