Product Name:omni-directional forklift Electric Pallet Stacker AGV
Product Advantage
1.Servo drive is used in the travel and steering,Double steering wheel system, high precision.Good flexibility, can achieve forward, backward, lateral, rotation and other paths
2.With small size and large load, special universal wheel is adopted, and the minimum fork height of fork is 85mm, which can realize the omnidirectional driving of 1 ton load
3.Super long wheelbase, thick body, ensure stable grip of driving wheel and no slipping under load
4.Double laser obstacle avoidance system, imported obstacle avoidance sensor, three-level partition, realize all-round safety protection.
5.The fork system is equipped with multi-channel safety photoelectricity, which is safer

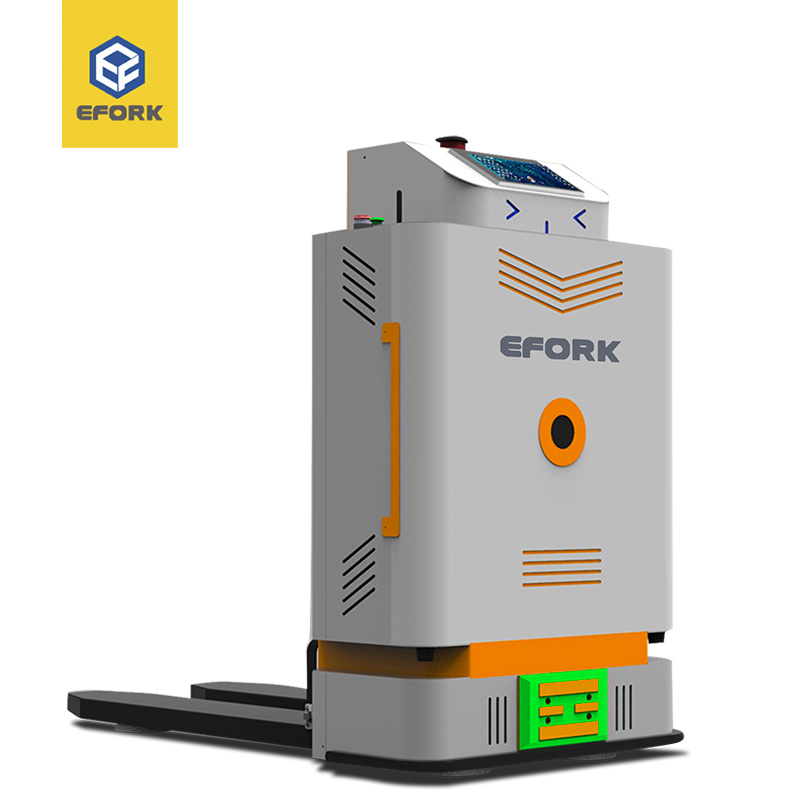

Product Display
Product Data
|
Basic performance
|
|
Product model
|
ESA10J01
|
|
The dimension of vehicle
|
1657*890*1473mm
|
|
Adaptive pallet
|
1200*1000mm
Other pallets can be customized
|
|
Maximum cargo weight
|
1000KG
|
|
Pickup method
|
Fork type
|
|
Lifting Height
|
1m
|
|
Driving speed
|
≤1m/s
|
|
Turning radius
|
906mm（Can rotate in place）
|
|
Accuracy
|
±10mm
|
|
Grade ability
|
≤3%
|
|
Navigation method
|
Laser navigation
|
|
Fork size
|
1150*210*56mm
|
|
Security solution system
|
|
Dual safety laser scanner
|
Full-circle triple protection
|
|
Touch sensor）
|
Mechanical protection
|
|
Fork safety protection
|
Photoelectric protection
|
|
System function
|
|
Wireless network
|
Industrial WIFI
|
|
System interface
|
Reserve expansion ports for WMS, MED, RRP, and central dispatching system
|
|
Power and charging method
|
|
Battery
|
Lithium battery (iron lithium)
|
|
Battery voltage capacity
|
48V60AH(Iron lithium, customizable)
|
|
Charging mode
|
Manual charging / automatic charging / manual battery replacement
|
|
Others
|
|
Automatic charging station
|
Lithium battery automatic charging station
|
|
Warehouse management system/WMS
|
EFORK warehouse management system
|
Manufacturing execution system/MES
|
EFORK manufacturing execution system
|
|
Central dispatching system
|
EFORK central dispatching system
|
EFORK AGV whole network monitoring system
|
EFORK AGV whole network monitoring system
|
|
Service life
|
About 10 years
|
|
Color
|
Silver,orange and black
|
