Omnidirectional Side shift Electric Pallet Stacker AGV

Product Name:Omnidirectional Side shift Electric Pallet Stacker AGV

Product Advantage

1. The vehicle driving structure is a kind of omni-directional mobile forklift based on the driving universal wheel. The forklift adopts three wheel arrangement. Two driving universal wheels are set on both sides of the front of the car body, and the other driving wheel is set in the middle of the rear. The omni-directional mobile function of the forklift is realized through the steering control of each wheel and the driving wheel walking control;

2. The full servo motor and driver steering control technology are adopted, that is, each wheel is controlled by PLC to rotate according to the required mode direction, and each wheel has a group of motors to drive it to rotate;

3. Full AC control system, easy maintenance, high efficiency.

Product parameters

Model: CQD * Q01
Navigation mode: laser navigation
Body size: l2080 * w2430 * h2440 (subject to design)
In place accuracy: ± 15mm (secondary positioning is required for higher accuracy)
Lifting height: 1600mm-4500mm
Rated load: 1000kg-1500kg

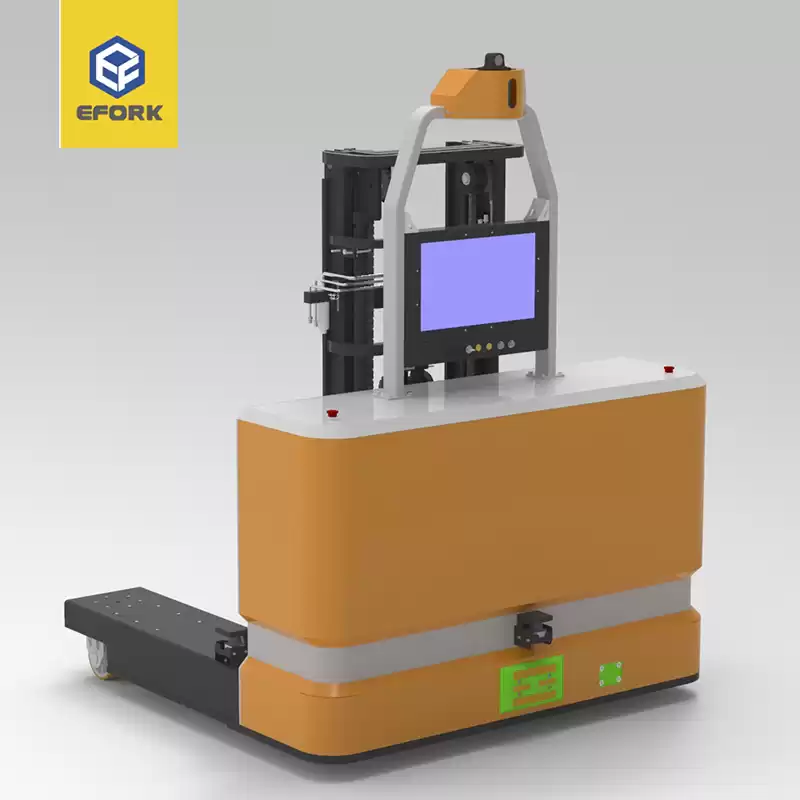

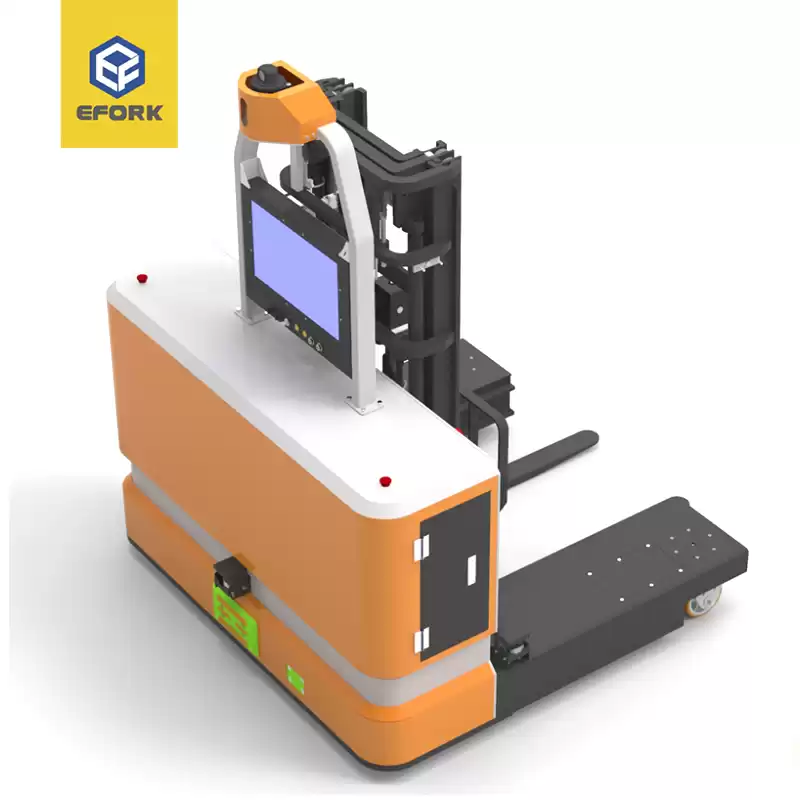

Product Display
