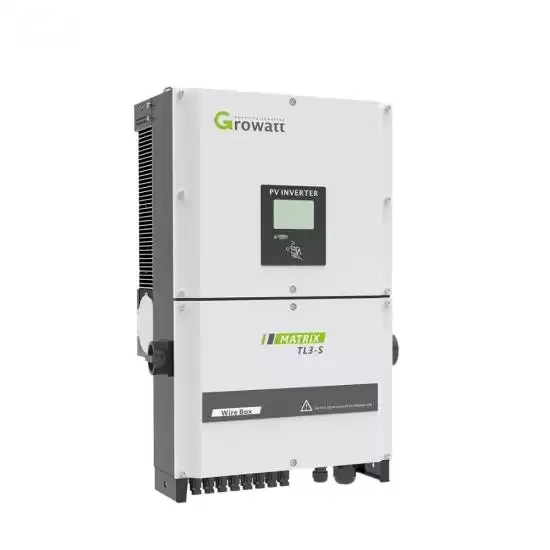

On grid inverter

Product Description

Datasheet	30000TL3-S	33000TL3-S	40000TL3-S	50000TL3-S5500M
Max. recommended PV power (for module STC)	37500W	41250W	50000W	60000W
Max. DC voltage	1000V	1000V	1000V	1000V
PV voltage range	200V-1000V	200V-1000V	200V-1000V	200V-1000V
Nominal voltage	580V	580V	580V	695V
MPP voltage range at Full Power	450V-800V	450V-800V	540V-800V	645V-850V
Max. input current	34A/34A	38A/38A	38A/38A	38A/38A
Number of independent MPP trackers/strings per MPP tracker	2/4	2/4	2/4	2/4
Output (AC)
Rated AC output power	30KW	33KW	40Kw	50Kw
Max. AC apparent power	33.3kVA	36.6kVA	44.4kVA	53.3kVA
Max. output current	48.3A	53A	64.5A	64.5A
AC nominal voltage; range	230V/400V	230V/400V	230V/400V	277V/480V
AC grid frequency; range	50Hz,60Hz / 5Hz	50Hz,60Hz / 5Hz	50Hz,60Hz / 5Hz	50Hz,60Hz / 5Hz
Displacement power factor, configurable	0.8leading… 0.8lagging	0.8leading… 0.8lagging	0.8leading… 0.8lagging	0.8leading… 0.8lagging
THDi	<3%	<3%	<3%	<3%
AC grid connection type	3W+N+PE	3W+N+PE	3W+N+PE	3W+N+PE/3W+PE
