On Grid Solar Inverter 3 Phase

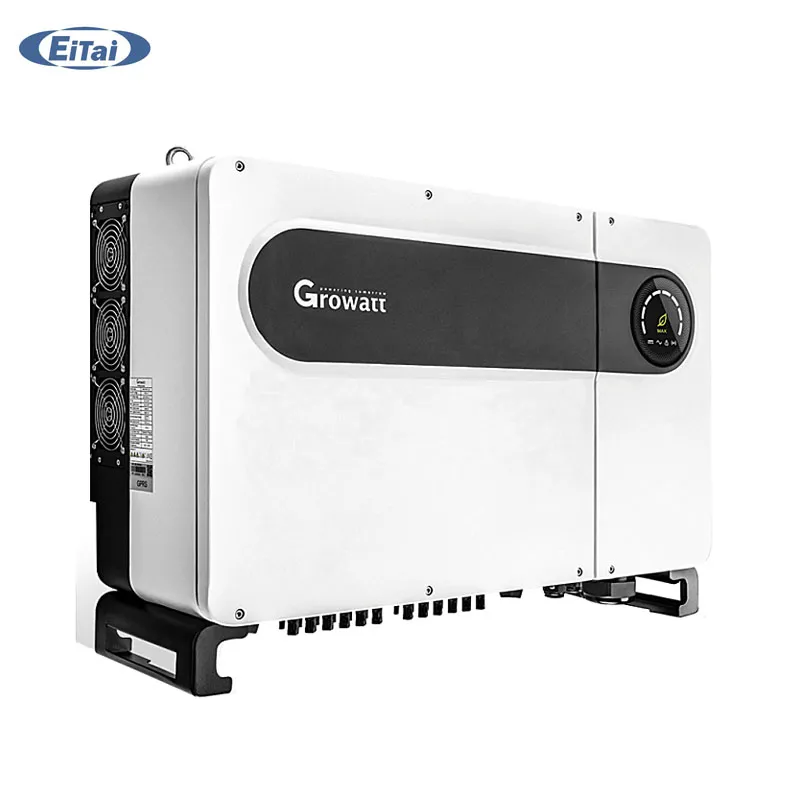

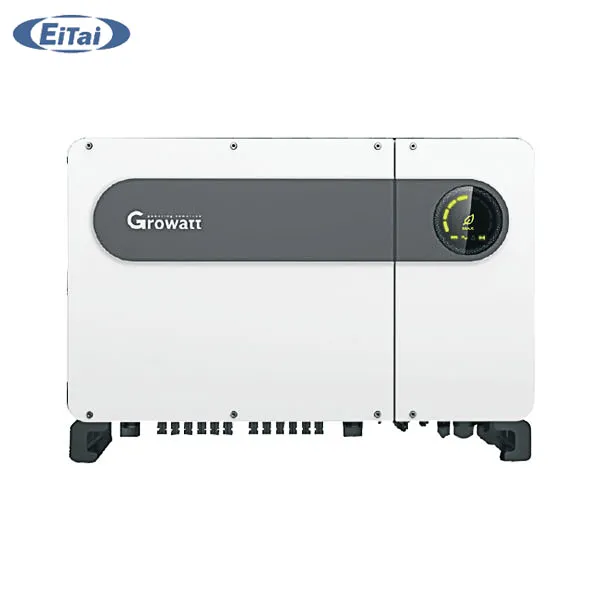

Growatt 50KW 60KW 70KW 80KW Three Phase On-grid AC Frequency Solar Power Inverter
Suitable for both large scale commercial rooftop and ground mounted solar plants. Growatt Max series grid-tied incerter is with up to 80KW big capacity. First quad-core inverter in the industry, provides it fast processing capability to handle transient grid fault, with
with optimlzed design, it also brings 98.67% high weighted China efficiency, 0.3% higher than industry level, along with extraording 6 MPP trackers, ensures high yield of system.
Product Detail :
|
Datasheet
|
MAX 50KTL3 LV
|
MAX 60KTL3 LV
|
MAX 70KTL3 LV
|
MAX 80KTL3 LV
|
|
Input Data
|
|
Max.DC power
|
65000W
|
78000W
|
91000W
|
104000W
|
|
Max.DC voltage
|
1100V
|
1100V
|
1100V
|
1100V
|
|
Start Voltage
|
250V
|
250V
|
250V
|
250V
|
|
PV voltage range
|
200V-1000V
|
200V-1000V
|
200V-1000V
|
200V-1000V
|
|
Nominal voltage
|
585V
|
585V
|
600V
|
685V
|
|
Full load DC voltage range
|
500V-850V
|
520V-850V
|
600V-850V
|
685V-850V
|
|
Max. input current per MPPT
|
25A
|
25A
|
25A
|
25A
|
|
Number of MPP trackers /
strings per MPP tracker
|
6/2
|
6/2
|
6/2
|
6/2
|
|
Output (AC)
|
|
Rated AC output power
|
50000W
|
60000W
|
70000W
|
80000W
|
|
Max. AC apparent power
|
55500VA
|
66600VA
|
77700VA
|
88800VA
|
|
Max. output current
|
80.5A
|
96.6A
|
112.7A
|
128.8A
|
|
AC nominal voltage
|
230V/400V
|
230V/400V
|
230V/400V
|
230V/400V
|
|
AC grid frequency
|
50Hz/60Hz
|
50Hz/60Hz
|
50Hz/60Hz
|
50Hz/60Hz
|
|
Power factor
|
0.8leading ...0.8lagging
|
0.8leading ...0.8lagging
|
0.8leading ...0.8lagging
|
0.8leading ...0.8lagging
|
|
THDi
|
<3%
|
<3%
|
<3%
|
<3%
|
|
AC grid connection type
|
3W+N+PE
|
3W+N+PE
|
3W+N+PE
|
3W+N+PE
|
|
Efficiency
|
|
Max.efficiency
|
98.80%
|
98.80%
|
99.00%
|
98.80%
|
|
Eurp-eta
|
98.30%
|
98.30%
|
98.40%
|
98.3%
|
|
MPPT efficiency
|
99.90%
|
99.90%
|
99.90%
|
99.9%
|
|
Protection Devices
|
|
DC reverse polarity protection
|
yes
|
yes
|
yes
|
yes
|
|
DC Switch
|
yes
|
yes
|
yes
|
yes
|
|
DC Surge protection
|
Type II
|
Type II
|
Type II
|
Type II
|
|
Ground fault monitoring
|
yes
|
yes
|
yes
|
yes
|
|
Output short circuit protection
|
yes
|
yes
|
yes
|
yes
|
|
AC Surge protection
|
Type II
|
Type II
|
Type II
|
Type II
|
|
String fault monitoring
|
yes
|
yes
|
yes
|
yes
|
|
Anti-PID protection
|
opt
|
opt
|
opt
|
opt
|
|
AFCI protection
|
opt
|
opt
|
opt
|
opt
|
|
General Data
|
|
Dimensions (W / H / D) in mm
|
860/600/300
|
860/600/300
|
860/600/300
|
860/600/300
|
|
Weight
|
82kg
|
82kg
|
82kg
|
82kg
|
|
Operating temperature range
|
-25°C ... +60°C
|
-25°C ... +60°C
|
-25°C ... +60°C
|
-25°C ... +60°C
|
|
Noise emission (typical)
|
≤55dB(A)
|
≤55dB(A)
|
≤55dB(A)
|
≤55dB(A)
|
|
Self-Consumption
|
< 1W*
|
< 1W*
|
< 1W*
|
< 1W*
|
|
Topology
|
Transformerless
|
Transformerless
|
Transformerless
|
Transformerless
|
|
Cooling concept
|
Smart cooling
|
Smart cooling
|
Smart cooling
|
Smart cooling
|
|
Environmental Protection Rating
|
IP65
|
IP65
|
IP65
|
IP65
|
|
Altitude
|
4000m
|
4000m
|
4000m
|
4000m
|
|
Relative Humidity
|
0-100%
|
0-100%
|
0-100%
|
0-100%
|
|
Features
|
|
Display
|
LED/WIFI+APP
|
LED/WIFI+APP
|
LED/WIFI+APP
|
LED/WIFI+APP
|
|
Interfaces:USB/R485/GPRS
|
yes / yes / opt
|
yes / yes / opt
|
yes / yes / opt
|
yes / yes / opt
|
|
Warranty:5 years / 10 years
|
yes / opt
|
yes / opt
|
yes / opt
|
yes / opt
|
|
Certification
|
CQC, CE, VDE 0126-1-1, UTE C 15-712, VDE-AR-N4105, EN50438, DRRG, CEI 0-16, BDEW, IEC 62116, IEC61727, IEC 60068, IEC 61683, AS 4777
|

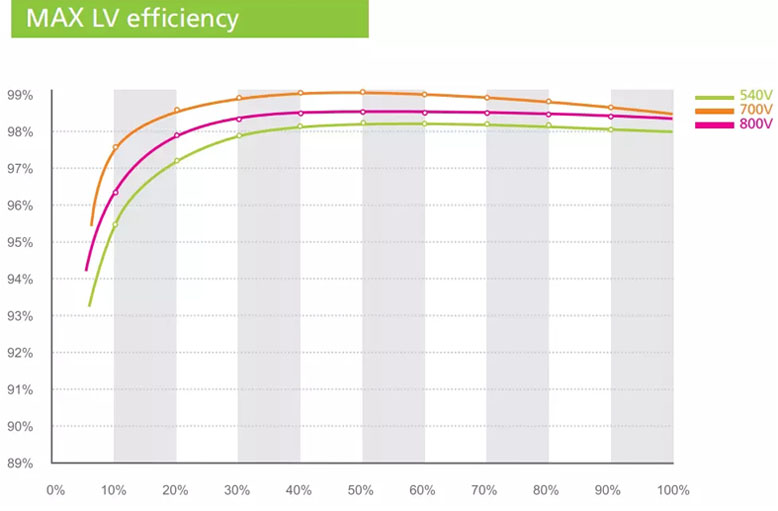

MAX LV efficiency

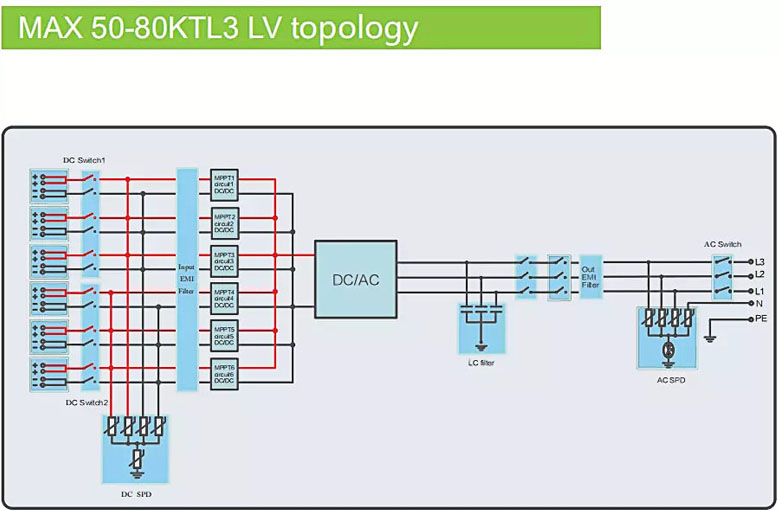

MAX 50-80KTL3 LV topology
|
|
|
|
-- High efficiency up to 99%
|
|

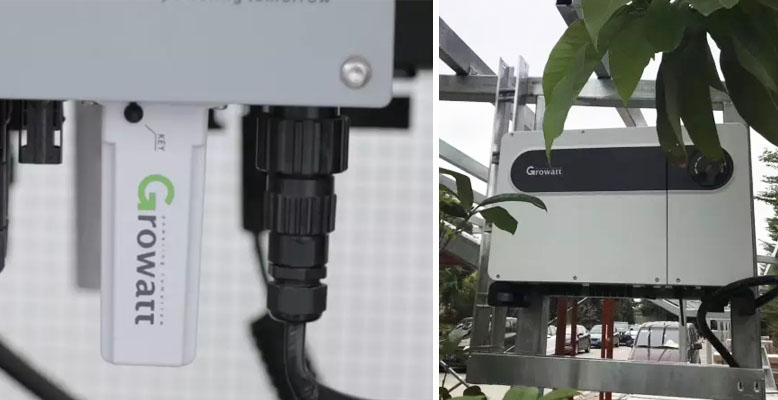

-- Local WIFI connection
|
|
|
|
-- AC& DC type II SPD
|

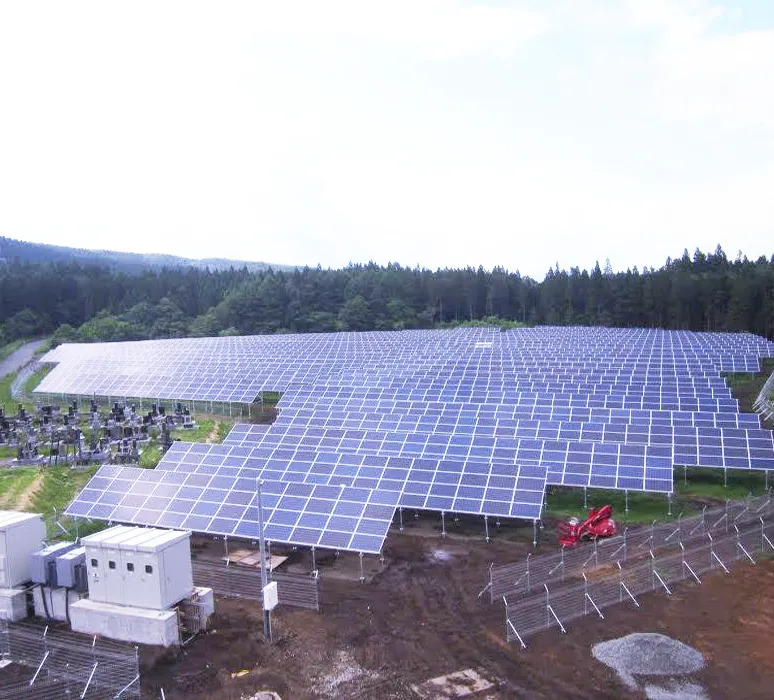

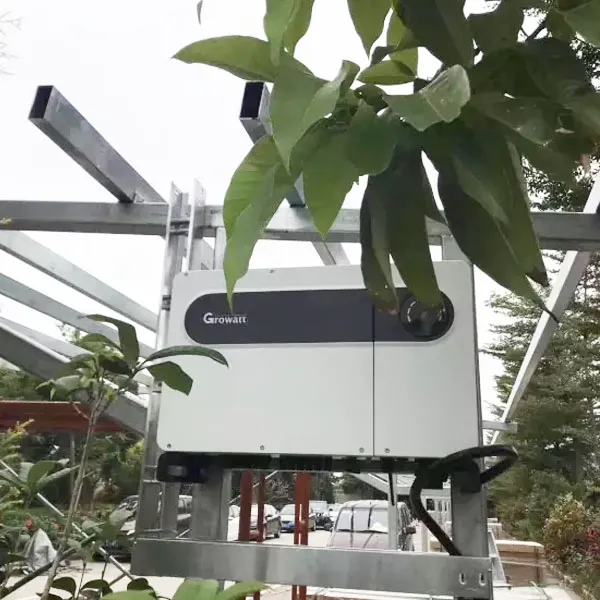

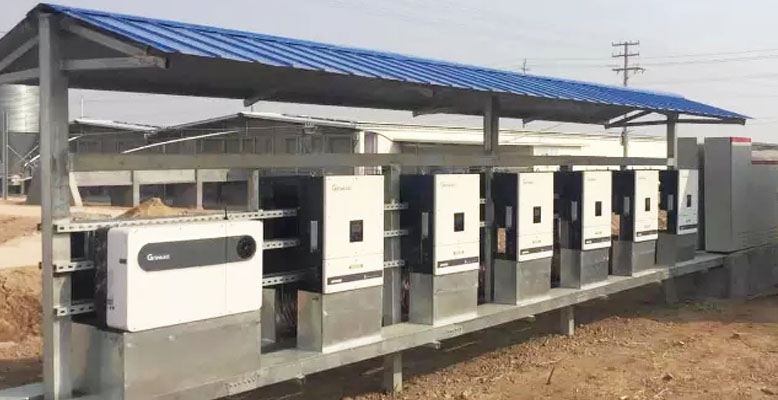

Product Application :
Q & A :
Q: What is a solar inverter and how does it work?
A: A solar inverter converts the DC (Direct Current) output of a PV solar panel into a utility frequency AC (alternating current) that can be fed into a commercial electrical grid (or) used by a local, off-line electrical n/w. In this proposed system, the solar energy is stored in the battery from PV cells.
Q: How does your factory do regarding quality control?
A: Quality is priority. people attach great importance to quality controlling from the very beginning to the very end. Our factory has gained BV, Intertek,TUV, ISO9001:2008 authentication.Our customers including Hallmark, Homebase, Coca-cola, ITS solar, Mobisol..
