Clutch Bearing ASK 50 Introduction :
|
Item
|
ASK50
|
|
Material
|
GCr15
|
|
Outer diameter
|
80 mm
|
|
Inner diameter
|
50 mm
|
|
Width
|
16 mm
|
|
Bearing series
|
6010
|
|
Torque
|
125 Nm
|
|
Drag Torque
|
20 Ncm
|
|
Weight
|
0.34 kg
|

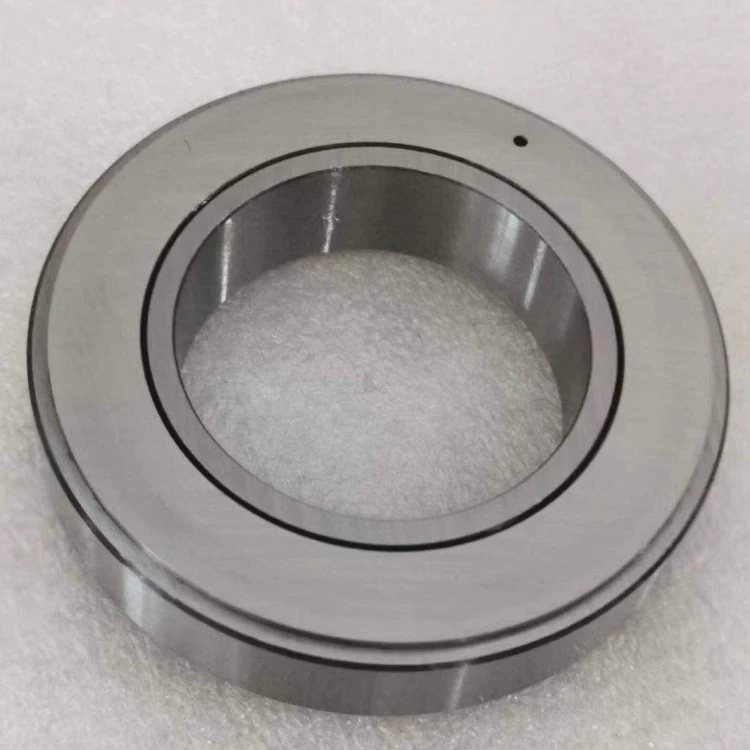

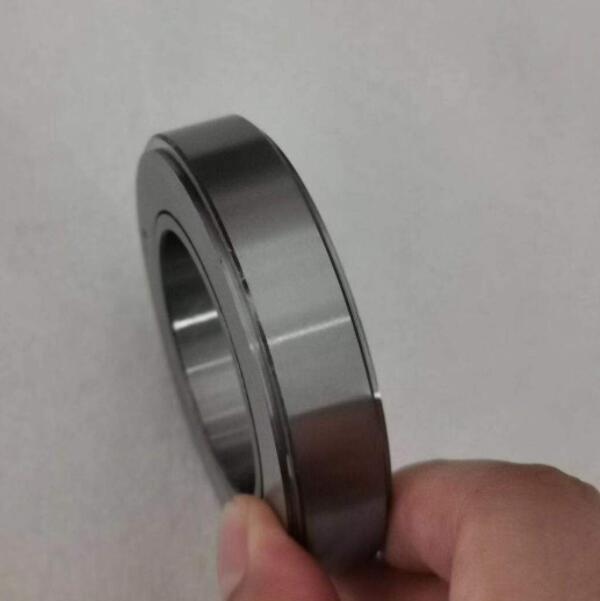

Freewheel Clutch Bearing Picture :

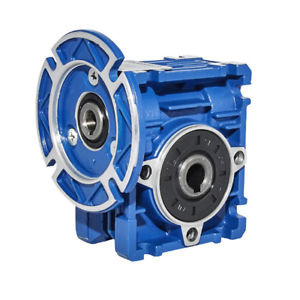

ASK50 one-way overrunning clutch is mainly used general machinery Gear Reducer , such as packaging machinery, printing machinery, textile machinery, transmission machinery, food machinery, plastic machinery, petrochemical machinery, lifting transportation machinery, high voltage switch, fan, deceleration machine, compressor, machine tools and so on.

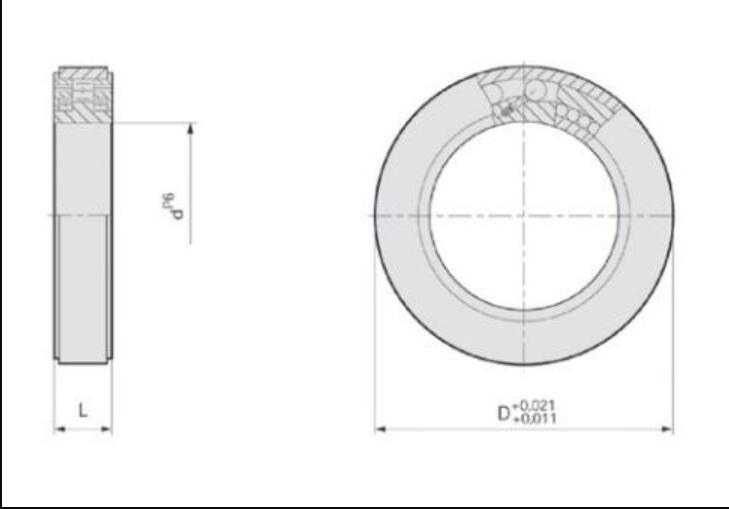

We can produce other ASK Series :
|
Type
|
Size
|
Bearing Series
|
|
|
Outside Diameter
|
Height
|
Bearing loads
|
Weight
|
Drag torque
|
|
Dynamic
|
static
|
|
ASK
|
Dp6
(mm)
|
|
TKN1)
(Nm)
|
nmax
(min-1)
|
D
(mm)
|
L
(mm)
|
C
(kN)
|
C0
(kN)
|
(kg)
|
TR
(Ncm)
|
|
40
|
6008
|
72
|
3500
|
68
|
15
|
16
|
20.6
|
0.25
|
15
|
|
50
|
6010
|
125
|
2200
|
80
|
16
|
19.6
|
23.5
|
0.34
|
20
|
|
60
|
6012
|
250
|
1800
|
95
|
18
|
25.3
|
35.1
|
0.5
|
25
|
1) Tmax = 2 × TKN

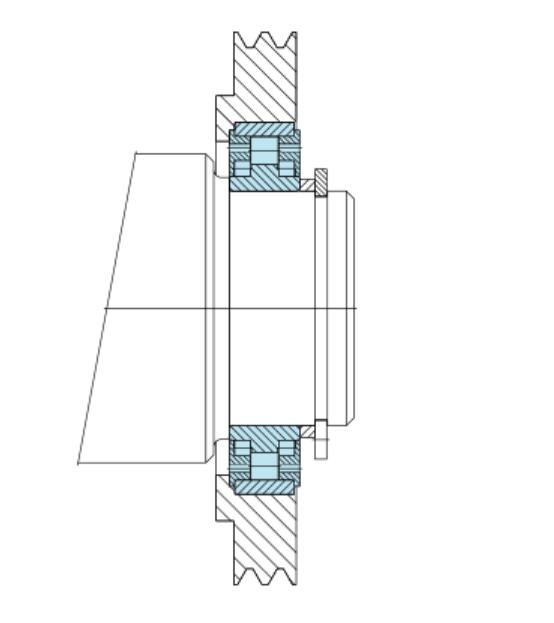

Mounting
