Oolong Tea Granular Tea Molding Shaping Machine 6CCXJ-6080

DL-6CCXJ-6080 granular tea molding shaping machine mainly used for oolong tea, lotus leaf tea and other grainy tea.


  • Rated voltage380 V
  • Driving Power 5.5 kW
  • Maximum pressure 16 MPa
  • Pressurization method Hydraulic
  • Minimum size of material molding300×100×250 mm
  • Inner cavity size800×600×250 mm
  • Dimension1760×1870×1600 mm

Oolong Tea Granular Tea Shaping Processing Molding Machine 6CCXJ-6080

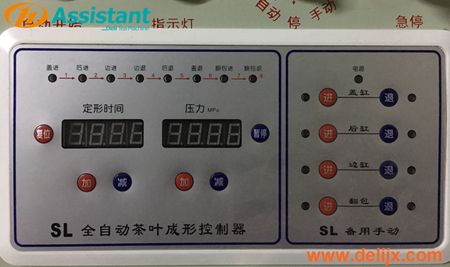

Multifunctional control panel

Tea can be put into the machine, one key to start the machine, the machine automatically carries out all the processes, safe, convenient, fast.

You can also choose manual mode, manual control of pressing time and pressure, suitable for machine automatic mode can not be used.
It can adjust the pressing time and pressure, and the quality of tea is better.

Description:

The original leaf-shaped tea leaves can be extruded into granular tea, which can replace the speed charter and the wrapping machine.
Greatly improve work efficiency, and the tea shape is more beautiful, the color is greene.
High quality, high efficiency and low failure are realized. , low energy consumption

Application:
DL-6CCXJ-6080 granular tea leaf shaping molding machine mainly used for processing grainy tea, such as oolong tea ( tieguanyin ), lotues tea, mulberry leaf tea and so on.

Advantage:
1.This machine can replace the speed charter and the wrapping machine, saving costs.
2.The processing efficiency of this machine is dozens of times of manual, which greatly saves costs.
3.Integrated design, large enclosed appearance, with moving bottom wheel, overall beautiful and practical
4.The main structural steel plate of the whole machine adopts Q345B high strength steel plate.
5.The contact part with the material is made of 2mm 304 stainless steel plate to ensure the sanitary standard.
6.Unique cavity size design for faster material forming and improved work efficiency

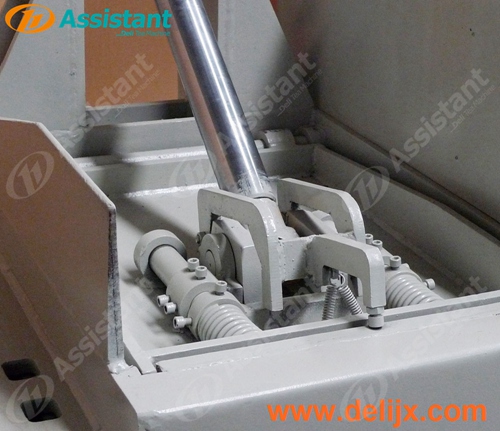

7.The cover plate has a bolt to ensure that the support structure of the clamshell cylinder is not stressed when the cover is stressed, and the main structure is prevented from being damaged.
8.Pressure control with dual flow channels makes pressure adjustment easy and convenient
9.Fully automatic control system and pressure sensing device make operation easier
10.With phase sequence protection, the motor protection is in place when the phase is missing.

Parameter:

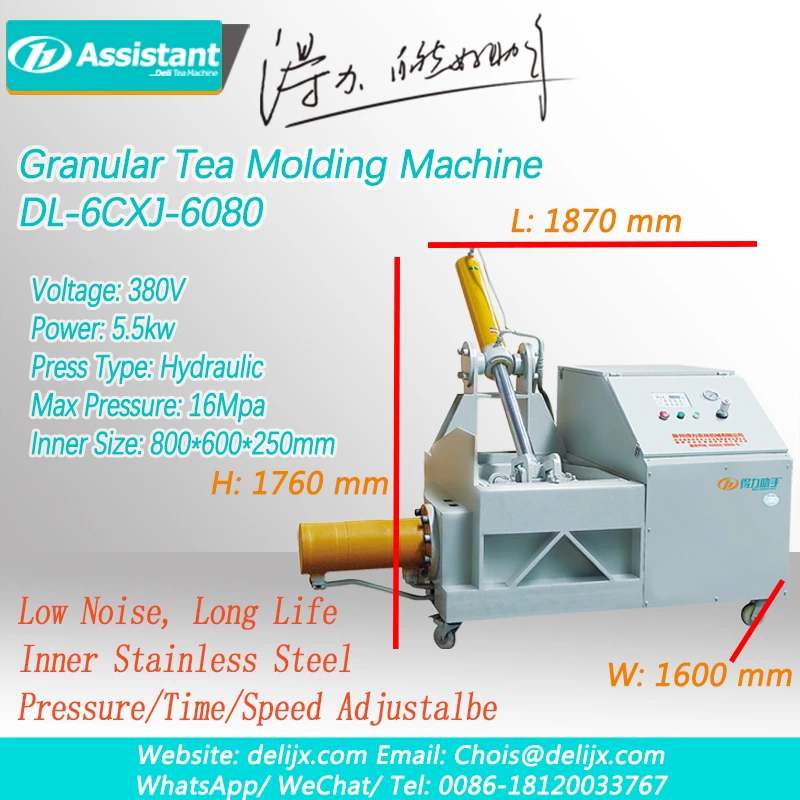

DL-6CCXJ-6080 tea leaf shaping machine specification:

Model 6CCXJ-6080
Dimensions (L*W*H) 1760×1870×1600 mm
Inner cavity size (L*W*H) 800×600×250 mm
Minimum size of material molding(L*W*H) 300×100×250 mm
Pressurization method Hydraulic
Maximum pressure 16 MPa
Driving power 5.5 kW
Motor speed 1400 r/min
Rated Voltage 380 V

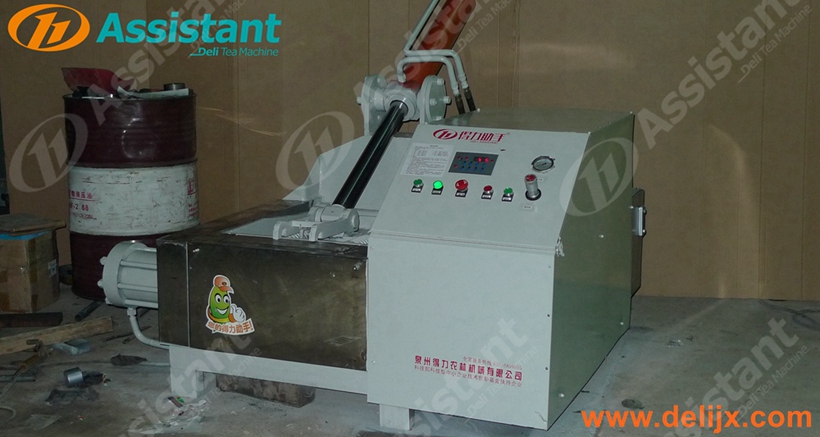

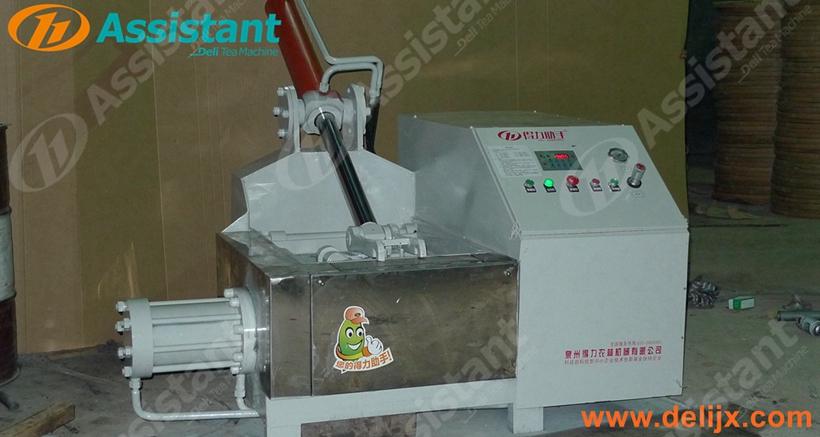

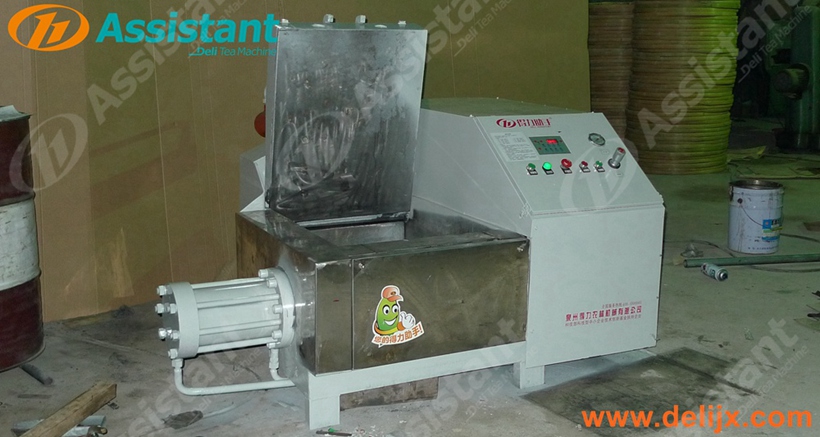

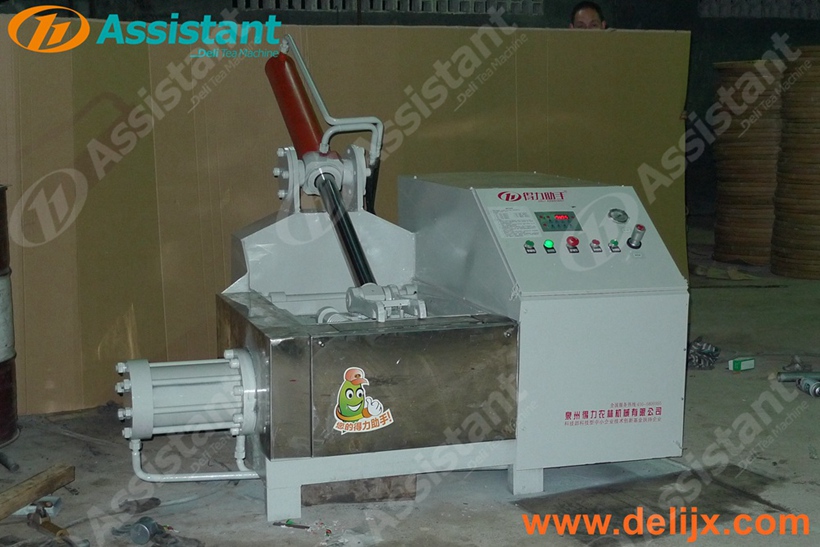

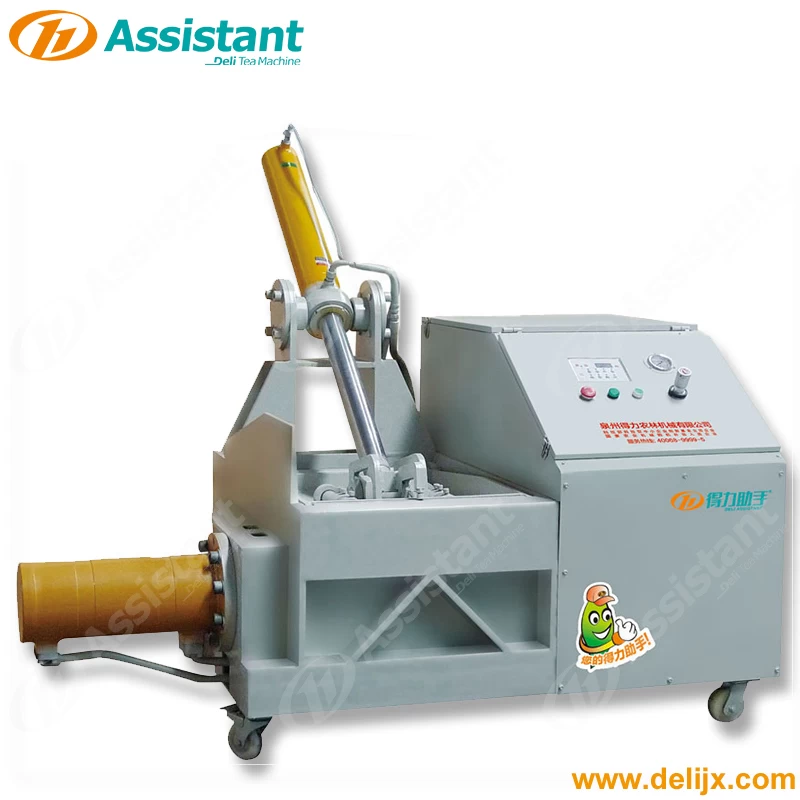

DL-6CCXJ-6080 grainy tea shaping machine photos:

Oolong Tea Granular Tea Shaping Processing Molding Machine 6CCXJ-6080
Oolong Tea Granular Tea Shaping Processing Molding Machine 6CCXJ-6080
Oolong Tea Granular Tea Shaping Processing Molding Machine 6CCXJ-6080
Oolong Tea Granular Tea Molding Shaping Machine 6CCXJ-6080
Oolong Tea Granular Tea Molding Shaping Machine 6CCXJ-6080
