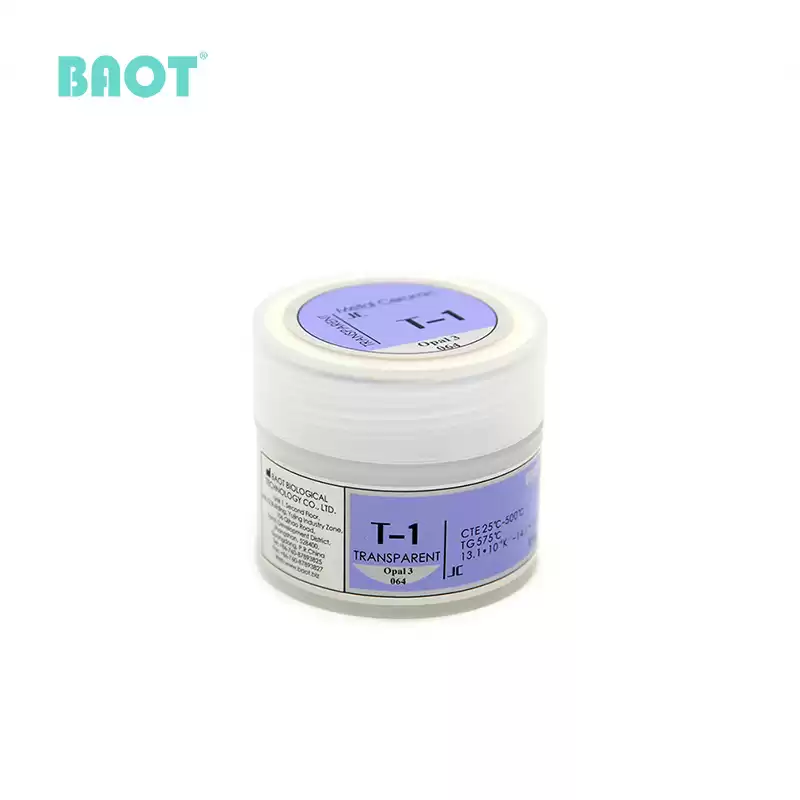

Effect Opal 3 Metal Dental Ceramic Powder PFM factory direct sale

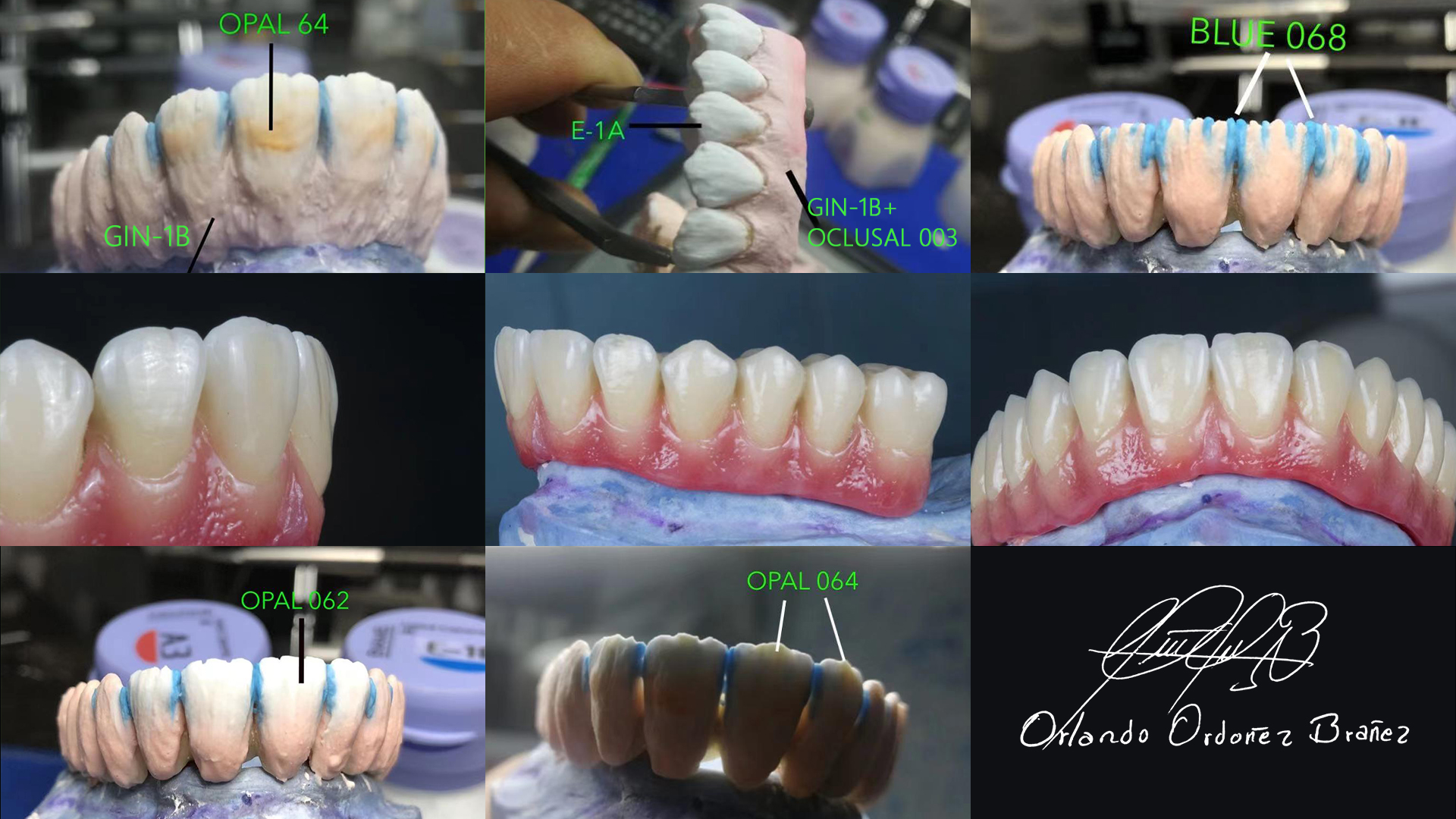

Dental metal porcelain PFM Effect Opal 1 is a porcelain powder of BAOT PFM EFFECT series with a high degree of opalescence. It reflects the special effects of teeth to meet the diverse and aesthetic needs of units or crowns.
The chemical composition of BAOT dental ceramic/porcelain powder is silicon oxide, aluminum oxide, potassium oxide, sodium oxide, zirconia, calcium oxide, boron oxide, etc. It is mainly introduced from potassium feldspar, and through catalysis, it crystallizes repeatedly to form garnet crystals, which have good biocompatibility, chemical stability, strength, and hardness suitable for oral structure and function.

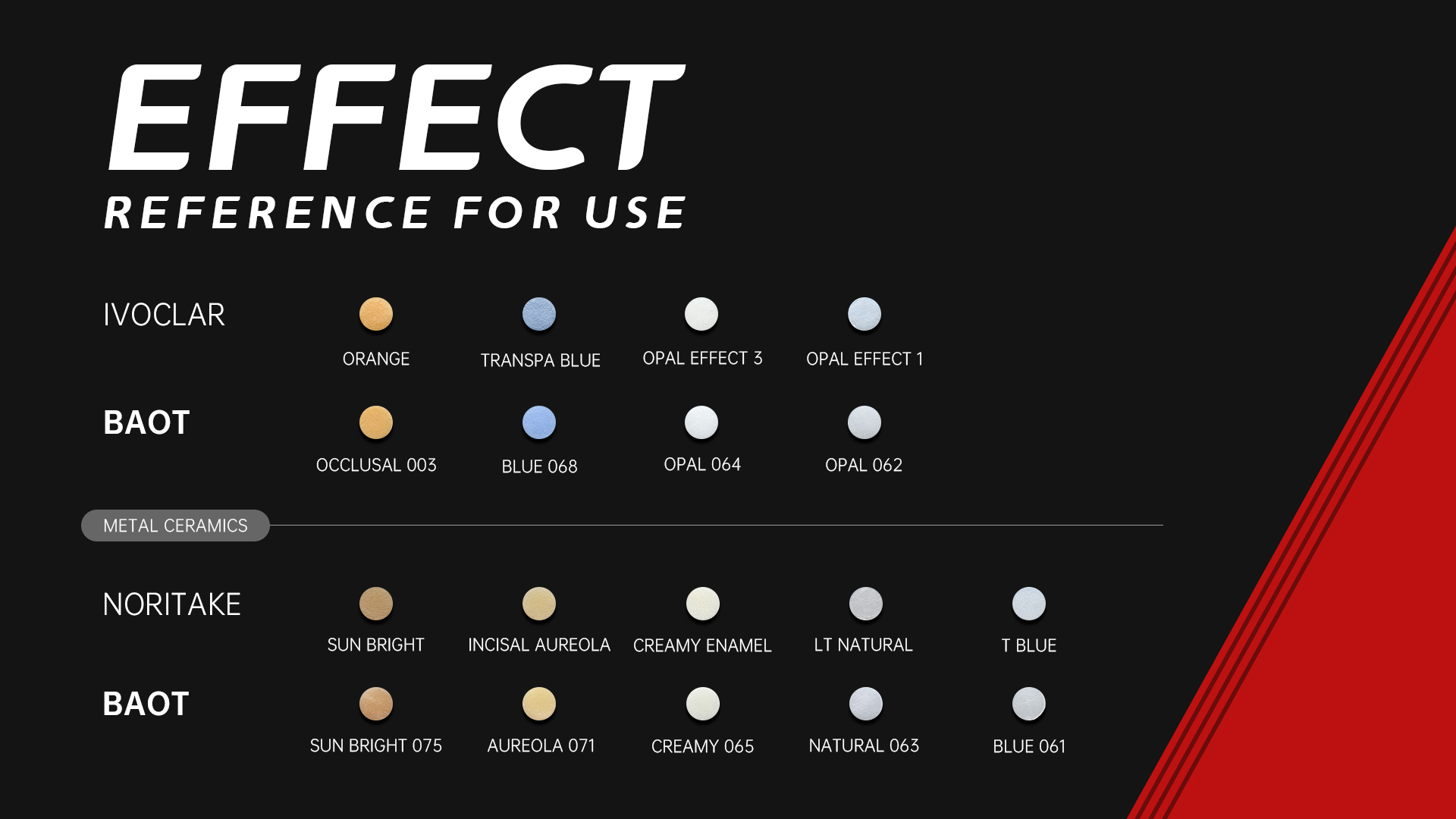

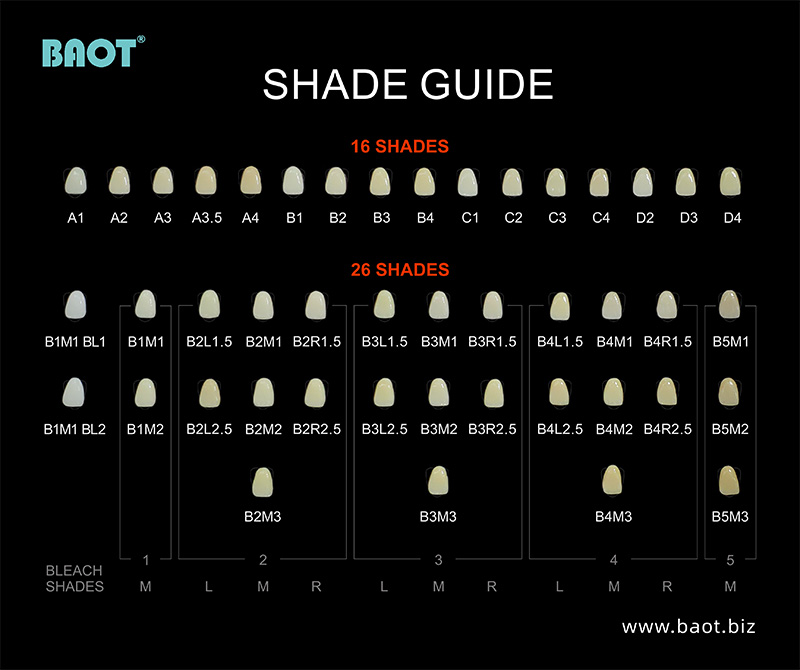

BAOT dental ceramic/porcelain powder is easy to build up, which is suitable for every dental technician. 16+26 VITA® classic shades satisfy your basic needs, while we also have the EFFECT series to meet more advanced aesthetic needs. All denture factories, dental labs, or individual orders are welcome.

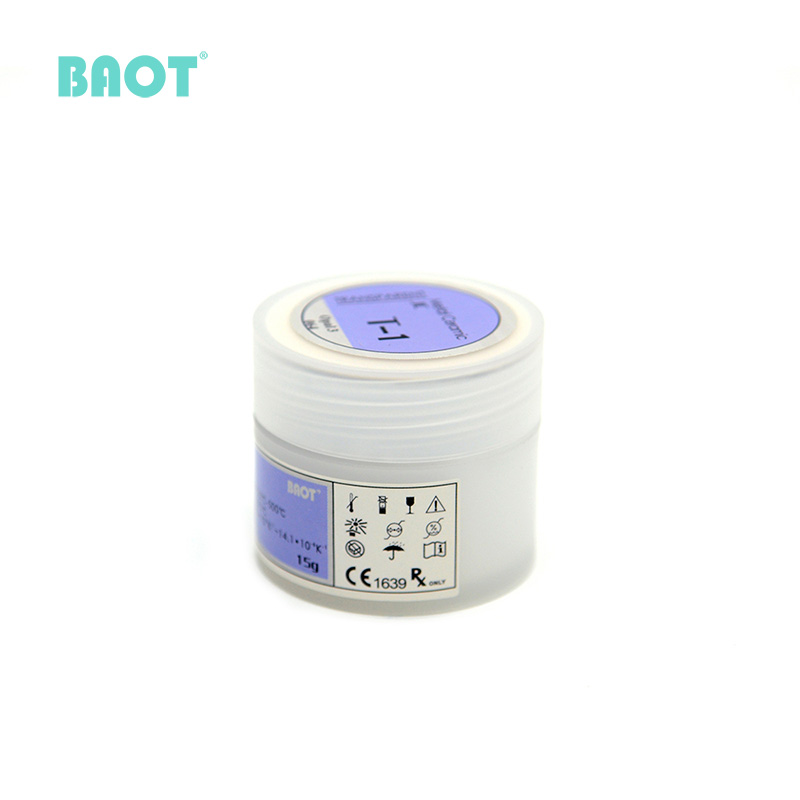

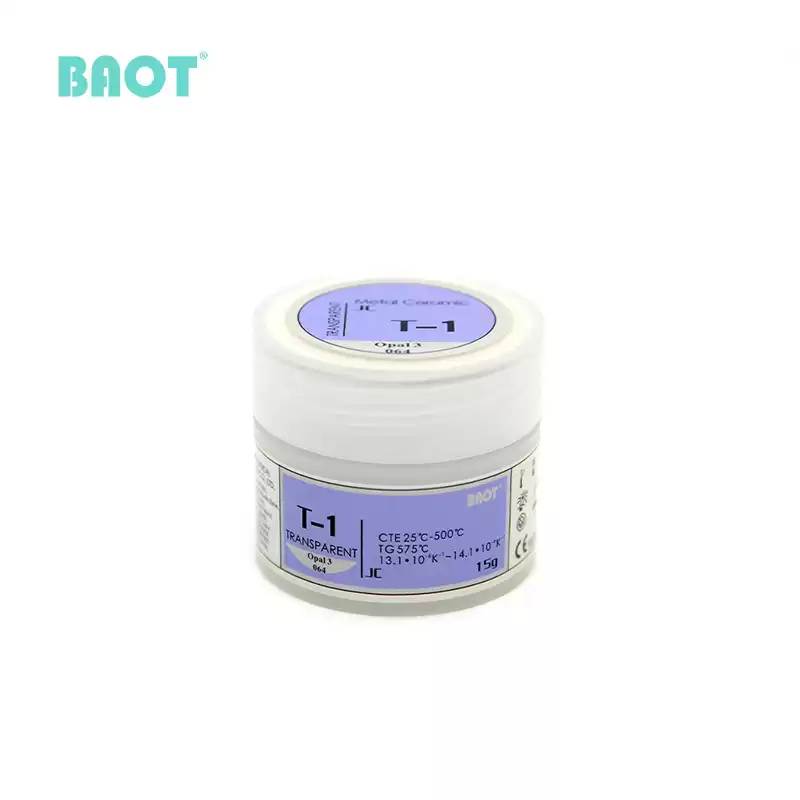

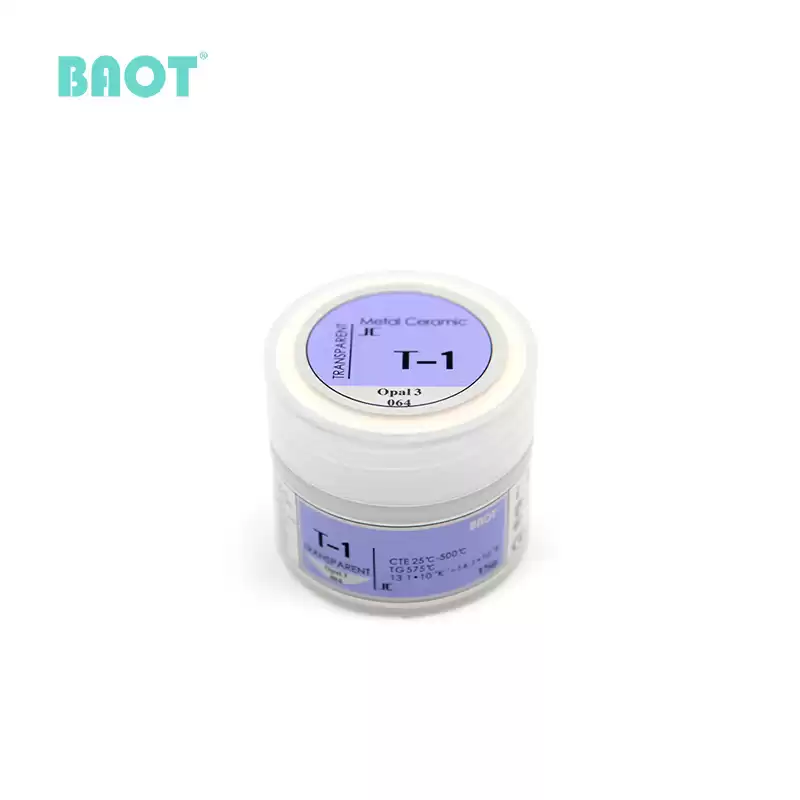

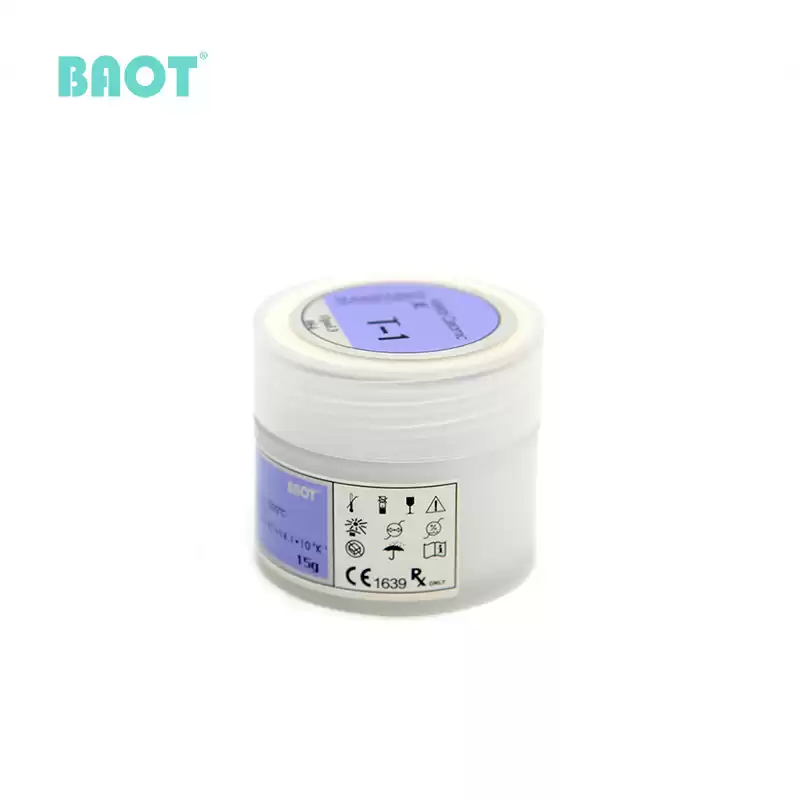

PFM/Metal Porcelain Dental Porcelain Powder Dental Ceramics Effect Opal 3, factory direct sale
| Product Name |
Metal Ceramic PFM Effect Opal 3 |
|
CTE*(10-6 · K-1)
|
12.9~13.8
|
|
Glass Transition (°C)
|
575
|
|
Flexural Strength (MPa)
|
118
|
|
Bonding Strength(MPa)
|
39.5
|
|
Chemical Solubility(μg·cm-2)
|
31.8
|
|

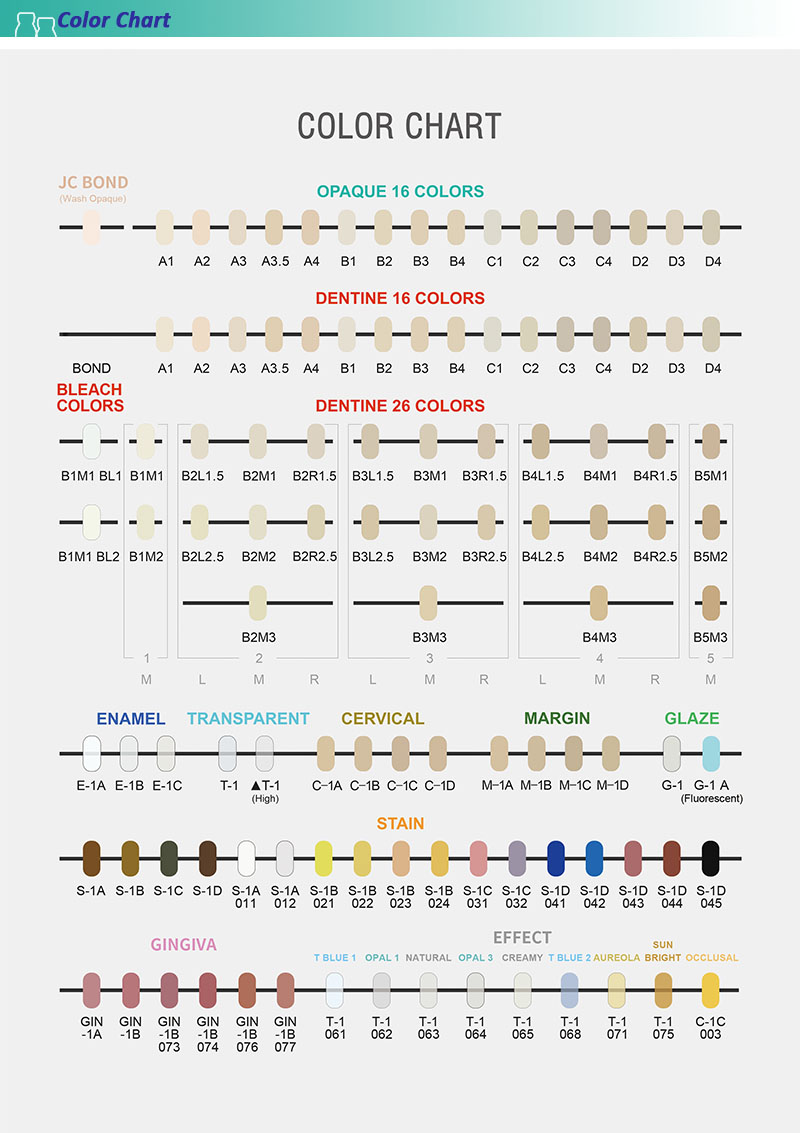

Shades
|
T-1 064(Opal 3)
|
*CTE(Coefficient of thermal expansion)
Firing Parameters for Carlibrated Furnaces
| Condition |
Firing |
| |
Wash Opaque |
Opaque |
Margin |
Body* |
Add on |
Glaze & Stain |
| Drying temp (℃) |
550 |
550 |
550 |
550 |
550 |
550 |
| Drying time (min) |
2 |
3 |
3 |
3 |
2 |
2 |
| Heating time (℃) |
2 |
3 |
3 |
3 |
2 |
2 |
| Heating rate (℃/min) |
60 |
60 |
55 |
55 |
55 |
55 |
| Firing temp (℃) |
960 |
940 |
930 |
920 |
910 |
890 |
| Holding time (min) |
1 |
1 |
1 |
1 |
1 |
1 |
| Cooling time (min) |
4 |
4 |
4 |
4 |
4 |
4 |
| Cooling temp (℃) |
550 |
550 |
550 |
550 |
550 |
550 |
| Vacuum start (℃) |
550 |
550 |
550 |
550 |
550 |
- |
| Vacuum end (℃) |
960 |
940 |
930 |
920 |
910 |
- |
NOTE:
-

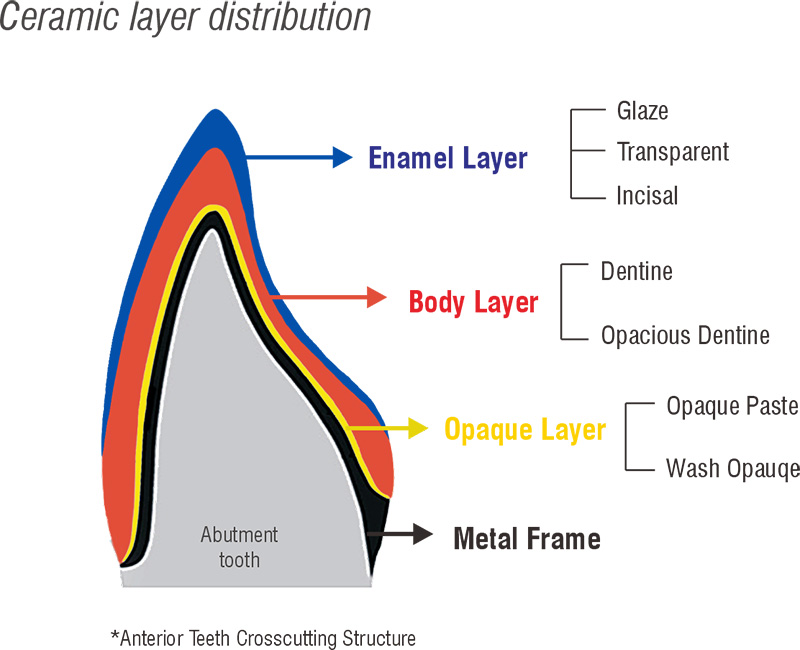

- *"Body" includes Cervical, Opacious Dentin, Dentin, Enamel, Transparent, Effect, Gingiva.
- Our recommendation for firing temperature is based on numerous tests.
- These firing parameters may be adjusted according to the peculiarities of different furnaces.
- It is essential to test firing before production.
- Please refer to "Instruction for Use" for details.
PFM Dental Porcelain Powder Dental Ceramics Effect Opal 3

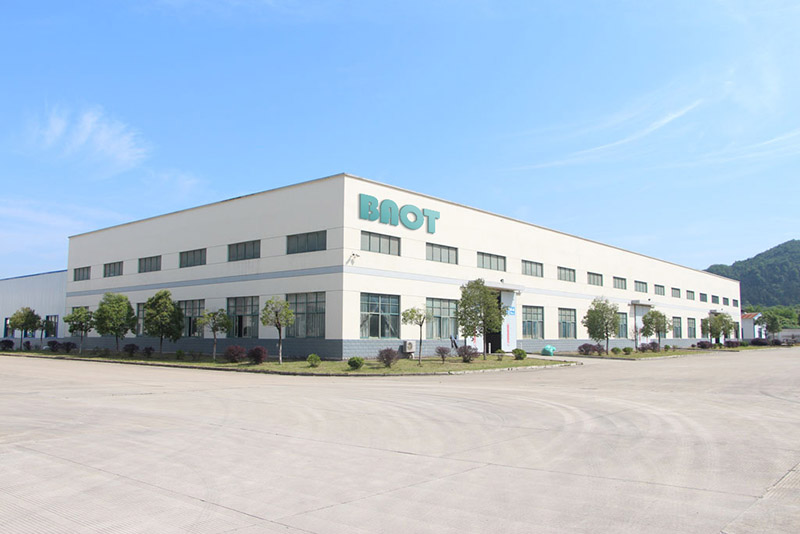

BAOT Biological Technology Co., Ltd. has been established for decades. We have strong R&D capabilities, which are driven by a group of scientists and engineers to ensure product portfolios catch up with the dentistry trends. Modernized production lines of dental materials and equipment, such as dental ceramic powder, zirconia blocks, lithium disilicate glass ceramics, press ingot, milling machines, etc. guarantee strict quality control and fast delivery.
