Open frame 150W Dual output AC/DC switching power supply 12v 24v

Dual output 12V 24V Open frame Switching power supply 150W for LED lighting and General electronic machinery etc.



150w 12v 24v dual output switching power supply SMPS

Description:

K18-U150D series 150W 12V 24V DUAL output open frame switching power supply operate with high efficiency working, it is widely used for the LED stage lighting products.


Features:

1, 150w dual output power supply with high efficiency, low temperature rise;
2, 150W 12v 24v dual output power supply includes filters, low output noise;

3, Wide range of AC input voltage;
4, Overload,short circuit and overvoltage protection.

Specification

                     Item No

K18-U150D12+24

K18-U150D24+12

K18-U150D36+12

K18-U150D48+12

CH1

CH2

CH1

CH2

CH1

CH2

CH1

CH2

Output

Output Voltage

+12V

+24V

+24V

+12V

+36V

+12V

+48V

+12V

Rated Current

8.5A

2A

5.2A

2A

3.5A

2A

2.6A

2A

Current Range

0.2-10A

0.1-3A

0.1-6A

0.1-3A

0.1-4A

0.1-3A

0.1-3A

0.1-3A

Rated power

150W

148.8W

150W

148.8W

Ripple

120mV

240mV

240mV

120mV

360mV

120mV

480mV

120mV

Adjustable output range

CH1:±10%

CH1:±10%

CH1:±10%

CH1:±10%

Output Accuracy

±1%

±5%

±1%

±5%

±1%

±5%

±1%

±5%

Line Regulation

±0.5%

±1%

±0.5%

±1%

±0.5%

±1%

±0.5%

±1%

Load Regulation

±0.5%

±4%

±0.5%

±4%

±0.5%

±4%

±0.5%

±4%

Set up,Rise,Keep up time

50ms,50ms,20ms

Input

Input Voltage range

90~264V AC;110~360V DC

Input current

4A/115V;2A/230V

Input frequency

47~63Hz

Efficiency

85%

86%

87%

87%

Inrush current

30A@230V

Leakage Current

<0.5mA@240V

Protection

Over load protection

105~150%,,Hiccup protection, automatic recovery

Short circuit protection

,Hiccup protection, automatic recovery

Output overvoltage

CH1:15~18V

CH1:30~33V

CH1:42~45V

CH1:54~60V

Over Temp.protection

------

Environment

Working Temp.,Humidity

-10~50℃,10~90% RH,No condensation

Storage Temp.,Humidity

-20~85℃,10~95% RH

Temp.,Drift

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES

Safety&EMC Standards

Safety standards

GB4943,EN60950

Pressure

I/P-O/P,I/P-FG:1.5KV;O/P-FG:0.5KV DC 1min.

Insulation resistance

I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms

EMC standards

GB9254,EN55022 CLASS B

Others

Demension

127*82*38mm CASE:K818

Weight

0.5Kg

Note

1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;

2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;

3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;

4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;

5. Load regulation: the measured output load from 0 to 100% load change measured.

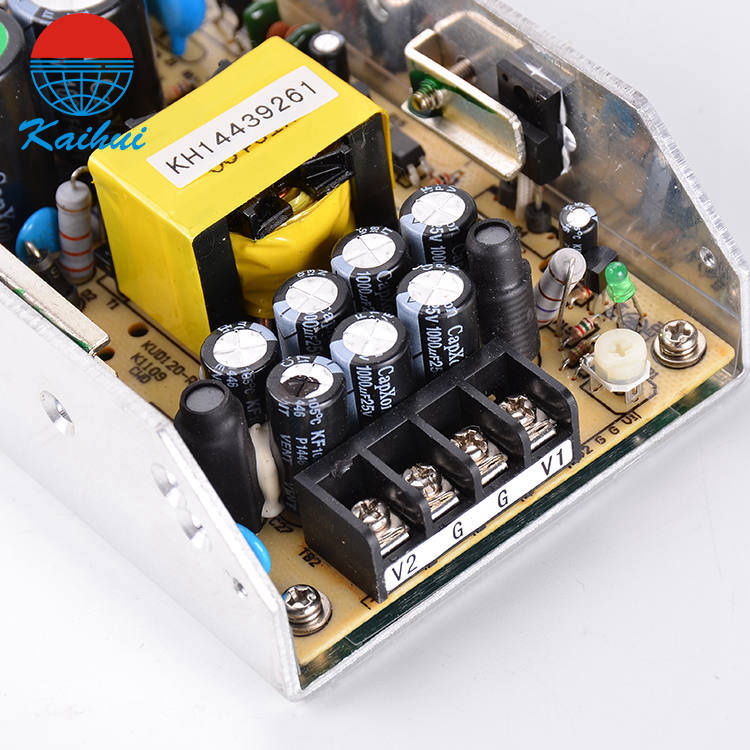

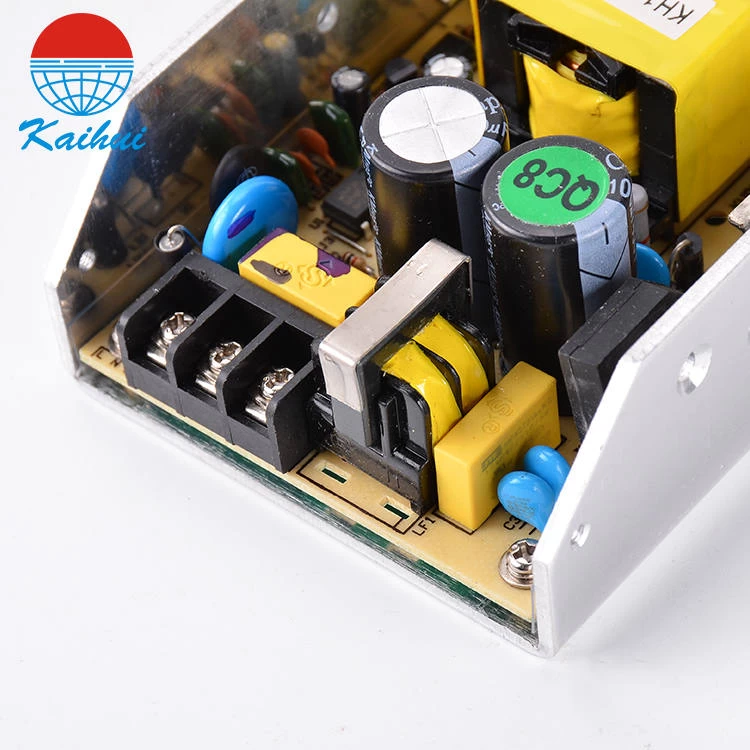

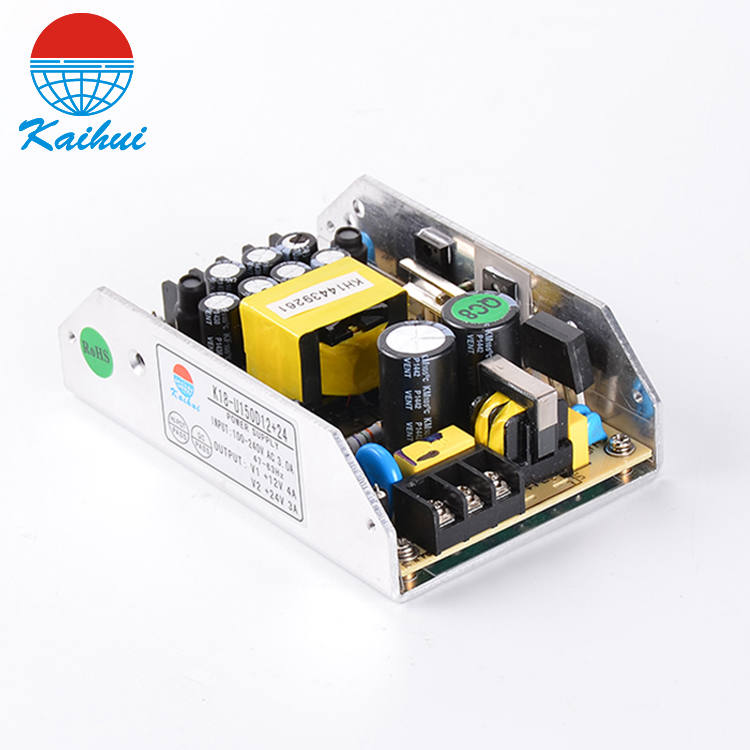

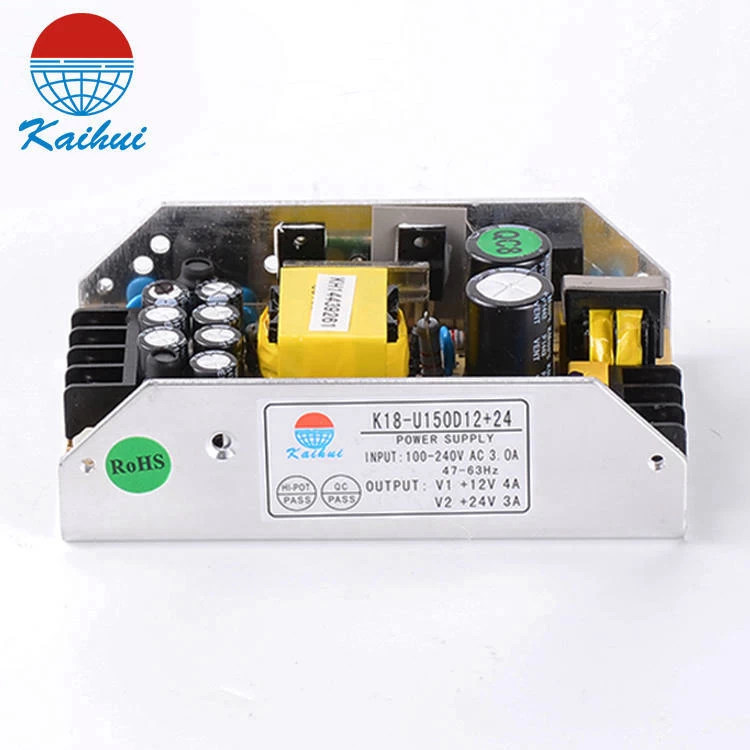

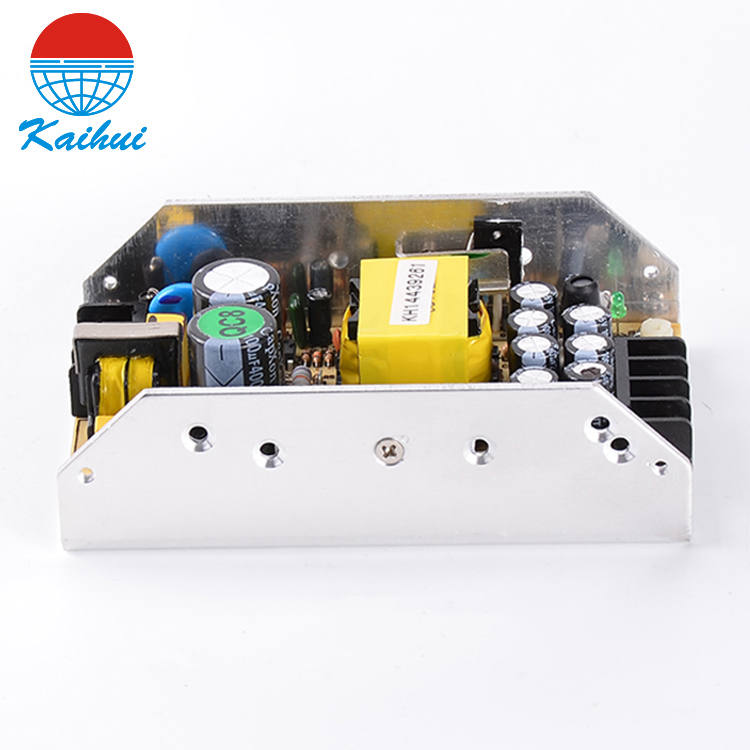

Product picture:

150W AC/DC dual output switching power supply 12v 24v


FAQ


Q1. Can I have a sample order for power supply?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2: Do you accept OEM/ODM for the switching power supply?
A2: Yes. we do.



Q3:How about the quality?
A3:We have the better professional and experienced engineers team and strict QA and QC system.Repair rate under 0.1%~0.2%



Q4:What is PFC?
A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models, the power factor can reach above 0.9. The calculation formulas are as below:
Apparent Power=Input Voltage x Input Current (VA)

Real Power= Input Voltage x Input Current x Power Factor (W)
