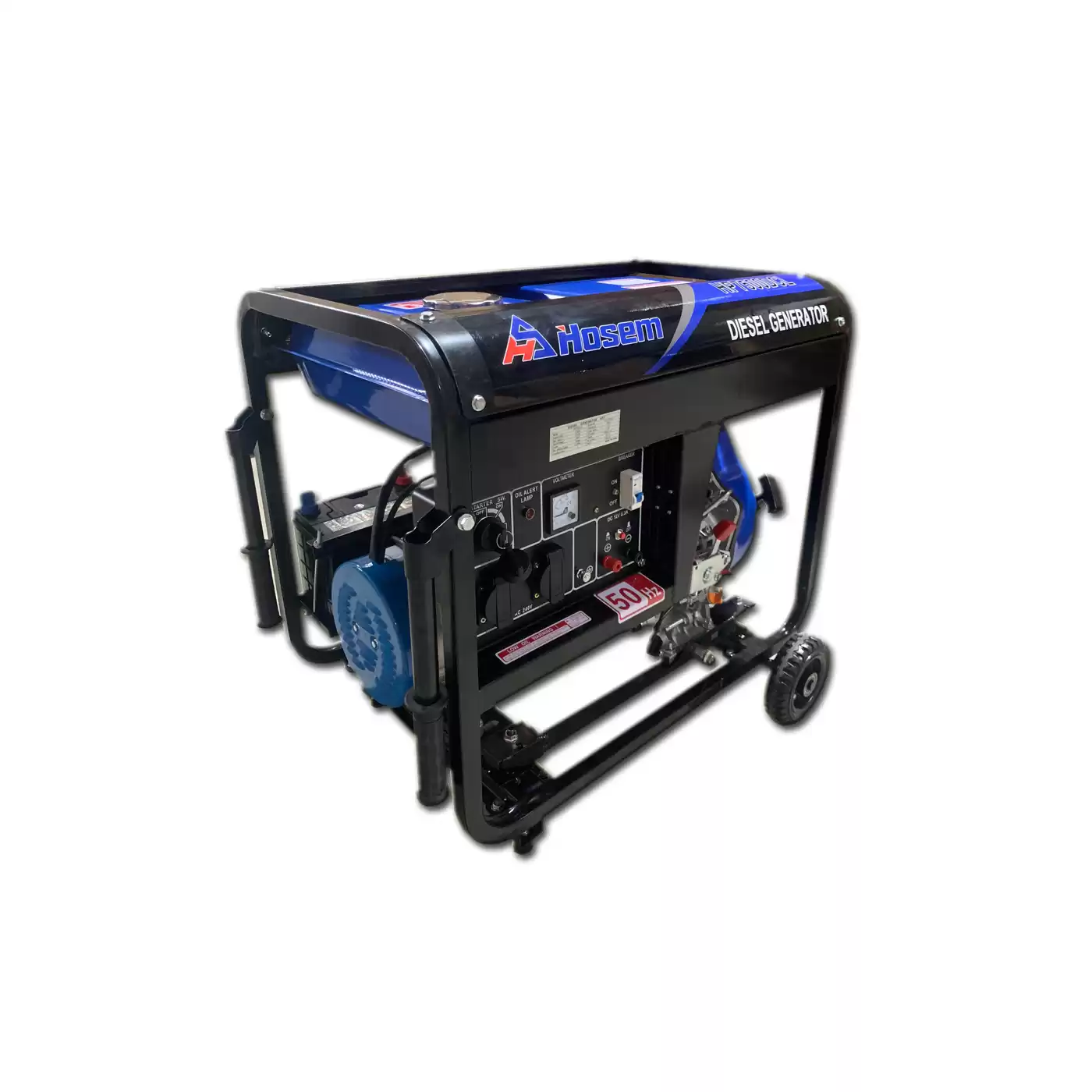

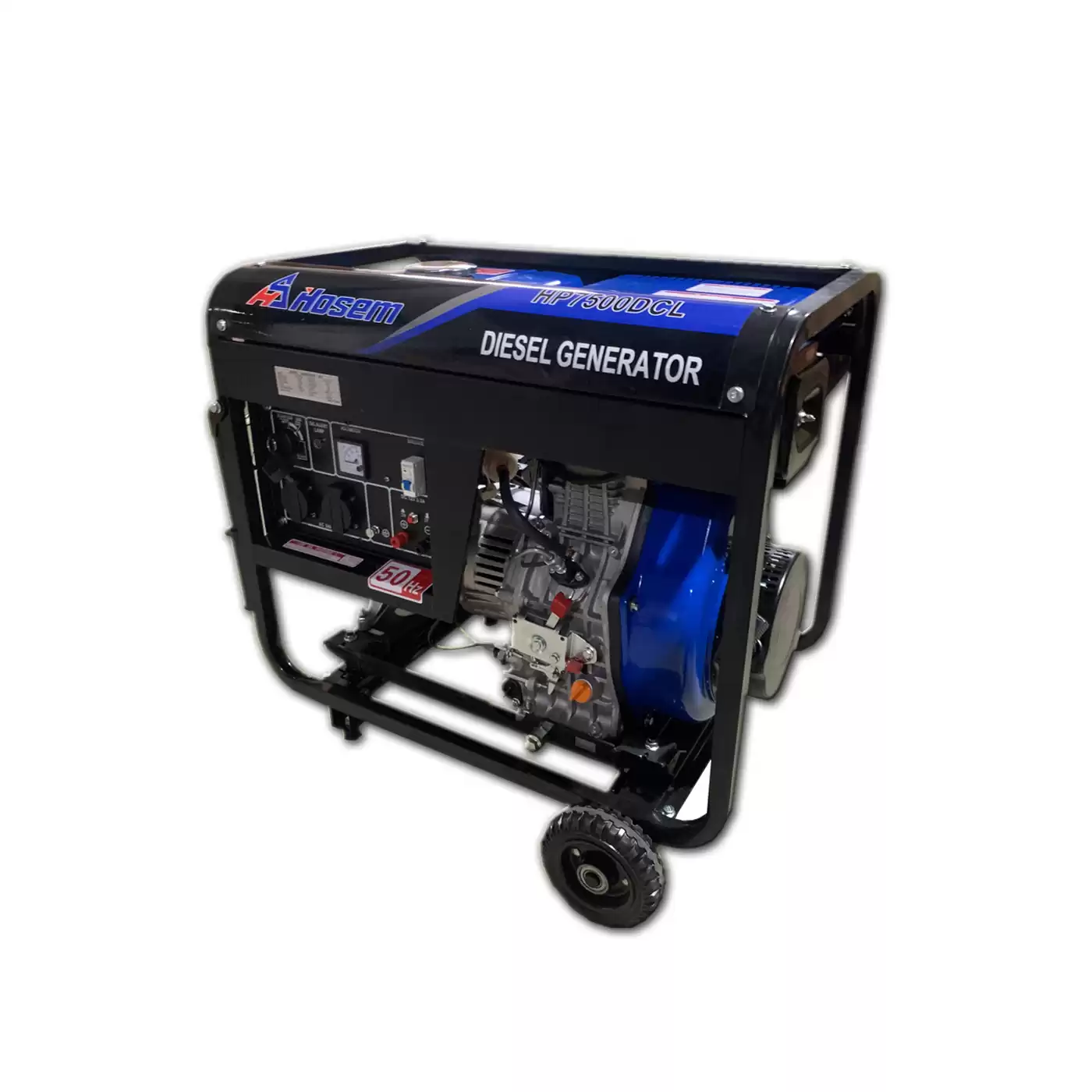

Open Fream Diesel Generator

  • 4-stroke, air-cooled, single or double cylinder
  • 50Hz-60Hz
  • 0.65kW-7kW
  • 110V-400V
  • Single phase/three phase
  • Easy movable by a single person
  • CE, ISO9001, ISO14001, ISO8528

Facebook Twitter Pinterest LinkedIn 分享
Model HP2500D HP3500D HP5500D HP6500D HP7500D HP9000D HP12000D
Type Revolving Magnetic Field, single phase/ three phase
AC Frequency (Hz) 50 50 50 50 50 50 50
Rated Power (kW) 2.0  3.0  5.0  5.5  6.0  8.0  11
Max. Power (kW) 2.2  3.3  5.5  6.0  7.0  8.5  12
AC Output Voltage (V) 110;120;110/220;120/240,220;230;115;230;220/380;230/400
DC Output Voltage (V/A) 12/8.3
Engine Model HP170F(E) HP178F(E) HP186F(E) HP188F(E) HP192F(E) HP1100FE HP292FE
Type Single cylinder, air-cooled, 4-stock Double-cylinder, force air-cooled 4 stroke, OHV
Starting Ststem Recoil/Electric Electric
Fuel Tank Capacity (L) 15 15 15 15 15 25 25
Packing Dimensions(mm) 665x480x555 665x480x565 730x495x615 740x505x630 740x525x630 780x580x750 1110x710x985
Net Weight (kgs) 65 80 95 100 105 130 295
Per 20GP CNT 144 144 102 102 102 84 32
Per 40GP CNT 288 288 207 207 207 168 64
