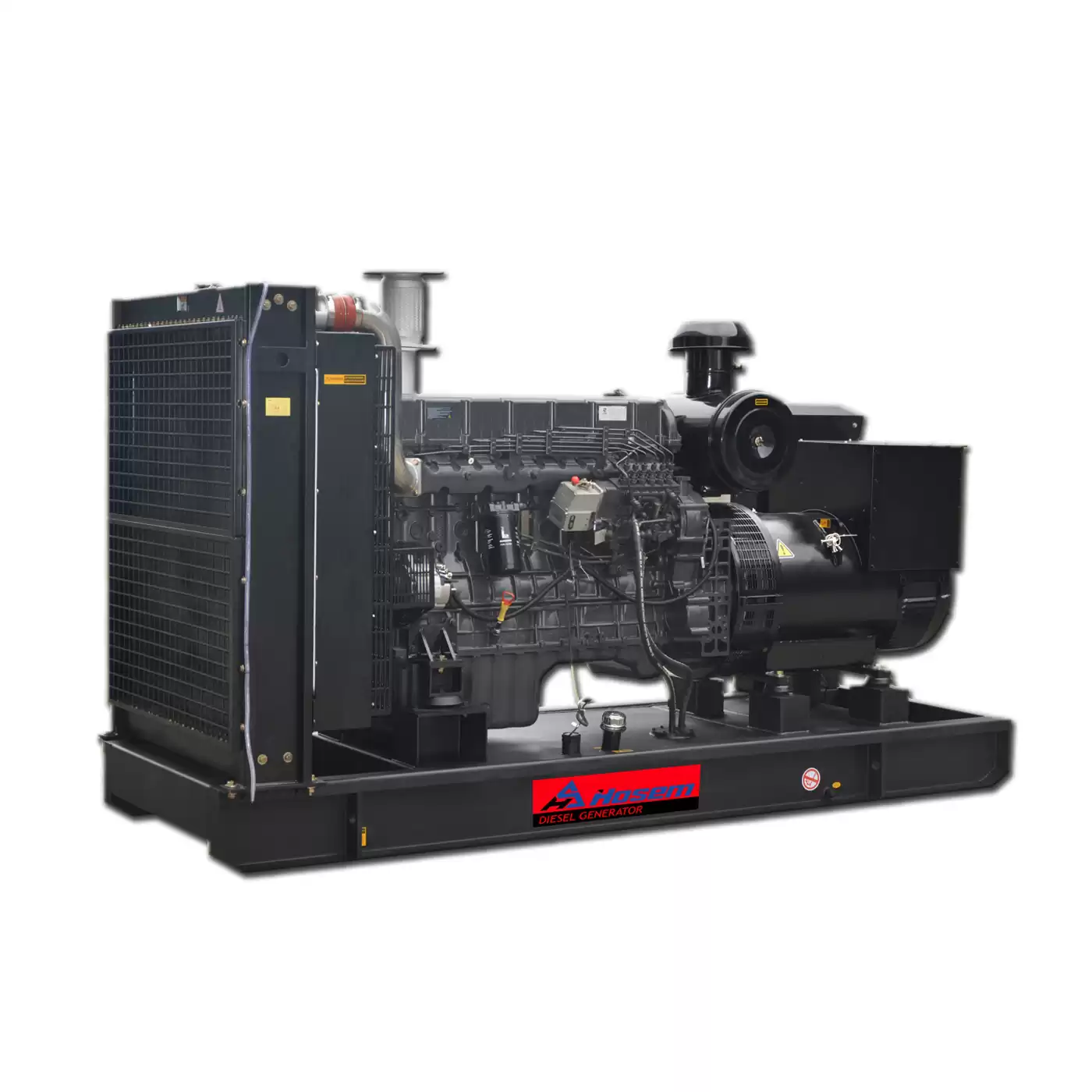

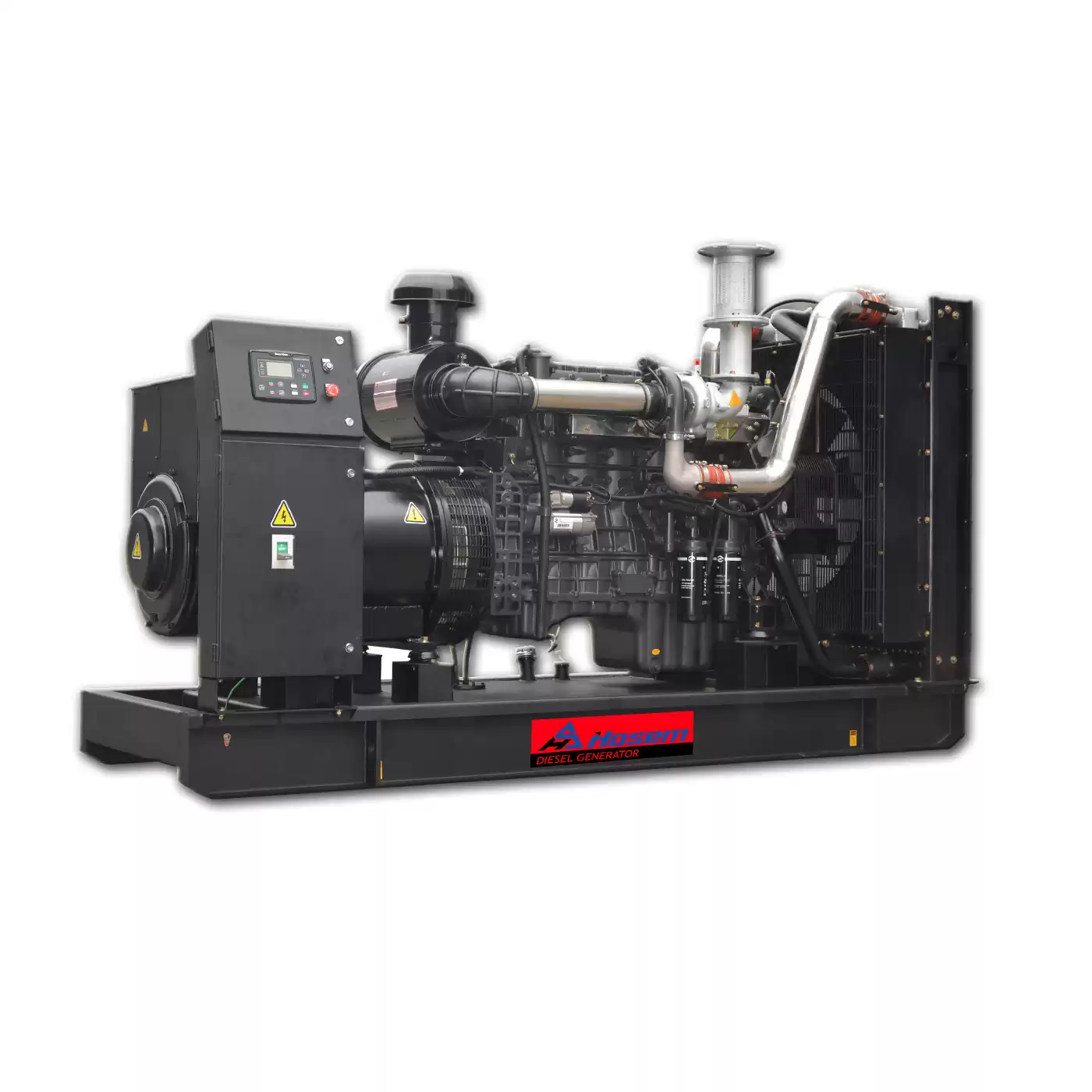

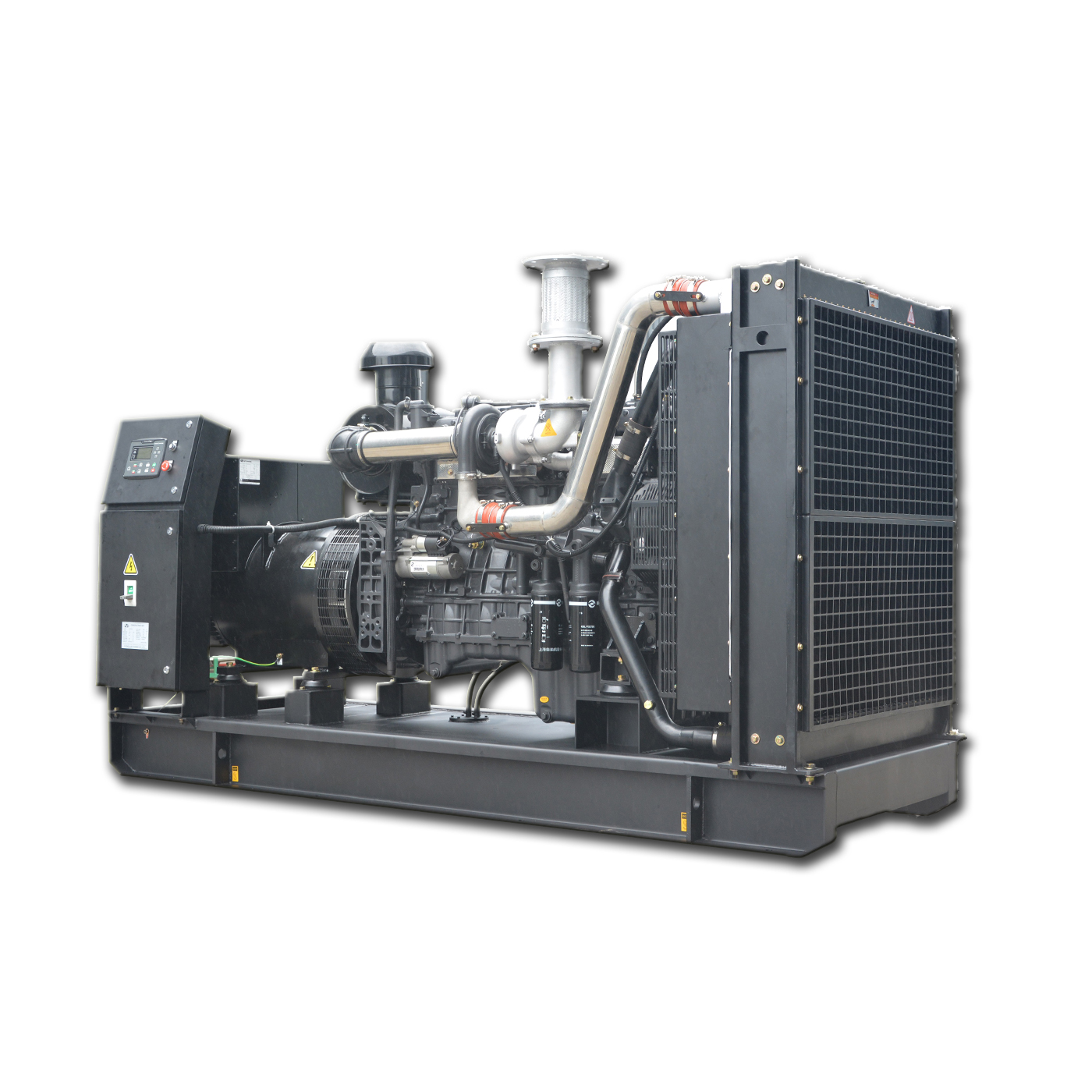

Open Type Diesel Generator Powered by SDEC
- Assembly by SDEC brand new engine and brand new single bearing alternator with IP23, class H. Options alternator Brands: Stamford, Leroy Somer, Marathon, Mecc Alte, Hosem, etc.
- Heavy-duty steel as the base plate with 8 hours operation fuel tank.
- The extremely low noise level, the canopy is made of 2mm cold-rolled sheet, filled with 3cm thick flame retardant muffler cotton, complete gen-set with heavy-duty industrial type silencer with flexible bellow and elbow.
- Vibration damper between engine/alternator and base frame
- 3-pole circuit breaker.
- Options Controller brands: UK Deepsea, Czech ComAp, CN Smartgen etc.
- Full range protect function and alarm shutdown feature
- Comply with ISO8528 national standard and ISO9001 quality standard.
Model | Standby Power | Prime Power | Engine Model | Dimension (Open Type) | Weight | Datasheet | ||
kVA | kW | kVA | kW | LXWXH(MM) | KG | |||
A-SH76 | 76 | 61 | 69 | 55 | SC4H95D2 | 1950x900x1350 | 970 | Download |
A-SH95 | 95 | 75 | 85 | 68 | SC4H115D2 | 1950x900x1350 | 1020 | Download |
A-SH125 | 125 | 100 | 113 | 90 | SC4H160D2 | 2150x900x1420 | 1200 | Download |
A-SH138 | 138 | 110 | 125 | 100 | SC4H180D2 | 2150x900x1420 | 1300 | Download |
A-SH176 | 176 | 141 | 160 | 128 | SC7H220D2 | 2450x950x1450 | 1470 | Download |
A-SH190 | 190 | 150 | 170 | 136 | SC7H230D2 | 2450x950x1450 | 1650 | Download |
A-SH206 | 206 | 165 | 188 | 150 | SC7H250D2 | 2450x950x1450 | 1750 | Download |
A-SH220 | 220 | 176 | 200 | 160 | SC8D280D2 | 2450x1100x1450 | 1800 | Download |
A-SH250 | 250 | 200 | 225 | 180 | SC9D310D2 | 2450x1100x1450 | 1900 | Download |
A-SH275 | 275 | 220 | 250 | 200 | SC9D340D2 | 2450x1100x1450 | 2000 | Download |
A-SH303 | 303 | 242 | 275 | 220 | SC10E380D2 | 2750x1150x1560 | 2100 | Download |
A-SH345-1 | 345 | 275 | 313 | 250 | SC12E420D2 | 3080x1200x1650 | 2650 | Download |
A-SH345-2 | 345 | 275 | 313 | 250 | SC13G420D2 | 3080x1200x1650 | 2750 | Download |
A-SH385 | 385 | 308 | 350 | 280 | SC12E460D2 | 3080x1200x1650 | 2850 | Download |
A-SH413 | 413 | 330 | 375 | 300 | SC15G500D2 | 3280x1200x1650 | 2850 | Download |
A-SH481 | 481 | 385 | 438 | 350 | SC25G610D2 | 3280x1200x1650 | 3200 | Download |
A-SH550 | 550 | 440 | 500 | 400 | SC25G690D2 | 3600x1800x2150 | 3800 | Download |
A-SH620 | 620 | 495 | 563 | 450 | SC27G755D2 | 3600x1800x2150 | 4250 | Download |
A-SH688 | 688 | 550 | 625 | 500 | SC27G830D2 | 3600x1800x2150 | 4350 | Download |
A-SH743 | 743 | 594 | 675 | 540 | SC27G900D2 | 3600x1800x2150 | 4550 | Download |
A-SH825 | 825 | 660 | 750 | 600 | SC33W990D2 | 4228x1740x2341 | 5900 | Download |
A-SH963 | 963 | 770 | 875 | 700 | SC33W1150D2 | 4228x1740x2341 | 6250 | Download |
A-SH62 | 62 | 50 | 56 | 45 | 4HT4.3-G21 | 1950x900x1350 | 1250 | Download |
A-SH76 | 76 | 61 | 69 | 55 | 4HT4.3-G22 | 1950x900x1350 | 1280 | Download |
A-SH95 | 95 | 75 | 85 | 68 | 4HT4.3-G23 | 1950x900x1350 | 1350 | Download |
A-SH110 | 110 | 88 | 100 | 80 | 4HTAA4.3-G21 | 1950x900x1350 | 1520 | Download |
A-SH125 | 125 | 100 | 113 | 90 | 4HTAA4.3-G23 | 2150x900x1420 | 1650 | Download |
A-SH138 | 138 | 110 | 125 | 100 | 4HTAA4.3-G22 | 2150x900x1420 | 1800 | Download |
A-SH151 | 151 | 121 | 138 | 110 | 6HTAA6.5-G21 | 2250x900x1420 | 1500 | Download |
A-SH165 | 165 | 132 | 150 | 120 | 6HTAA6.5-G22 | 2250x900x1420 | 1610 | Download |
A-SH206 | 206 | 165 | 188 | 150 | 6HTAA6.5-G23 | 2250x900x1420 | 1700 | Download |
A-SH220 | 220 | 176 | 200 | 160 | 6DTAA8.9-G21 | 2750x1350x840 | 2400 | Download |
A-SH250 | 250 | 200 | 225 | 180 | 6DTAA8.9-G24 | 2750x1350x840 | 2450 | Download |
A-SH275 | 275 | 220 | 250 | 200 | 6DTAA8.9-G23 | 2750x1350x840 | 2500 | Download |
A-SH385 | 385 | 308 | 350 | 280 | 6ETAA11.8-G21 | 3200x1350x1840 | 3200 | Download |
A-SH413 | 413 | 330 | 375 | 300 | 6ETAA11.8-G31 | 3200x1350x1840 | 3500 | Download |
A-SH440 | 440 | 352 | 400 | 320 | 6ETAA12.8-G32 | 3200x1350x1840 | 3800 | Download |
A-SH500 | 500 | 400 | 450 | 360 | 6ETAA12.8-G31 | 3200x1350x1840 | 4200 | Download |
A-SH550 | 550 | 440 | 500 | 400 | 6KTAA25-G36 | 3600x1800x2160 | 4500 | Download |
A-SH633 | 633 | 506 | 575 | 460 | 6KTAA25-G35 | 3600x1800x2160 | 4850 | Download |
A-SH701 | 701 | 561 | 638 | 510 | 6KTAA25-G34 | 3600x1800x2160 | 4900 | Download |
A-SH756 | 756 | 605 | 688 | 550 | 6KTAA25-G33 | 3600x1800x2160 | 5100 | Download |
A-SH825 | 825 | 660 | 750 | 600 | 6KTAA25-G32 | 3600x1800x2160 | 5350 | Download |
A-SH895 | 895 | 715 | 815 | 650 | 6KTAA25-G31 | 3600x1800x2160 | 5600 | Download |
A-SH1000 | 1000 | 800 | 910 | 728 | 6WTAA35-G32 | 3650x1800x2160 | 6000 | Download |
A-SH1100 | 1100 | 880 | 1000 | 800 | 6WTAA35-G31 | 3650x1800x2160 | 6050 | Download |
