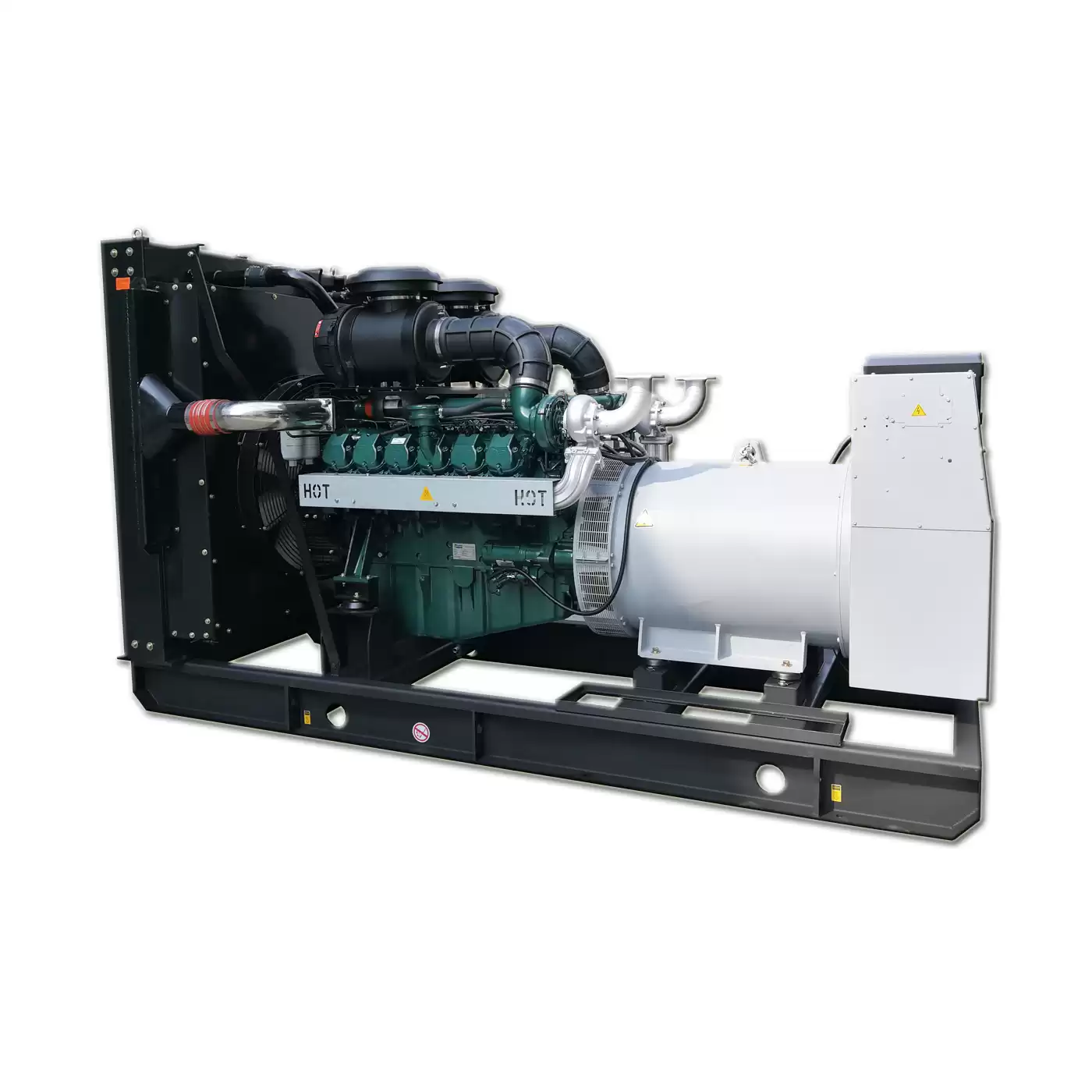

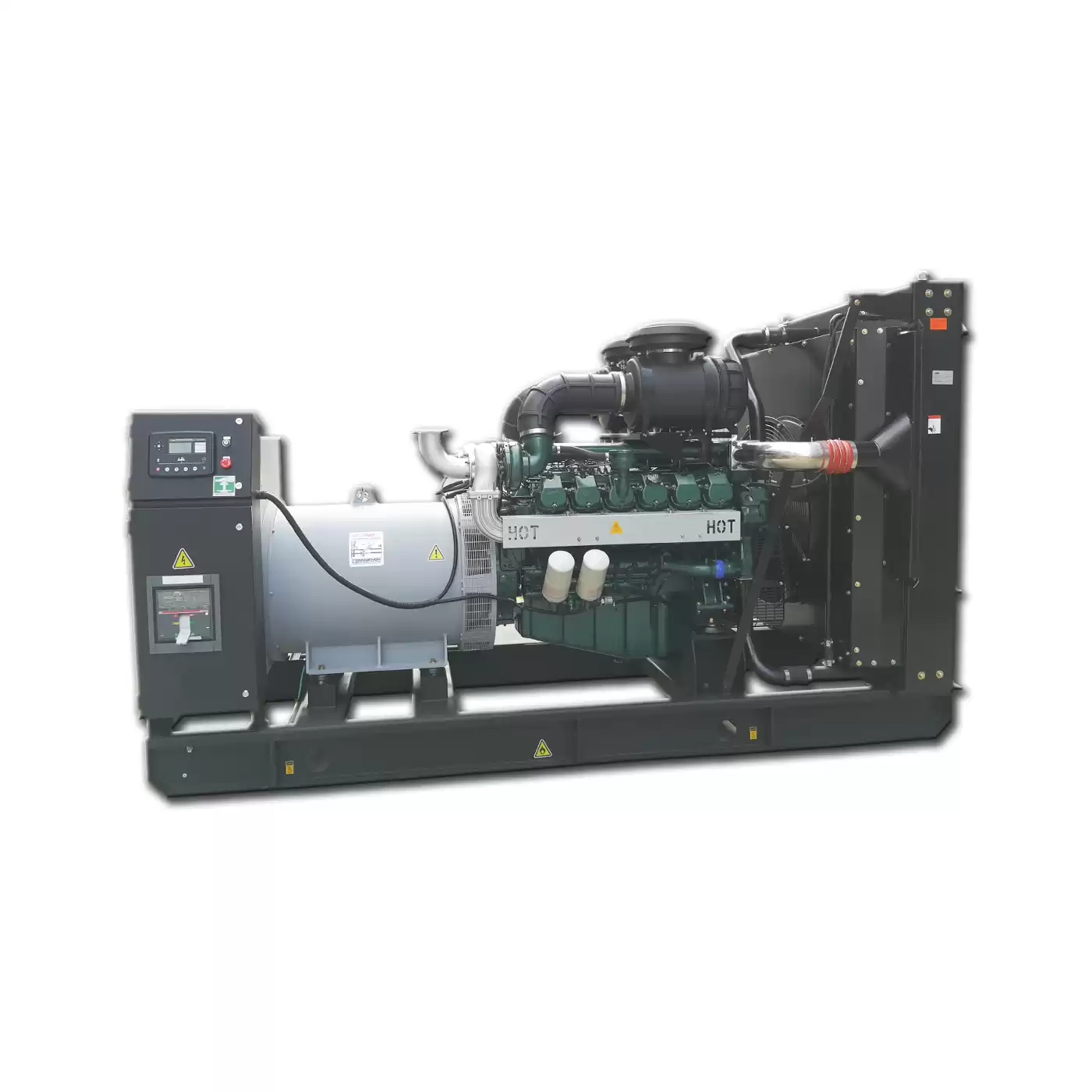

Open Type Diesel Generator Set Powered by Doosan

  1. Assembly by Cummins brand new engine and brand new single bearing alternator with IP23, class H. Options alternator Brands: Stamford, Leroy Somer, Marathon, Mecc Alte, Hosem, etc.
  2. Heavy-duty steel as the base plate with 8 hours operation fuel tank.
  3. The extremely low noise level, the canopy is made of 2mm cold-rolled sheet, filled with 3cm thick flame retardant muffler cotton, complete gen-set with heavy-duty industrial type silencer with flexible bellow and elbow.
  4. Vibration damper between engine/alternator and base frame
  5. 3-pole circuit breaker.
  6. Options Controller brands: UK Deepsea, Czech ComAp, CN Smartgen etc.
  7. Full range protect function and alarm shutdown feature
  8. Comply with ISO8528 national standard and ISO9001 quality standard.



Model Standby Power  Prime Power Engine Model Dimension (Silent Type) Weight Datasheet
kVA kW kVA kW LXWXH(MM) KG
A-D164 164 131 149 119 DP086TA 2750x1080x1300 2500 Download
A-D185 185 148 168 134 P086TI-1 2800x1080x1500 2560 Download
A-D220 220 176 200 160 P086TI 3100x1200x1700 2690 Download
A-D252 252 202 229 183 DP086LA 3100x1200x1700 2850 Download
A-D300 300 240 273 218 P126TI 3700x1300x1700 3220 Download
A-D330 330 264 300 240 P126TI-II 3700x1300x1700 3350 Download
A-D400-1 400 320 365 292 DP126LB 3700x1300x1700 3400 Download
A-D400-2 400 320 365 292 P158LE-1 3700x1650x2050 3400 Download
A-D448 448 359 408 326 P158LE 3700x1650x2050 3560 Download
A-D509 509 407 463 370 DP158LC 3700x1650x2050 5500 Download
A-D582 582 465 529 423 DP158LD 3700x1650x2050 5800 Download
A-D631 631 505 574 459 DP180LA 4050x1650x2150 6100 Download
A-D700 700 560 636 509 DP180LB 4050x1650x2150 6200 Download
A-D756 756  605  688  550  DP222LC 4250x1650x2250 6350 Download
A-D825 825  660  750  600  DP222CA-2 4250x1650x2250 6800 Download
A-D840-1 840  671  763  610  DP222CB-2 6058x2438x2591 7000 Download
A-D840-2 840  671  763  610  DP222CB 6058x2438x2591 7000 Download
A-D895-1 895  715  813  650  DP222CC 6058x2438x2591 7200 Download
A-D895-2 895  715  813  650  DP222CC-2 6058x2438x2591 7200 Download
A-D1000 1000 800  909 727 DP222CC 6058x2438x2591 7500 Download
A-D1000 1000 800 909 727 DP222CC-2 6058x2438x2591 7500 Download
