SZOPT(CHINAOPT GROUP) Communication Co.,Ltd focus on FTTH,FTTX,FTTA,Datacenter , 4G & 5G Networks with rich experienced OEM & ODM since 2006,our main products cover the key products of optical communications, such as Optical Cables, Lan Cables,Fiber Optic Patchcords, MPO/MTP Assemblies,Fast Connectors,ODF,PLC Splitters,FBT Splitters, CWDM,DWDM,AOC & DAC ,Transceivers,etc.

All products

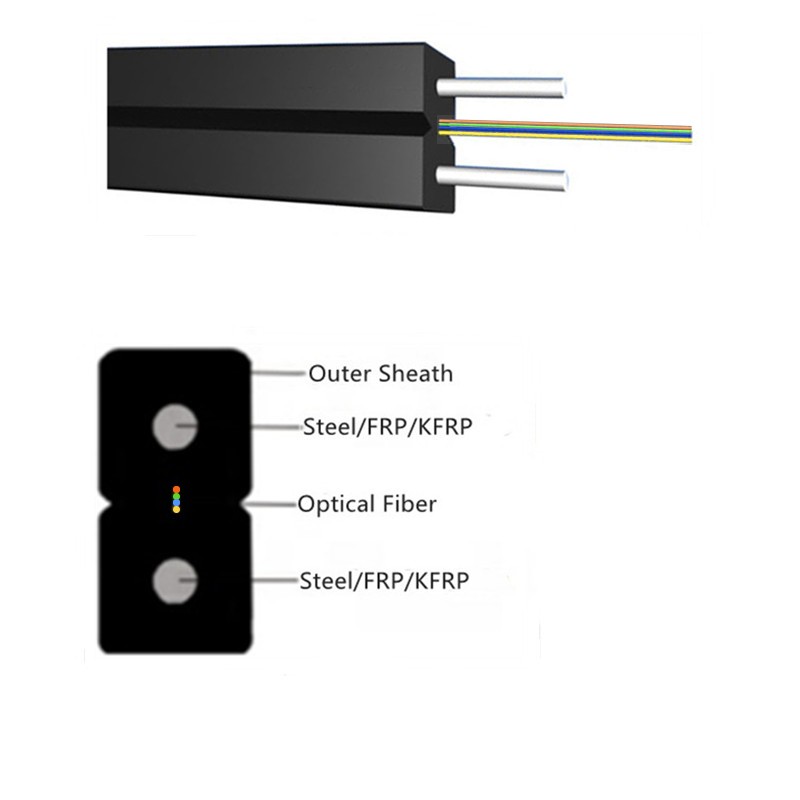

Ftth Flat Drop Cable Steel/FRP/KFRP 1Core 2Core 4Core for Indoor

It's also called butterfly drop cable or bow-type ftth drop cable,the outer jacket is black or white in PVC/LSZH for indoor,the dimension of the cable is:3.0x2.0mm(1-2core) or 3.5x2.0mm(4core),the option for strength member is:Steel/FRP/KFRP,the option for the fiber is:G652D/G657a1/G657a2 or custom.

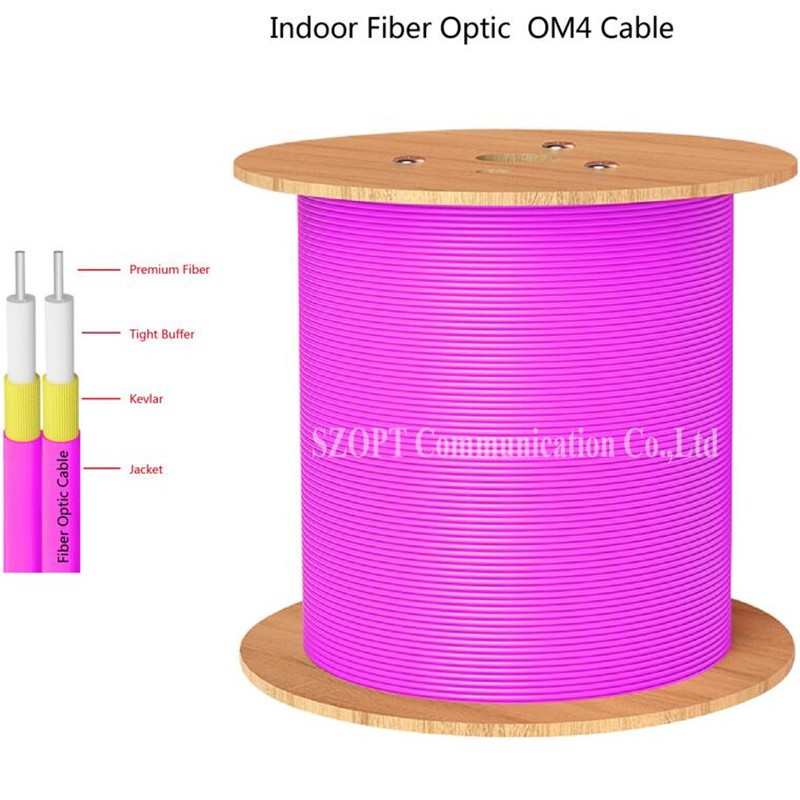

Indoor Optical Cable Simplex Duplex Singlemode Multimode

SZOPT provides indoor optical cables with fiber of SM(G652D/G657/G655) and MM(OM1/OM2/OM3/OM4/OM5),the outer sheath is PVC/LSZH or custom,the outer diameter can be custom,the cable can be tight buffered or loose biffered,please reach us with your detail requirement.

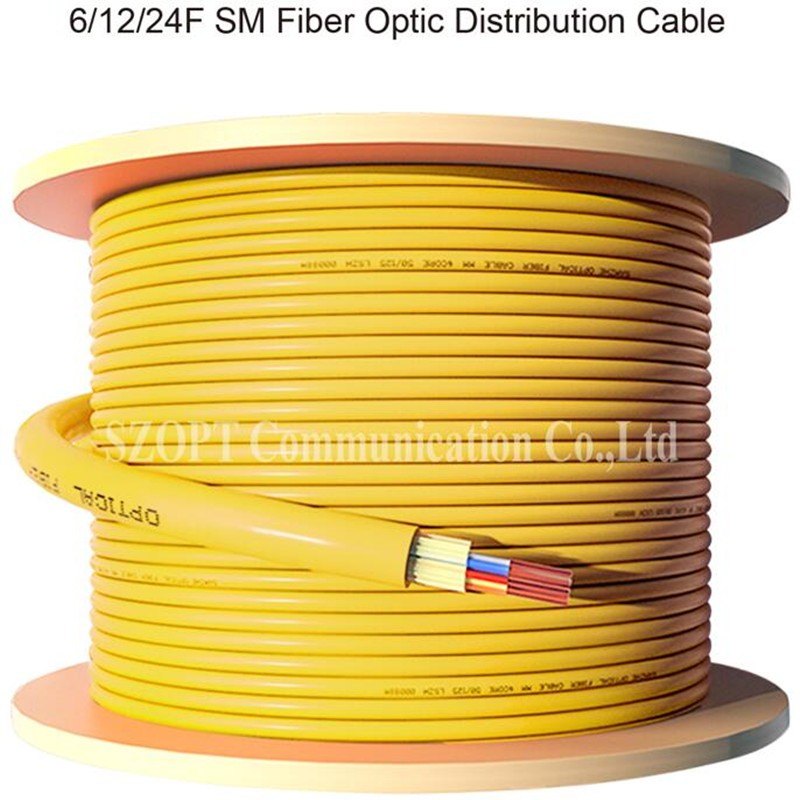

Indoor Optical Cable 6/12/24/48C Distribution Singlemode Multimode

SZOPT provides multicore indoor optical cables with fiber of SM(G652D/G657/G655) and MM(OM1/OM2/OM3/OM4/OM5),the outer sheath is PVC/LSZH/OFNR/OFNP or custom,the outer diameter can be custom,the cable can be tight buffered or loose biffered,please reach us with your detail requirement.

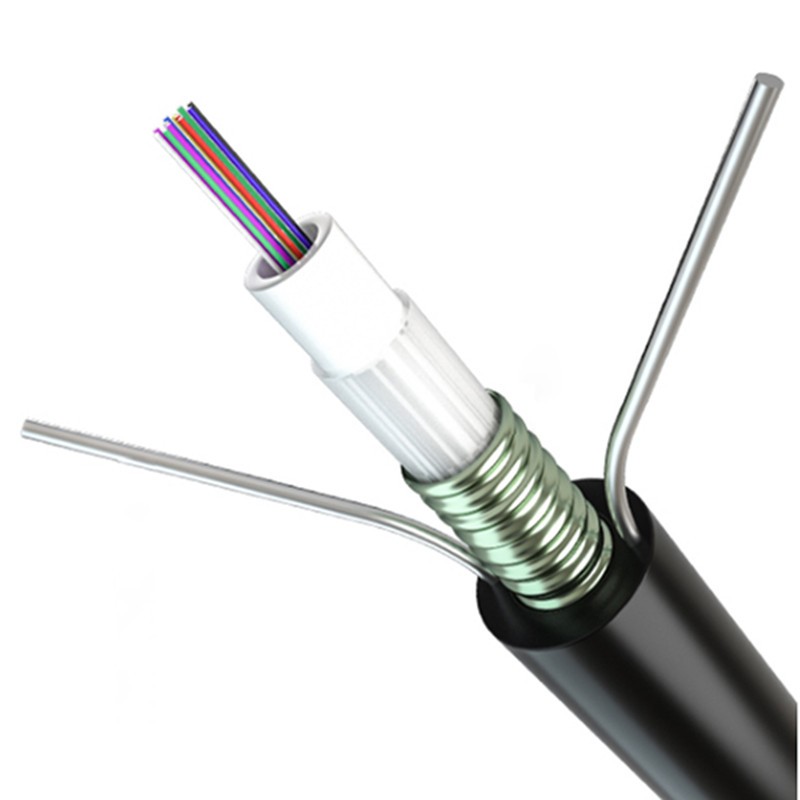

Central Loose Tube Outdoor Cable GYXTW up to 144C

SZOPT‘s GYXTW is a type of outdoor cable with fibers positioned in a loose tube made of a high modulus plastic,the tubes are filled with a water-resistant filling compound aslso wrapped with a layer of corrugated steel tape.Between the corrugated steel tape and the loose tube water-blocking materials is applied to keep the cable compact and watertight.

Loose Tube Outdoor Cable GYTS/GYTA up to 144C

GYTS/GYTA cable is a type of the outdoor cable used for duct and direct buried applications with corrugated steel tape or aluminum tape. SZOPT supplies both single mode and multimode GYTS cables.PBT loose tube has 2-12 fibers, The central Strength member is: steel wire. It has a Filling Compound; Longitudinal corrugated steel tape laminated with polyethylene on both sides. Consequently.

All-dielectric Self-supporting ADSS cable up to 144C

ADSS is the short form of All-dielectric Self-supporting,ADSS cable is a type of fiber optic cable that is strong enough to support itself between structures without containing conductive metal elements. The fibers can be arranged in ADSS cables with a maximum of 144 fibers. ADSS fiber optic cable is designed for outside plant aerial and duct applications in local and campus network loop architectures from pole-to-building to town-to-town installations. The cabling system that includes cables, suspension, dead-end, and termination enclosures offers a comprehensive transmission circuit infrastructure with high-reliability performance.

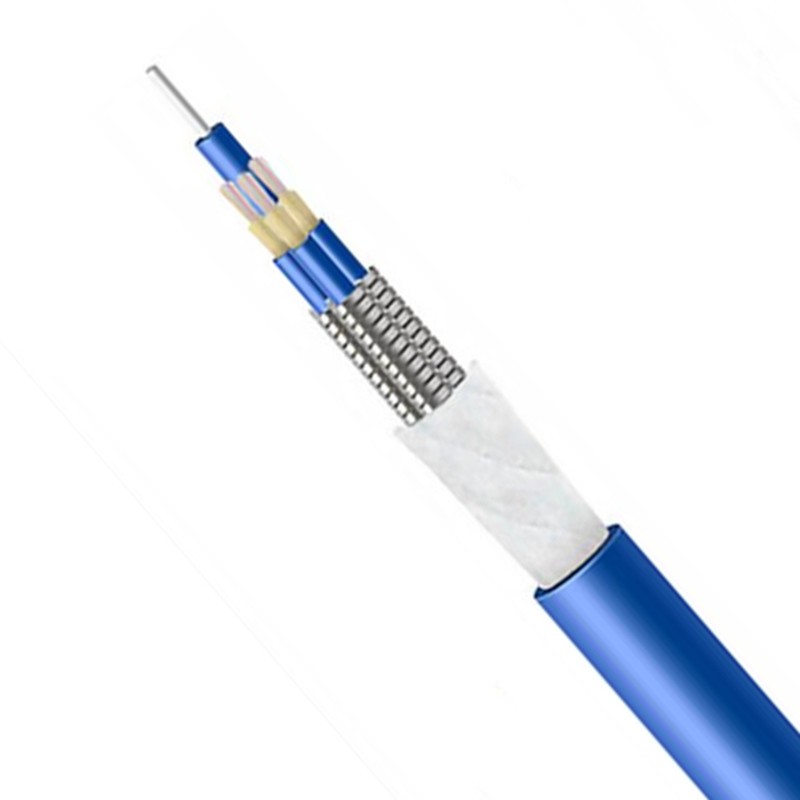

Indoor Optical Armored Cable Singlemode Multimode

Armored fiber optic cable consists of a cable surrounded by a steel tube to protect it from moisture and abrasion. Such armored cable can be much stronger than regular indoor cable due to its high tensile force.SZOPT offers both singlemode and multimode armored cable with outer sheath of yellow,blue,beige or custom.Please reach us for details.

Central Loose Tube Outdoor Cable GYXTW53 up to 144C

SZOPT‘s GYXTW53 is a type of outdoor cable with fibers positioned in a loose tube made of a high modulus plastic,the tubes are filled with a water-resistant filling compound aslso wrapped with two layers of corrugated steel tapes.Between the corrugated steel tape and the loose tube water-blocking materials is applied to keep the cable compact and watertight.

Standard Double Armored Sheath Outdoor Cable GYTY53/GYTS53

Our GYTY53/GYTS53 cable, available for singlemode & multimode,the fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound.Tubes and fillers are stranded around the strength member into a circular cable core. Then the cable is completed with a PE sheath. Which is filled with the filling compound to protect it. After PSP is applied over the inner sheath, the cable is completed with a PE outer sheath.

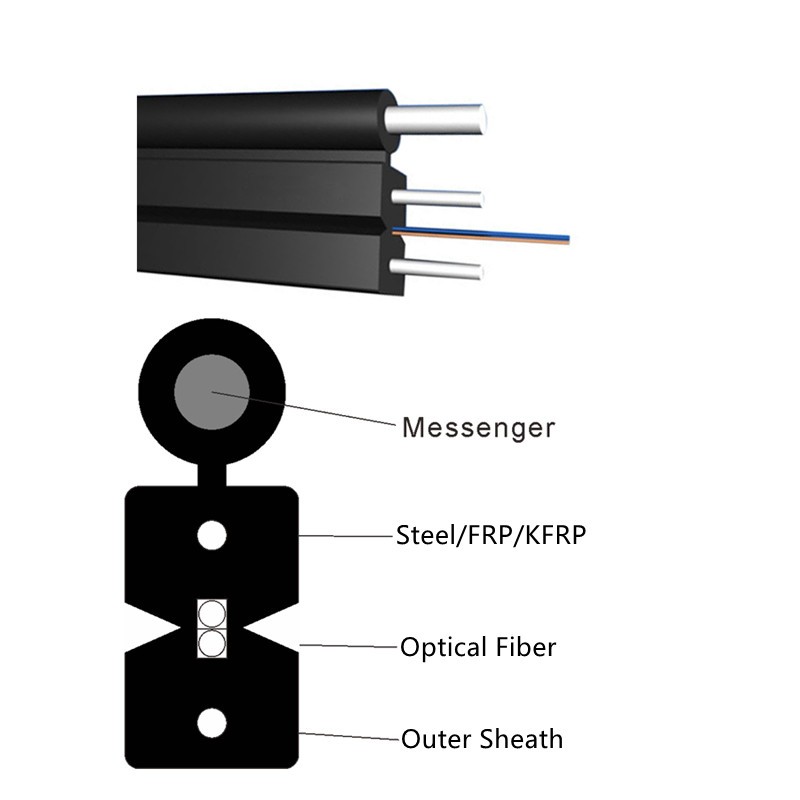

FTTH Self-supporting Drop Cable 1C 2C 4C 6C 8C 12C for Outdoor

It's also called butterfly drop cable or bow-type ftth drop cable,the outer jacket is black in PVC/LSZH for outdoor,the dimension of the cable is:5.0x2.0mm,the option for strength member is:Steel Wire/FRP/KFRP,the option for the fiber is:G652D/G657a1/G657a2 or custom.

Fiber Optical Ftth Pipeline Drop Cable

It's also called duct ftth drop cable,the outer jacket is black in PE or custom,the dimension of the cable is:7.0mm,the option for strength member is:Steel/FRP/KFRP,the option for the fiber is:G652D/G657a1/G657a2 or custom.

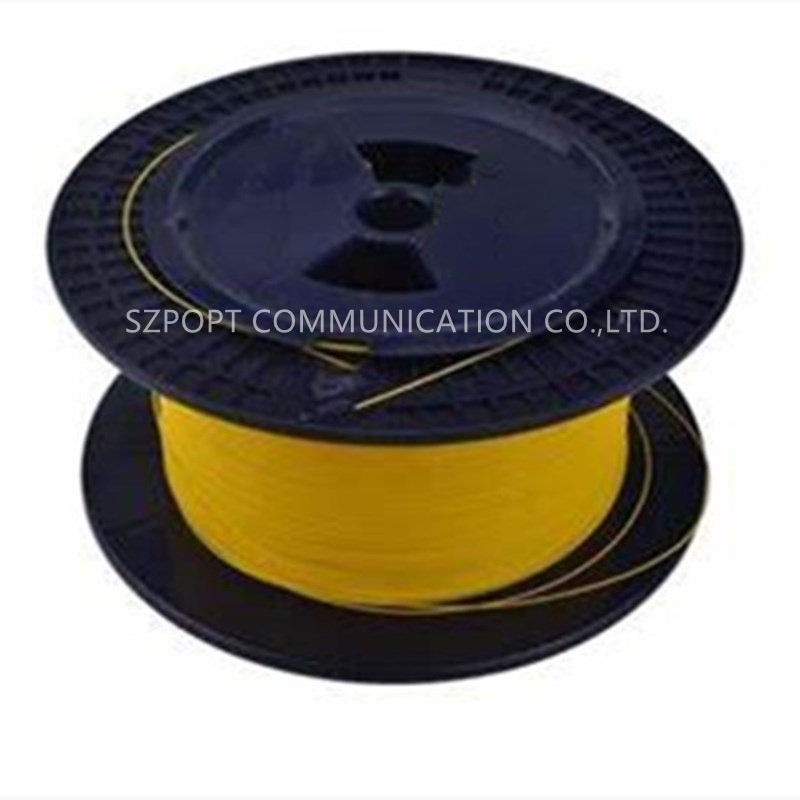

Bare Fiber/Tight Buffer Optical Cable Singlemode Multimode

SZOPT provides all kinds of bare fiber optical cables and tight buffer optical cable,the fiber can be SM(G652D/G657/G655) and MM(OM1/OM2/OM3/OM4/OM5),the outer sheath is PVC/LSZH or custom.
