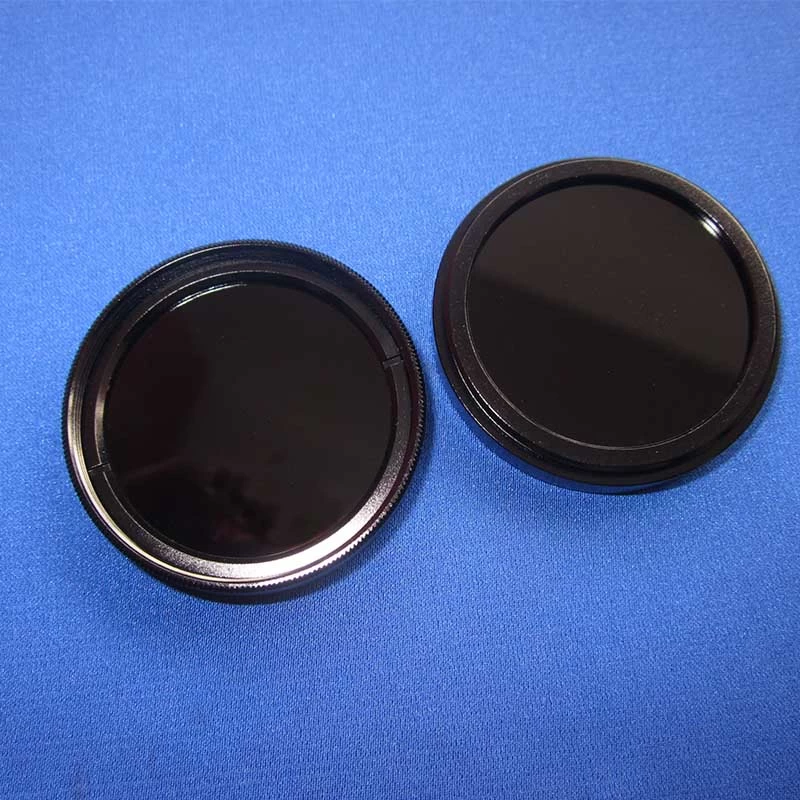

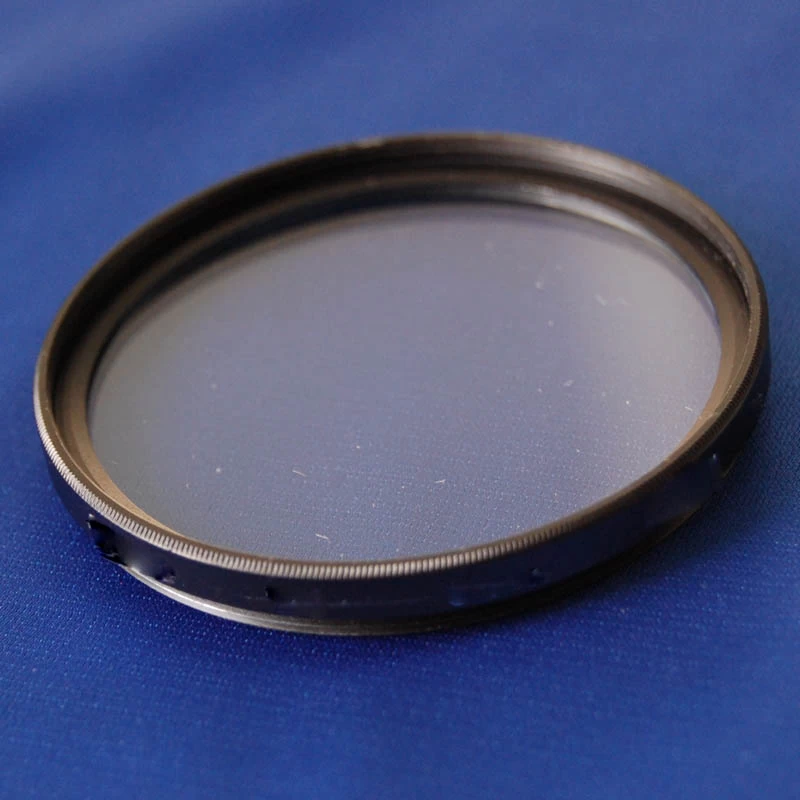

Optical Coated Bandpass Filters
Bandpass filters are allow special wavelength for transmission and block all other wavelength light.
WTS make customized Narrow Band Pass Filters, UV Band Pass Filters and IR Band Pass Filters.
|
Specifications:
|
|
|
|
Material:
|
Optical glass,UVFS, Si, etc.
|
|
|
Size Tolearnce
|
+/-0.1mm
|
|
|
Surface Quality
|
40/20~80/50
|
|
|
CWL
|
220nm-1200nm
|
1200nm-6000nm
|
|
CWL Tol.
|
+/-3nm-5nm
|
+/-10nm-50nm
|
|

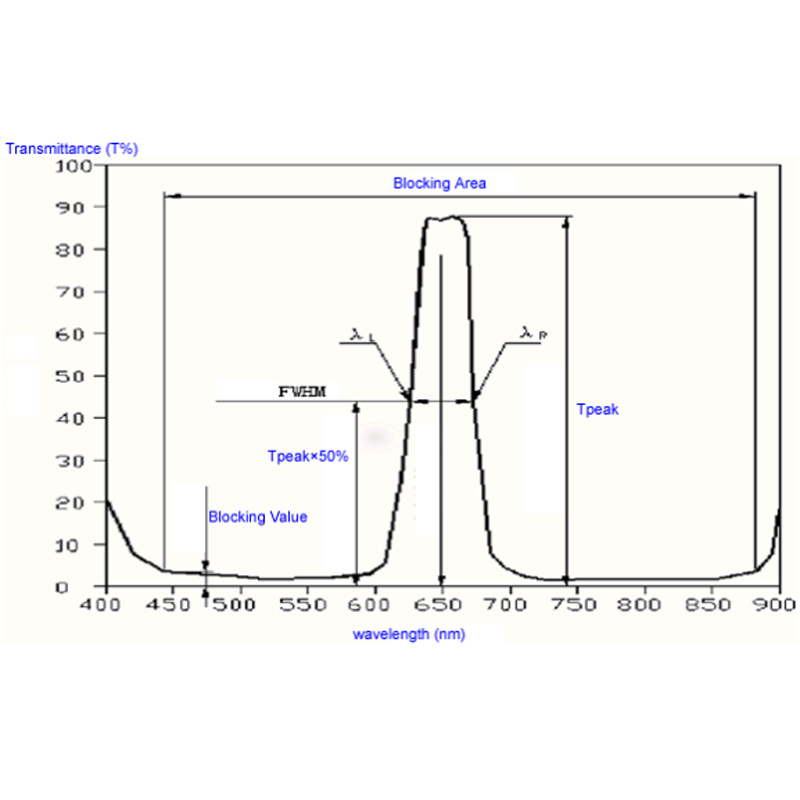

FWHM
|
10nm-40nm
|
50nm-200nm
|
|
FWHM Tol.
|
+/-3nm-10nm
|
+/-10nm-80nm
|
|
Blocking
|
OD4@200-1200nm
|
OD2@400-6000nm
|
|
Tpeak
|
T≥30%-98%
|
|
