/Products Features/

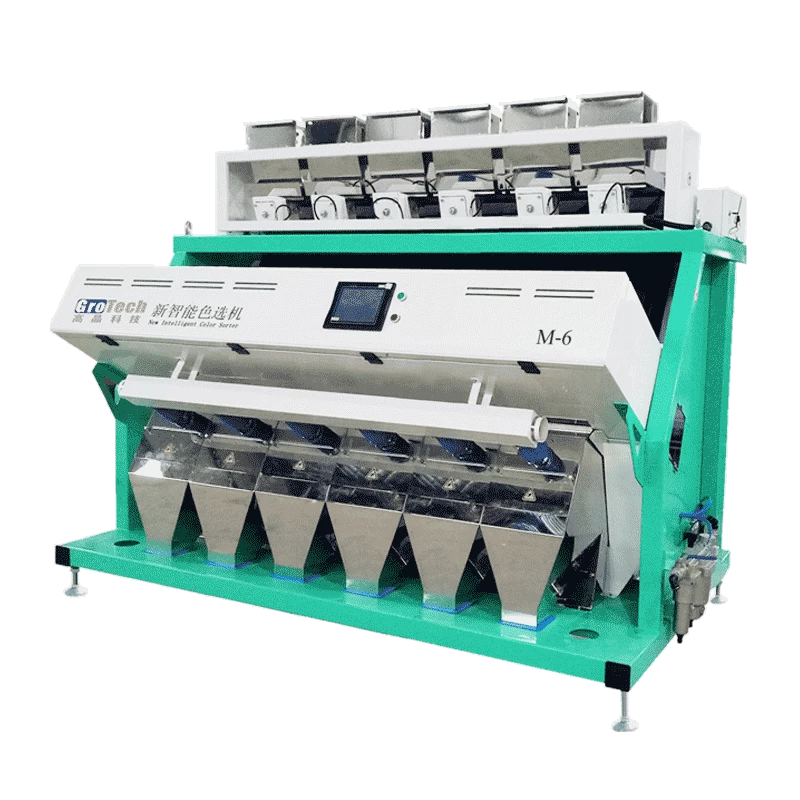

Grotech New Intelligent Color Sorter Machine Rice Color Sorter
*Optical Sorting With High Resolution 4096 Pixel CCD Camera,High Reliability And Long Life LED Light Source;
*Efficient And Stable Software System, Intelligent Algorism, User Friendly Interface;
*Better Sorting Accuracy , Lower Carryover, And Bigger Production Capacity;
*SOC Platform To Realize Stable, Reliable, Ultra-Fast Mass Data Processing;
*Rice Colour Sorter Machine With Expert Sorting Solution Realizes One Key Debugging
*Remote Debugging, Diagnosing And Maintenance. Four Core Technologies To Ensure Your Operations
/Parameter Table/
|
Model
|
MinA 32
|
M1
|
M2
|
M3
|
M4
|
M5
|
M6
|
M7
|
M8
|
M10
|
M12
|
|
Executing Unit
|
32
|
64
|
128
|
192
|
256
|
320
|
384
|
448
|
512
|
640
|
768
|
|
Throughput(T/H)
|
0.08-0.5
|
0.5-2.0
|
1.0-3.0
|
2.0-6.0
|
3.0-8.0
|
5.0-10.0
|
7.0-12.0
|
9.0-14.0
|
11.0-16.0
|
13.0-20.0
|
14.0-24.0
|
|
Voltage(V)
|
110-250V(50-60HZ)
|
|
Power(KW)
|
1
|
1
|
1.4
|
1.8
|
2.2
|
2.6
|
3
|
3.5
|
4
|
5
|
6
|
|
Weight(KG)
|
140
|
210
|
350
|
600
|
750
|
880
|
1050
|
1150
|
1250
|
1400
|
1650
|
|
Dimension(L*W*H/mm)
|
1320*540*1130
|
960*1630*2050
|
1340*1630*2050
|
1610*1630*2050
|
1965*1630*2050
|
2225*1630*2050
|
2592*1630*2050
|
2980*1630*2050
|
3068*1630*2050
|
2980*2116*1990
|
2980*2430*1990
|
|
Sorting Accuracy(%)
|
≥99.99
|
|
Rejection Rate(%)
|
≥10:1
|
|
Air Consumption(L/min)
|
200-600
|
400-800
|
600-1000
|
800-1600
|
1000-1800
|
1300-2200
|
1500-3000
|
1800-3600
|
2200-4000
|
2400-4500
|
2700-5000
|
|
Notes
|
Subject to different impurities of raw materials,parameters listed in above table will charge to some extent
|
/Sorting Results/
/Sorting Examples/
