Optical Glass Plano-Concave Lenses
1. Beam expansion
2. Light projection
3. Expanding an optical system’s focal length
Plano-Concave Lenses are with negative focal lengths and they can be used to diverge collimated beams; in this case, the curved surface should face the source in order to minimize spherical aberration. In addition, they can be employed to offset the effects of spherical aberration caused by other lenses in an optical system. Because the spherical aberration of the Plano-Concave is negative, it can be used to balance the aberration of other lenses.
WTS offer N-BK7 Plano-Concave Lenses, Fused silica Plano-Concave Lenses, Calcium Fluoride Plano-Concave Lenses etc.
Material:
|
Grade A optical glass, UV, VIS, IR material
|
Dimension Tolerance:
|
±0.1mm(Standard), ±0.05mm(High Precision)
|
Center Thickness Tolerance:
|
±0.1mm(Standard), ±0.05mm(High Precision)
|
Paraxial Focal Length:
|
±2%
|
Surface quality:
|
60/40(Standard), 20/10(High Precision)
|
Clear Aperture:
|
>85%
|
Surface Figure:
|
λ/2(Standard), λ/4(High Precision) @633nm
|
Centration:
|
3 arc minutes
|
Bevel:
|
<0.25mm×45°
|
Coating:
|
Upon requirement
|
A

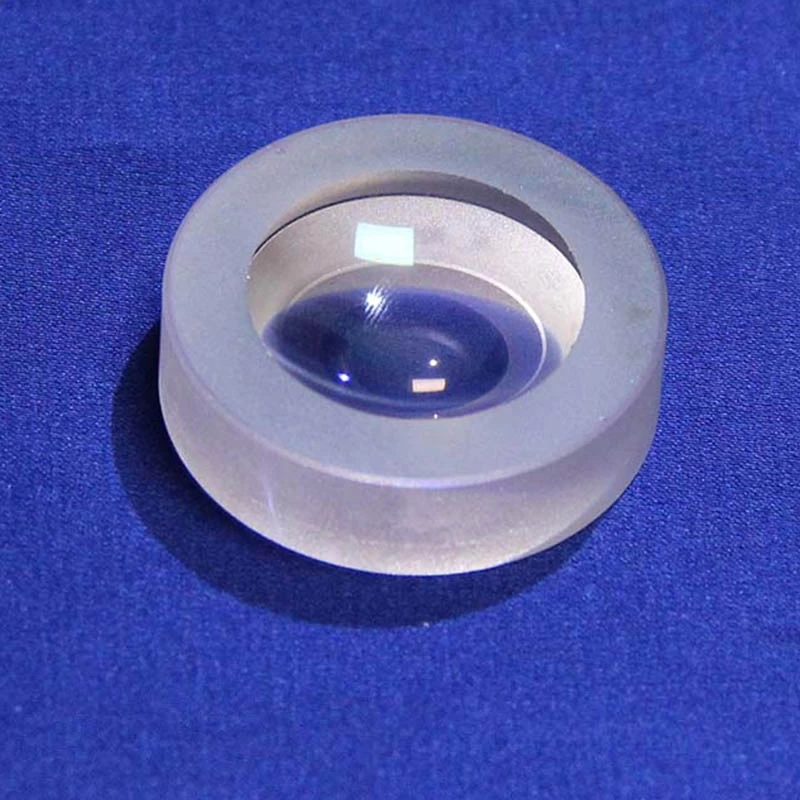

plano concave lens is an optical lens with one concave surface and one
flat surface. Optical Glass Plano-Concave Lenses has a negative focal
length, and can be used for light projection, beam expansion, or to
increase focal length of an optical system.
|
Typical Sizes
|
|
|
|
|
|
|
|
Item No.
|
Diameter (mm)
|
f(mm)
|
R(mm)
|
Tc(mm)
|
Te(mm)
|
Fb(mm)
|
|
Material
|
N-BK7
|
|
PLCV001
|
6
|
-12
|
6.22
|
2
|
2.77
|
-13.31
|
|
PLCV002
|
6
|
-24
|
12.44
|
2
|
2.37
|
-25.31
|
|
PLCV101
|
12.7
|
-15
|
7.79
|
2
|
5.27
|
-16.35
|
|
PLCV102
|
12.7
|
-20
|
10.37
|
2
|
4.17
|
-21.32
|
|
PLCV103
|
12.7
|
-25
|
12.97
|
2
|
3.7
|
-26.33
|
|
PLCV104
|
12.7
|
-30
|
15.56
|
2
|
3.4
|
-31.31
|
|
PLCV105
|
12.7
|
-40
|
20.75
|
2
|
3
|
-41.32
|
|
PLCV106
|
12.7
|
-50
|
25.94
|
2
|
2.79
|
-51.33
|
|
PLCV107
|
12.7
|
-75
|
38.9
|
2
|
2.52
|
-76.31
|
|
PLCV108
|
12.7
|
-100
|
51.88
|
2
|
2.39
|
-101.33
|
|
PLCV201
|
25.4
|
-35
|
18.15
|
2
|
7.18
|
-36.32
|
|
PLCV202
|
25.4
|
-50
|
25.94
|
2
|
5.32
|
-51.33
|
|
PLCV203
|
25.4
|
-70
|
36.31
|
2
|
4.29
|
-71.32
|
|
PLCV204
|
25.4
|
-75
|
38.9
|
2
|
4.13
|
-76.31
|
|
PLCV205
|
25.4
|
-100
|
51.88
|
2
|
3.58
|
-101.33
|
|
PLCV206
|
25.4
|
-125
|
64.96
|
2
|
3.26
|
-126.36
|
|
PLCV207
|
25.4
|
-150
|
77.8
|
2
|
3.04
|
-151.3
|
|
PLCV208
|
25.4
|
-175
|
90.78
|
2
|
2.89
|
-176.32
|
|
PLCV209
|
25.4
|
-200
|
103.75
|
2
|
2.78
|
-201.33
|
|
PLCV210
|
25.4
|
-250
|
129.72
|
2
|
2.62
|
-251.39
|
|
PLCV211
|
25.4
|
-300
|
155.6
|
2
|
2.52
|
-301.29
|
|
PLCV212
|
25.4
|
-500
|
259.4
|
2
|
2.31
|
-501.39
|
|
PLCV213
|
25.4
|
-1000
|
518.7
|
2
|
2.16
|
-1001.28
|
|
PLCV301
|
30
|
-80
|
41.5
|
2
|
4.81
|
-81.32
|
|
PLCV302
|
30
|
-100
|
51.88
|
2
|
4.22
|
-101.33
|
|
PLCV303
|
30
|
-200
|
103.75
|
2
|
3.09
|
-201.33
|
|
PLCV304
|
38
|
-50
|
25.94
|
2
|
10.28
|
-51.33
|
|
PLCV305
|
38
|
-100
|
51.88
|
2
|
5.6
|
-101.33
|
|
PLCV306
|
38
|
-150
|
77.8
|
2
|
4.36
|
-151.3
|
|
PLCV307
|
38
|
-200
|
103.75
|
2
|
3.76
|
-201.33
|
|
PLCV308
|
38
|
-350
|
181.55
|
2
|
3
|
-351.31
|
|
PLCV309
|
38
|
-500
|
259.4
|
2
|
2.7
|
-501.39
|
|
PLCV310
|
38
|
-700
|
363.1
|
2
|
2.5
|
-701.31
|
|
PLCV401
|
40
|
-50
|
25.94
|
2
|
11.42
|
-51.33
|
|
PLCV501
|
50
|
-75
|
38.9
|
2
|
12.1
|
-76.97
|
|
PLCV502
|
50
|
-100
|
51.88
|
3
|
9.42
|
-101.99
|
|
PLCV503
|
50
|
-150
|
77.8
|
3
|
7.13
|
-151.96
|
|
PLCV504
|
50
|
-200
|
103.75
|
3
|
6.06
|
-201.99
|
|
PLCV505
|
50
|
-250
|
129.72
|
3
|
5.43
|
-252.05
|
|
PLCV506
|
50
|
-400
|
207
|
3
|
4.52
|
-401.03
|
|
PLCV507
|
50
|
-500
|
259.4
|
3
|
4.21
|
-502.05
|
|
PLCV508
|
50
|
-600
|
311.2
|
3
|
4.01
|
-601.91
|
|
PLCV509
|
50
|
-800
|
415
|
3
|
3.75
|
-802.02
|
|
Material
|
Fused Silica
|
|
PLCV-FS01
|
12.7
|
-15
|
6.92
|
2
|
6.17
|
-16.41
|
|
PLCV-FS02
|
12.7
|
-20
|
9.2
|
2
|
4.54
|
-21.38
|
|
PLCV-FS03
|
12.7
|
-25
|
11.51
|
2
|
3.91
|
-26.38
|
|
PLCV-FS04
|
12.7
|
-30
|
13.8
|
2
|
3.55
|
-31.37
|
|
PLCV-FS05
|
12.7
|
-40
|
18.41
|
2
|
3.13
|
-41.38
|
|
PLCV-FS06
|
25.4
|
-35
|
16.11
|
2
|
8.2
|
-36.36
|
|
PLCV-FS07
|
25.4
|
-50
|
23.01
|
2
|
5.82
|
-51.38
|
|
PLCV-FS08
|
25.4
|
-75
|
34.51
|
2
|
4.42
|
-76.38
|
|
PLCV-FS09
|
25.4
|
-100
|
46.03
|
2
|
3.79
|
-101.42
|
|
PLCV-FS10
|
25.4
|
-150
|
69.02
|
2
|
3.18
|
-151.39
|
|
PLCV-FS11
|
25.4
|
-175
|
80.54
|
2
|
3.01
|
-176.43
|
|
PLCV-FS12
|
25.4
|
-200
|
92.04
|
2
|
2.88
|
-201.42
|
|
PLCV-FS13
|
25.4
|
-250
|
115.08
|
2
|
2.7
|
-251.5
|
|
PLCV-FS14
|
25.4
|
-300
|
138.04
|
2
|
2.59
|
-301.41
|
|
PLCV-FS15
|
25.4
|
-500
|
230.1
|
2
|
2.35
|
-501.5
|
|
PLCV-FS16
|
25.4
|
-1000
|
460.1
|
2
|
2.18
|
-1001.42
|
|
PLCV-FS17
|
38
|
-50
|
23.01
|
3
|
13.03
|
-52.07
|
|
PLCV-FS18
|
38
|
-100
|
46.03
|
3
|
7.1
|
-102.1
|
|
PLCV-FS19
|
38
|
-150
|
69.02
|
3
|
5.67
|
-152.07
|
|
PLCV-FS20
|
38
|
-200
|
92.04
|
3
|
4.98
|
-202.11
|
|
PLCV-FS21
|
38
|
-350
|
161.06
|
3
|
4.13
|
-352.13
|
|
PLCV-FS22
|
38
|
-500
|
230.1
|
3
|
3.79
|
-502.19
|
