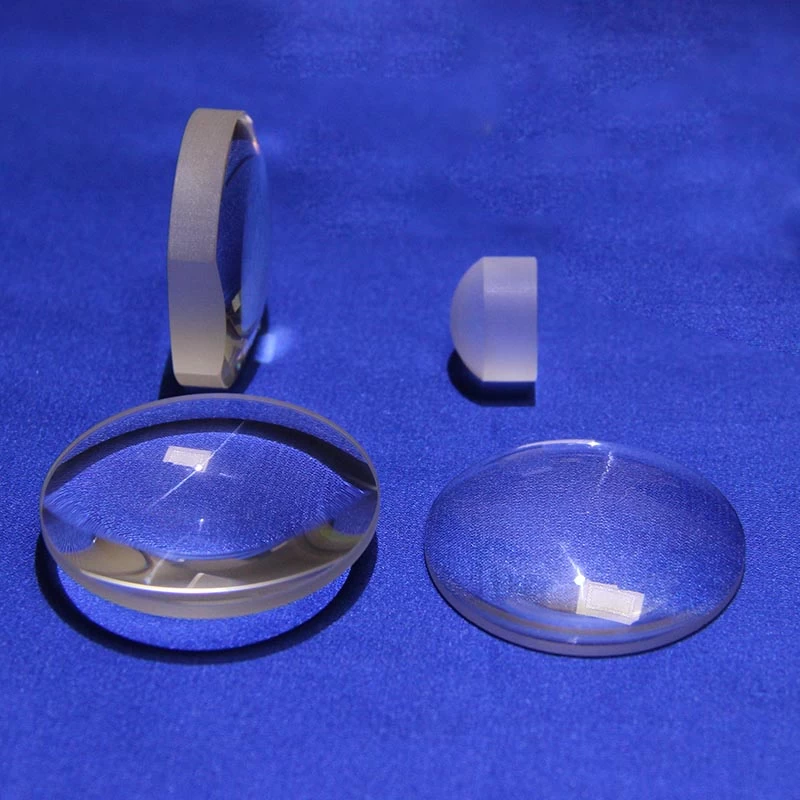

Optical Glass Plano-Convex Lenses
Plano-Convex Lenses is best used where one conjugate point (object distance S or image distance S' ) is more than five times the other. This lens shape is near best-form for either focusing collimated light or for collimating a point source.
Material:
|
Grade A optical glass or Fused Silica, CaF2, Silicon, Germanium
|
Dimension Tolerance:
|
±0.1mm(Standard), ±0.05mm(High Precision)
|
Center Thickness Tolerance:
|
±0.1mm(Standard), ±0.05mm(High Precision)
|
Paraxial Focal Length:
|
±2%
|
Surface quality:
|
60/40(Standard), 20/10(High Precision)
|
Clear Aperture:
|
>85%
|
Surface Figure:
|
λ/2(Standard), λ/4(High Precision) @633nm
|
Centration:
|
3 arc minutes
|
Bevel:
|
<0.25mm×45°
|
Coating:
|
Upon requirement
|
|

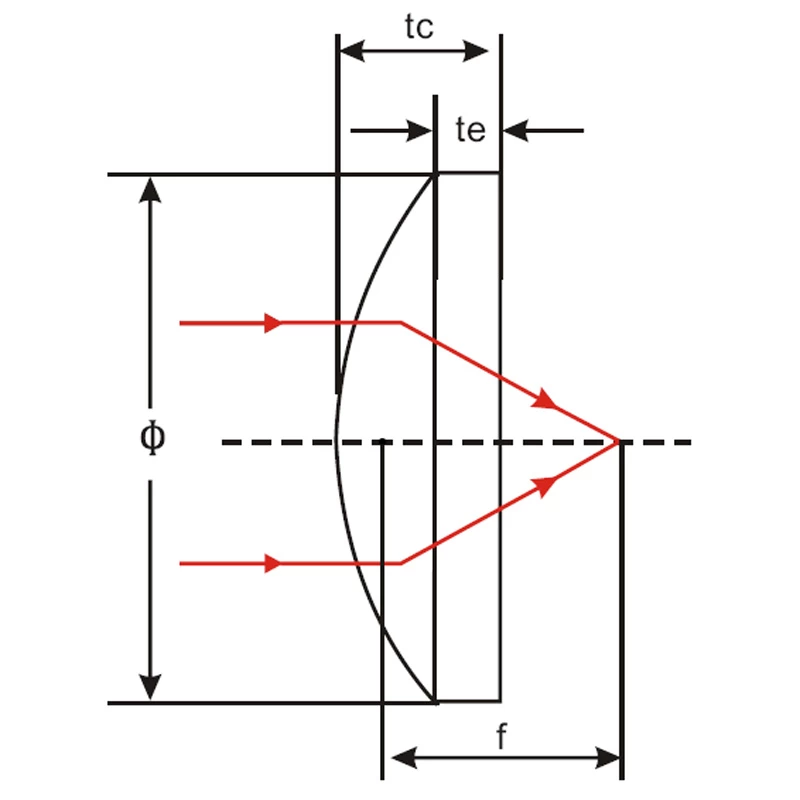

Typical Sizes
|
|
|
|
|
|
|
|
Item No.
|
Diameter(mm)
|
f(mm)
|
R(mm)
|
Tc(mm)
|
Te(mm)
|
Fb(mm)
|
|
Material
|
N-BK7
|
|
PLCX001
|
6
|
12
|
6.22
|
2.27
|
1.5
|
10.5
|
|
PLCX002
|
6
|
30
|
15.56
|
1.79
|
1.5
|
28.82
|
|
PLCX101
|
10
|
15
|
7.78
|
3.8
|
2
|
12.5
|
|
PLCX102
|
10
|
22
|
11.4
|
3.1
|
1.9
|
20
|
|
PLCX103
|
12.7
|
20
|
10.37
|
3.97
|
1.8
|
17.39
|
|
PLCX104
|
12.7
|
25
|
12.94
|
3.47
|
1.8
|
22.67
|
|
PLCX105
|
12.7
|
30
|
15.56
|
3.16
|
1.8
|
27.92
|
|
PLCX106
|
12.7
|
40
|
20.75
|
2.8
|
1.8
|
38.16
|
|
PLCX107
|
12.7
|
50
|
25.94
|
2.59
|
1.8
|
48.3
|
|
PLCX108
|
12.7
|
75
|
38.9
|
2.32
|
1.8
|
73.47
|
|
PLCX109
|
12.7
|
100
|
51.88
|
2.19
|
1.8
|
98.57
|
|
PLCX201
|
25.4
|
25
|
13.18
|
11.65
|
2
|
17.74
|
|
PLCX202
|
25.4
|
30
|
15.56
|
8.57
|
2
|
24.35
|
|
PLCX203
|
25.4
|
40
|
20.75
|
6.35
|
2
|
35.82
|
|
PLCX204
|
25.4
|
50
|
25.94
|
5.32
|
2
|
46.51
|
|
PLCX205
|
25.4
|
60
|
31.12
|
4.72
|
2
|
56.89
|
|
PLCX206
|
25.4
|
75
|
38.9
|
4.13
|
2
|
72.27
|
|
PLCX207
|
25.4
|
100
|
51.88
|
3.58
|
2
|
97.66
|
|
PLCX208
|
25.4
|
125
|
64.86
|
3.27
|
2
|
122.89
|
|
PLCX209
|
25.4
|
150
|
77.8
|
3.04
|
2
|
147.98
|
|
PLCX210
|
25.4
|
175
|
90.78
|
2.89
|
2
|
173.1
|
|
PLCX211
|
25.4
|
200
|
103.75
|
2.78
|
2
|
198.18
|
|
PLCX212
|
25.4
|
300
|
155.6
|
2.52
|
2
|
298.31
|
|
PLCX213
|
25.4
|
400
|
207
|
2.39
|
2
|
397.49
|
|
PLCX214
|
25.4
|
500
|
259.4
|
2.31
|
2
|
498.56
|
|
PLCX301
|
30
|
50
|
25.94
|
7.28
|
2.5
|
45.21
|
|
PLCX302
|
30
|
75
|
38.9
|
5.51
|
2.5
|
71.36
|
|
PLCX303
|
30
|
100
|
51.88
|
4.72
|
2.5
|
96.91
|
|
PLCX304
|
30
|
150
|
77.8
|
3.96
|
2.5
|
147.38
|
|
PLCX305
|
38
|
50
|
25.92
|
11.3
|
3
|
42.6
|
|
PLCX306
|
38
|
75
|
38.87
|
8
|
3
|
69.7
|
|
PLCX307
|
38
|
100
|
51.83
|
6.6
|
3
|
95.7
|
|
PLCX308
|
38
|
150
|
77.75
|
5.3
|
3
|
146.5
|
|
PLCX309
|
38
|
200
|
103.66
|
4.8
|
3
|
196.5
|
|
PLCX310
|
38
|
350
|
181.41
|
4
|
3
|
347.4
|
|
PLCX311
|
38
|
500
|
259.15
|
3.7
|
3
|
497.6
|
|
PLCX501
|
50.8
|
100
|
51.88
|
9.64
|
3
|
93.67
|
|
PLCX502
|
50.8
|
125
|
64.86
|
8.18
|
3
|
119.65
|
|
PLCX503
|
50.8
|
150
|
77.8
|
7.26
|
3
|
145.2
|
|
PLCX504
|
50.8
|
200
|
103.75
|
6.16
|
3
|
195.96
|
|
PLCX505
|
50.8
|
500
|
259.4
|
4.25
|
3
|
497.28
|
|
PLCX506
|
50.8
|
750
|
389
|
3.83
|
3
|
747.4
|
|
Material
|
Fused Silica
|
|
PLCX-FS01
|
12.7
|
20
|
9.2
|
4.34
|
1.8
|
17.03
|
|
PLCX-FS02
|
12.7
|
25
|
11.51
|
3.71
|
1.8
|
24.47
|
|
PLCX-FS03
|
12.7
|
30
|
13.8
|
3.35
|
1.8
|
27.71
|
|
PLCX-FS04
|
12.7
|
40
|
18.41
|
2.93
|
1.8
|
38
|
|
PLCX-FS05
|
12.7
|
50
|
23.01
|
2.69
|
1.8
|
48.17
|
|
PLCX-FS06
|
12.7
|
75
|
34.51
|
2.39
|
1.8
|
73.37
|
|
PLCX-FS07
|
12.7
|
100
|
46.03
|
2.24
|
1.8
|
98.51
|
|
PLCX-FS08
|
25.4
|
35
|
16.11
|
8.2
|
2
|
29.39
|
|
PLCX-FS09
|
25.4
|
40
|
18.41
|
7.08
|
2
|
35.16
|
|
PLCX-FS10
|
25.4
|
50
|
23.01
|
5.82
|
2
|
46.03
|
|
PLCX-FS11
|
25.4
|
75
|
34.51
|
4.42
|
2
|
71.98
|
|
PLCX-FS12
|
25.4
|
100
|
46.03
|
3.79
|
2
|
97.45
|
|
PLCX-FS13
|
25.4
|
125
|
57.54
|
3.42
|
2
|
122.72
|
|
PLCX-FS14
|
25.4
|
150
|
69.02
|
3.18
|
2
|
147.84
|
|
PLCX-FS15
|
25.4
|
175
|
80.54
|
3.01
|
2
|
173
|
|
PLCX-FS16
|
25.4
|
200
|
92.04
|
2.88
|
2
|
198.08
|
|
PLCX-FS17
|
25.4
|
250
|
115.08
|
2.7
|
2
|
248.28
|
|
PLCX-FS18
|
25.4
|
300
|
138.04
|
2.59
|
2
|
298.26
|
|
PLCX-FS19
|
25.4
|
500
|
230.1
|
2.35
|
2
|
498.52
|
|
PLCX-FS20
|
25.4
|
750
|
345.1
|
2.23
|
2
|
748.57
|
|
PLCX-FS21
|
25.4
|
1000
|
460.1
|
2.18
|
2
|
998.56
|
|
PLCX-FS22
|
38
|
75
|
34.51
|
8.7
|
3
|
69.05
|
|
PLCX-FS23
|
38
|
100
|
46.03
|
7.1
|
3
|
95.19
|
|
PLCX-FS24
|
38
|
150
|
69.02
|
5.67
|
3
|
146.14
|
|
PLCX-FS25
|
38
|
200
|
92.04
|
4.98
|
3
|
196.64
|
|
PLCX-FS26
|
38
|
250
|
115.08
|
4.58
|
3
|
247
|
|
PLCX-FS27
|
38
|
300
|
138.04
|
4.31
|
3
|
297.09
|
|
PLCX-FS28
|
38
|
500
|
230.1
|
3.79
|
3
|
497.54
|
|
PLCX-FS29
|
38
|
750
|
345.1
|
3.52
|
3
|
747.68
|
|
PLCX-FS30
|
38
|
1000
|
460.1
|
3.39
|
3
|
997.73
|
We have a strong ability to produce customized optics and assemblies, such as lenses, prisms, mirrors, etc., specializing in the production of convex lens glass, which are sold at low prices

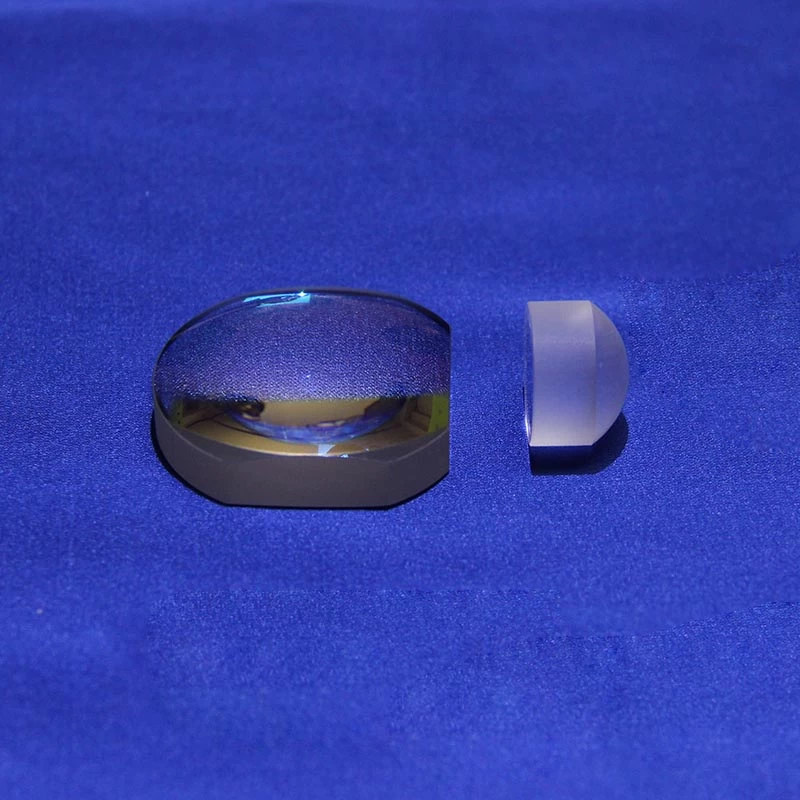

Plano convex cylindrical lenses are utilized to compress light in 1 axis. In order to generate a line image from a point of light and to change the aspect ratio of an image, a positive (convex) cylindrical lens is used. The plano convex cylindrical lens is also suitable for focusing collimated input light onto a line.
A cylindrical lens is a
lens that focuses light into a line and is also widely used in the
market. One of the main applications of cylindrical lenses is in
ophthalmology, especially the correction of astigmatism. If you are
looking for plano cylindrical lens or other cylindrical lens, please
contact us!
