Optical Line Terminal Huawei SmartAX 5800 OLT MA5800-X15 GPON
Product Description
|
Item
|
MA5800-X17
|
MA5800-X15
|
MA5800-X7
|
MA5800-X2
|
|
Dimensions (W x D x H)
|
493 mm x 287 mm x 486 mm
|
442 mm x 287 mm x 486 mm
|
442 mm x 268.7 mm x 263.9 mm
|
442 mm x 268.7 mm x 88.1 mm
|
|
Maximum Number of Ports in a Subrack
|
-
272 x GPON/EPON
-
816 x GE/FE
-
136 x 10G GPON/10G EPON
-
136 x 10G GE
-
544 x E1
|
-
240 x GPON/EPON
-
720 x GE/FE
-
120 x 10G GPON/10G EPON
-
120 x 10G GE
-
480 x E1
|
-
112 x GPON/EPON
-
336 x GE/FE
-
56 x 10G GPON/10G EPON
-
56 x 10G GE
-
224 x E1
|
-
32 x GPON/EPON
-
96 x GE/FE
-
16 x 10G GPON/10G EPON
-
16 x 10G GE
-
64 x E1
|
|
Switching Capacity of the System
|
7 Tbit/s
|
480 Gbit/s
|
|
Maximum Number of MAC Addresses
|
262,143
|
|
Maximum Number of ARP/Routing Entries
|
64K
|
|
Ambient Temperature
|
-40°C to 65°C**: The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. The 65°C temperature refers to the highest temperature measured at the air intake vent
|
|
Working Voltage Range
|
-38.4V DC to -72V DC
|
DC power supply:-38.4V to -72VAC power supply:100V to 240V
|
|
Layer 2 Features
|
VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP option82
|
|
Layer 3 Features
|
Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRF
|
|
MPLS & PWE3
|
MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection switching
|
|
IPv6
|
IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relay
|
|
Multicast
|
IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD Proxy/Snooping, and VLAN-based IPTV multicast
|
|
QoS
|
Traffic classification, priority processing, trTCM-based traffic policing, WRED, traffic shaping, HqoS, PQ/WRR/PQ + WRR, and ACL
|
|
System Reliability
|
GPON type B/type C protection, 10G GPON type B protection, BFD, ERPS (G.8032), MSTP, intra-board and inter-board LAG, In-Service Software Upgrade (ISSU) of the control board, 2 control boards and 2 power boards for redundancy protection, in-service board fault detection and rectification, and service overload control
|

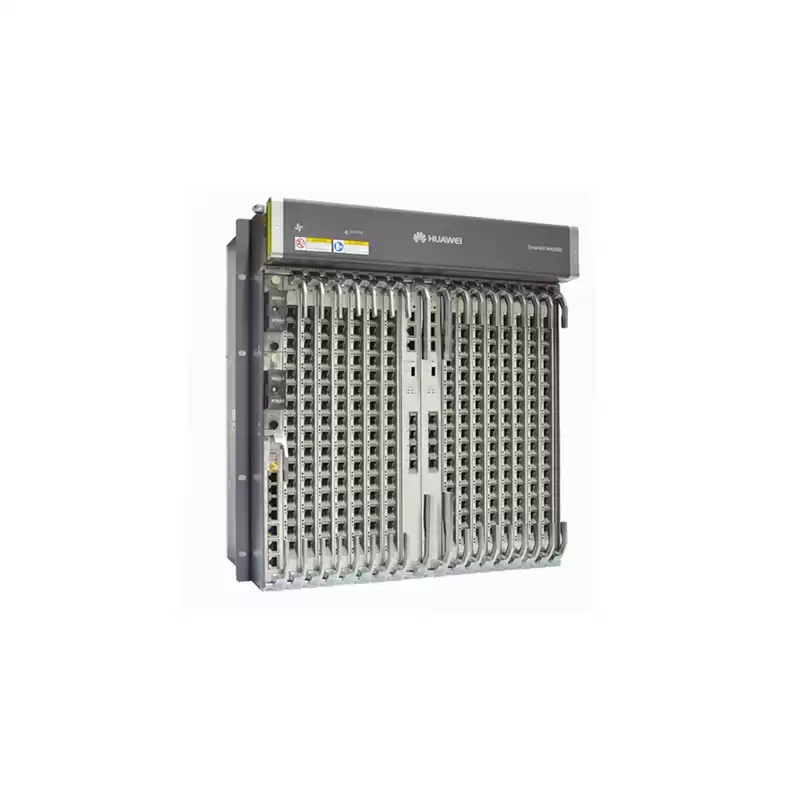

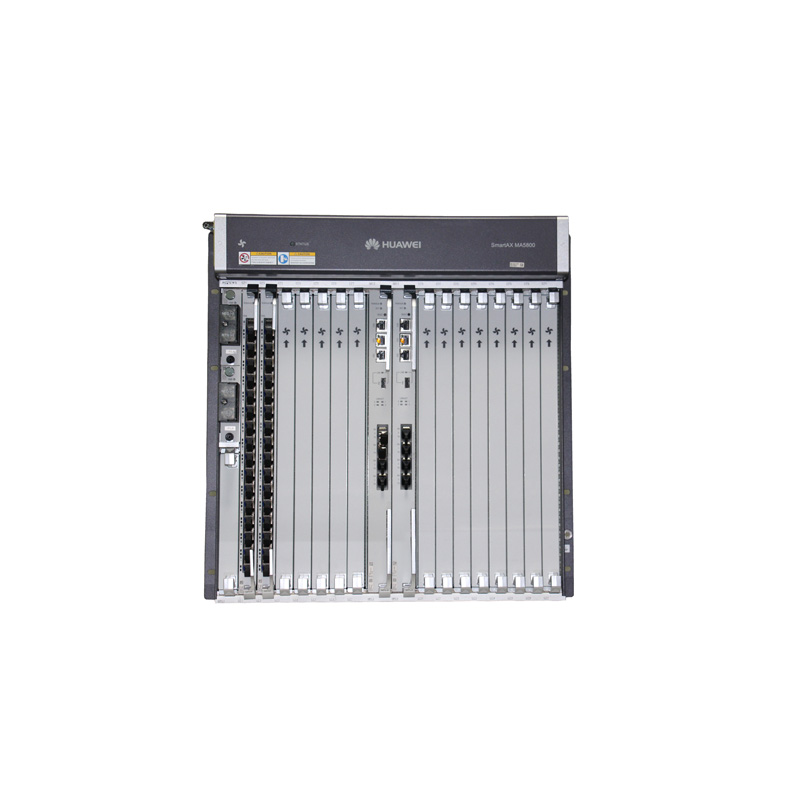

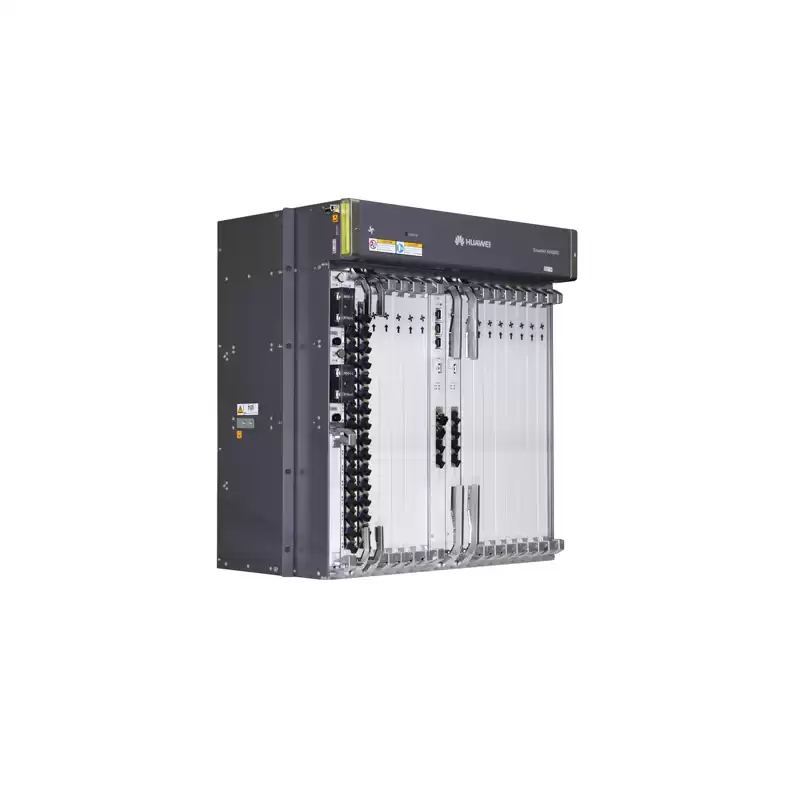

Huawei MA5800 X15 NG OLT H901BPIB subrack equipped with 2xH901MPLA, 2xH901PILA
Comes with accessory package
Huawei MA5800 X15 NG OLT MAX 17408 ONTs
Chassis supports 15 Service Slots, 19inch mounting
Supports GPON, 10G PON, smoothly evolve to 40G/100G PON
Supports 4*GE/10GE upstream ports embedded in Main Control Board MPLA/MPLB
Supports 16 port GPON interface card GPHF, GPSF
Supports 8 port 10GPON interface card XGHD, TWED
Support 262144 MAC address, 65536 ARP table
Supports over 8 times MAC address and ARP table more than MA5680T
Supports 1:64 eOTDR
Supports DOCSIS 3.1 standard
Huawei MA5800 X15 is a next generation, 40G capacity Optical line Terminal (OLT), has 15 service slots, each service slot has 200G throughput capacity, smoothly evolve to 40G/100G PON. Support up to 8 times MAC address and ARP table than MA5680T, makes service configuration and expansion more easily.
16 ports GPON service board GPSF, 8 ports 10G PON service board XGHD is recommended service board for MA5800 X15, please contact with Thunder-link.com sales team your service ports needed.
Product Details
Our Advantages
We have Huawei MA5800-X15 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
Huawei MA5800-X15, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
Huawei MA5800-X15 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
