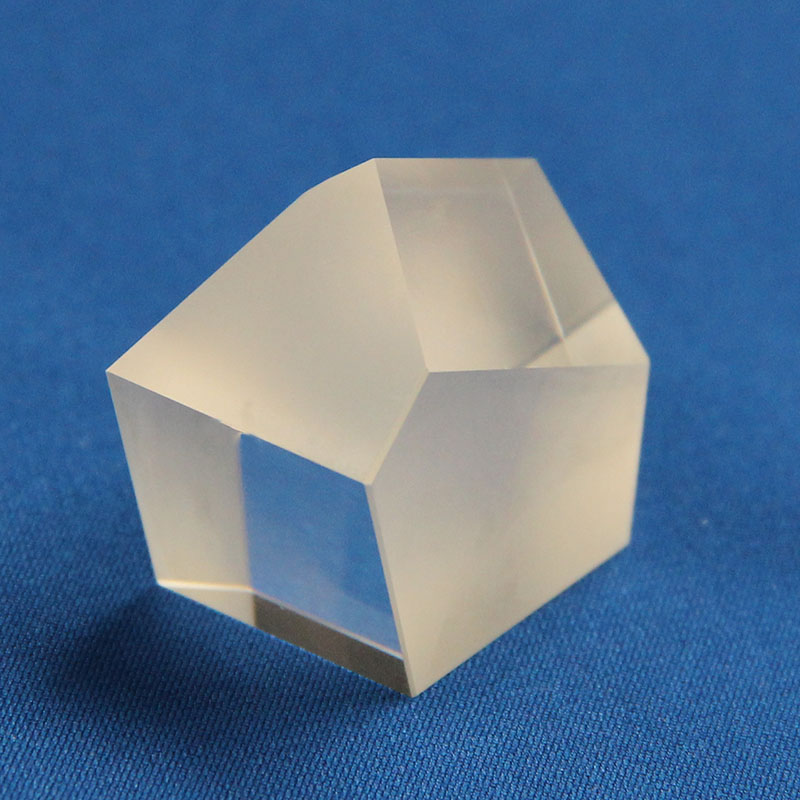

Glued Prisms and Special Customized Prisms

Glued prisms are glued by different shape prisms. WTS offer Special Prisms like Half Penta Prisms, Pellin-Broca Prisms, Pechan Prisms etc. prisms

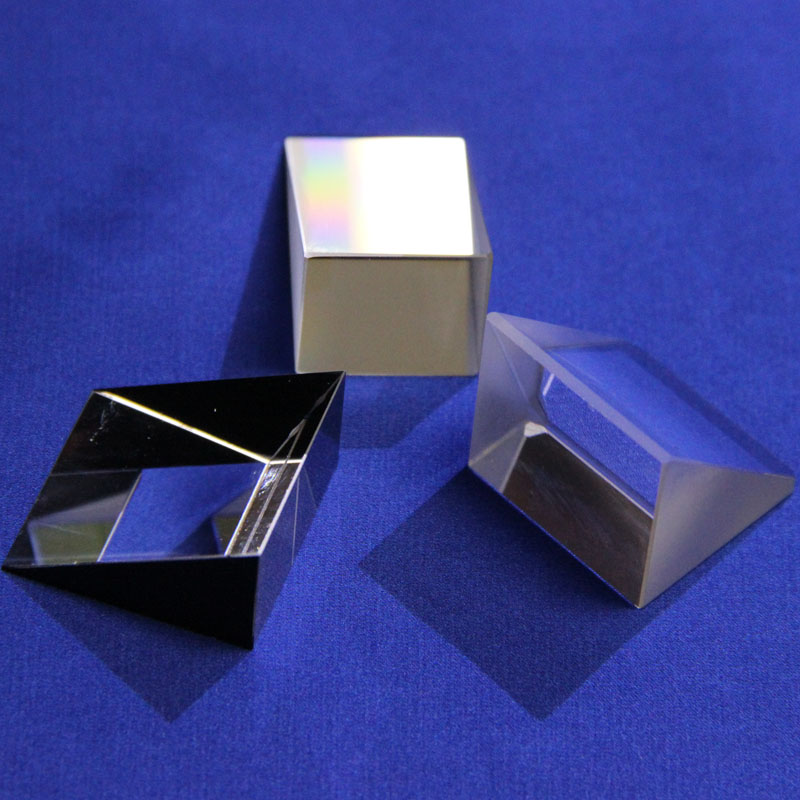

BK7 and Fused Silica Glass Schmidt Prisms

Schmidt Prisms Schmidt prisms are used to invert and revert an image to angle of 45°. The 45° deviation makes Schmidt prisms useful in eyepiece assemblies and imaging systems requiring a path bend. 1. Ray Deviation of 45° 2. Right Handed Image 3. Combine with Half-Penta Prism to Create Pechan Prism

BK7 and Fused Silica Glass Amici Roof Prisms

Amici Roof Prisms 1. 90° Deviation of Beam or Image 2. Produces Inverted Image 3. 6 Arcsecond Resolution

High Accuracy Coated Hollow Retroreflectors

Hollow Retroreflectors are constructed of three first-surface mirrors assembled by a proprietary process into a mutually-orthogonal inside corner. Incident Light is Reflected Back to the Source Hollow Lightweight Design

High Accuracy Glass Pyramid Prisms

Pyramid prisms has a base that is connected to a single vertex, not in the same plane as the base, by line segments from each vertex of the base shape.

High Accuracy L-bar Mini Prism

L-bar Mini Prism mounted in metal holder. Supplied with L-bar for fixed installations. The prism offset is dependant on the mounting position,range 2000 m

Total Station Survey Prism And Accessories

Survey Prisms are for Surveying or land surveying is the technique, profession, and science of determining the terrestrial or three-dimensional positions of points and the distances and angles between them.

Optical High Precision Rhomboid Prisms

Rhomboid prisms are commonly used to displace a laser beam without changing its direction. Lateral Displacement of Beam Displaces Optical Axis Without Inverting Image

30° - 60° - 90° Littrow Prisms

30° - 60° - 90° Littrow Prisms have two main applications. 1. Uncoated littrow dipersion prisms are used to disperse light into its component spectrum. 2. Coated littrow dipersion prisms are used to deviate the line of sight by 60°.

Homogenizing Rods Tapered Prism and Light Pipe and IPL Light Guide

Light Pipes also known as Homogenizing Rods, are Optical Components designed for any application that requires homogenized light. Material: BK7, Fused Silica Coating: Upon Requirement

BK7 and Fused Silica Glass Dove Prisms

Dove Prism has two applications. 1. The main application is used as a rotator. 2. Another application is used as a retroreflector.

High Precision Glass Equilateral Prisms and Dispersing Prisms

Equilateral Prism has three equal 60°angles, and are mostly used to disperse the spectrum.

N-BK7 and Fused Silica Wedge Prisms and Wedge Windows

Wedge Prisms (Wedge Windows) are ideal for laser beam steering applications. Also known as Risley prisms, these optics deflect a beam normal to the prism's perpendicular surface through an angular deviation.

High Precision Optical Glass Penta Prisms

Penta prisms are five-sided prisms featuring a ray deviation of 90° and a right handed image 90° Deviation of Beam or Image Right Handed Image Coating are avaliable

High Accuracy Corner Cube Prism

Retroreflectors (Corner Cube Prisms) reflect an image or beam back toward its original direction via three total internal reflections (TIR) 180° Reflection Inverts Image 3 arcsec Beam Deviation

High Precision Optical Glass Right Angle Prisms

Right Angle Prism is deviating or deflecting a beam of light with 90°or 180°. It is often used in telescope, periscope and other optical system. Deviate Beam or Image by 90° or 180° Material: N-BK7, UV Fused Silica, CaF2, ZnSe, or Ge AR-Coated, HR coated are Available
