Product Name: Optical Sensor Fingerscan USB Reader For Linux Windows Android OS
Description:

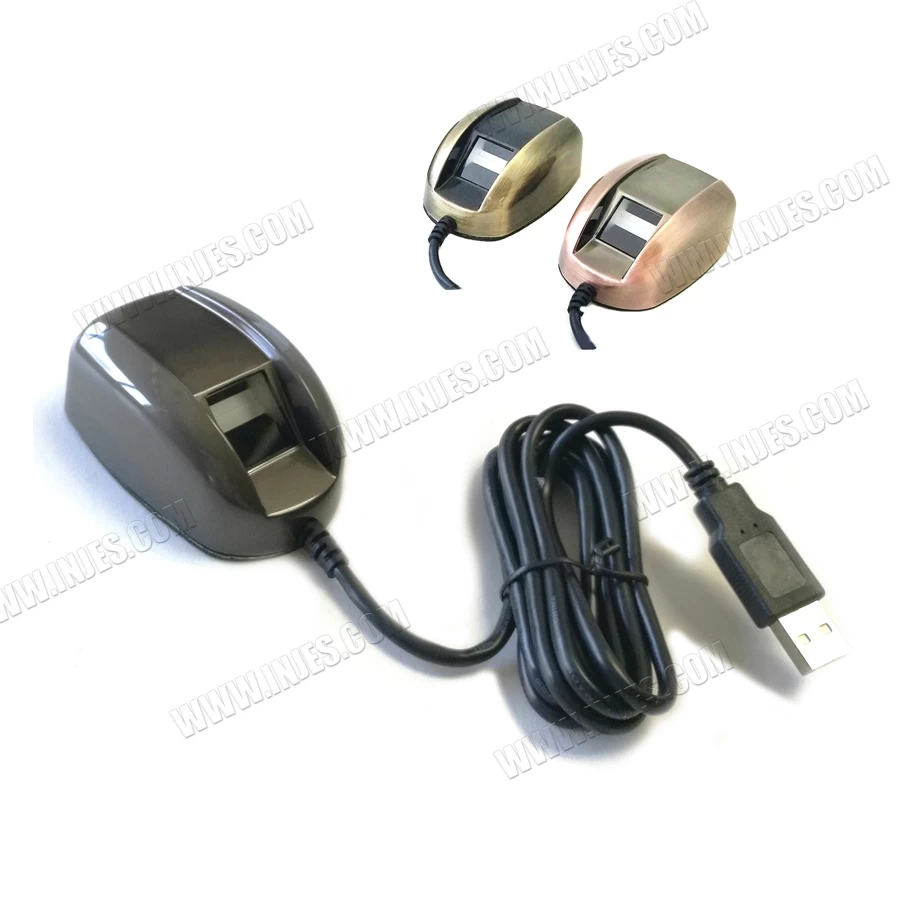

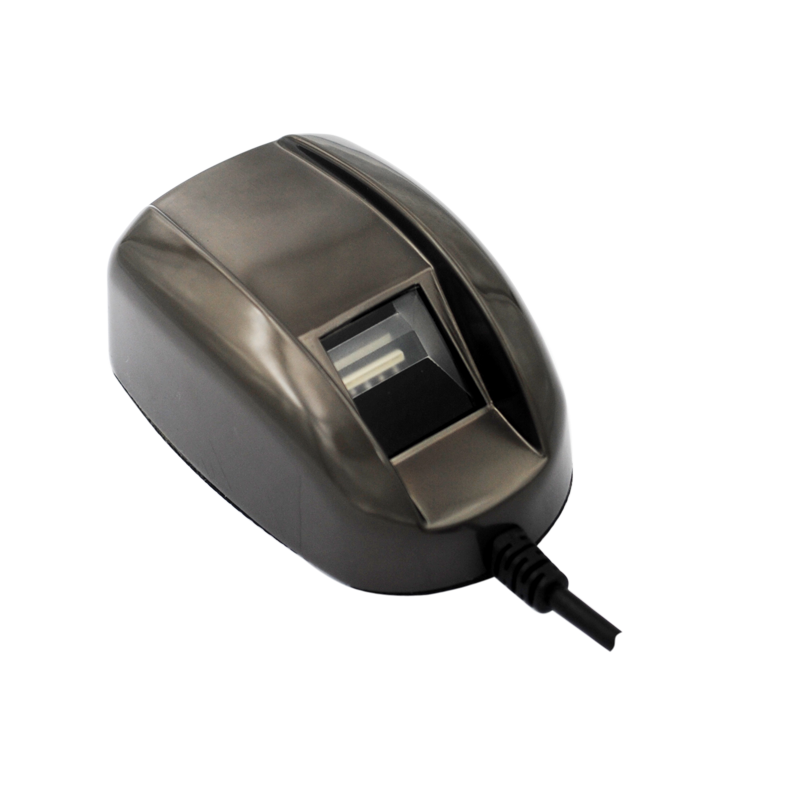

FRT808 is the small and exquisite (multiple colors) biometric thumb scanner in highly optical cost-effective and all metal casing, which adopts green light source and total reflection with flexible interface, including USB, RS232,RS485,SPI (optional),etc, to meet customer’ needs.
Companion, complete support and application of software package for each platform are also available. Besides, it also supports Windows platform, Linux, Win CE, Android, and other common platforms which are in use to simplify the way of development and application for customers.
The products adopt the most advance world-wide fingerprint collection algorithm. Also, it owns the well-adapted ability to fit in various conditions with high recognition rate, whenever fingers are dry, wet or light textured. Strong antistatic capacity of 15KV antistatic force; Long lifetime of up to 1million times’ wear strength.
INJES FRT808 USB fingerprint scanner can support optional waterproof fingerprint sensor, the only kind of fingerprint sensor able to collect clear pictures in water environment and most adapted to wet fingers.
Features:
．Elegant metallic casing design
．500DPI optical fingerprint sensor
．Compatible with USB2.0, RS232, RS485
．Multiple colour casing for client freely choice
．Support optional waterproof fingerprint sensor
．Optional Micro USB port for Android Integration
．SDK customization on basis of clients’ requirements
．Compatible with Win CE, Windows, Linux , Android OS
Specifications:
|
Fingerprint Sensor
|
Optical Sensor
|
|
Fingerprint Capacity
|
100-2000 templates
|
|
ESD Sensitivity
|
IEC61000-4-2 15KV
|
|
FRR
|
0.01%
|
|
FAR
|
0.0001%
|
|
Matching Speed
|
<1s
|
|
Image Format
|
RAW
|
|
Image Size
|
256*288
|
|
Image Resolution
|
500DPI
|
|
Interface
|
USB/Micro USB/ RS232/RS485/SPI(optional)
|
|
Operation Temperature
|
-20°C--+70°C
|
|
Operating Humidity
|
0-95%
|
|
Operating Voltage
|
3.7-6.5VDC 100mA
|
|
Compatible OS
|
Windows, Linux , Android
|
|
Gross Weight
|
0.4KG
|
Configuration:
