Optional Single Dual Tables Economic Automatic PCB Router
FUNCTION:
The economic PCB router used for routed PCB panel singulation with lower stress.

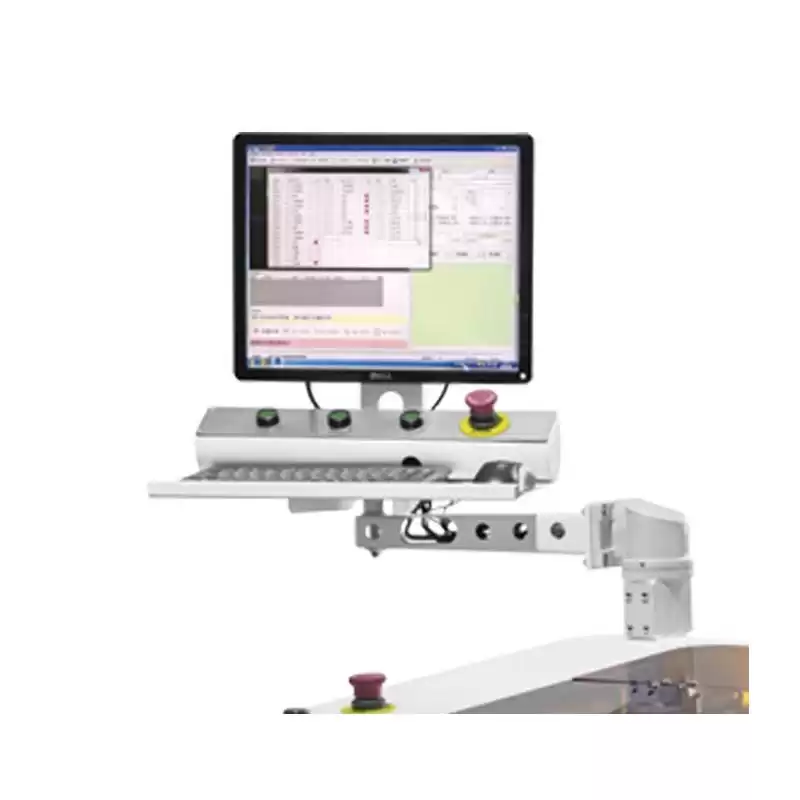

It ;is a kind of equipment which mainly uses milling cutter running at high speed to separate multi connected PCB according to pre editing path. It can replace manual breaking or cutting defects of c-cut or push, improve product quality and reduce scrap rate. This ;economic pcb router machine ;adopts latest operating system with man-machine interface. The cutting path can be modified by high pixel CCD teaching and editing, and it can also be modified step by step. Using the rotating platform as the loading and unloading device of PCB, the idle time of the machine can be effectively reduced, and the ideal production efficiency can be achieved.
;
ADVANTAGES:
1. Optional single/dual platform
2. PC and CCD vision system
3. Programming with compensation and dust collection
4. Available for max 460mm boards
5. Flexible for different type of products
6. Open type platform for LD/ULD and auto upgrade with robot
;
SPECS:
|
Model Number
|
SMTR17
|
|
Machine Size
|

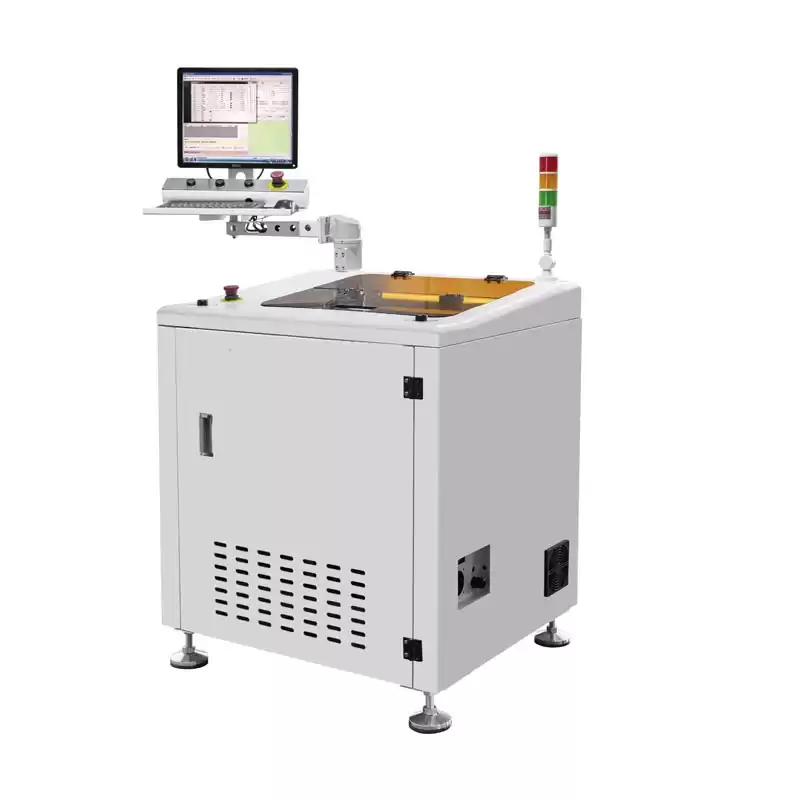

850(L) x 750(W) x 1455(H)mm
|
|
Voltage
|
380V/50Hz, 2.5KW
|
|
Max PCB Size
|
410x460mm (single table), 260x310mm(dual table)
|
|
PCB Thickness
|
0.4-5mm
|
|
Feeding Mode
|
Manual
|
|
PCB Positioning
|
Customized fixture
|
|
Programming
|
Vision teaching, inline programming
|
|
Cutting Spindle
|
SycoTec 60000rpm/min(standard)
|
|
Cooling Type
|
Self cooling
|
|
Dust Collection Mode
|
Bottom collection
|
|
Cutting Speed
|
1-100mm/s
|
|
Repeat Accuracy
|
±0.01mm
|
|
Routing Bit
|
0.8-3.0 Diameter, right rotation
|
|
Repeat Accuracy
|
±0.02mm
|
|
Control System
|
Industrial PC
|
|
Spindle
|
Germany SycoTec 4015HY
|
|
Motion Control
|
4 axis motion control board
|
|
Lead screw
|
C5 grinding screw lead
|
|
Camera
|
Germany imaging 40W greay camera
|
|
LCD
|
17 inch
|
DETAILS:
1. Computer programming, visual system, programable, with compensation function and dust collection.

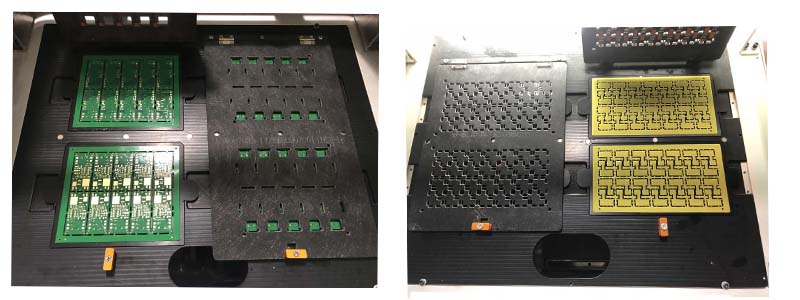

2. Allow max 460x410mm PCBA, can work as dual tables, but also single table. ;
3. The economic PCB router supports 2 different application per time.
4. Open working design for loading and unloading, can be equipped with manipulatior to realize unnanned.
; ;
; ; ; ;
APPLICATIONS SHOWS:
This Economic ;PCB router is widely used in different industries, such as LED lighting, mobile phones, power supply, ;domestic appliances, computer, automotive, toys, etc.
