The series all metal structure ,double curvature ridge bone, overall rubbing plate and the overall framework, reasonable structure ,beautiful appearance, smooth running, low noise, easy to operate.
The part contact with tea are covered with a stainless steel plate, 6CRT-50 tea twister machinery gland pollution tea harmful elements such as aluminum alloy, lead-free ,and to improve the quantity of made tea.

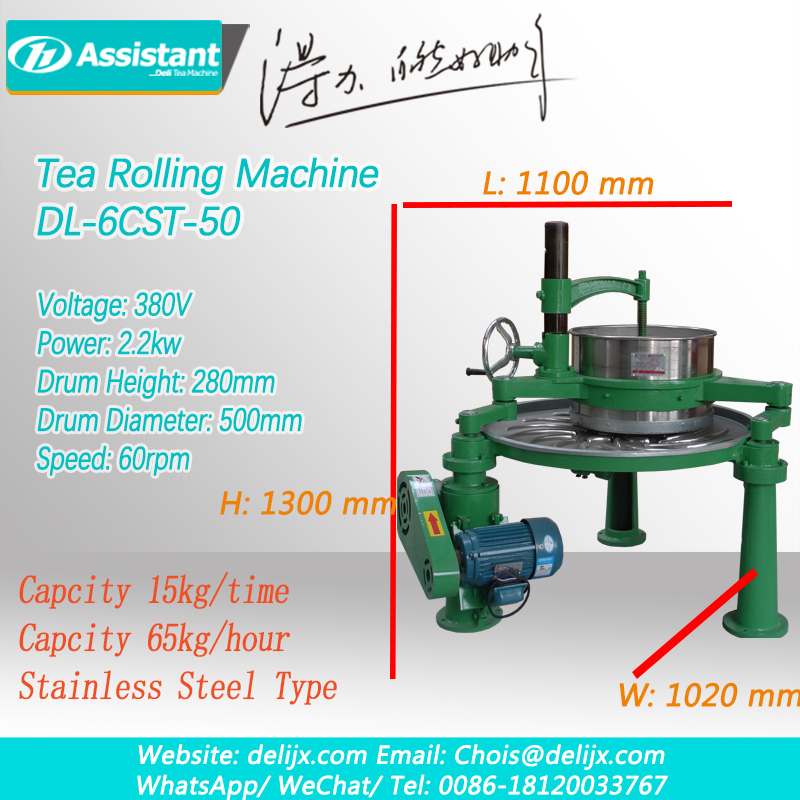

DL-6CRT-50 tea leaf twister machine specification:
|
Model
|
DL-6CRT-45
|
|
Dimension
|
1020*1100*1300 mm
|
|
Input voltage
|
380V / 50Hz
|
|
Tea disc diameter
|
1000 mm
|
|
Barrel diameter
|
500 mm
|
|
Barrel height
|
280 mm
|
|
Matching motor
|
Power
|
2.2 kW
|
|
Speed
|
1400 RPM
|
|
Rated voltage
|
380 V
|
|
Barrel speed
|
60 RPM
|
|
Productivity
|
65 Kg/h
|
|
Maximum capacity per time
|
15 kg
|
The above data is based on fresh tea leaf water content of 75-80%.
DL-6CRT-50 tea twist machinery decomposition diagram:
|
①
|
Transverse arm
|
⑧
|
Support column
|
②
|
Barrel cover
|
⑨
|
Rolling disc
|
③
|
Stainless steel Drum
|
⑩
|
Handwheel
|
④
|
Crank
|
⑪
|
Support frame
|
⑤
|
Transmission case
|
⑫
|
Tea discharge handle
|
⑥
|
Transmission belt
|
⑬
|
Tea outlet
|
⑦
|
Drive motor
|
⑭
|
Support leg
|
|
|
Professional design of rolling plate tilt angle and kneading strip radian, the speed of forming tea and pour out tea leaf is 30% faster.
|
We have 30 stocks for each model of tea rolling machines, delivery is fast, no need to wait, packing in steel rack, more stable.
|
1. Rolled high quality: the rolling tea, high efficiency, tight into high, tea leaf tissue damaged moderate and high,complete chopped;
2. Green Materials: Lead and other harmful elements pollution;
3. Reducer system: product deceleration institutions using advanced high-reliability design, long life, low noise;
4. Rolling system: rolling system using multi-bearing system, smooth running, reliable;
5. Kneading disc: the overall structure and increasing the rigidity and reliability of the product;
6. Rubbing plate lined with: whole stainless steel, rolled tea quality is higher, more sophisticated manufacturing.
|

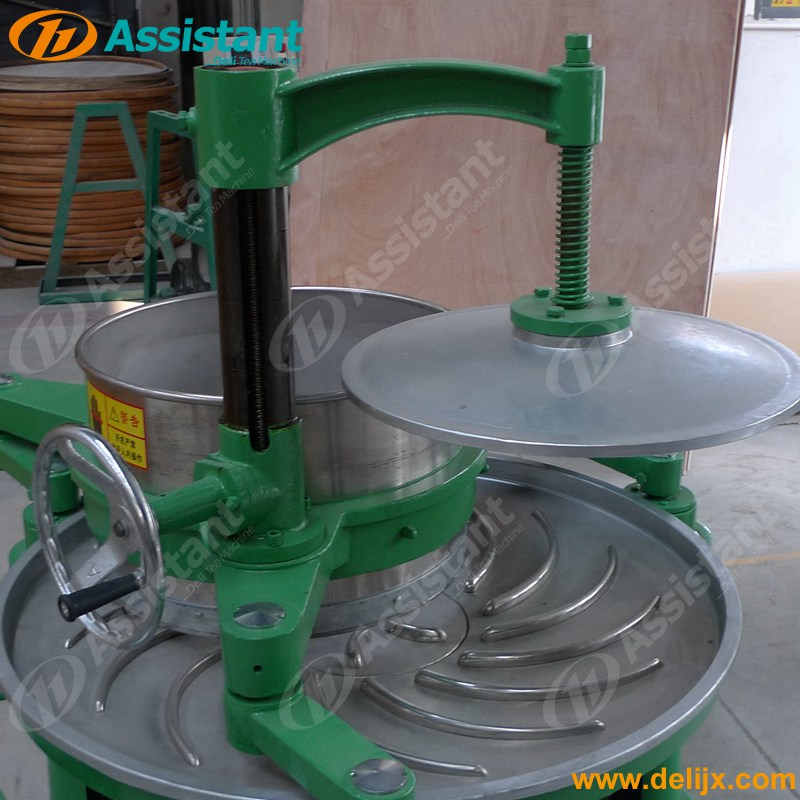

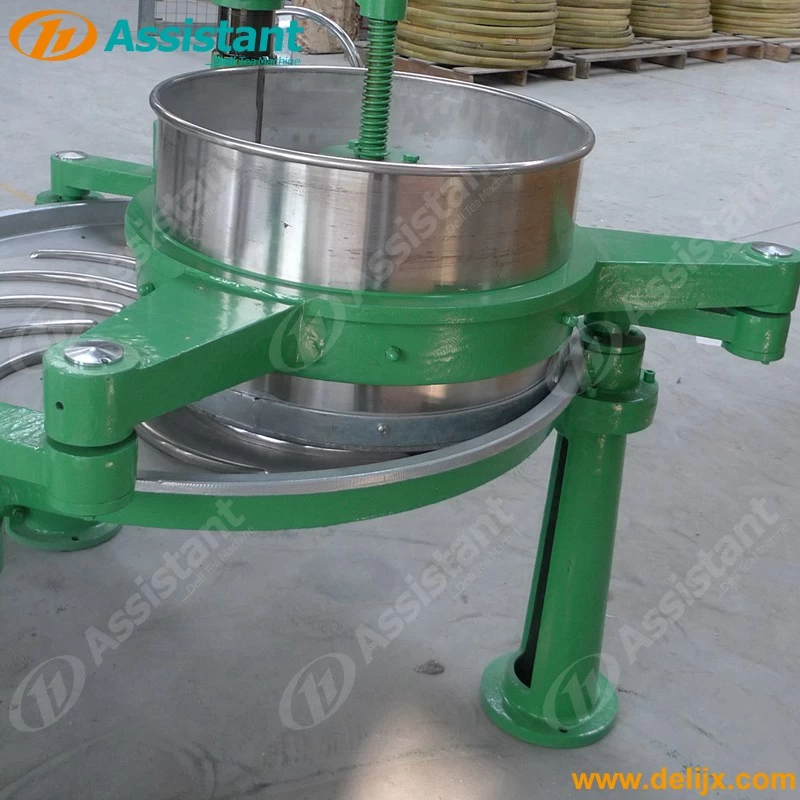

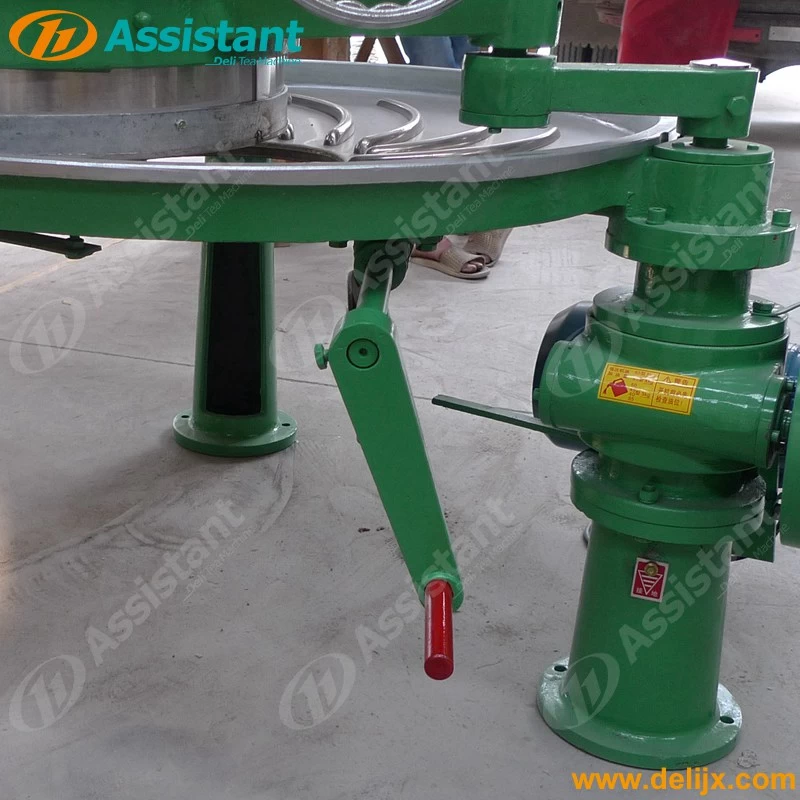

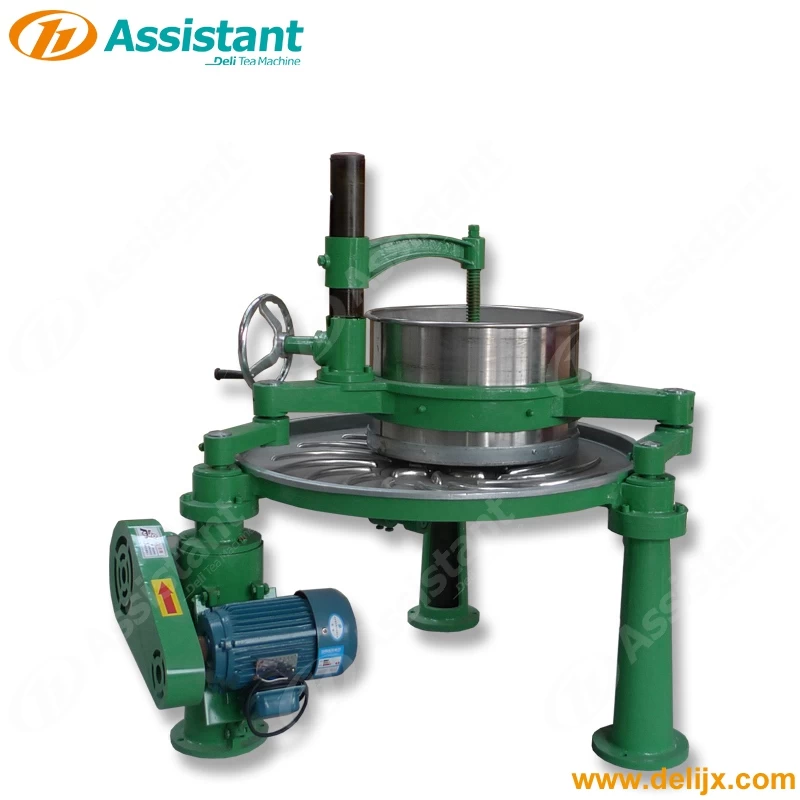

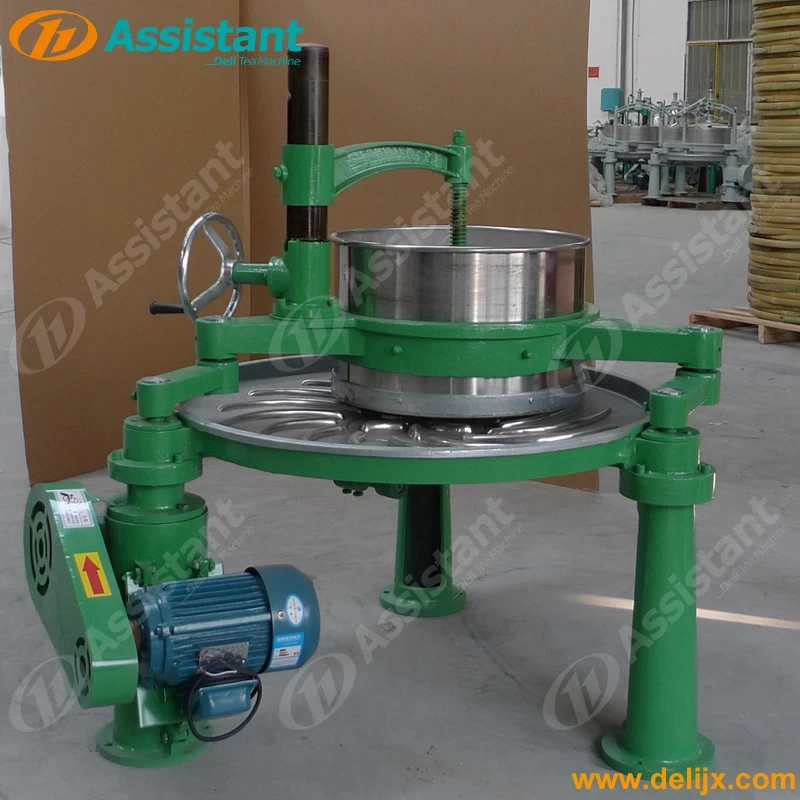

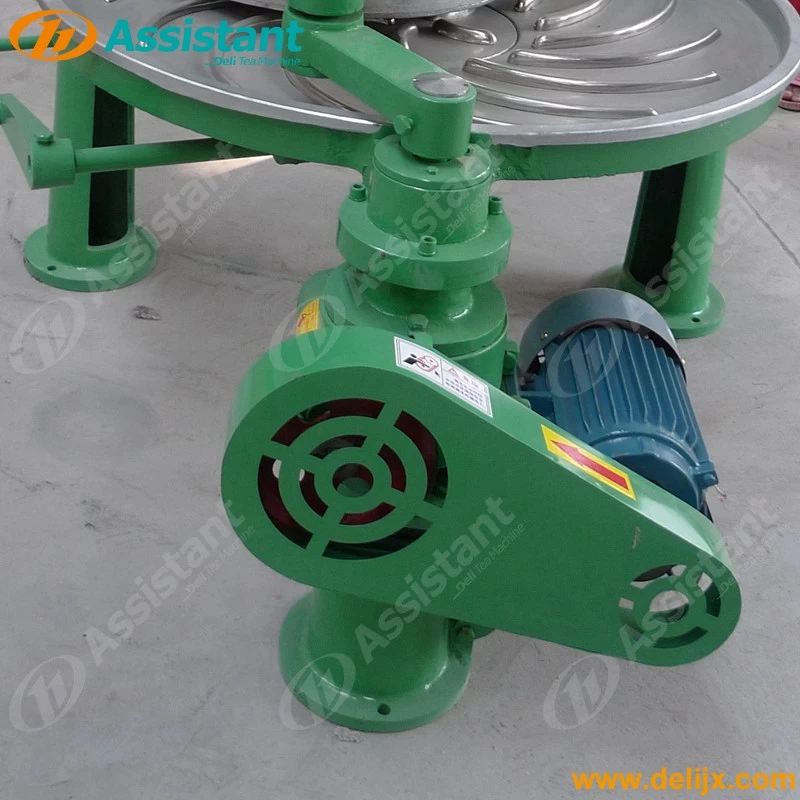

DL-6CRT-50 tea twisting machine photos:
|
