For non-fermented tea such as green tea: the main function of tea rolling machine is shaping.Through the action of external force, tea rolling machine makes the leaves smash and light, the tea roll turns into a strip shape, and the volume is reduced, which is good for brewing.
For fermented tea such as black tea: Through the external force of the tea rolling machine, the tea cells are damaged, the tea juice overflows, accelerates the enzymatic oxidation of polyphenolic compounds, facilitates fermentation, lays a foundation for the formation of the unique taste of the fermented tea.
Tea rolling machine can use for most of tea such as black tea, green tea, and oolong tea.

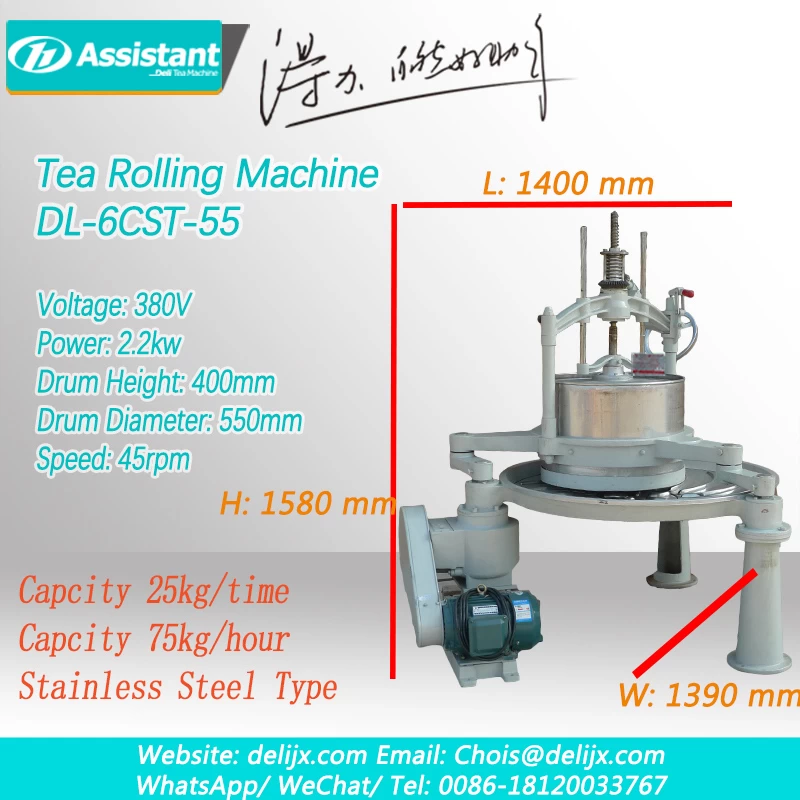

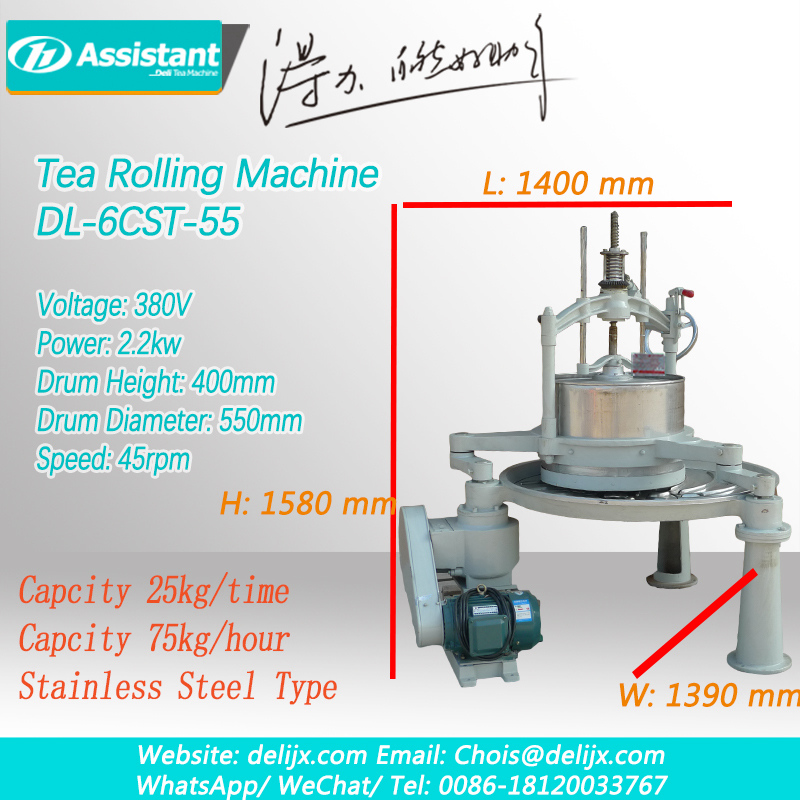

DL-6CRT-55 tea roller machine's specification:
|
Model
|
DL-6CRT-55
|
|
Dimension
|
1580*1400*1390 mm
|
|
Input voltage
|
380V / 50Hz
|
|
Tea disc diameter
|
1050 mm
|
|
Barrel diameter
|
550 mm
|
|
Barrel height
|
400 mm
|
|
Matching motor
|
Power
|
2.2 kW
|
|
Speed
|
1400 RPM
|
|
Rated voltage
|
380 V
|
|
Barrel speed
|
45 RPM
|
|
Productivity
|
75 Kg/h
|
|
Maximum capacity per time
|
25 kg
|
The above data is based on fresh tea leaf water content of 75-80%.

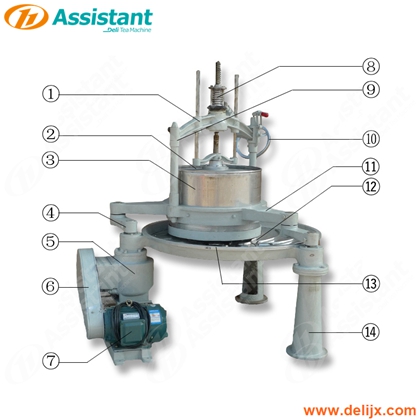

DL-6CRT-55 tea rolling machine decomposition diagram:
|
①
|
Transverse arm
|
⑧
|
Press spring
|
②
|
Barrel cover
|
⑨
|
Support column
|
③
|
Stainless steel Drum
|
⑩
|
Handwheel
|
④
|
Crank
|
⑪
|
Support frame
|
⑤
|
Transmission case
|
⑫
|
Rolling disc
|
⑥
|
Transmission belt
|
⑬
|
Tea outlet
|
⑦
|
Drive motor
|
⑭
|
Support leg
|
|

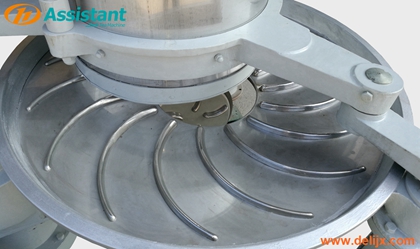

Rolling barrel and rolling plate
|
|
Rolling barrel made of stainless steel, rolling plate and rolling strip made of aluminum, It will not rust and produce no harmful substances to human body.
Professional design of kneading plate tilt angle and kneading strip radian, the speed of forming tea is 30% faster.
The side is higher than plate, prevent tea leaves ralling from the tea rolling machine.
Can custom all stainless steel or full copper type, if you need these type tea rolling machine, please tell us.
|
|
|
|
|

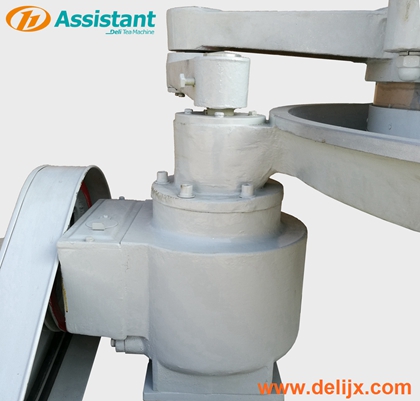

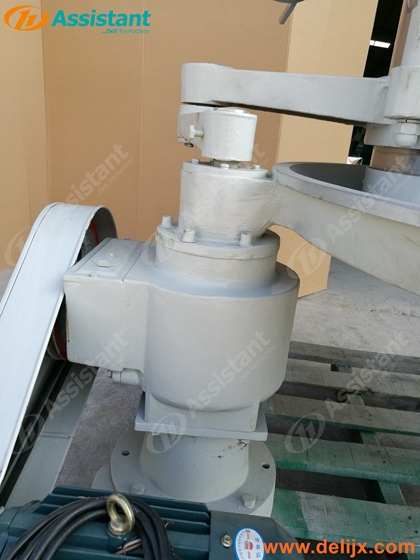

Gear box
|

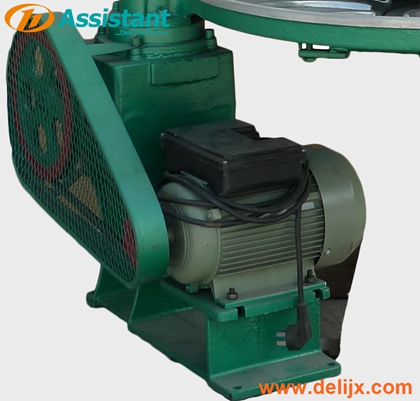

Copper core motor
|

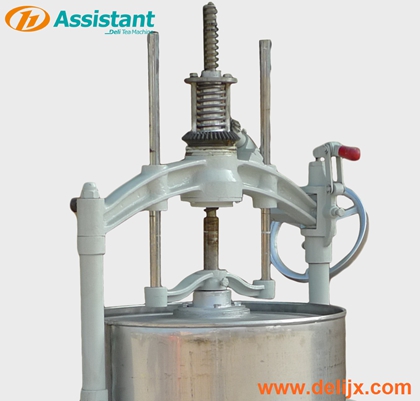

Double support arm
|
Stable gearbox, crank and support frame , ensure smooth and safe operation of tea kneading machines
|
Powerful copper core drive motor, provide a steady source of power for tea kneading machines.
|
Double support arm, the barrel lid is pressurized by springs, and can be rotated, quality of tea more higher.
|
|
|
|

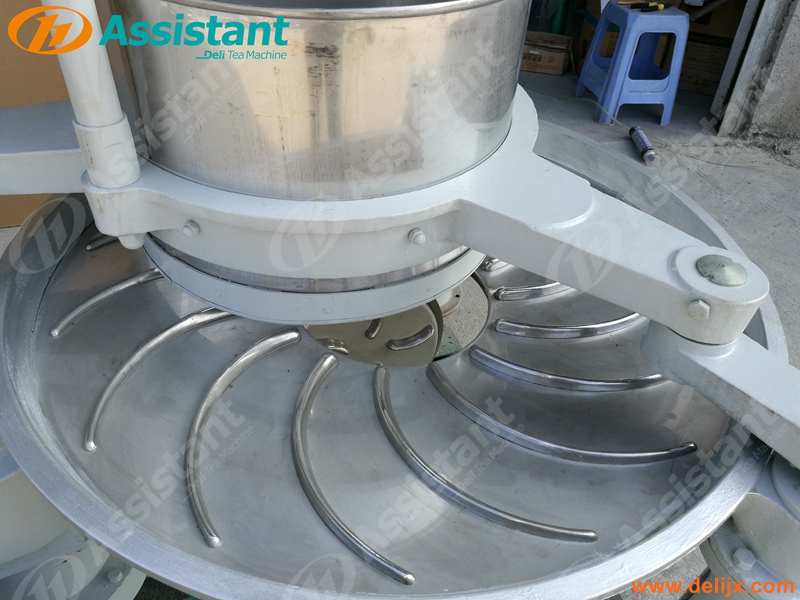

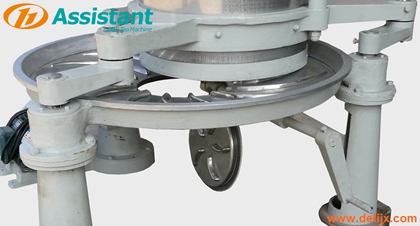

Rolling plate and tea leaf outlet
|

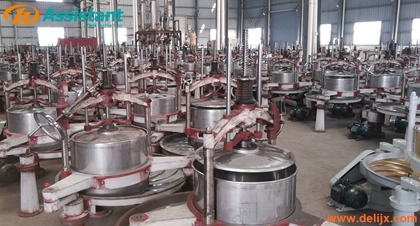

Tea rolling machine inventory
|
Professional design of kneading plate tilt angle and kneading strip radian, the speed of forming tea and pour out tea leaf is 30% faster.
|
We have 30 stocks for each model of tea rolling machines, delivery is fast, no need to wait.
|
|

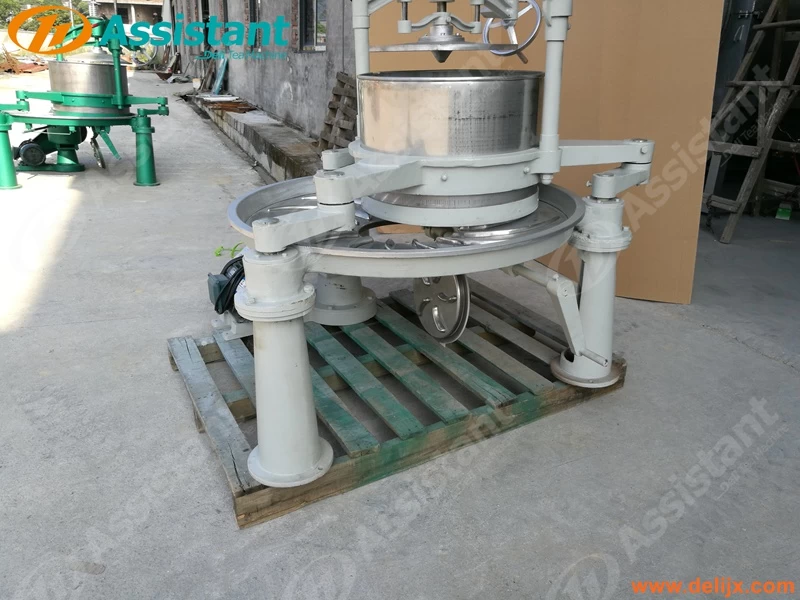

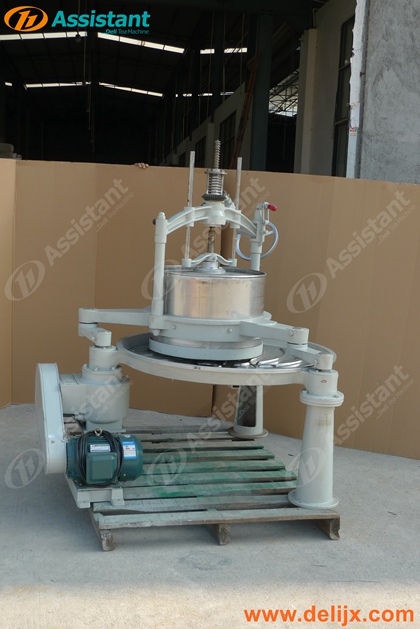

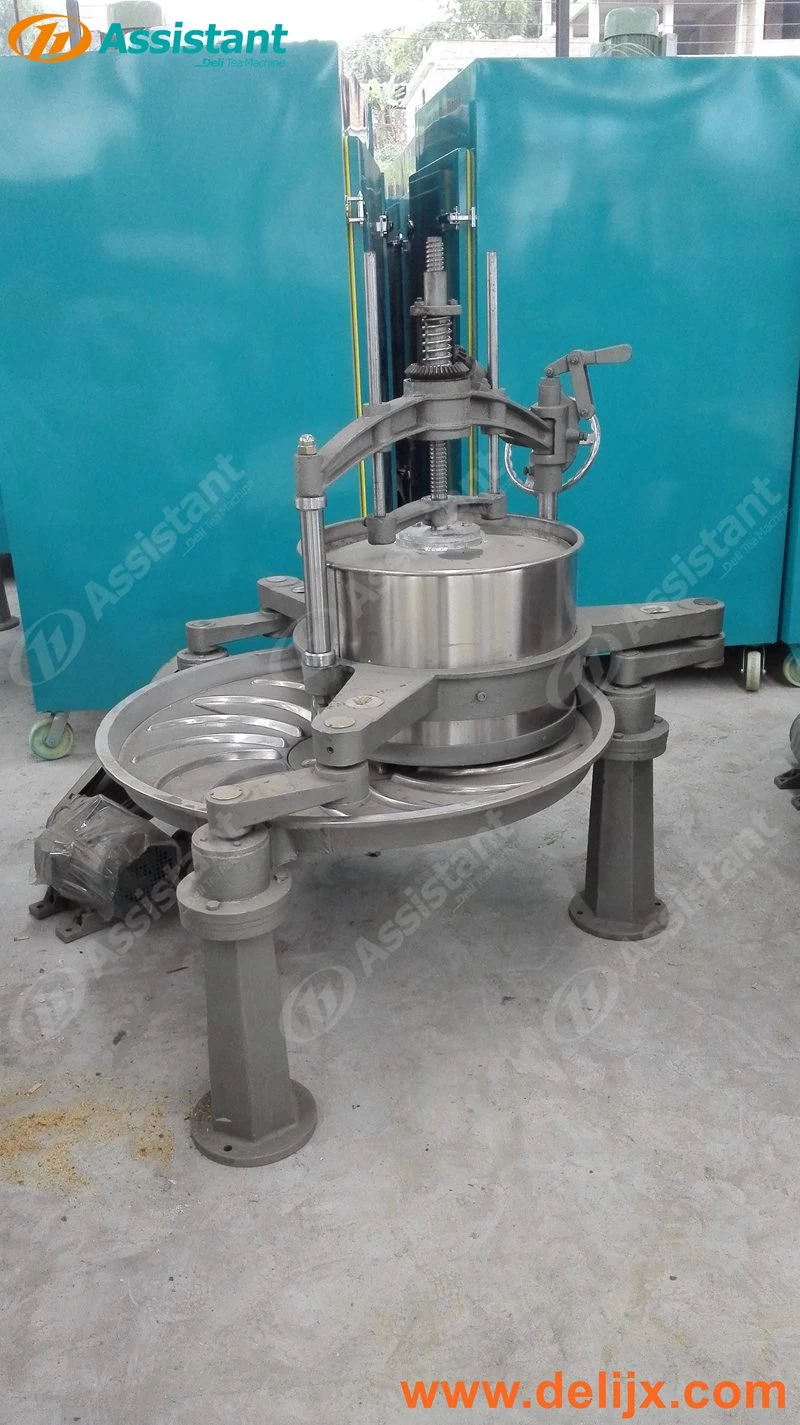

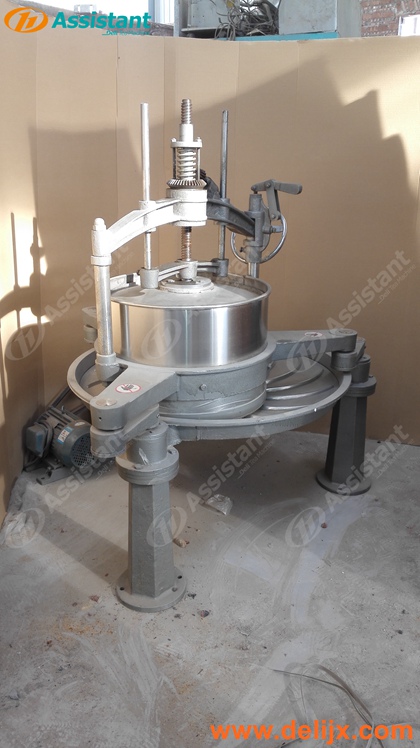

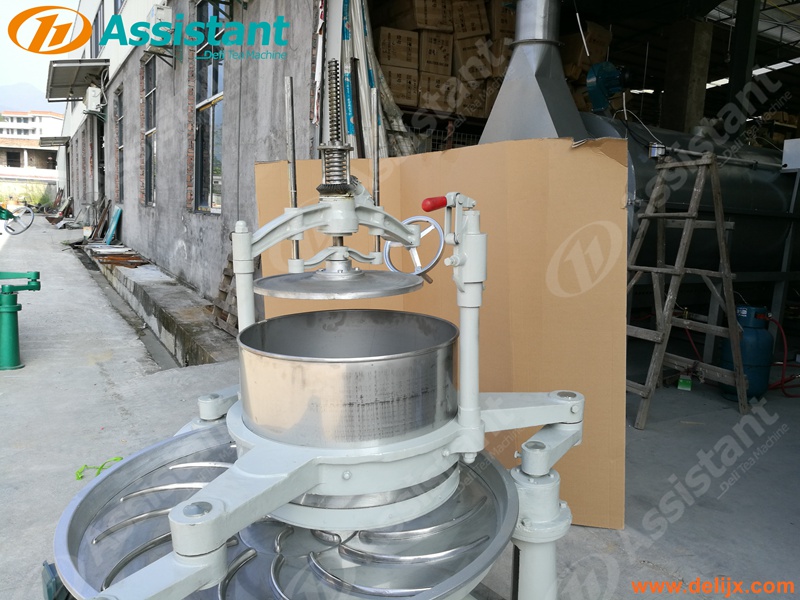

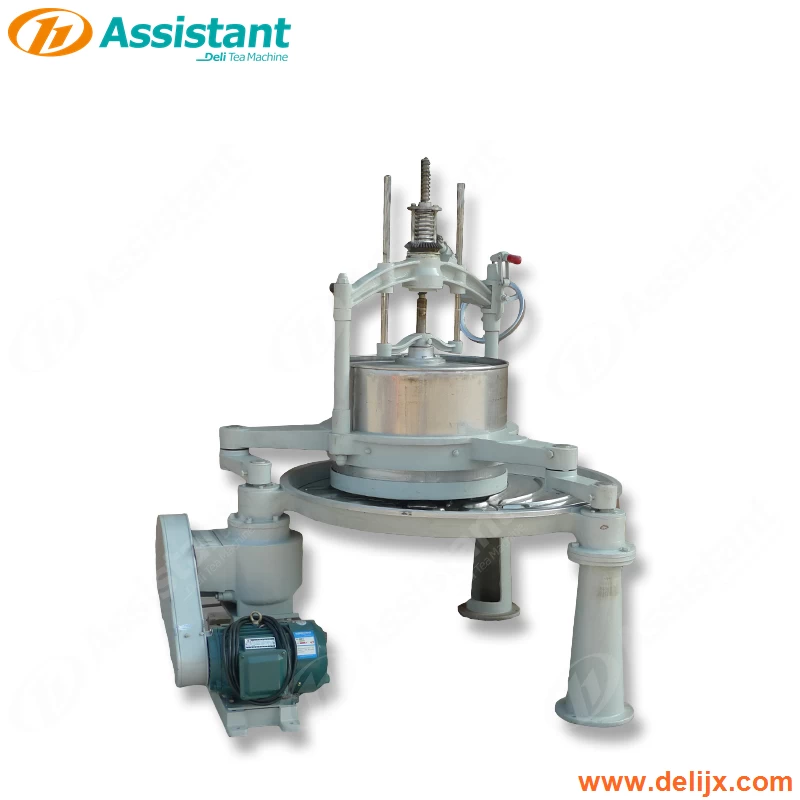

DL-6CRT-55 tea roller machine photos:
|
