1. Excellent heat insulation, heat preservation and energy saving;
2. Using calcium silicate board, increasing the heat preservation effect and meeting the food hygiene requirements;
3. Increased insulation of the front plate of the drum;
4. Intelligent temperature control system, easy to operate and precise control;
5. Hand and self-integration control, double guarantee;
6. Large feed inlet, easy to feed, and faster discharge. The dryness of the products coming out before and after is more uniform, the taper size is longer, and the material is not dropped;
7. The inner cylinder adopts a steel plate with a thickness of 2.5mm to prevent the deformation of the cylinder at high temperature. The work can store energy, less heat loss, smaller temperature change and more energy saving;
8. Use a controlled water vapor discharge system to save energy.

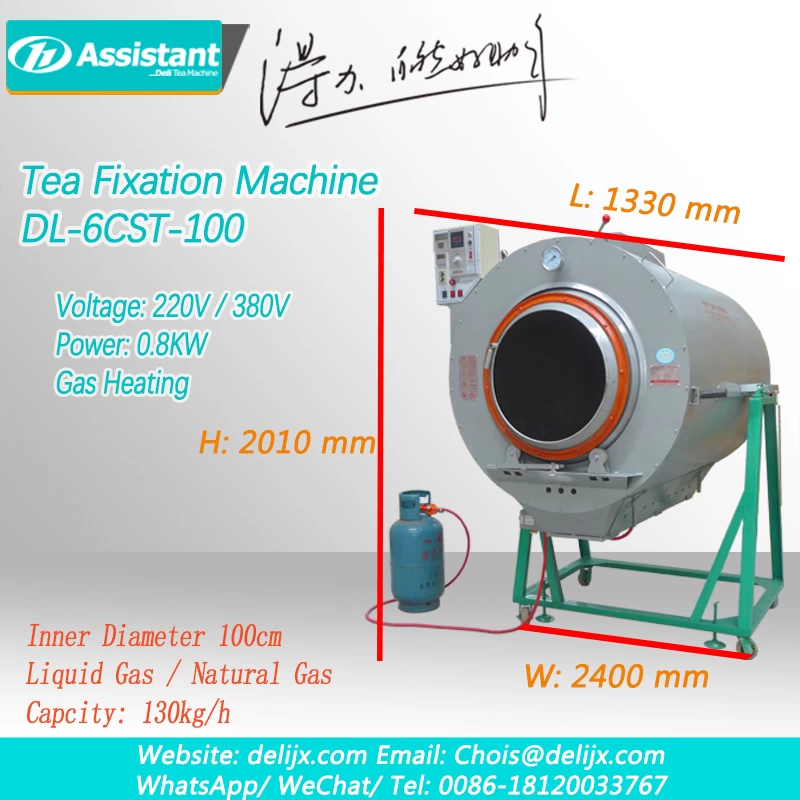

DL-6CST-100 tea leaf fixation machine specification:
|
Model
|
DL-6CST-100
|
|
Dimensions
|
1330×2400×2010 mm
|
|
Voltage
|
380/50 V/Hz
|
|
Inner barrel diameter
|
1000 mm
|
|
Inner barrel length
|
1250 mm
|
|
Drive motor
|
Power
|
0.75 KW
|
|
Speed
|
1400 rpm
|
|
Voltage
|
380 V
|
|
Exhaust fan
|
Power
|
85 W
|
|
Speed
|
2200 rpm
|
|
Voltage
|
220 V
|
|
Barrel speed
|
5-37 rpm
|
|
Heating type
|
Gas
|
|
Efficiency
|
130 kg/h
|
The above data is based on fresh tea leaf water content of 75-80%.
DL-6CST-100 tea leaf fixation machine decomposition diagram:
|
①
|
Electric control panel
|
⑦
|
Heat dissipating switch
|
②
|
Thermometer
|
⑧
|
Handle
|
③
|
Outer barrel
|
⑨
|
Balance bolt
|
④
|
Inner barrel
|
⑩
|
Shock absorber rod
|
⑤
|
nylon wheel
|
⑪
|
Combustion zone
|
⑥
|
Ignition switch
|
⑫
|
Support frame
|
|

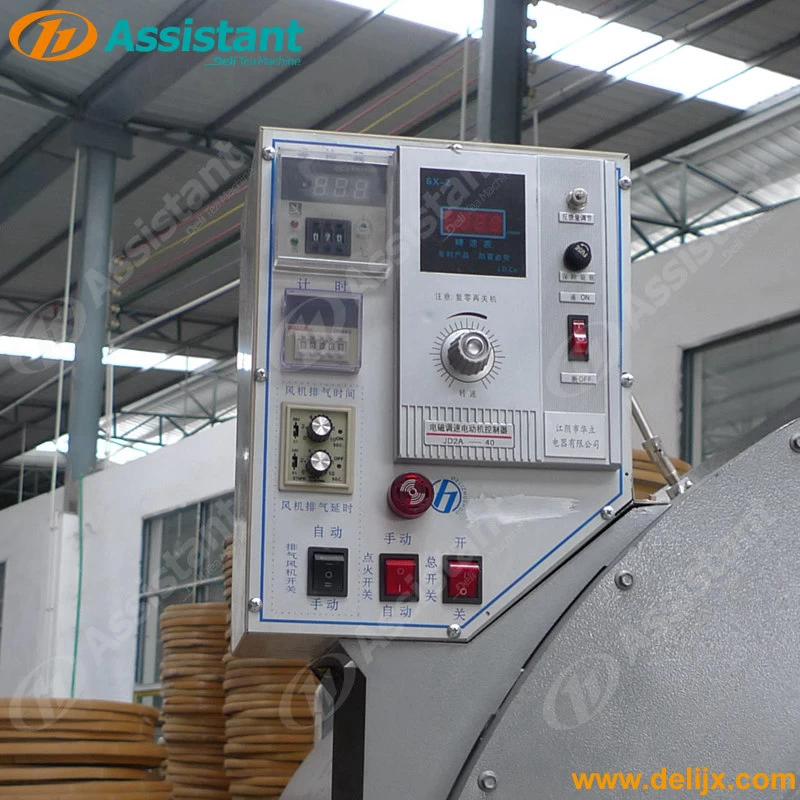

Integrated multifunctional electric control box
The first intelligent temperature control system in tea machinery industry
|
|
|
|
|

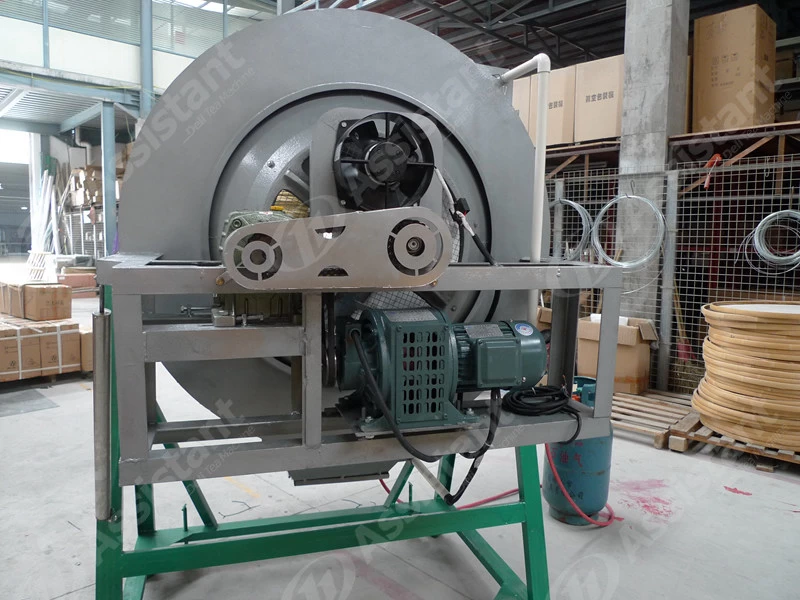

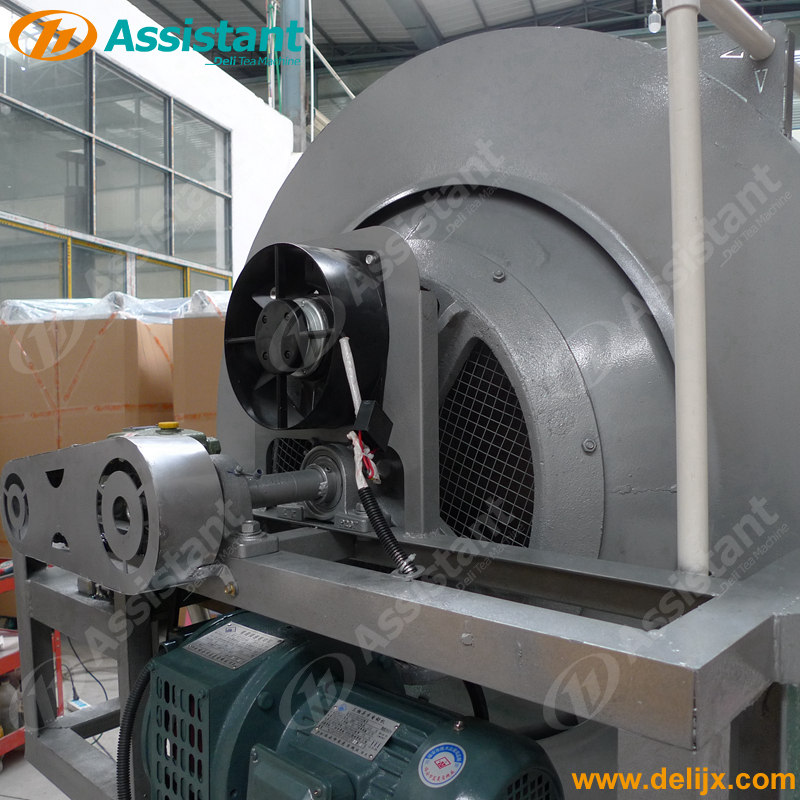

Copper core driving motor
|

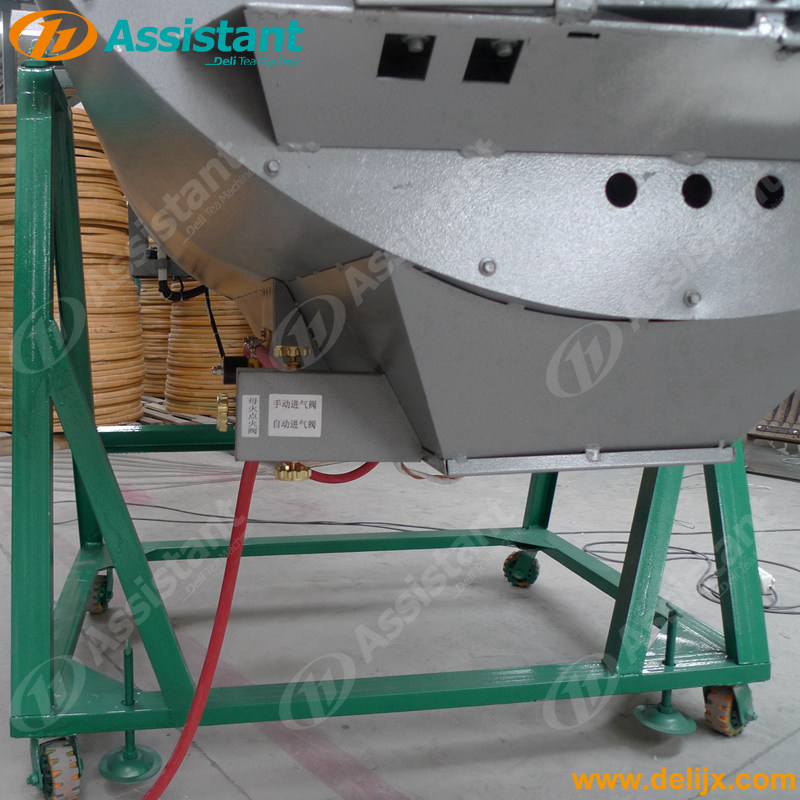

Gas-fired igniter
|
Shock absorber cylinder
|
|
|
"T" type gas burner
|
Calcium silicate board insulation layer
|
|

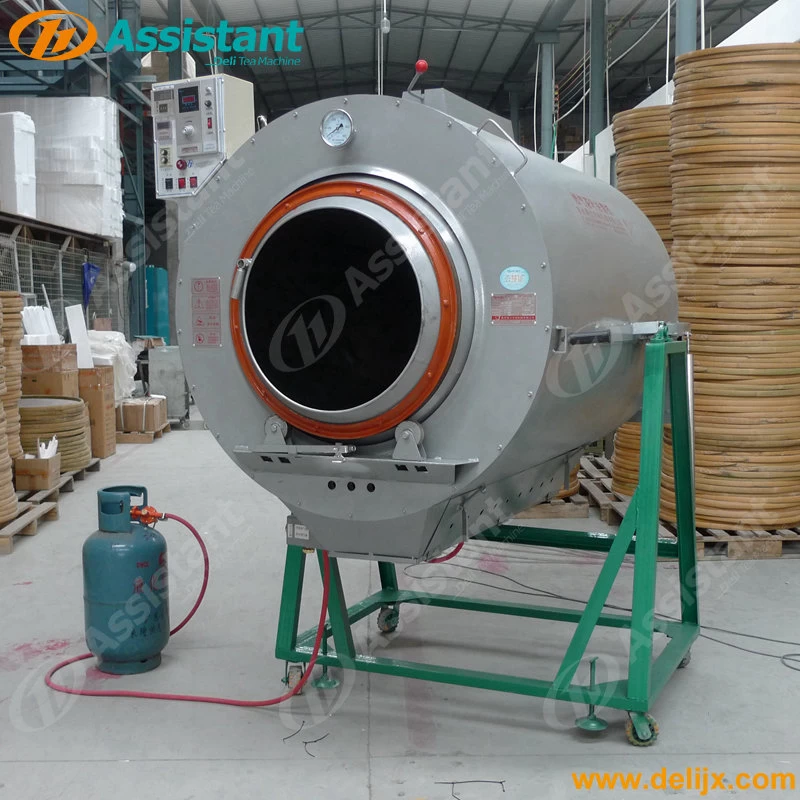

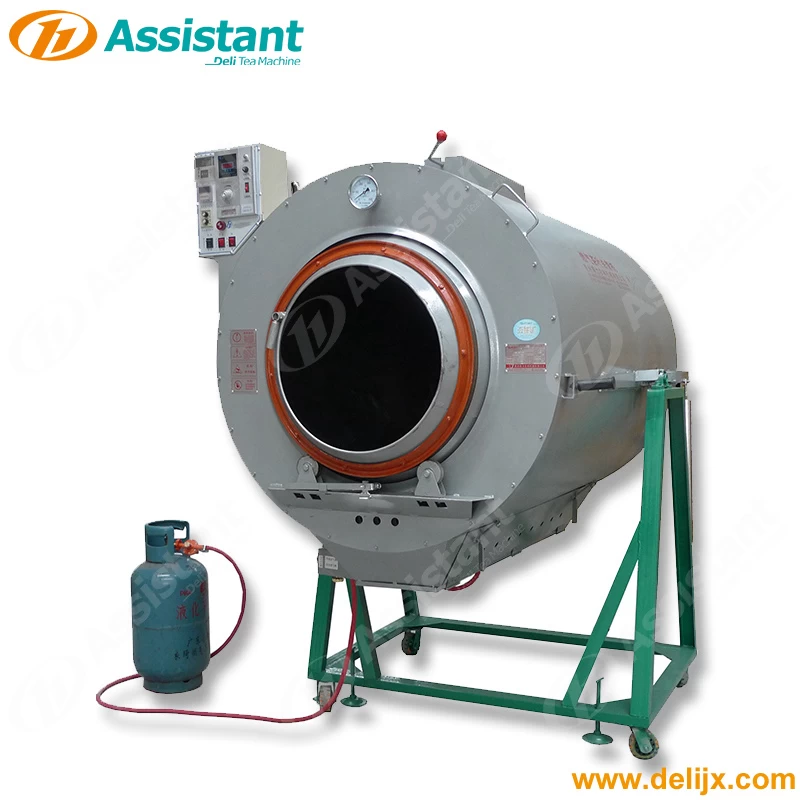

DL-6CST-90 gas heating tea fixing machine photos:
|
